TAO_AV_Callback for RTCP protocol. More...

#include <RTCP.h>

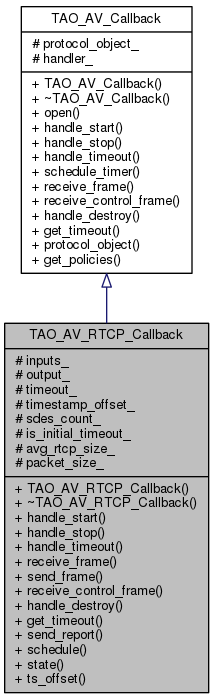

Inheritance diagram for TAO_AV_RTCP_Callback:

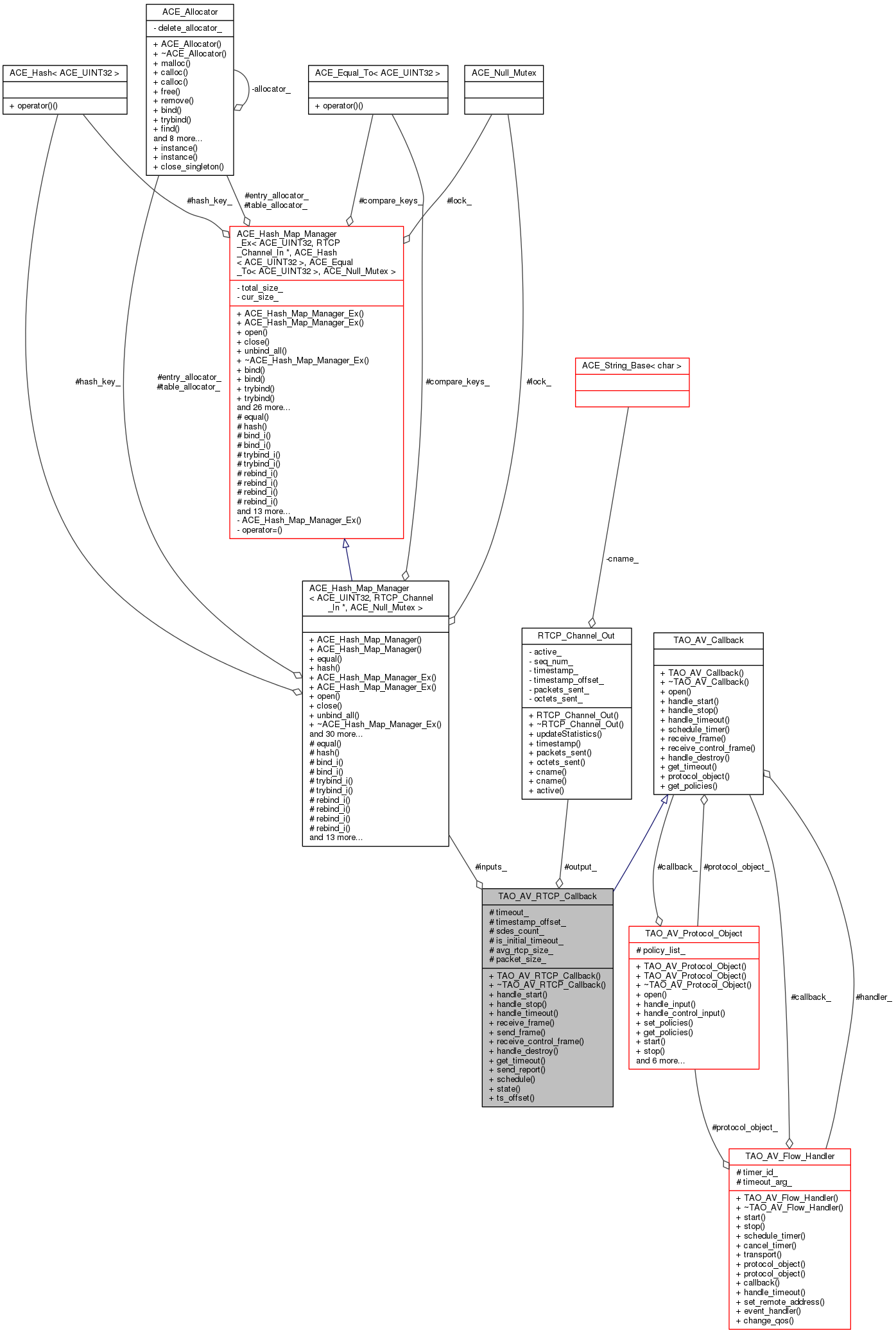

Collaboration diagram for TAO_AV_RTCP_Callback:

Public Member Functions
	TAO_AV_RTCP_Callback (void)
	RTCP callback. More...

virtual	~TAO_AV_RTCP_Callback (void)
	virtual destructor. More...

virtual int	handle_start (void)
	Called during Streamctrl->start. More...

virtual int	handle_stop (void)
	Called during Streamctrl->stop. More...

virtual int	handle_timeout (void *arg)
	Called during timeout for Flow Producers. More...

virtual int	receive_frame (ACE_Message_Block frame, TAO_AV_frame_info frame_info=0, const ACE_Addr &peer_address=ACE_Addr::sap_any)
	Called when a frame arrives for a FlowConsumer. More...

int	send_frame (ACE_Message_Block *frame)

virtual int	receive_control_frame (ACE_Message_Block *frame, const ACE_Addr &peer_address=ACE_Addr::sap_any)

virtual int	handle_destroy (void)

virtual void	get_timeout (ACE_Time_Value &tv, void &arg)

int	send_report (int bye)

void	schedule (int ms)

TAO_AV_RTP_State *	state (void)

void	ts_offset (ACE_UINT32 offset)

Public Member Functions inherited from TAO_AV_Callback
	TAO_AV_Callback (void)

virtual	~TAO_AV_Callback (void)

int	open (TAO_AV_Protocol_Object object, TAO_AV_Flow_Handler handler)
	Called for opening the callback. More...

virtual int	schedule_timer (void)

TAO_AV_Protocol_Object *	protocol_object (void)
	Accessor to protocol object. More...

virtual TAO_AV_PolicyList	get_policies (void)
	get the policies for the protocol object. More...

Protected Attributes
ACE_Hash_Map_Manager < ACE_UINT32, RTCP_Channel_In *, ACE_Null_Mutex >	inputs_

RTCP_Channel_Out	output_

int	timeout_

int	timestamp_offset_

int	sdes_count_

int	is_initial_timeout_

int	avg_rtcp_size_

int	packet_size_

Protected Attributes inherited from TAO_AV_Callback
TAO_AV_Protocol_Object *	protocol_object_

TAO_AV_Flow_Handler *	handler_

Detailed Description

TAO_AV_Callback for RTCP protocol.

Constructor & Destructor Documentation

TAO_AV_RTCP_Callback::TAO_AV_RTCP_Callback ( void )

RTCP callback.

TAO_AV_RTCP_Callback::~TAO_AV_RTCP_Callback ( void )

virtual

virtual destructor.

Member Function Documentation

void TAO_AV_RTCP_Callback::get_timeout	(	ACE_Time_Value *&	tv,
		void *&	arg
	)

virtual

Called to get the timeout. If tv is 0 then the framework stop calling this.

Reimplemented from TAO_AV_Callback.

int TAO_AV_RTCP_Callback::handle_destroy ( void )

virtual

Called during Streamctrl->destroy i.e tear_down of the stream @coryan:Call it handle_destroy or handle_close.

Reimplemented from TAO_AV_Callback.

int TAO_AV_RTCP_Callback::handle_start ( void )

virtual

Called during Streamctrl->start.

Reimplemented from TAO_AV_Callback.

int TAO_AV_RTCP_Callback::handle_stop ( void )

virtual

Called during Streamctrl->stop.

Reimplemented from TAO_AV_Callback.

int TAO_AV_RTCP_Callback::handle_timeout ( void * arg )

virtual

Called during timeout for Flow Producers.

Reimplemented from TAO_AV_Callback.

int TAO_AV_RTCP_Callback::receive_control_frame	(	ACE_Message_Block *	data,
		const ACE_Addr &	peer_address = `ACE_Addr::sap_any`
	)

virtual

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
All advertising materials mentioning features or use of this software must display the following acknowledgement: This product includes software developed by the University of California, Berkeley and the Network Research Group at Lawrence Berkeley Laboratory.
Neither the name of the University nor of the Laboratory may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Reimplemented from TAO_AV_Callback.

int TAO_AV_RTCP_Callback::receive_frame	(	ACE_Message_Block *	frame,
		TAO_AV_frame_info *	frame_info = `0`,
		const ACE_Addr &	peer_address = `ACE_Addr::sap_any`
	)

virtual

Called when a frame arrives for a FlowConsumer.

Reimplemented from TAO_AV_Callback.

void TAO_AV_RTCP_Callback::schedule ( int ms )

int TAO_AV_RTCP_Callback::send_frame ( ACE_Message_Block * frame )

int TAO_AV_RTCP_Callback::send_report ( int bye )

TAO_AV_RTP_State* TAO_AV_RTCP_Callback::state ( void )

void TAO_AV_RTCP_Callback::ts_offset ( ACE_UINT32 offset )

Member Data Documentation

int TAO_AV_RTCP_Callback::avg_rtcp_size_

protected

ACE_Hash_Map_Manager<ACE_UINT32, RTCP_Channel_In*, ACE_Null_Mutex> TAO_AV_RTCP_Callback::inputs_

protected

int TAO_AV_RTCP_Callback::is_initial_timeout_

protected

RTCP_Channel_Out TAO_AV_RTCP_Callback::output_

protected

int TAO_AV_RTCP_Callback::packet_size_

protected

int TAO_AV_RTCP_Callback::sdes_count_

protected

int TAO_AV_RTCP_Callback::timeout_

protected

int TAO_AV_RTCP_Callback::timestamp_offset_

protected

The documentation for this class was generated from the following files:
