#include <RepositoryManager_Impl.h>

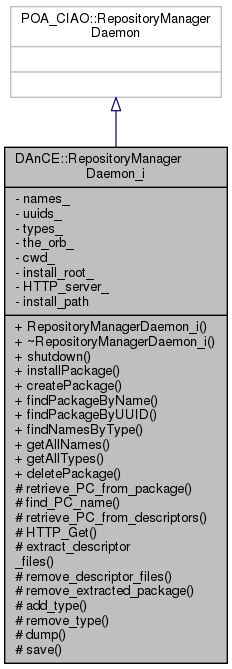

Inheritance diagram for DAnCE::RepositoryManagerDaemon_i:

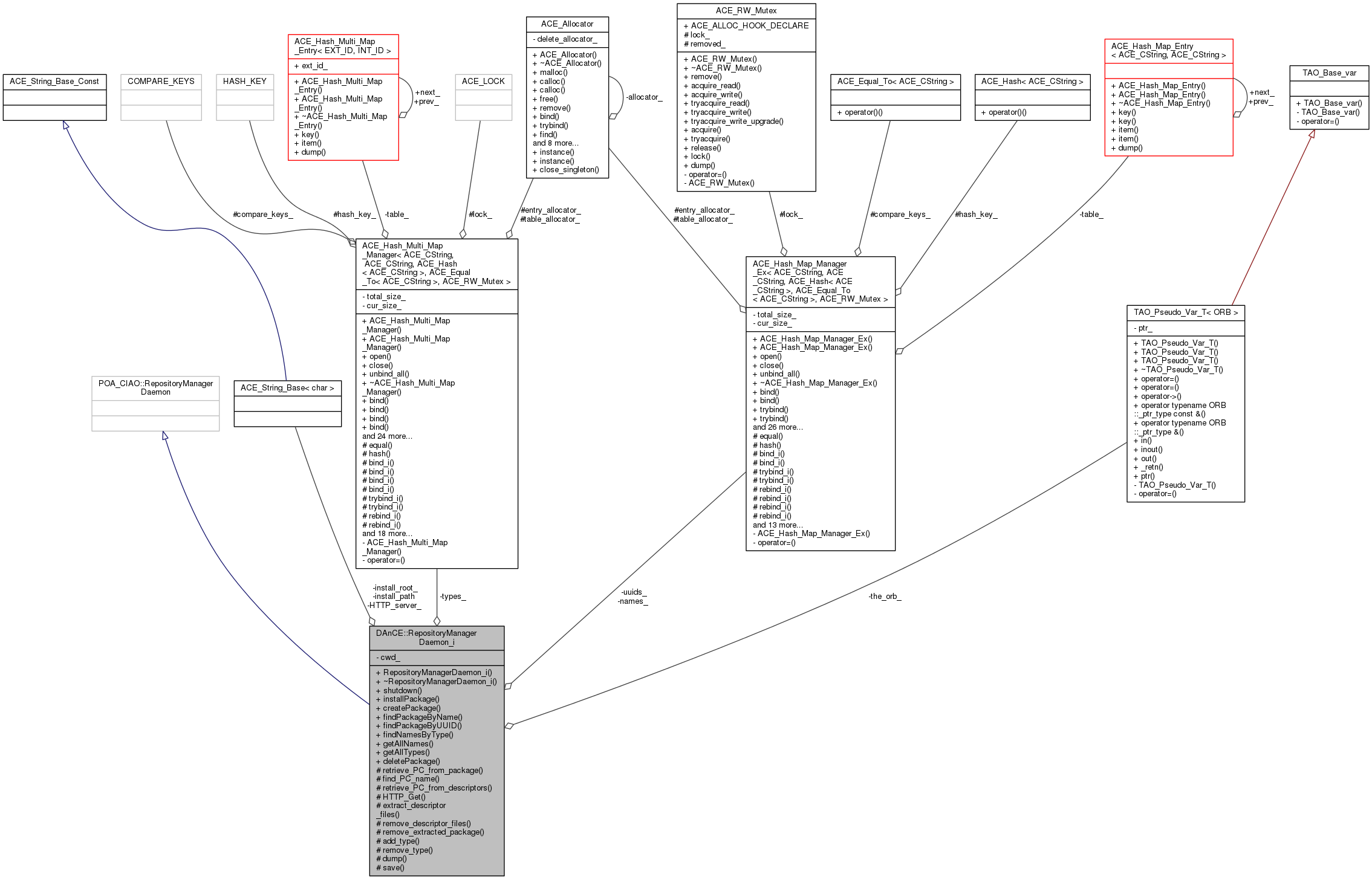

Collaboration diagram for DAnCE::RepositoryManagerDaemon_i:

Public Member Functions
	RepositoryManagerDaemon_i (CORBA::ORB_ptr the_orb, const ACE_TCHAR server=ACE_TEXT("localhost:5432"), const ACE_TCHAR install_dir=ACE_TEXT("RepositoryManager"))
	Constructor. More...

virtual	~RepositoryManagerDaemon_i (void)
	Destructor. More...

virtual void	shutdown ()

virtual void	installPackage (const ACE_TCHAR installationName, const ACE_TCHAR location,::CORBA::Boolean replace)

virtual void	createPackage (const ACE_TCHAR installationName, const ::Deployment::PackageConfiguration &package, const ACE_TCHAR baseLocation,::CORBA::Boolean replace)

virtual ::Deployment::PackageConfiguration *	findPackageByName (const ACE_TCHAR *name)

virtual ::Deployment::PackageConfiguration *	findPackageByUUID (const ACE_TCHAR *UUID)

virtual ::CORBA::StringSeq *	findNamesByType (const ACE_TCHAR *type)

virtual ::CORBA::StringSeq *	getAllNames ()

virtual ::CORBA::StringSeq *	getAllTypes ()

virtual void	deletePackage (const ACE_TCHAR *installationName)

Protected Member Functions
Deployment::PackageConfiguration *	retrieve_PC_from_package (ACE_TCHAR *package)

void	find_PC_name (ACE_TCHAR *package, ACE_CString &pcd_name)
	Find out what the name of the PackageConfiguration file is. More...

Deployment::PackageConfiguration *	retrieve_PC_from_descriptors (const ACE_TCHAR pc_name, const ACE_TCHAR descriptor_dir)

int	HTTP_Get (const ACE_TCHAR *URL, ACE_Message_Block &mb)

int	extract_descriptor_files (ACE_TCHAR *package, ACE_CString &pcd_name)

int	remove_descriptor_files (ACE_TCHAR *package)

retval on success retval on error *int	remove_extracted_package (const ACE_TCHAR *package_path)

int	add_type (::Deployment::PackageConfiguration &pc, const ACE_TCHAR *name)

int	remove_type (::Deployment::PackageConfiguration &pc, const ACE_TCHAR *name)

void	dump (void)
	Function to dump the state of the RepositoryManager. More...

void	save (void)
	Function to save the package info of the RepositoryManager. More...

Private Types
typedef ACE_Hash_Map_Manager_Ex < ACE_CString, ACE_CString, ACE_Hash< ACE_CString > , ACE_Equal_To< ACE_CString > , ACE_RW_Mutex >	PCMap

typedef PCMap::ITERATOR	PCMap_Iterator

typedef PCMap::ENTRY	PCEntry

typedef ACE_Hash_Multi_Map_Manager < ACE_CString, ACE_CString, ACE_Hash< ACE_CString > , ACE_Equal_To< ACE_CString > , ACE_RW_Mutex >	CIMap

typedef CIMap::ITERATOR	CIMap_Iterator

typedef CIMap::ENTRY	CIEntry

typedef CIEntry::VALUE_SET	CISet

typedef CIEntry::VALUE_SET_ITERATOR	CISet_Iterator

Private Attributes
PCMap	names_

PCMap	uuids_

CIMap	types_

CORBA::ORB_var	the_orb_
	The ORB. More...

ACE_TCHAR	cwd_ [TEMP_LEN]
	Will hold the current working directory. More...

ACE_CString	install_root_
	Full path for the install directory. More...

ACE_CString	HTTP_server_
	Location of the server. More...

ACE_CString	install_path
	Directory where the packages will be stored locally. More...

Member Typedef Documentation

typedef CIMap::ENTRY DAnCE::RepositoryManagerDaemon_i::CIEntry

private

typedef ACE_Hash_Multi_Map_Manager<ACE_CString, ACE_CString, ACE_Hash<ACE_CString>, ACE_Equal_To<ACE_CString>, ACE_RW_Mutex> DAnCE::RepositoryManagerDaemon_i::CIMap

private

Cached information about the installed Component Interfaces A map which associates Component supportedType with the names of packages which implement this component type Key: Component supportedType Value: Unbounded set of the names of installed packages which implement this component type Based on the synchronization needed we can parametrize this with either ACE_Null_Mutex or ACE_RW_Mutex

typedef CIMap::ITERATOR DAnCE::RepositoryManagerDaemon_i::CIMap_Iterator

private

typedef CIEntry::VALUE_SET DAnCE::RepositoryManagerDaemon_i::CISet

private

typedef CIEntry::VALUE_SET_ITERATOR DAnCE::RepositoryManagerDaemon_i::CISet_Iterator

private

typedef PCMap::ENTRY DAnCE::RepositoryManagerDaemon_i::PCEntry

private

typedef ACE_Hash_Map_Manager_Ex<ACE_CString, ACE_CString, ACE_Hash<ACE_CString>, ACE_Equal_To<ACE_CString>, ACE_RW_Mutex> DAnCE::RepositoryManagerDaemon_i::PCMap

private

Cached information about the installed PackageConfigurations A separate map for the installation names and their UUID's Key: PackageConfiguration name or its UUID (CString type) Value: The location of the local copy of the package Based on the synchronization needed we can parametrize this with either ACE_Null_Mutex or ACE_RW_Mutex

typedef PCMap::ITERATOR DAnCE::RepositoryManagerDaemon_i::PCMap_Iterator

private

Constructor & Destructor Documentation

DAnCE::RepositoryManagerDaemon_i::RepositoryManagerDaemon_i	(	CORBA::ORB_ptr	the_orb,
		const ACE_TCHAR *	server = `ACE_TEXT("localhost:5432")`,
		const ACE_TCHAR *	install_dir = `ACE_TEXT("RepositoryManager")`
	)

Constructor.

DAnCE::RepositoryManagerDaemon_i::~RepositoryManagerDaemon_i ( void )

virtual

Destructor.

Member Function Documentation

int DAnCE::RepositoryManagerDaemon_i::add_type	(	::Deployment::PackageConfiguration &	pc,
		const ACE_TCHAR *	name
	)

protected

Function to extract the type of the component from the PackageConfiguration and update the interface map

Return values

1	on success
0	on error

void DAnCE::RepositoryManagerDaemon_i::createPackage	(	const ACE_TCHAR *	installationName,
		const ::Deployment::PackageConfiguration &	package,
		const ACE_TCHAR *	baseLocation,
		::CORBA::Boolean	replace
	)

virtual

void DAnCE::RepositoryManagerDaemon_i::deletePackage ( const ACE_TCHAR * installationName )

virtual

void DAnCE::RepositoryManagerDaemon_i::dump ( void )

protected

Function to dump the state of the RepositoryManager.

int DAnCE::RepositoryManagerDaemon_i::extract_descriptor_files	(	ACE_TCHAR *	package,
		ACE_CString &	pcd_name
	)

protected

Function to extract all necessary files for parsing the PackageConfiguration descriptor and populating the idl struct.

Return values

1	success
0	error

Note: ACE_CString& pcd_name is an out parameter

void DAnCE::RepositoryManagerDaemon_i::find_PC_name	(	ACE_TCHAR *	package,
		ACE_CString &	pcd_name
	)

protected

Find out what the name of the PackageConfiguration file is.

CORBA::StringSeq * DAnCE::RepositoryManagerDaemon_i::findNamesByType ( const ACE_TCHAR * type )

Deployment::PackageConfiguration * DAnCE::RepositoryManagerDaemon_i::findPackageByName ( const ACE_TCHAR * name )

Deployment::PackageConfiguration * DAnCE::RepositoryManagerDaemon_i::findPackageByUUID ( const ACE_TCHAR * UUID )

CORBA::StringSeq * DAnCE::RepositoryManagerDaemon_i::getAllNames ( )

CORBA::StringSeq * DAnCE::RepositoryManagerDaemon_i::getAllTypes ( )

int DAnCE::RepositoryManagerDaemon_i::HTTP_Get	(	const ACE_TCHAR *	URL,
		ACE_Message_Block &	mb
	)

protected

Function to retrieve a file via HTTP stores the file in the passed preallocated ACE_Message_Block

Return values

1	success
0	error

void DAnCE::RepositoryManagerDaemon_i::installPackage	(	const ACE_TCHAR *	installationName,
		const ACE_TCHAR *	location,
		::CORBA::Boolean	replace
	)

virtual

int DAnCE::RepositoryManagerDaemon_i::remove_descriptor_files ( ACE_TCHAR * package )

protected

Function to remove the files extracted for parsing the PackageConfiguration descriptor and populating the idl struct. It reads the names of the files from the package. They correspond to the names on disk.

Return values

1	on success
0	on error

int DAnCE::RepositoryManagerDaemon_i::remove_extracted_package ( const ACE_TCHAR * package_path )

protected

Function to remove the files extracted from the package upon istallation It reads the names of the files from the package. They correspond to the names on disk. It deletes each file, then it deletes the directories that contain them.

Note: extraction location is path/*archive_name

int DAnCE::RepositoryManagerDaemon_i::remove_type	(	::Deployment::PackageConfiguration &	pc,
		const ACE_TCHAR *	name
	)

protected

Function to remove the interface type of the component being removed from the interface map

Return values

1	on success
0	on error

Deployment::PackageConfiguration * DAnCE::RepositoryManagerDaemon_i::retrieve_PC_from_descriptors	(	const ACE_TCHAR *	pc_name,
		const ACE_TCHAR *	descriptor_dir
	)

protected

Function to parse and return the PackageConfiguration from the already extracted descriptor files

Deployment::PackageConfiguration * DAnCE::RepositoryManagerDaemon_i::retrieve_PC_from_package ( ACE_TCHAR * package )

protected

Function to parse and return the PackageConfiguration from a specified package

void DAnCE::RepositoryManagerDaemon_i::save ( void )

protected

Function to save the package info of the RepositoryManager.

void DAnCE::RepositoryManagerDaemon_i::shutdown ( )

virtual

Member Data Documentation

ACE_TCHAR DAnCE::RepositoryManagerDaemon_i::cwd_[TEMP_LEN]

private

Will hold the current working directory.

ACE_CString DAnCE::RepositoryManagerDaemon_i::HTTP_server_

private

Location of the server.

ACE_CString DAnCE::RepositoryManagerDaemon_i::install_path

private

Directory where the packages will be stored locally.

ACE_CString DAnCE::RepositoryManagerDaemon_i::install_root_

private

Full path for the install directory.

PCMap DAnCE::RepositoryManagerDaemon_i::names_

private

A hash map that associates the names of PackageConfigurations with their location

CORBA::ORB_var DAnCE::RepositoryManagerDaemon_i::the_orb_

private

The ORB.

CIMap DAnCE::RepositoryManagerDaemon_i::types_

private

a hash map which associates Component Interface UUIDs with their implementations

PCMap DAnCE::RepositoryManagerDaemon_i::uuids_

private

a hash map that associates the UUIDs of PackageConfigurations with their location

The documentation for this class was generated from the following files:
