ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER > Class Template Reference

Defines a map implementation. More...

#include <Map_T.h>

Inheritance diagram for ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >:
Inheritance graph
[legend]

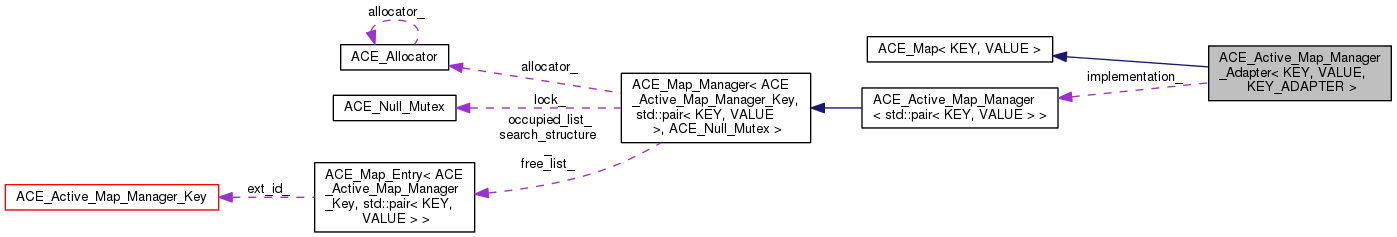

Collaboration diagram for ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >:
Collaboration graph
[legend]

Public Types

typedef std::pair< KEY, VALUE > expanded_value

typedef
ACE_Active_Map_Manager_Iterator_Adapter
< ACE_Reference_Pair< const
KEY, VALUE >, expanded_value
iterator_impl

typedef
ACE_Active_Map_Manager_Reverse_Iterator_Adapter
< ACE_Reference_Pair< const
KEY, VALUE >, expanded_value
reverse_iterator_impl

typedef ACE_Active_Map_Manager
< expanded_value
implementation

- Public Types inherited from ACE_Map< KEY, VALUE >
typedef KEY key_type

typedef VALUE mapped_type

typedef ACE_Reference_Pair
< const KEY, VALUE >
value_type

typedef ACE_Iterator< value_typeiterator

typedef ACE_Reverse_Iterator
< value_type
reverse_iterator

typedef ACE_Iterator_Impl
< value_type
iterator_implementation

typedef
ACE_Reverse_Iterator_Impl
< value_type
reverse_iterator_implementation


Public Member Functions

 ACE_Active_Map_Manager_Adapter (ACE_Allocator *alloc=0)
 Initialize with the ACE_DEFAULT_MAP_SIZE. More...

 ACE_Active_Map_Manager_Adapter (size_t size, ACE_Allocator *alloc=0)

virtual ~ACE_Active_Map_Manager_Adapter (void)
 Close down and release dynamically allocated resources. More...

virtual int open (size_t length=ACE_DEFAULT_MAP_SIZE, ACE_Allocator *alloc=0)
 Initialize a Map with size length. More...

virtual int close (void)
 Close down a Map and release dynamically allocated resources. More...

virtual int bind (const KEY &key, const VALUE &value)

virtual int bind_modify_key (const VALUE &value, KEY &key)

virtual int create_key (KEY &key)

virtual int bind_create_key (const VALUE &value, KEY &key)

virtual int bind_create_key (const VALUE &value)

virtual int recover_key (const KEY &modified_key, KEY &original_key)

virtual int rebind (const KEY &key, const VALUE &value)

virtual int rebind (const KEY &key, const VALUE &value, VALUE &old_value)

virtual int rebind (const KEY &key, const VALUE &value, KEY &old_key, VALUE &old_value)

virtual int trybind (const KEY &key, VALUE &value)

virtual int find (const KEY &key, VALUE &value)
 Locate value associated with key. More...

virtual int find (const KEY &key)
 Is key in the map? More...

virtual int unbind (const KEY &key)
 Remove key from the map. More...

virtual int unbind (const KEY &key, VALUE &value)

virtual size_t current_size (void) const
 Return the current size of the map. More...

virtual size_t total_size (void) const
 Return the total size of the map. More...

virtual void dump (void) const
 Dump the state of an object. More...

ACE_Active_Map_Manager
< std::pair< KEY, VALUE > > &
impl (void)
 Accessor to implementation object. More...

KEY_ADAPTER & key_adapter (void)
 Accessor to key adapter. More...

- Public Member Functions inherited from ACE_Map< KEY, VALUE >
virtual ~ACE_Map (void)
 Close down and release dynamically allocated resources. More...

iterator begin (void)
 Return forward iterator. More...

iterator end (void)

reverse_iterator rbegin (void)
 Return reverse iterator. More...

reverse_iterator rend (void)


Protected Member Functions

virtual int find (const KEY &key, expanded_value *&internal_value)
 Find helper. More...

virtual int unbind (const KEY &key, expanded_value *&internal_value)
 Unbind helper. More...

virtual ACE_Iterator_Impl
< ACE_Reference_Pair< const
KEY, VALUE > > *
begin_impl (void)
 Return forward iterator. More...

virtual ACE_Iterator_Impl
< ACE_Reference_Pair< const
KEY, VALUE > > *
end_impl (void)

virtual
ACE_Reverse_Iterator_Impl
< ACE_Reference_Pair< const
KEY, VALUE > > *
rbegin_impl (void)
 Return reverse iterator. More...

virtual
ACE_Reverse_Iterator_Impl
< ACE_Reference_Pair< const
KEY, VALUE > > *
rend_impl (void)

- Protected Member Functions inherited from ACE_Map< KEY, VALUE >
 ACE_Map (void)


Protected Attributes

ACE_Active_Map_Manager
< std::pair< KEY, VALUE > >
implementation_
 All implementation details are forwarded to this class. More...

KEY_ADAPTER key_adapter_
 Adapts between the user key and the Active_Map_Manager_Key. More...


Private Member Functions

void operator= (const ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER > &)

 ACE_Active_Map_Manager_Adapter (const ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER > &)


Detailed Description

template<class KEY, class VALUE, class KEY_ADAPTER>
class ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >

Defines a map implementation.

Implementation to be provided by <ACE_Active_Map_Manager>.

Member Typedef Documentation

template<class KEY , class VALUE , class KEY_ADAPTER >
typedef std::pair<KEY, VALUE> ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::expanded_value
template<class KEY , class VALUE , class KEY_ADAPTER >
typedef ACE_Active_Map_Manager<expanded_value> ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::implementation
template<class KEY , class VALUE , class KEY_ADAPTER >
typedef ACE_Active_Map_Manager_Iterator_Adapter<ACE_Reference_Pair<const KEY, VALUE>, expanded_value> ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::iterator_impl
template<class KEY , class VALUE , class KEY_ADAPTER >
typedef ACE_Active_Map_Manager_Reverse_Iterator_Adapter<ACE_Reference_Pair<const KEY, VALUE>, expanded_value> ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::reverse_iterator_impl

Constructor & Destructor Documentation

template<class KEY , class VALUE , class KEY_ADAPTER >
ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::ACE_Active_Map_Manager_Adapter ( ACE_Allocator alloc = 0)
inline

Initialize with the ACE_DEFAULT_MAP_SIZE.

template<class KEY , class VALUE , class KEY_ADAPTER >
ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::ACE_Active_Map_Manager_Adapter ( size_t  size,
ACE_Allocator alloc = 0
)
inline

Initialize with size entries. The size parameter is ignored by maps for which an initialize size does not make sense.

template<class KEY , class VALUE , class KEY_ADAPTER >
ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::~ACE_Active_Map_Manager_Adapter ( void  )
virtual

Close down and release dynamically allocated resources.

template<class KEY , class VALUE , class KEY_ADAPTER >
ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::ACE_Active_Map_Manager_Adapter ( const ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER > &  )
private

Member Function Documentation

template<class KEY , class VALUE , class KEY_ADAPTER >
ACE_Iterator_Impl< ACE_Reference_Pair< const KEY, VALUE > > * ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::begin_impl ( void  )
protectedvirtual

Return forward iterator.

Implements ACE_Map< KEY, VALUE >.

template<class KEY , class VALUE , class KEY_ADAPTER >
int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::bind ( const KEY &  key,
const VALUE &  value
)
virtual

Add key / value pair to the map. If key is already in the map then no changes are made and 1 is returned. Returns 0 on a successful addition. This function fails for maps that do not allow user specified keys. key is an "in" parameter.

Implements ACE_Map< KEY, VALUE >.

template<class KEY , class VALUE , class KEY_ADAPTER >
int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::bind_create_key ( const VALUE &  value,
KEY &  key
)
virtual

Add value to the map, and the corresponding key produced by the Map is returned through key which is an "out" parameter. For maps that do not naturally produce keys, the map adapters will use the KEY_GENERATOR class to produce a key. However, the users are responsible for not jeopardizing this key production scheme by using user specified keys with keys produced by the key generator.

Implements ACE_Map< KEY, VALUE >.

template<class KEY , class VALUE , class KEY_ADAPTER >
int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::bind_create_key ( const VALUE &  value)
virtual

Add value to the map. The user does not care about the corresponding key produced by the Map. For maps that do not naturally produce keys, the map adapters will use the KEY_GENERATOR class to produce a key. However, the users are responsible for not jeopardizing this key production scheme by using user specified keys with keys produced by the key generator.

Implements ACE_Map< KEY, VALUE >.

template<class KEY , class VALUE , class KEY_ADAPTER >
int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::bind_modify_key ( const VALUE &  value,
KEY &  key
)
virtual

Add key / value pair to the map. key is an "inout" parameter and maybe modified/extended by the map to add additional information. To recover original key, call the recover_key() method.

Implements ACE_Map< KEY, VALUE >.

template<class KEY , class VALUE , class KEY_ADAPTER >
int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::close ( void  )
virtual

Close down a Map and release dynamically allocated resources.

Implements ACE_Map< KEY, VALUE >.

template<class KEY , class VALUE , class KEY_ADAPTER >
int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::create_key ( KEY &  key)
virtual

Produce a key and return it through key which is an "out" parameter. For maps that do not naturally produce keys, the map adapters will use the KEY_GENERATOR class to produce a key. However, the users are responsible for not jeopardizing this key production scheme by using user specified keys with keys produced by the key generator.

Implements ACE_Map< KEY, VALUE >.

template<class KEY , class VALUE , class KEY_ADAPTER >
size_t ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::current_size ( void  ) const
virtual

Return the current size of the map.

Implements ACE_Map< KEY, VALUE >.

template<class KEY , class VALUE , class KEY_ADAPTER >
void ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::dump ( void  ) const
virtual

Dump the state of an object.

Implements ACE_Map< KEY, VALUE >.

template<class KEY , class VALUE , class KEY_ADAPTER >
ACE_Iterator_Impl< ACE_Reference_Pair< const KEY, VALUE > > * ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::end_impl ( void  )
protectedvirtual

Implements ACE_Map< KEY, VALUE >.

template<class KEY , class VALUE , class KEY_ADAPTER >
int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::find ( const KEY &  key,
VALUE &  value
)
virtual

Locate value associated with key.

Implements ACE_Map< KEY, VALUE >.

template<class KEY , class VALUE , class KEY_ADAPTER >
int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::find ( const KEY &  key)
virtual

Is key in the map?

Implements ACE_Map< KEY, VALUE >.

template<class KEY , class VALUE , class KEY_ADAPTER >
int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::find ( const KEY &  key,
expanded_value *&  internal_value
)
protectedvirtual

Find helper.

template<class KEY , class VALUE , class KEY_ADAPTER >
ACE_Active_Map_Manager< std::pair< KEY, VALUE > > & ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::impl ( void  )
inline

Accessor to implementation object.

template<class KEY , class VALUE , class KEY_ADAPTER >
KEY_ADAPTER & ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::key_adapter ( void  )
inline

Accessor to key adapter.

template<class KEY , class VALUE , class KEY_ADAPTER >
int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::open ( size_t  length = ACE_DEFAULT_MAP_SIZE,
ACE_Allocator alloc = 0
)
virtual

Initialize a Map with size length.

Implements ACE_Map< KEY, VALUE >.

template<class KEY , class VALUE , class KEY_ADAPTER >
void ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::operator= ( const ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER > &  )
private
template<class KEY , class VALUE , class KEY_ADAPTER >
ACE_Reverse_Iterator_Impl< ACE_Reference_Pair< const KEY, VALUE > > * ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::rbegin_impl ( void  )
protectedvirtual

Return reverse iterator.

Implements ACE_Map< KEY, VALUE >.

template<class KEY , class VALUE , class KEY_ADAPTER >
int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::rebind ( const KEY &  key,
const VALUE &  value
)
virtual

Reassociate key with value. The function fails if key is not in the map for maps that do not allow user specified keys. However, for maps that allow user specified keys, if the key is not in the map, a new key / value association is created.

Implements ACE_Map< KEY, VALUE >.

template<class KEY , class VALUE , class KEY_ADAPTER >
int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::rebind ( const KEY &  key,
const VALUE &  value,
VALUE &  old_value
)
virtual

Reassociate key with value, storing the old value into the "out" parameter old_value. The function fails if key is not in the map for maps that do not allow user specified keys. However, for maps that allow user specified keys, if the key is not in the map, a new key / value association is created.

Implements ACE_Map< KEY, VALUE >.

template<class KEY , class VALUE , class KEY_ADAPTER >
int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::rebind ( const KEY &  key,
const VALUE &  value,
KEY &  old_key,
VALUE &  old_value
)
virtual

Reassociate key with value, storing the old key and value into the "out" parameters old_key and old_value. The function fails if key is not in the map for maps that do not allow user specified keys. However, for maps that allow user specified keys, if the key is not in the map, a new key / value association is created.

Implements ACE_Map< KEY, VALUE >.

template<class KEY , class VALUE , class KEY_ADAPTER >
int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::recover_key ( const KEY &  modified_key,
KEY &  original_key
)
virtual

Recovers the original key potentially modified by the map during bind_modify_key().

Implements ACE_Map< KEY, VALUE >.

template<class KEY , class VALUE , class KEY_ADAPTER >
ACE_Reverse_Iterator_Impl< ACE_Reference_Pair< const KEY, VALUE > > * ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::rend_impl ( void  )
protectedvirtual

Implements ACE_Map< KEY, VALUE >.

template<class KEY , class VALUE , class KEY_ADAPTER >
size_t ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::total_size ( void  ) const
virtual

Return the total size of the map.

Implements ACE_Map< KEY, VALUE >.

template<class KEY , class VALUE , class KEY_ADAPTER >
int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::trybind ( const KEY &  key,
VALUE &  value
)
virtual

Associate key with value if and only if key is not in the map. If key is already in the map, then the value parameter is overwritten with the existing value in the map. Returns 0 if a new key / value association is created. Returns 1 if an attempt is made to bind an existing entry. This function fails for maps that do not allow user specified keys.

Implements ACE_Map< KEY, VALUE >.

template<class KEY , class VALUE , class KEY_ADAPTER >
int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::unbind ( const KEY &  key)
virtual

Remove key from the map.

Implements ACE_Map< KEY, VALUE >.

template<class KEY , class VALUE , class KEY_ADAPTER >
int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::unbind ( const KEY &  key,
VALUE &  value
)
virtual

Remove key from the map, and return the value associated with key.

Implements ACE_Map< KEY, VALUE >.

template<class KEY , class VALUE , class KEY_ADAPTER >
int ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::unbind ( const KEY &  key,
expanded_value *&  internal_value
)
protectedvirtual

Unbind helper.

Member Data Documentation

template<class KEY , class VALUE , class KEY_ADAPTER >
ACE_Active_Map_Manager<std::pair<KEY, VALUE> > ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::implementation_
protected

All implementation details are forwarded to this class.

template<class KEY , class VALUE , class KEY_ADAPTER >
KEY_ADAPTER ACE_Active_Map_Manager_Adapter< KEY, VALUE, KEY_ADAPTER >::key_adapter_
protected

Adapts between the user key and the Active_Map_Manager_Key.


The documentation for this class was generated from the following files:
