ACE_SOCK_Dgram_Mcast_QoS Class Reference

Defines the member functions for the ACE QoS enabled socket wrapper for UDP/IP multicast. More...

#include <SOCK_Dgram_Mcast_QoS.h>

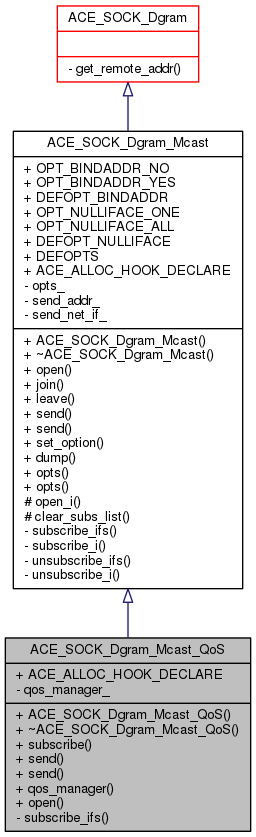

Inheritance diagram for ACE_SOCK_Dgram_Mcast_QoS:

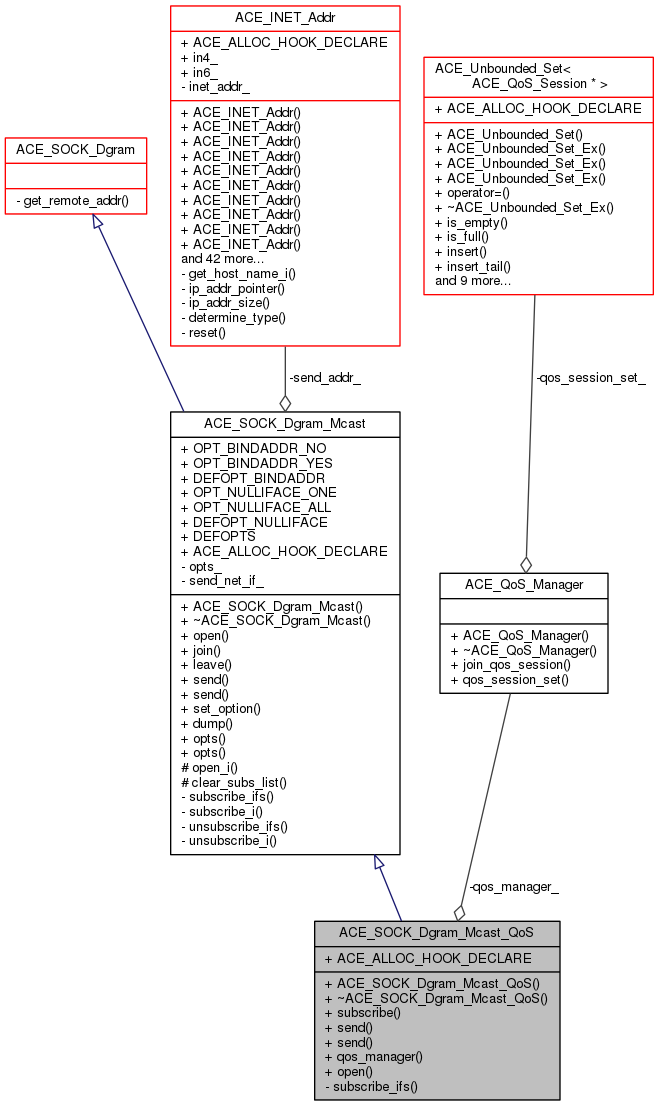

Collaboration diagram for ACE_SOCK_Dgram_Mcast_QoS:

Public Member Functions
	ACE_SOCK_Dgram_Mcast_QoS (options opts=DEFOPTS)
	Ctor, has same defaults as ACE_SOCK_Dgram_Mcast. More...
	~ACE_SOCK_Dgram_Mcast_QoS (void)
	Default dtor. More...
int	subscribe (const ACE_INET_Addr &mcast_addr, const ACE_QoS_Params &qos_params, int reuse_addr=1, const ACE_TCHAR *net_if=0, int protocol_family=PF_INET, int protocol=0, ACE_Protocol_Info *protocolinfo=0, ACE_SOCK_GROUP g=0, u_long flags=0, ACE_QoS_Session *qos_session=0)
ssize_t	send (const iovec buffers[], int buffer_count, size_t &number_of_bytes_sent, int flags, const ACE_Addr &addr, ACE_OVERLAPPED *overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
ssize_t	send (const void *buf, size_t n, const ACE_Addr &addr, int flags, ACE_OVERLAPPED *overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
	Send an n byte buf to the datagram socket (uses <WSASentTo>). More...
ACE_QoS_Manager	qos_manager (void)
	Returns the QoS manager for this socket. More...
int	open (const ACE_INET_Addr &addr, const ACE_QoS_Params &qos_params, int protocol_family=PF_INET, int protocol=0, ACE_Protocol_Info *protocolinfo=0, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0)
Public Member Functions inherited from ACE_SOCK_Dgram_Mcast
	ACE_SOCK_Dgram_Mcast (options opts=DEFOPTS)
	~ACE_SOCK_Dgram_Mcast (void)
int	open (const ACE_INET_Addr &mcast_addr, const ACE_TCHAR *net_if=0, int reuse_addr=1)
int	join (const ACE_INET_Addr &mcast_addr, int reuse_addr=1, const ACE_TCHAR *net_if=0)
int	leave (const ACE_INET_Addr &mcast_addr, const ACE_TCHAR *net_if=0)
ssize_t	send (const void *buf, size_t n, int flags=0) const
ssize_t	send (const iovec iov[], int n, int flags=0) const
int	set_option (int option, char optval)
void	dump (void) const
void	opts (int opts)
int	opts () const

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...
Public Attributes inherited from ACE_SOCK_Dgram_Mcast
	OPT_BINDADDR_NO
	OPT_BINDADDR_YES
	DEFOPT_BINDADDR
	OPT_NULLIFACE_ONE
	OPT_NULLIFACE_ALL
	DEFOPT_NULLIFACE
	DEFOPTS
	ACE_ALLOC_HOOK_DECLARE

Private Member Functions
int	subscribe_ifs (const ACE_INET_Addr &mcast_addr, const ACE_QoS_Params &qos_params, const ACE_TCHAR *net_if, int protocol_family, int protocol, int reuse_addr, ACE_Protocol_Info *protocolinfo)
	Subscribe to the multicast interface using QoS-enabled semantics. More...

Private Attributes
ACE_QoS_Manager	qos_manager_
	Manages the QoS sessions that this socket subscribes to. More...

Additional Inherited Members
Public Types inherited from ACE_SOCK_Dgram_Mcast
enum	options
Protected Member Functions inherited from ACE_SOCK_Dgram_Mcast
int	open_i (const ACE_INET_Addr &mcast_addr, const ACE_TCHAR *net_if=0, int reuse_addr=1)
int	clear_subs_list (void)

Detailed Description

Defines the member functions for the ACE QoS enabled socket wrapper for UDP/IP multicast.

Constructor & Destructor Documentation

ACE_SOCK_Dgram_Mcast_QoS::ACE_SOCK_Dgram_Mcast_QoS

(

options

opts = DEFOPTS

)

Ctor, has same defaults as ACE_SOCK_Dgram_Mcast.

ACE_SOCK_Dgram_Mcast_QoS::~ACE_SOCK_Dgram_Mcast_QoS ( void  )

inline

Default dtor.

Member Function Documentation

int ACE_SOCK_Dgram_Mcast_QoS::open	(	const ACE_INET_Addr &	addr,
		const ACE_QoS_Params &	qos_params,
		int	protocol_family = PF_INET,
		int	protocol = 0,
		ACE_Protocol_Info *	protocolinfo = 0,
		ACE_SOCK_GROUP	g = 0,
		u_long	flags = 0,
		int	reuse_addr = 0
	)

ACE_QoS_Manager ACE_SOCK_Dgram_Mcast_QoS::qos_manager ( void  )

inline

Returns the QoS manager for this socket.

ssize_t ACE_SOCK_Dgram_Mcast_QoS::send ( const iovec  buffers[], int  buffer_count, size_t &  number_of_bytes_sent, int  flags, const ACE_Addr &  addr, ACE_OVERLAPPED *  overlapped, ACE_OVERLAPPED_COMPLETION_FUNC  func  ) const

inline

Send <buffer_count> worth of buffers to addr using overlapped I/O (uses <WSASentTo>). Returns 0 on success.

ssize_t ACE_SOCK_Dgram_Mcast_QoS::send ( const void *  buf, size_t  n, const ACE_Addr &  addr, int  flags, ACE_OVERLAPPED *  overlapped, ACE_OVERLAPPED_COMPLETION_FUNC  func  ) const

inline

Send an n byte buf to the datagram socket (uses <WSASentTo>).

int ACE_SOCK_Dgram_Mcast_QoS::subscribe	(	const ACE_INET_Addr &	mcast_addr,
		const ACE_QoS_Params &	qos_params,
		int	reuse_addr = 1,
		const ACE_TCHAR *	net_if = 0,
		int	protocol_family = PF_INET,
		int	protocol = 0,
		ACE_Protocol_Info *	protocolinfo = 0,
		ACE_SOCK_GROUP	g = 0,
		u_long	flags = 0,
		ACE_QoS_Session *	qos_session = 0
	)

This is a QoS-enabled method for joining a multicast group, which passes <qos_params> via <ACE_OS::join_leaf>. The network interface device driver is instructed to accept datagrams with <mcast_addr> multicast addresses. If the socket has already been opened, <subscribe> closes the socket and opens a new socket bound to the <mcast_addr>. The session object specifies the QoS session that the socket wants to subscribe to. A socket may subscribe to multiple QoS sessions by calling this method multiple times with different session objects.

The <net_if> interface is hardware specific, e.g., use "netstat -i" to find whether your interface is, such as "le0" or something else. If net_if == 0, <subscribe> uses the default mcast interface. Returns: -1 if the call fails.

Note that some platforms, such as pSoS, support only number, not names, for network interfaces. For these platforms, just give these numbers in alphanumeric form and <subscribe> will convert them into numbers via <ACE_OS::atoi>.

int ACE_SOCK_Dgram_Mcast_QoS::subscribe_ifs ( const ACE_INET_Addr &  mcast_addr, const ACE_QoS_Params &  qos_params, const ACE_TCHAR *  net_if, int  protocol_family, int  protocol, int  reuse_addr, ACE_Protocol_Info *  protocolinfo  )

private

Subscribe to the multicast interface using QoS-enabled semantics.

Member Data Documentation

ACE_SOCK_Dgram_Mcast_QoS::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

ACE_QoS_Manager ACE_SOCK_Dgram_Mcast_QoS::qos_manager_

private

Manages the QoS sessions that this socket subscribes to.

---

The documentation for this class was generated from the following files:

• SOCK_Dgram_Mcast_QoS.h
• SOCK_Dgram_Mcast_QoS.cpp
• SOCK_Dgram_Mcast_QoS.inl
