XML backing store containing all ImR persistent information in multiple files shared between multiple Locators. More...

#include <Shared_Backing_Store.h>

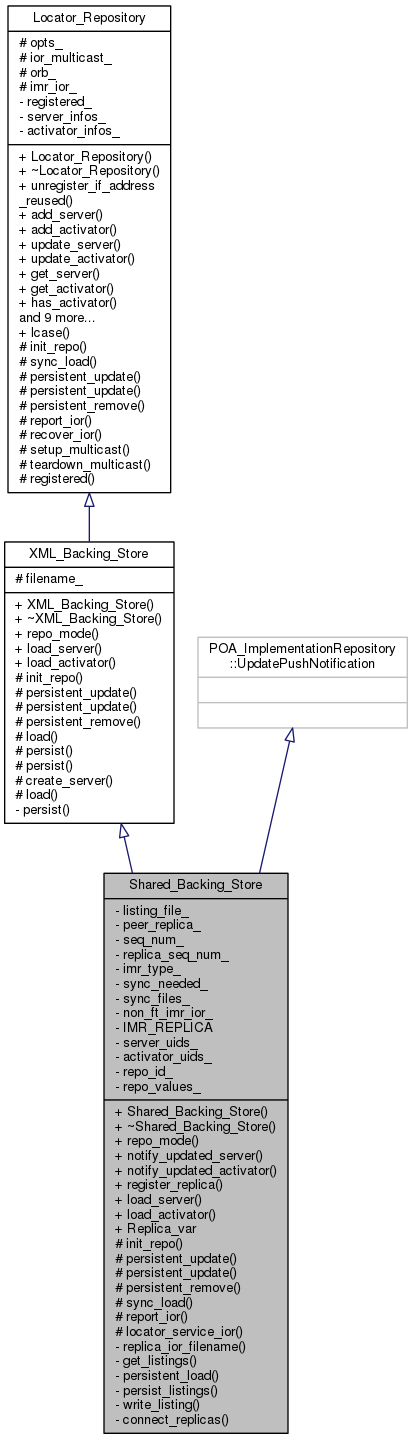

Inheritance diagram for Shared_Backing_Store:

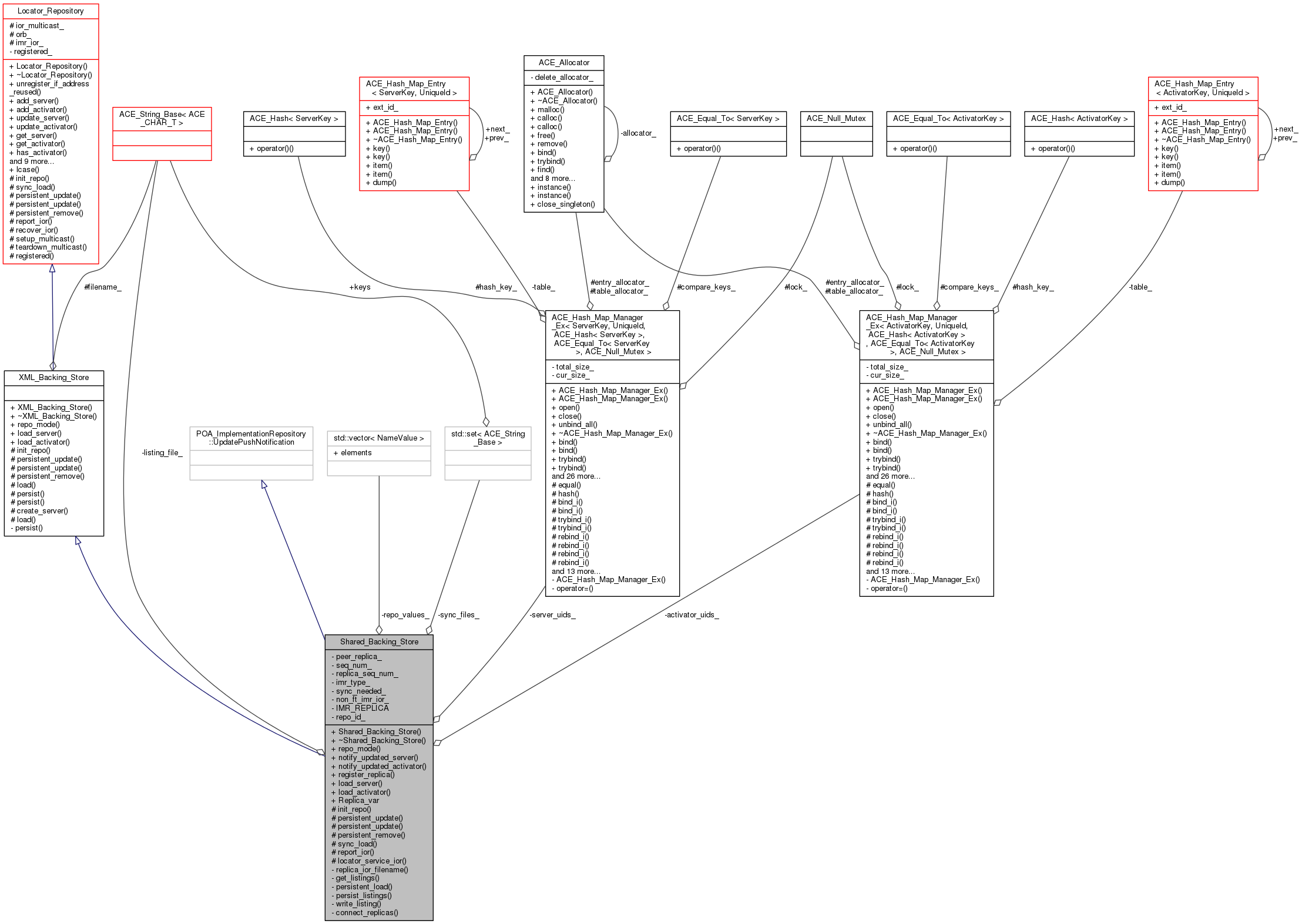

Collaboration diagram for Shared_Backing_Store:

Classes
class	LocatorListings_XMLHandler

struct	UniqueId

Public Types
enum	ExtraParams { REPO_TYPE = 0, REPO_ID = 1 }

enum	SyncType { NO_SYNC, INC_SYNC, FULL_SYNC }

typedef ImplementationRepository::UpdatePushNotification_ptr	Replica_ptr

typedef ACE_Hash_Map_Manager_Ex < ServerKey, UniqueId, ACE_Hash< ServerKey > , ACE_Equal_To< ServerKey > , ACE_Null_Mutex >	ServerUIMap

typedef ACE_Hash_Map_Manager_Ex < ActivatorKey, UniqueId, ACE_Hash< ActivatorKey > , ACE_Equal_To< ActivatorKey > , ACE_Null_Mutex >	ActivatorUIMap

Public Types inherited from XML_Backing_Store
typedef std::pair< ACE_CString, ACE_CString >	NameValue

typedef std::vector< NameValue >	NameValues

Public Types inherited from Locator_Repository
typedef ACE_CString	ServerKey

typedef ACE_Hash_Map_Manager_Ex < ServerKey, Server_Info_Ptr, ACE_Hash< ServerKey > , ACE_Equal_To< ServerKey > , ACE_Null_Mutex >	SIMap

typedef ACE_CString	ActivatorKey

typedef ACE_Hash_Map_Manager_Ex < ActivatorKey, Activator_Info_Ptr, ACE_Hash < ActivatorKey >, ACE_Equal_To < ActivatorKey > , ACE_Null_Mutex >	AIMap

Public Member Functions
	Shared_Backing_Store (const Options &opts, CORBA::ORB_ptr orb)

virtual	~Shared_Backing_Store ()

virtual const ACE_TCHAR *	repo_mode () const
	indicate the persistence mode for the repository More...

virtual void	notify_updated_server (const ImplementationRepository::ServerUpdate &server)

virtual void	notify_updated_activator (const ImplementationRepository::ActivatorUpdate &activator)

virtual void	register_replica (ImplementationRepository::UpdatePushNotification_ptr replica, char *&ft_imr_ior, ImplementationRepository::SequenceNum_out seq_num)

virtual void	load_server (const ACE_CString &server_id, const ACE_CString &server_name, bool jacorb_server, const ACE_CString &activator_name, const ACE_CString &cmdline, const ImplementationRepository::EnvironmentList &env_vars, const ACE_CString &working_dir, ImplementationRepository::ActivationMode actmode, int start_limit, const ACE_CString &partial_ior, const ACE_CString &ior, bool server_started, const NameValues &extra_params)

virtual void	load_activator (const ACE_CString &activator_name, long token, const ACE_CString &ior, const NameValues &extra_params)

Public Member Functions inherited from XML_Backing_Store
	XML_Backing_Store (const Options &opts, CORBA::ORB_ptr orb, bool suppress_erase=false)

virtual	~XML_Backing_Store ()

Public Member Functions inherited from Locator_Repository
	Locator_Repository (const Options &opts, CORBA::ORB_ptr orb)

virtual	~Locator_Repository ()

int	unregister_if_address_reused (const ACE_CString &server_id, const ACE_CString &name, const char partial_ior, ImR_Locator_i imr_locator)

int	add_server (const ACE_CString &server_id, const ACE_CString &name, bool jacorbs, const ACE_CString &aname, const ACE_CString &startup_command, const ImplementationRepository::EnvironmentList &environment_vars, const ACE_CString &working_dir, ImplementationRepository::ActivationMode activation, int start_limit, const ACE_CString &partial_ior=ACE_CString(""), const ACE_CString &ior=ACE_CString(""), ImplementationRepository::ServerObject_ptr svrobj=ImplementationRepository::ServerObject::_nil())
	Add a new server to the Repository. More...

int	add_activator (const ACE_CString &name, const CORBA::Long token, const ACE_CString &ior=ACE_CString(""), ImplementationRepository::Activator_ptr act=ImplementationRepository::Activator::_nil())
	Add a new activator to the Repository. More...

int	update_server (const Server_Info_Ptr &info)
	Update the associated information. More...

int	update_activator (const Activator_Info_Ptr &info)
	Update the associated information. More...

Server_Info_Ptr	get_server (const ACE_CString &name)
	Returns information related to startup. More...

Activator_Info_Ptr	get_activator (const ACE_CString &name)
	Returns information related to startup. More...

bool	has_activator (const ACE_CString &name)

int	remove_server (const ACE_CString &name)
	Removes the server from the Repository. More...

int	remove_activator (const ACE_CString &name)
	Removes the activator from the Repository. More...

SIMap &	servers (void)
	Returns the internal hash map containing the server information. More...

const SIMap &	servers (void) const

AIMap &	activators (void)
	Returns the internal hash map containing the activator information. More...

const AIMap &	activators (void) const

int	init (PortableServer::POA_ptr root_poa, PortableServer::POA_ptr imr_poa, const char *this_ior)
	Initialize the repo. More...

bool	multicast () const
	Indicate if multicast should be used. More...

Static Public Member Functions
typedef ImplementationRepository::UpdatePushNotification_var	Replica_var

Protected Member Functions
virtual int	init_repo (PortableServer::POA_ptr imr_poa)

virtual int	persistent_update (const Server_Info_Ptr &info, bool add)
	perform server persistent update More...

virtual int	persistent_update (const Activator_Info_Ptr &info, bool add)
	perform activator persistent update More...

virtual int	persistent_remove (const ACE_CString &name, bool activator)
	perform persistent remove More...

virtual int	sync_load ()

virtual int	report_ior (PortableServer::POA_ptr imr_poa)

char *	locator_service_ior (const char *peer_ior) const

Protected Member Functions inherited from XML_Backing_Store
int	load (const ACE_TString &filename, FILE *open_file=0)

void	persist (FILE fp, const Server_Info &info, const char tag_prepend, const NameValues &name_values=NameValues())

void	persist (FILE fp, const Activator_Info &info, const char tag_prepend, const NameValues &name_values=NameValues())

void	create_server (bool server_started, const Server_Info_Ptr &si)

Protected Member Functions inherited from Locator_Repository
virtual int	recover_ior (void)
	recover the ImR Locator's IOR from the persisted file More...

int	setup_multicast (ACE_Reactor reactor, const char imr_ior)

void	teardown_multicast ()

bool	registered () const

Private Types
typedef ACE_Strong_Bound_Ptr < LocatorListings_XMLHandler, ACE_Null_Mutex >	XMLHandler_Ptr

Private Member Functions
ACE_CString	replica_ior_filename (bool peer_ior_file) const

XMLHandler_Ptr	get_listings (Lockable_File &listing_lf, bool only_changes) const

int	persistent_load (bool only_changes)

int	persist_listings (Lockable_File &listing_lf)

void	write_listing (FILE *)

int	connect_replicas (Replica_ptr this_replica)

Private Attributes
const ACE_TString	listing_file_
	the path and filename for the listings file More...

Replica_var	peer_replica_
	the path and filename for the listings file More...

ImplementationRepository::SequenceNum	seq_num_

ImplementationRepository::SequenceNum	replica_seq_num_
	the current sequence number last reported by the peer replica More...

const Options::ImrType	imr_type_
	the imr type of this Shared_Backing_Store More...

SyncType	sync_needed_
	the current type of sync needed by the repo More...

std::set< ACE_TString >	sync_files_

CORBA::String_var	non_ft_imr_ior_
	the ior for just this ImR Locator More...

const char *	IMR_REPLICA [3]
	an array associating ImrType with the appropriate name More...

ServerUIMap	server_uids_
	map for server unique ids More...

ActivatorUIMap	activator_uids_
	map for activator unique ids More...

unsigned int	repo_id_
	next unique repo id More...

XML_Backing_Store::NameValues	repo_values_
	extra parameters for XML More...

Additional Inherited Members
Static Protected Member Functions inherited from XML_Backing_Store
static int	load (const ACE_TString &filename, ACEXML_DefaultHandler &xml_handler, unsigned int debug, FILE *open_file=0)

Protected Attributes inherited from XML_Backing_Store
const ACE_TString	filename_
	the filename indicated in the Options for the backing store More...

Detailed Description

XML backing store containing all ImR persistent information in multiple files shared between multiple Locators.

Member Typedef Documentation

typedef ACE_Hash_Map_Manager_Ex<ActivatorKey, UniqueId, ACE_Hash<ActivatorKey>, ACE_Equal_To<ActivatorKey>, ACE_Null_Mutex> Shared_Backing_Store::ActivatorUIMap

typedef ImplementationRepository::UpdatePushNotification_ptr Shared_Backing_Store::Replica_ptr

typedef ImplementationRepository::UpdatePushNotification_var Shared_Backing_Store::Replica_var

static

typedef ACE_Hash_Map_Manager_Ex<ServerKey, UniqueId, ACE_Hash<ServerKey>, ACE_Equal_To<ServerKey>, ACE_Null_Mutex> Shared_Backing_Store::ServerUIMap

typedef ACE_Strong_Bound_Ptr<LocatorListings_XMLHandler, ACE_Null_Mutex> Shared_Backing_Store::XMLHandler_Ptr

private

Member Enumeration Documentation

enum Shared_Backing_Store::ExtraParams

Enumerator
REPO_TYPE
REPO_ID

enum Shared_Backing_Store::SyncType

enum to indicate whether the repo is in-sync, individual server and/or activator files need to be sync-ed or if a full sync of servers and activators is needed

Enumerator
NO_SYNC
INC_SYNC
FULL_SYNC

Constructor & Destructor Documentation

Shared_Backing_Store::Shared_Backing_Store	(	const Options &	opts,
		CORBA::ORB_ptr	orb
	)

Shared_Backing_Store::~Shared_Backing_Store ( )

virtual

Member Function Documentation

int Shared_Backing_Store::connect_replicas ( Replica_ptr this_replica )

private

connect this replica to its peer replica

Parameters

this_replica a pointer to this Replica object

Shared_Backing_Store::XMLHandler_Ptr Shared_Backing_Store::get_listings	(	Lockable_File &	listing_lf,
		bool	only_changes
	)		const

private

get the listings file contents

Parameters

listing_lf	a Lockable_File for the listings file that will be locked when the function returns
only_changes	if only changes to the repo should be reported

Returns: a pointer to the LocatorListings_XMLHandler

int Shared_Backing_Store::init_repo ( PortableServer::POA_ptr imr_poa )

protectedvirtual

perform shared backing store specific initialization (activates this Shared_Backing_Store as the "ImR_Replica", trys to connect to the peer replica, unless it is a STANDALONE_IMR, clears out the persisted store if needed, and loads the repo from the persisted store)

Reimplemented from XML_Backing_Store.

void Shared_Backing_Store::load_activator	(	const ACE_CString &	activator_name,
		long	token,
		const ACE_CString &	ior,
		const NameValues &	extra_params
	)

virtual

create the Activator_Info activator object

Parameters

activator_name	the Activator_Info name
token	the Activator_Info token
ior	the Activator_Info ior
extra_params	extra name value pairs that were reported for the activator

Reimplemented from XML_Backing_Store.

void Shared_Backing_Store::load_server	(	const ACE_CString &	server_id,
		const ACE_CString &	server_name,
		bool	jacorb_server,
		const ACE_CString &	activator_name,
		const ACE_CString &	cmdline,
		const ImplementationRepository::EnvironmentList &	env_vars,
		const ACE_CString &	working_dir,
		ImplementationRepository::ActivationMode	actmode,
		int	start_limit,
		const ACE_CString &	partial_ior,
		const ACE_CString &	ior,
		bool	server_started,
		const NameValues &	extra_params
	)

virtual

create the Server_Info server object

Parameters

server_id	the Server_Info server_id
server_name	the Server_Info server_name
activator_name	the Server_Info activator
cmdline	the Server_Info cmdline
env_vars	the Server_Info env_vars
workin_dir	the Server_Info dir
actmode	the Server_Info activation_mode
start_limit	the Server_Info start_limit
partial_ior	the Server_Info partial_ior
ior	the Server_Info ior
server_started	indicates if the server object existed when data was persisted
extra_params	extra name value pairs that were reported for the server

Reimplemented from XML_Backing_Store.

char * Shared_Backing_Store::locator_service_ior ( const char * peer_ior ) const

protected

create the Fault Tolerant ImR Locator IOR, using the peer_ior and this ImR Locator's IOR

void Shared_Backing_Store::notify_updated_activator ( const ImplementationRepository::ActivatorUpdate & activator )

virtual

provide the implementation for being notified of a activator update

void Shared_Backing_Store::notify_updated_server ( const ImplementationRepository::ServerUpdate & server )

virtual

provide the implementation for being notified of a server update

int Shared_Backing_Store::persist_listings ( Lockable_File & listing_lf )

private

persistent the listings file

Parameters

listing_lf a Lockable_File for the listings file that will be locked when the function returns

int Shared_Backing_Store::persistent_load ( bool only_changes )

private

perform a persistent load from the backing store

Parameters

only_changes if only changes to the repo should be loaded

int Shared_Backing_Store::persistent_remove	(	const ACE_CString &	name,
		bool	activator
	)

protectedvirtual

perform persistent remove

Reimplemented from XML_Backing_Store.

int Shared_Backing_Store::persistent_update	(	const Server_Info_Ptr &	info,
		bool	add
	)

protectedvirtual

perform server persistent update

Reimplemented from XML_Backing_Store.

int Shared_Backing_Store::persistent_update	(	const Activator_Info_Ptr &	info,
		bool	add
	)

protectedvirtual

perform activator persistent update

Reimplemented from XML_Backing_Store.

void Shared_Backing_Store::register_replica	(	ImplementationRepository::UpdatePushNotification_ptr	replica,
		char *&	ft_imr_ior,
		ImplementationRepository::SequenceNum_out	seq_num
	)

virtual

provide the implementation for registering a peer replica

Parameters

replica	the peer replica
ft_imr_ior	the fault tolerant ImR IOR (passed in as the replica's ImR IOR, passed back as fault tolerant ImR IOR)
seq_num	current sequence number to return to replica

ACE_CString Shared_Backing_Store::replica_ior_filename ( bool peer_ior_file ) const

private

determine the filename where the replica ior is reported

Parameters

peer_ior_file if this is the filename for the peer replica or this replica

const ACE_TCHAR * Shared_Backing_Store::repo_mode ( ) const

virtual

indicate the persistence mode for the repository

Reimplemented from XML_Backing_Store.

int Shared_Backing_Store::report_ior ( PortableServer::POA_ptr imr_poa )

protectedvirtual

calls Locator_Repository::report_ior with the Fault Tolerant ImR Locator's IOR if available, otherwise reporting the ior is delayed until the peer replica registers with this replica

Reimplemented from Locator_Repository.

int Shared_Backing_Store::sync_load ( )

protectedvirtual

perform sync of repo with backing store uses sync_needed_ and sync_files_ to determine what to update

Reimplemented from Locator_Repository.

void Shared_Backing_Store::write_listing ( FILE * list )

private

write content to the listings file and optionally its backup

Parameters

File	pointer to write to. Can be primary or backup.

Member Data Documentation

ActivatorUIMap Shared_Backing_Store::activator_uids_

private

map for activator unique ids

const char* Shared_Backing_Store::IMR_REPLICA[3]

private

an array associating ImrType with the appropriate name

const Options::ImrType Shared_Backing_Store::imr_type_

private

the imr type of this Shared_Backing_Store

const ACE_TString Shared_Backing_Store::listing_file_

private

the path and filename for the listings file

CORBA::String_var Shared_Backing_Store::non_ft_imr_ior_

private

the ior for just this ImR Locator

Replica_var Shared_Backing_Store::peer_replica_

private

the path and filename for the listings file

ImplementationRepository::SequenceNum Shared_Backing_Store::replica_seq_num_

private

the current sequence number last reported by the peer replica

unsigned int Shared_Backing_Store::repo_id_

private

next unique repo id

XML_Backing_Store::NameValues Shared_Backing_Store::repo_values_

private

extra parameters for XML

ImplementationRepository::SequenceNum Shared_Backing_Store::seq_num_

private

the current sequence number for reporting changes made directly to this repo

ServerUIMap Shared_Backing_Store::server_uids_

private

map for server unique ids

std::set<ACE_TString> Shared_Backing_Store::sync_files_

private

the server and activator files that need to be updated for sync_needed_ == INC_SYNC

SyncType Shared_Backing_Store::sync_needed_

private

the current type of sync needed by the repo

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
