Public Member Functions | Private Attributes | List of all members
TAO_CEC_MT_Dispatching Class Reference

Dispatching strategy that minimizes mt inversion. More...

#include <CEC_MT_Dispatching.h>

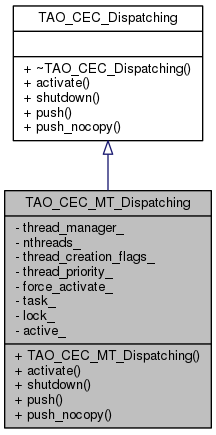

Inheritance diagram for TAO_CEC_MT_Dispatching:
Inheritance graph

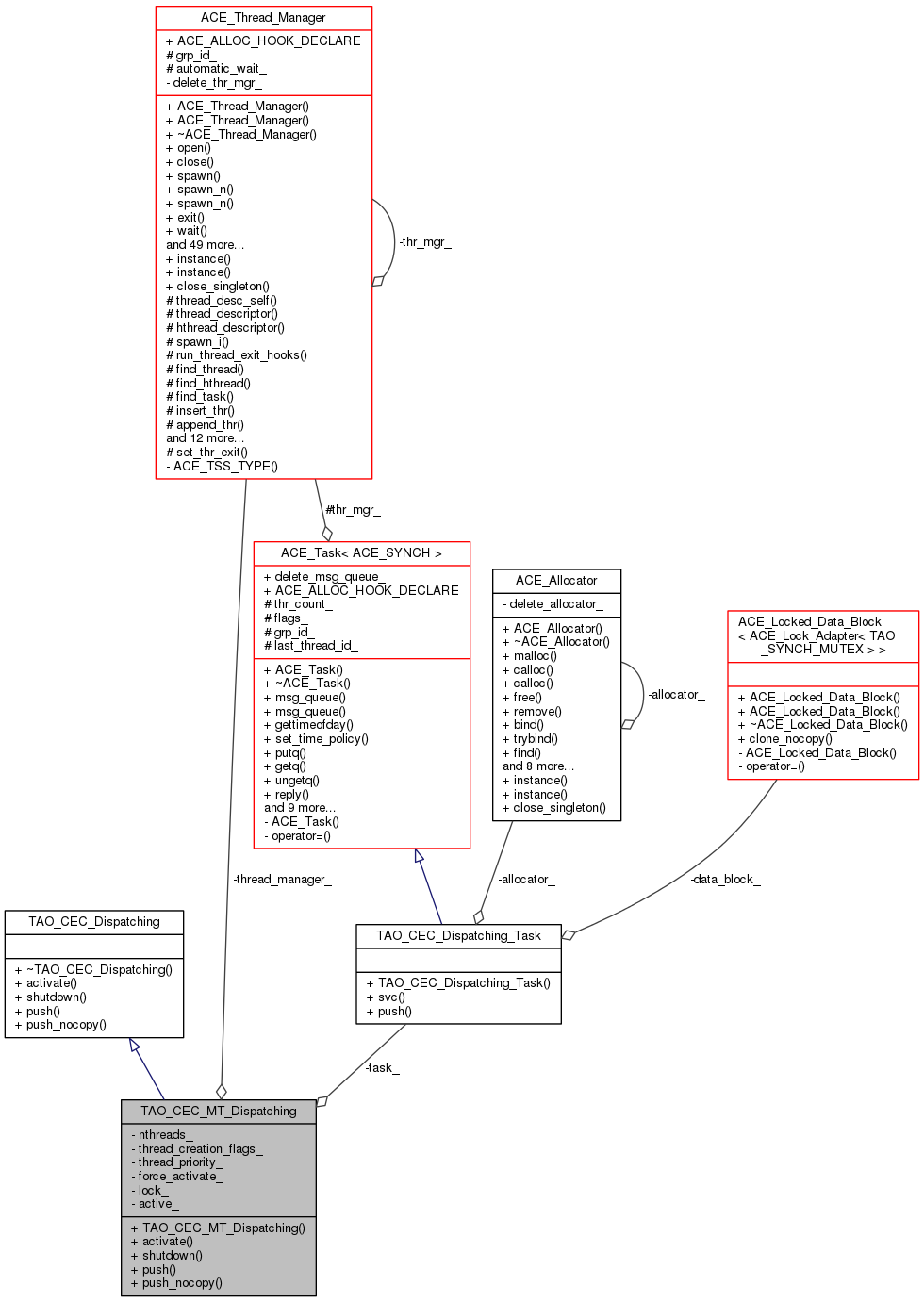

Collaboration diagram for TAO_CEC_MT_Dispatching:
Collaboration graph

Public Member Functions

 TAO_CEC_MT_Dispatching (int nthreads, int thread_creation_flags, int thread_priority, int force_activate)
virtual void activate (void)
virtual void shutdown (void)
virtual void push (TAO_CEC_ProxyPushSupplier *proxy, const CORBA::Any &event)
 The consumer represented by <proxy> should receive <event>. More...
virtual void push_nocopy (TAO_CEC_ProxyPushSupplier *proxy, CORBA::Any &event)
- Public Member Functions inherited from TAO_CEC_Dispatching
virtual ~TAO_CEC_Dispatching (void)
 destructor... More...

Private Attributes

ACE_Thread_Manager thread_manager_
 Use our own thread manager. More...
int nthreads_
 The number of active tasks. More...
int thread_creation_flags_
int thread_priority_
 The priority of the dispatching threads. More...
int force_activate_
TAO_CEC_Dispatching_Task task_
 The dispatching task. More...
 Synchronize access to internal data. More...
int active_
 Are the threads running? More...

Detailed Description

Dispatching strategy that minimizes mt inversion.

This strategy uses a single queue, serviced by one or more threads. It's main purpose is to decouple the suppliers from the client execution time, specially in the collocated case.

Constructor & Destructor Documentation

TAO_CEC_MT_Dispatching::TAO_CEC_MT_Dispatching ( int  nthreads,
int  thread_creation_flags,
int  thread_priority,
int  force_activate

Constructor It will create <nthreads> servicing threads...

Member Function Documentation

void TAO_CEC_MT_Dispatching::activate ( void  )

Initialize all the data structures, activate any internal threads, etc.

Implements TAO_CEC_Dispatching.

void TAO_CEC_MT_Dispatching::push ( TAO_CEC_ProxyPushSupplier proxy,
const CORBA::Any &  event

The consumer represented by <proxy> should receive <event>.

Implements TAO_CEC_Dispatching.

void TAO_CEC_MT_Dispatching::push_nocopy ( TAO_CEC_ProxyPushSupplier proxy,
CORBA::Any &  event

Implements TAO_CEC_Dispatching.

void TAO_CEC_MT_Dispatching::shutdown ( void  )

Deactivate any internal threads and cleanup internal data structures, it should only return once the threads have finished their jobs.

Implements TAO_CEC_Dispatching.

Member Data Documentation

int TAO_CEC_MT_Dispatching::active_

Are the threads running?

int TAO_CEC_MT_Dispatching::force_activate_

If activation at the requested priority fails then we fallback on the defaults for thread activation.

TAO_SYNCH_MUTEX TAO_CEC_MT_Dispatching::lock_

Synchronize access to internal data.

int TAO_CEC_MT_Dispatching::nthreads_

The number of active tasks.

TAO_CEC_Dispatching_Task TAO_CEC_MT_Dispatching::task_

The dispatching task.

int TAO_CEC_MT_Dispatching::thread_creation_flags_

The flags (THR_BOUND, THR_NEW_LWP, etc.) used to create the dispatching threads.

ACE_Thread_Manager TAO_CEC_MT_Dispatching::thread_manager_

Use our own thread manager.

int TAO_CEC_MT_Dispatching::thread_priority_

The priority of the dispatching threads.

The documentation for this class was generated from the following files:
