AVStreams::Basic_StreamCtrl Interface Reference

Base class for StreamCtrl, implements basic stream start and stop functionality. More...

import "AVStreams.idl";

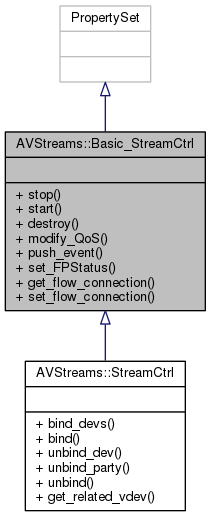

Inheritance diagram for AVStreams::Basic_StreamCtrl:

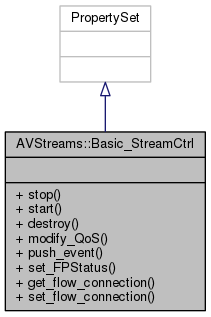

Collaboration diagram for AVStreams::Basic_StreamCtrl:

Public Member Functions
void	stop (in flowSpec the_spec) raises (noSuchFlow)
void	start (in flowSpec the_spec) raises (noSuchFlow)
void	destroy (in flowSpec the_spec) raises (noSuchFlow)
boolean	modify_QoS (inout streamQoS new_qos, in flowSpec the_spec) raises (noSuchFlow, QoSRequestFailed)
oneway void	push_event (in streamEvent the_event)
void	set_FPStatus (in flowSpec the_spec, in string fp_name, in any fp_settings) raises (noSuchFlow, FPError)
	Used to control the flow protocol parameters. More...
Object	get_flow_connection (in string flow_name) raises (noSuchFlow, notSupported)
void	set_flow_connection (in string flow_name, in Object flow_connection) raises (noSuchFlow, notSupported)

Detailed Description

Base class for StreamCtrl, implements basic stream start and stop functionality.

Member Function Documentation

void AVStreams::Basic_StreamCtrl::destroy

(

in flowSpec

the_spec

)

raises (noSuchFlow)

Tears down the stream. This will close the connection, and delete the streamendpoint and vdev associated with this stream Empty the_spec means apply operation to all flows.

Object AVStreams::Basic_StreamCtrl::get_flow_connection

(

in string

flow_name

)

raises (noSuchFlow, notSupported)

Not implemented in the light profile, will raise the notsupported exception.

boolean AVStreams::Basic_StreamCtrl::modify_QoS	(	inout streamQoS	new_qos,
		in flowSpec	the_spec
	)		raises (noSuchFlow, QoSRequestFailed)

Changes the QoS associated with the stream Empty the_spec means apply operation to all flows.

oneway void AVStreams::Basic_StreamCtrl::push_event

(

in streamEvent

the_event

)

Called by StreamEndPoint when something goes wrong with a flow.

void AVStreams::Basic_StreamCtrl::set_flow_connection	(	in string	flow_name,
		in Object	flow_connection
	)		raises (noSuchFlow, notSupported)

Not implemented in the light profile, will raise the notsupported exception.

void AVStreams::Basic_StreamCtrl::set_FPStatus	(	in flowSpec	the_spec,
		in string	fp_name,
		in any	fp_settings
	)		raises (noSuchFlow, FPError)

Used to control the flow protocol parameters.

void AVStreams::Basic_StreamCtrl::start

(

in flowSpec

the_spec

)

raises (noSuchFlow)

Start the transfer of data in the stream. Empty the_spec means apply operation to all flows.

void AVStreams::Basic_StreamCtrl::stop

(

in flowSpec

the_spec

)

raises (noSuchFlow)

Stop the transfer of data of the stream.Empty the_spec means apply operation to all flows.

---

The documentation for this interface was generated from the following file:

• AVStreams.idl
