Defines the format and interface for the listener side of the ACE_UPIPE_Stream. More...

#include <UPIPE_Acceptor.h>

Inheritance diagram for ACE_UPIPE_Acceptor:

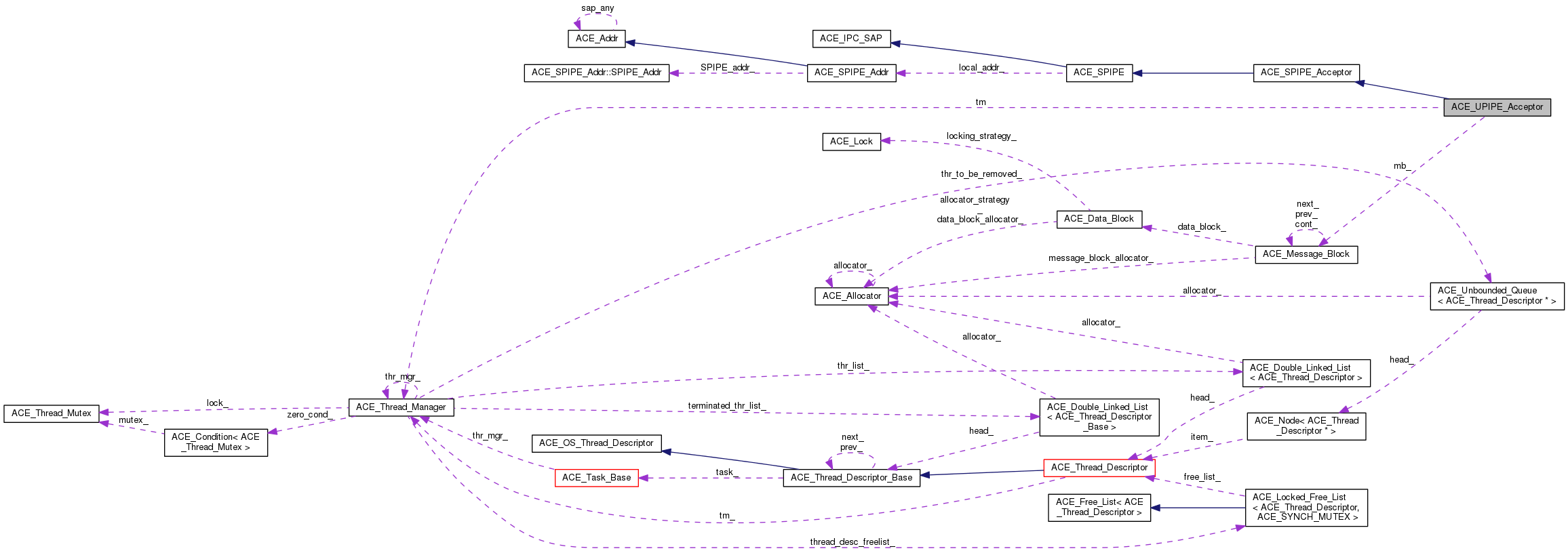

Collaboration diagram for ACE_UPIPE_Acceptor:

Public Member Functions
	ACE_UPIPE_Acceptor (void)
	Default constructor. More...

	ACE_UPIPE_Acceptor (const ACE_UPIPE_Addr &local_sap, int reuse_addr=0)
	Initialize passive endpoint. More...

int	open (const ACE_UPIPE_Addr &local_sap, int reuse_addr=0)
	Initialize passive endpoint. More...

	~ACE_UPIPE_Acceptor (void)
	Close down and release resources. More...

int	close (void)
	Close down and release resources. More...

int	remove (void)

int	accept (ACE_UPIPE_Stream &server_stream, ACE_UPIPE_Addr remote_addr=0, ACE_Time_Value timeout=0, bool restart=true, bool reset_new_handle=false)

void	dump (void) const
	Dump the state of an object. More...

Public Member Functions inherited from ACE_SPIPE_Acceptor
	ACE_SPIPE_Acceptor (void)
	Default constructor. More...

	ACE_SPIPE_Acceptor (const ACE_SPIPE_Addr &local_sap, int reuse_addr=1, int perms=ACE_DEFAULT_FILE_PERMS, LPSECURITY_ATTRIBUTES sa=0, int pipe_mode=PIPE_TYPE_MESSAGE\|PIPE_READMODE_MESSAGE)
	Initiate a passive-mode STREAM pipe listener. More...

int	open (const ACE_SPIPE_Addr &local_sap, int reuse_addr=1, int perms=ACE_DEFAULT_FILE_PERMS, LPSECURITY_ATTRIBUTES sa=0, int pipe_mode=PIPE_TYPE_MESSAGE\|PIPE_READMODE_MESSAGE)
	Initiate a passive-mode STREAM pipe listener. More...

int	close (void)
	Close down the passive-mode STREAM pipe listener. More...

int	remove (void)
	Remove the underlying mounted pipe from the file system. More...

int	accept (ACE_SPIPE_Stream &ipc_sap_spipe, ACE_SPIPE_Addr remote_addr=0, ACE_Time_Value timeout=0, bool restart=true, bool reset_new_handle=false)

void	dump (void) const
	Dump the state of an object. More...

Public Member Functions inherited from ACE_SPIPE
int	close (void)
	Close down the SPIPE without removing the rendezvous point. More...

int	remove (void)

int	get_local_addr (ACE_SPIPE_Addr &) const
	Return the local address of this endpoint. More...

int	disable (int signum) const

void	dump (void) const
	Dump the state of an object. More...

Public Member Functions inherited from ACE_IPC_SAP
int	control (int cmd, void *) const
	Interface for <ioctl>. More...

int	enable (int value) const

int	disable (int value) const

ACE_HANDLE	get_handle (void) const
	Get the underlying handle. More...

void	set_handle (ACE_HANDLE handle)
	Set the underlying handle. More...

void	dump (void) const
	Dump the state of an object. More...

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Public Attributes inherited from ACE_SPIPE_Acceptor
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Public Attributes inherited from ACE_SPIPE
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Public Attributes inherited from ACE_IPC_SAP
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Private Attributes
ACE_Thread_Manager	tm
	Manage threads. More...

ACE_Message_Block	mb_
	To confirm connection establishment. More...

Additional Inherited Members
Public Types inherited from ACE_SPIPE_Acceptor
typedef ACE_SPIPE_Addr	PEER_ADDR

typedef ACE_SPIPE_Stream	PEER_STREAM

Protected Member Functions inherited from ACE_SPIPE
	ACE_SPIPE (void)
	Ensure that this class is an abstract base class. More...

Protected Attributes inherited from ACE_SPIPE
ACE_SPIPE_Addr	local_addr_
	Our local address. More...

Detailed Description

Defines the format and interface for the listener side of the ACE_UPIPE_Stream.

Constructor & Destructor Documentation

ACE_UPIPE_Acceptor::ACE_UPIPE_Acceptor ( void )

Default constructor.

ACE_UPIPE_Acceptor::ACE_UPIPE_Acceptor	(	const ACE_UPIPE_Addr &	local_sap,
		int	reuse_addr = `0`
	)

Initialize passive endpoint.

ACE_UPIPE_Acceptor::~ACE_UPIPE_Acceptor ( void )

Close down and release resources.

Member Function Documentation

int ACE_UPIPE_Acceptor::accept	(	ACE_UPIPE_Stream &	server_stream,
		ACE_UPIPE_Addr *	remote_addr = `0`,
		ACE_Time_Value *	timeout = `0`,
		bool	restart = `true`,
		bool	reset_new_handle = `false`
	)

Accept a new data transfer connection. A timeout of 0 means block forever, a timeout of {0, 0} means poll. restart == 1 means "restart if interrupted."

int ACE_UPIPE_Acceptor::close ( void )

Close down and release resources.

void ACE_UPIPE_Acceptor::dump ( void ) const

Dump the state of an object.

int ACE_UPIPE_Acceptor::open	(	const ACE_UPIPE_Addr &	local_sap,
		int	reuse_addr = `0`
	)

Initialize passive endpoint.

int ACE_UPIPE_Acceptor::remove ( void )

inline

Close down and release resources and remove the underlying SPIPE rendezvous point.

Member Data Documentation

ACE_UPIPE_Acceptor::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

ACE_Message_Block ACE_UPIPE_Acceptor::mb_

private

To confirm connection establishment.

ACE_Thread_Manager ACE_UPIPE_Acceptor::tm

private

Manage threads.

The documentation for this class was generated from the following files:
