Class definitions for platform specific TTY features. More...

#include <TTY_IO.h>

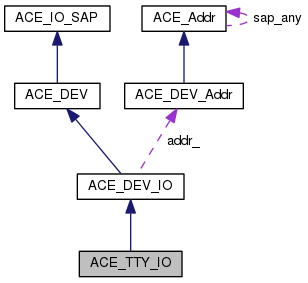

Inheritance diagram for ACE_TTY_IO:

Collaboration diagram for ACE_TTY_IO:

Classes
struct	Serial_Params

Public Types
enum	Control_Mode { SETPARAMS, GETPARAMS }

Public Types inherited from ACE_DEV_IO
typedef ACE_DEV_Addr	PEER_ADDR
	Declare the dynamic allocation hooks. More...

Public Member Functions
int	control (Control_Mode cmd, Serial_Params *arg) const

Public Member Functions inherited from ACE_DEV_IO
	ACE_DEV_IO (void)
	Default constructor. More...

ssize_t	send (const void *buf, size_t n) const
	send upto n bytes in buf. More...

ssize_t	recv (void *buf, size_t n) const
	Recv upto n bytes in buf. More...

ssize_t	send_n (const void *buf, size_t n) const
	Send n bytes, keep trying until n are sent. More...

ssize_t	recv_n (void buf, size_t n, const ACE_Time_Value timeout=0, size_t *bytes_transferred=0) const
	Declare the dynamic allocation hooks. More...

ssize_t	send (const iovec iov[], size_t n) const
	Send iovecs via <::writev>. More...

ssize_t	recv (iovec iov[], size_t n) const
	Recv iovecs via <::readv>. More...

ssize_t	send (size_t n,...) const

ssize_t	recv (size_t n,...) const

ssize_t	send (const void buf, size_t n, ACE_OVERLAPPED overlapped) const
	Send n bytes via Win32 WriteFile using overlapped I/O. More...

ssize_t	recv (void buf, size_t n, ACE_OVERLAPPED overlapped) const
	Recv n bytes via Win32 ReadFile using overlapped I/O. More...

void	dump (void) const
	Dump the state of an object. More...

int	get_local_addr (ACE_DEV_Addr &) const
	Return the local endpoint address. More...

int	get_remote_addr (ACE_DEV_Addr &) const

Public Member Functions inherited from ACE_DEV
int	close (void)
	Close down the DEVICE. More...

void	dump (void) const
	Dump the state of an object. More...

int	disable (int signum) const

Public Member Functions inherited from ACE_IO_SAP
	~ACE_IO_SAP (void)
	Default dtor. More...

int	control (int cmd, void *) const
	Interface for ioctl. More...

int	enable (int value) const

int	disable (int value) const

ACE_HANDLE	get_handle (void) const
	Get the underlying handle. More...

void	set_handle (ACE_HANDLE handle)
	Set the underlying handle. More...

void	dump (void) const
	Dump the state of an object. More...

Additional Inherited Members
Public Attributes inherited from ACE_DEV_IO
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Public Attributes inherited from ACE_DEV
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks. More...

Protected Member Functions inherited from ACE_DEV
	ACE_DEV (void)
	Ensure that this class is an abstract base class. More...

Detailed Description

Class definitions for platform specific TTY features.

This class represents an example interface for a specific device (a serial line). It extends the capability of the underlying DEV_IO class by adding a control method that takes a special structure (Serial_Params) as argument to allow a comfortable user interface (away from that annoying termios structure, which is very specific to UNIX).

Member Enumeration Documentation

enum ACE_TTY_IO::Control_Mode

Enumerator
SETPARAMS	Set control parameters.
GETPARAMS	Get control parameters.

Member Function Documentation

int ACE_TTY_IO::control	(	Control_Mode	cmd,
		Serial_Params *	arg
	)		const

Interface for reading/writing serial device parameters.

The documentation for this class was generated from the following files:
