ACE  6.2.0
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Pages
Public Member Functions | List of all members
ACE_Reactor_Notify Class Referenceabstract

Abstract class for unblocking an ACE_Reactor_Impl from its event loop. More...

#include <Reactor_Impl.h>

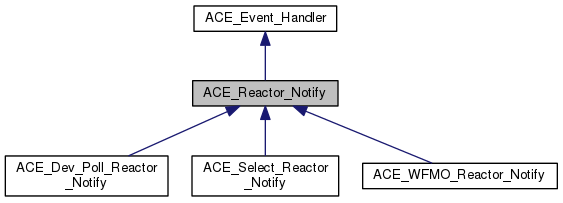

Inheritance diagram for ACE_Reactor_Notify:
Inheritance graph
[legend]

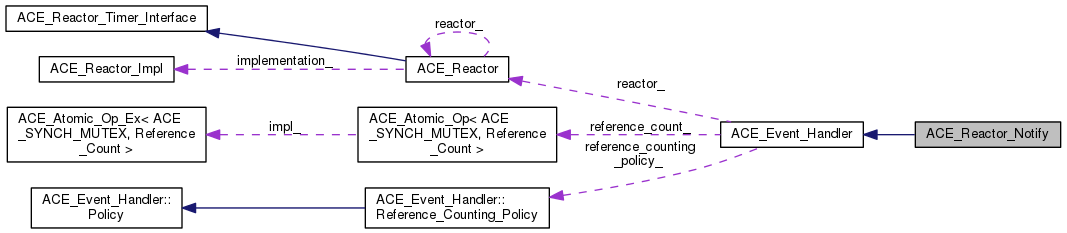

Collaboration diagram for ACE_Reactor_Notify:
Collaboration graph
[legend]

Public Member Functions

virtual int open (ACE_Reactor_Impl *, ACE_Timer_Queue *timer_queue=0, int disable_notify=0)=0

virtual int close (void)=0

virtual int notify (ACE_Event_Handler *eh=0, ACE_Reactor_Mask mask=ACE_Event_Handler::EXCEPT_MASK, ACE_Time_Value *timeout=0)=0

virtual int dispatch_notifications (int &number_of_active_handles, ACE_Handle_Set &rd_mask)=0

virtual ACE_HANDLE notify_handle (void)=0

virtual int is_dispatchable (ACE_Notification_Buffer &buffer)=0
 Verify whether the buffer has dispatchable info or not. More...

virtual int dispatch_notify (ACE_Notification_Buffer &buffer)=0

virtual int read_notify_pipe (ACE_HANDLE handle, ACE_Notification_Buffer &buffer)=0

virtual void max_notify_iterations (int)=0

virtual int max_notify_iterations (void)=0

virtual int purge_pending_notifications (ACE_Event_Handler *=0, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK)=0

virtual void dump (void) const =0
 Dump the state of an object. More...

- Public Member Functions inherited from ACE_Event_Handler
virtual ~ACE_Event_Handler (void)
 Destructor is virtual to enable proper cleanup. More...

virtual ACE_HANDLE get_handle (void) const
 Get the I/O handle. More...

virtual void set_handle (ACE_HANDLE)
 Set the I/O handle. More...

virtual int priority (void) const

virtual void priority (int priority)
 Set the priority of the Event_Handler. More...

virtual int handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
 Called when input events occur (e.g., connection or data). More...

virtual int handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
 Called when an exceptional events occur (e.g., SIGURG). More...

virtual int handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int handle_exit (ACE_Process *)
 Called when a process exits. More...

virtual int handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)

virtual int resume_handler (void)

virtual int handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void reactor (ACE_Reactor *reactor)
 Set the event demultiplexors. More...

virtual ACE_Reactorreactor (void) const
 Get the event demultiplexors. More...

virtual
ACE_Reactor_Timer_Interface
reactor_timer_interface (void) const
 Get only the reactor's timer related interface. More...

virtual Reference_Count add_reference (void)
 Increment reference count on the handler. More...

virtual Reference_Count remove_reference (void)
 Decrement reference count on the handler. More...

Reference_Counting_Policyreference_counting_policy (void)
 Current Reference_Counting_Policy. More...


Additional Inherited Members

- Public Types inherited from ACE_Event_Handler
enum  {
  LO_PRIORITY = 0, HI_PRIORITY = 10, NULL_MASK = 0, READ_MASK = (1 << 0),
  WRITE_MASK = (1 << 1), EXCEPT_MASK = (1 << 2), ACCEPT_MASK = (1 << 3), CONNECT_MASK = (1 << 4),
  TIMER_MASK = (1 << 5), QOS_MASK = (1 << 6), GROUP_QOS_MASK = (1 << 7), SIGNAL_MASK = (1 << 8),
  ALL_EVENTS_MASK, RWE_MASK, DONT_CALL = (1 << 9)
}

enum  { ACE_EVENT_HANDLER_NOT_RESUMED = -1, ACE_REACTOR_RESUMES_HANDLER = 0, ACE_APPLICATION_RESUMES_HANDLER }

typedef long Reference_Count
 Reference count type. More...

- Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN read_adapter (void *event_handler)

static int register_stdin_handler (ACE_Event_Handler *eh, ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int remove_stdin_handler (ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr)
 Performs the inverse of the register_stdin_handler() method. More...

- Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op
< ACE_SYNCH_MUTEX,
Reference_Count
Atomic_Reference_Count
 Typedef for implementation of reference counting. More...

- Protected Member Functions inherited from ACE_Event_Handler
 ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)
 Force ACE_Event_Handler to be an abstract base class. More...

- Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count reference_count_
 Reference count. More...


Detailed Description

Abstract class for unblocking an ACE_Reactor_Impl from its event loop.

This class is for ACE internal use only.

Member Function Documentation

virtual int ACE_Reactor_Notify::close ( void  )
pure virtual
virtual int ACE_Reactor_Notify::dispatch_notifications ( int &  number_of_active_handles,
ACE_Handle_Set rd_mask
)
pure virtual

Handles pending threads (if any) that are waiting to unblock the <Reactor_Impl>.

Implemented in ACE_WFMO_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_Dev_Poll_Reactor_Notify.

virtual int ACE_Reactor_Notify::dispatch_notify ( ACE_Notification_Buffer buffer)
pure virtual

Handle one of the notify call on the <handle>. This could be because of a thread trying to unblock the <Reactor_Impl>

Implemented in ACE_WFMO_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_Dev_Poll_Reactor_Notify.

virtual void ACE_Reactor_Notify::dump ( void  ) const
pure virtual

Dump the state of an object.

Implemented in ACE_WFMO_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_Dev_Poll_Reactor_Notify.

virtual int ACE_Reactor_Notify::is_dispatchable ( ACE_Notification_Buffer buffer)
pure virtual

Verify whether the buffer has dispatchable info or not.

Implemented in ACE_WFMO_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_Dev_Poll_Reactor_Notify.

virtual void ACE_Reactor_Notify::max_notify_iterations ( int  )
pure virtual

Set the maximum number of times that the <handle_input> method will iterate and dispatch the ACE_Event_Handlers that are passed in via the notify queue before breaking out of the event loop. By default, this is set to -1, which means "iterate until the queue is empty." Setting this to a value like "1 or 2" will increase "fairness" (and thus prevent starvation) at the expense of slightly higher dispatching overhead.

Implemented in ACE_WFMO_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_Dev_Poll_Reactor_Notify.

virtual int ACE_Reactor_Notify::max_notify_iterations ( void  )
pure virtual

Get the maximum number of times that the <handle_input> method will iterate and dispatch the ACE_Event_Handlers that are passed in via the notify queue before breaking out of its event loop.

Implemented in ACE_WFMO_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_Dev_Poll_Reactor_Notify.

virtual int ACE_Reactor_Notify::notify ( ACE_Event_Handler eh = 0,
ACE_Reactor_Mask  mask = ACE_Event_Handler::EXCEPT_MASK,
ACE_Time_Value timeout = 0
)
pure virtual

Called by a thread when it wants to unblock the <Reactor_Impl>. This wakeups the <Reactor_Impl> if currently blocked. Pass over both the <Event_Handler> and the mask to allow the caller to dictate which <Event_Handler> method the <Reactor_Impl> will invoke. The ACE_Time_Value indicates how long to blocking trying to notify the <Reactor_Impl>. If timeout == 0, the caller will block until action is possible, else will wait until the relative time specified in *timeout elapses).

Implemented in ACE_WFMO_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_Dev_Poll_Reactor_Notify.

virtual ACE_HANDLE ACE_Reactor_Notify::notify_handle ( void  )
pure virtual

Returns the ACE_HANDLE of the notify pipe on which the reactor is listening for notifications so that other threads can unblock the <Reactor_Impl>

Implemented in ACE_WFMO_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_Dev_Poll_Reactor_Notify.

virtual int ACE_Reactor_Notify::open ( ACE_Reactor_Impl ,
ACE_Timer_Queue timer_queue = 0,
int  disable_notify = 0
)
pure virtual
virtual int ACE_Reactor_Notify::purge_pending_notifications ( ACE_Event_Handler = 0,
ACE_Reactor_Mask  = ACE_Event_Handler::ALL_EVENTS_MASK
)
pure virtual

Purge any notifications pending in this reactor for the specified ACE_Event_Handler object. Returns the number of notifications purged. Returns -1 on error.

Implemented in ACE_WFMO_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_Dev_Poll_Reactor_Notify.

virtual int ACE_Reactor_Notify::read_notify_pipe ( ACE_HANDLE  handle,
ACE_Notification_Buffer buffer
)
pure virtual

Read one of the notify call on the handle into the buffer. This could be because of a thread trying to unblock the <Reactor_Impl>

Implemented in ACE_WFMO_Reactor_Notify, ACE_Select_Reactor_Notify, and ACE_Dev_Poll_Reactor_Notify.


The documentation for this class was generated from the following file:
