ACE_Ping_Socket Class Reference

This class is useful to perform ICMP echo checks (pinging) on the party of your interest. It may be used as well to check LAN-adapters against 3rd parties. More...

#include <Ping_Socket.h>

Inheritance diagram for ACE_Ping_Socket:
Inheritance graph
[legend]

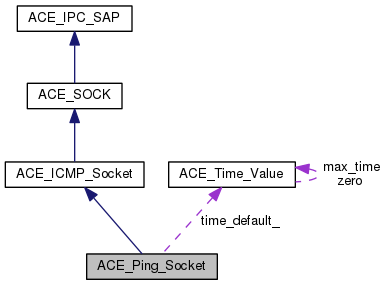

Collaboration diagram for ACE_Ping_Socket:
Collaboration graph
[legend]

Public Types

enum  { PING_BUFFER_SIZE = (1024 * 2) }


Public Member Functions

 ACE_Ping_Socket (void)
 Default constructor. More...

 ACE_Ping_Socket (ACE_Addr const &local, int protocol=IPPROTO_ICMP, int reuse_addr=0)

 ~ACE_Ping_Socket (void)
 Destructor. More...

int open (ACE_Addr const &local=ACE_Addr::sap_any, int protocol=IPPROTO_ICMP, int reuse_addr=0)
 Wrapper around the BSD-style socket system call (no QoS). More...

int send_echo_check (ACE_INET_Addr &remote_addr, bool to_connect=false)
 to_connect = true - makes connect to remote address More...

int process_incoming_dgram (char *ptr, ssize_t len)

int make_echo_check (ACE_INET_Addr &remote_addr, bool to_connect=false, ACE_Time_Value const *timeout=&time_default_)
 to_connect = true - makes connect to remote address More...

char * icmp_recv_buff (void)

void dump (void) const
 Dump the state of an object. More...

- Public Member Functions inherited from ACE_ICMP_Socket
int open (ACE_Addr const &local=ACE_Addr::sap_any, int protocol=IPPROTO_ICMP, int reuse_addr=0)
 Wrapper around the BSD-style socket system call (no QoS). More...

void dump (void) const
 Dump the state of object. More...

ssize_t send (void const *buf, size_t n, ACE_Addr const &addr, int flags=0) const

ssize_t recv (void *buf, size_t n, ACE_Addr &addr, int flags=0) const

ssize_t recv (void *buf, size_t n, int flags, ACE_Time_Value const *timeout) const
 TODO: comment. More...

- Public Member Functions inherited from ACE_SOCK
int set_option (int level, int option, void *optval, int optlen) const
 Wrapper around the setsockopt system call. More...

int get_option (int level, int option, void *optval, int *optlen) const
 Wrapper around the getsockopt system call. More...

int close (void)

int get_local_addr (ACE_Addr &) const

int get_remote_addr (ACE_Addr &) const

void dump (void) const
 Dump the state of an object. More...

int open (int type, int protocol_family, int protocol, int reuse_addr)
 Wrapper around the BSD-style socket system call (no QoS). More...

int open (int type, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr)
 Wrapper around the QoS-enabled WSASocket function. More...

- Public Member Functions inherited from ACE_IPC_SAP
int control (int cmd, void *) const
 Interface for <ioctl>. More...

int enable (int value) const

int disable (int value) const

ACE_HANDLE get_handle (void) const
 Get the underlying handle. More...

void set_handle (ACE_HANDLE handle)
 Set the underlying handle. More...

void dump (void) const
 Dump the state of an object. More...


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...

- Public Attributes inherited from ACE_ICMP_Socket
 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...

- Public Attributes inherited from ACE_SOCK
 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...

- Public Attributes inherited from ACE_IPC_SAP
 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...


Static Public Attributes

static ACE_Time_Value const time_default_


Private Types

typedef ACE_ICMP_Socket inherited


Private Member Functions

int receive_echo_reply (ACE_Time_Value const *timeout)

int get_remote_addr (ACE_INET_Addr &addr) const
 Do not allow this function to percolate up to this interface. More...


Private Attributes

char icmp_send_buff_ [PING_BUFFER_SIZE]

char icmp_recv_buff_ [PING_BUFFER_SIZE]

ACE_UINT16 sequence_number_

bool connected_socket_


Additional Inherited Members

- Protected Member Functions inherited from ACE_ICMP_Socket
 ACE_ICMP_Socket (void)
 Default constructor. More...

 ACE_ICMP_Socket (ACE_Addr const &local, int protocol=IPPROTO_ICMP, int reuse_addr=0)
 Constructor that takes a local listening address. More...

int shared_open (ACE_Addr const &local)
 Wrapper around BSD-style bind system call. More...

unsigned short calculate_checksum (unsigned short *paddress, int len)
 Calculates check-sum. More...


Detailed Description

This class is useful to perform ICMP echo checks (pinging) on the party of your interest. It may be used as well to check LAN-adapters against 3rd parties.

Member Typedef Documentation

Member Enumeration Documentation

anonymous enum
Enumerator
PING_BUFFER_SIZE

Constructor & Destructor Documentation

ACE_Ping_Socket::ACE_Ping_Socket ( void  )

Default constructor.

ACE_Ping_Socket::ACE_Ping_Socket ( ACE_Addr const &  local,
int  protocol = IPPROTO_ICMP,
int  reuse_addr = 0
)
ACE_Ping_Socket::~ACE_Ping_Socket ( void  )

Destructor.

Member Function Documentation

void ACE_Ping_Socket::dump ( void  ) const

Dump the state of an object.

int ACE_Ping_Socket::get_remote_addr ( ACE_INET_Addr addr) const
private

Do not allow this function to percolate up to this interface.

char * ACE_Ping_Socket::icmp_recv_buff ( void  )
inline
int ACE_Ping_Socket::make_echo_check ( ACE_INET_Addr remote_addr,
bool  to_connect = false,
ACE_Time_Value const *  timeout = &time_default_
)

to_connect = true - makes connect to remote address

int ACE_Ping_Socket::open ( ACE_Addr const &  local = ACE_Addr::sap_any,
int  protocol = IPPROTO_ICMP,
int  reuse_addr = 0
)

Wrapper around the BSD-style socket system call (no QoS).

int ACE_Ping_Socket::process_incoming_dgram ( char *  ptr,
ssize_t  len
)

To receive ICMP_ECHOREPLY. To be called after successfully sending ICMP_ECHO.

int ACE_Ping_Socket::receive_echo_reply ( ACE_Time_Value const *  timeout)
private
int ACE_Ping_Socket::send_echo_check ( ACE_INET_Addr remote_addr,
bool  to_connect = false
)

to_connect = true - makes connect to remote address

Member Data Documentation

ACE_Ping_Socket::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

bool ACE_Ping_Socket::connected_socket_
private
char ACE_Ping_Socket::icmp_recv_buff_[PING_BUFFER_SIZE]
private
char ACE_Ping_Socket::icmp_send_buff_[PING_BUFFER_SIZE]
private
ACE_UINT16 ACE_Ping_Socket::sequence_number_
private
ACE_Time_Value const ACE_Ping_Socket::time_default_
static

The documentation for this class was generated from the following files:
