ACE_Configuration Class Referenceabstract

Base class for configuration databases. More...

#include <Configuration.h>

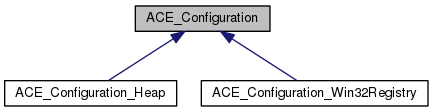

Inheritance diagram for ACE_Configuration:
Inheritance graph
[legend]
Collaboration diagram for ACE_Configuration:
Collaboration graph
[legend]

Public Types

enum  VALUETYPE { STRING, INTEGER, BINARY, INVALID }
 Enumeration for the various types of values we can store. More...


Public Member Functions

virtual ~ACE_Configuration (void)
 Destructor. More...

virtual const
ACE_Configuration_Section_Key
root_section (void) const
 Obtain a reference to the root section of this configuration. More...

virtual int open_section (const ACE_Configuration_Section_Key &base, const ACE_TCHAR *sub_section, int create, ACE_Configuration_Section_Key &result)=0

virtual int remove_section (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *sub_section, bool recursive)=0
 Removes a named section. More...

virtual int enumerate_values (const ACE_Configuration_Section_Key &key, int index, ACE_TString &name, VALUETYPE &type)=0

virtual int enumerate_sections (const ACE_Configuration_Section_Key &key, int index, ACE_TString &name)=0

virtual int set_string_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, const ACE_TString &value)=0
 Sets a string-typed value. More...

virtual int set_integer_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, u_int value)=0
 Sets a integer-typed value. More...

virtual int set_binary_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, const void *data, size_t length)=0
 Sets a binary-typed value. More...

virtual int get_string_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, ACE_TString &value)=0
 Gets a string-typed value. More...

virtual int get_integer_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, u_int &value)=0
 Gets an integer-typed value. More...

virtual int get_binary_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, void *&data, size_t &length)=0
 Gets a binary-typed value. More...

virtual int find_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name, VALUETYPE &type)=0

virtual int remove_value (const ACE_Configuration_Section_Key &key, const ACE_TCHAR *name)=0
 Removes a named value. More...

int expand_path (const ACE_Configuration_Section_Key &key, const ACE_TString &path_in, ACE_Configuration_Section_Key &key_out, int create=1)

bool operator== (const ACE_Configuration &rhs) const

bool operator!= (const ACE_Configuration &rhs) const


Static Public Attributes

static ACE_TCHAR NULL_String_ = '\0'


Protected Member Functions

 ACE_Configuration (void)
 Default ctor. More...

ACE_Section_Key_Internalget_internal_key (const ACE_Configuration_Section_Key &key)
 Resolves the internal key from a section key. More...

int validate_name (const ACE_TCHAR *name, int allow_path=0)

int validate_value_name (const ACE_TCHAR *name)

 ACE_Configuration (const ACE_Configuration &rhs)

ACE_Configurationoperator= (const ACE_Configuration &rhs)


Protected Attributes

ACE_Configuration_Section_Key root_


Detailed Description

Base class for configuration databases.

This class provides an interface for configuration databases. A concrete class is required that implements the interface.

See Also
ACE_Configuration_Heap
ACE_Configuration_Win32Registry

Member Enumeration Documentation

Enumeration for the various types of values we can store.

Enumerator
STRING
INTEGER
BINARY
INVALID

Constructor & Destructor Documentation

ACE_Configuration::~ACE_Configuration ( void  )
virtual

Destructor.

ACE_Configuration::ACE_Configuration ( void  )
protected

Default ctor.

ACE_Configuration::ACE_Configuration ( const ACE_Configuration rhs)
protected

Member Function Documentation

virtual int ACE_Configuration::enumerate_sections ( const ACE_Configuration_Section_Key key,
int  index,
ACE_TString name
)
pure virtual

Enumerates through the subsections in a section.

Parameters
keySection key to iterate through.
indexIteration position. Must be zero on the first call to iterate through key. Increment index by one on each successive call to this method.
nameReceives the subsection's name.
Note
You may not modify the key section while enumerating. If the section is modified during enumeration, results are undefined; you must restart the enumeration from index 0.
Return values
0for success, name has a valid name.
1there are no more subsections in the section.
-1for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Heap, and ACE_Configuration_Win32Registry.

virtual int ACE_Configuration::enumerate_values ( const ACE_Configuration_Section_Key key,
int  index,
ACE_TString name,
VALUETYPE type
)
pure virtual

Enumerates through the values in a section.

Parameters
keySection key to iterate through.
indexIteration position. Must be zero on the first call to iterate through key. Increment index by one on each successive call to this method.
nameReceives the value's name.
typeReceives the value's data type.
Note
You may not delete or add values while enumerating. If the section is modified during enumeration, results are undefined; you must restart the enumeration from index 0.
Return values
0for success, name and type are valid.
1there are no more values in the section.
-1for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Heap, and ACE_Configuration_Win32Registry.

int ACE_Configuration::expand_path ( const ACE_Configuration_Section_Key key,
const ACE_TString path_in,
ACE_Configuration_Section_Key key_out,
int  create = 1
)

Expands path_in to key_out from key. If create is true, the subsections are created. Returns 0 on success, non zero on error The path consists of sections separated by the backslash '\' or forward slash '/'. Returns 0 on success, -1 if <create) is 0 and the path refers a nonexistant section

virtual int ACE_Configuration::find_value ( const ACE_Configuration_Section_Key key,
const ACE_TCHAR name,
VALUETYPE type
)
pure virtual

Retrieves the type of a named configuration value.

Parameters
keyConfiguration section to look up the name in.
nameName of the configuration value to get the type of.
typeReceives the data type of the named value, if it exists.
Return values
0for success.
-1for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Heap, and ACE_Configuration_Win32Registry.

virtual int ACE_Configuration::get_binary_value ( const ACE_Configuration_Section_Key key,
const ACE_TCHAR name,
void *&  data,
size_t &  length
)
pure virtual

Gets a binary-typed value.

Parameters
keyConfiguration section to get the value from.
nameName of the configuration value to get.
dataReceives a pointer to memory holding the binary data for the value. This method allocates the memory pointed to using operator new[]. The caller is responsible for freeing the memory using operator delete[].
lengthReceives the number of bytes in the value.
Return values
0for success; caller is responsible for freeing the returned memory.
-1for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Heap, and ACE_Configuration_Win32Registry.

virtual int ACE_Configuration::get_integer_value ( const ACE_Configuration_Section_Key key,
const ACE_TCHAR name,
u_int &  value
)
pure virtual

Gets an integer-typed value.

Parameters
keyConfiguration section to get the value from.
nameName of the configuration value to get.
valueReceives the configuration value if it exists and has type INTEGER.
Return values
0for success.
-1for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Heap, and ACE_Configuration_Win32Registry.

ACE_Section_Key_Internal * ACE_Configuration::get_internal_key ( const ACE_Configuration_Section_Key key)
protected

Resolves the internal key from a section key.

virtual int ACE_Configuration::get_string_value ( const ACE_Configuration_Section_Key key,
const ACE_TCHAR name,
ACE_TString value
)
pure virtual

Gets a string-typed value.

Parameters
keyConfiguration section to get the value from.
nameName of the configuration value to get.
valueReceives the configuration value if it exists and has type STRING.
Return values
0for success.
-1for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Heap, and ACE_Configuration_Win32Registry.

virtual int ACE_Configuration::open_section ( const ACE_Configuration_Section_Key base,
const ACE_TCHAR sub_section,
int  create,
ACE_Configuration_Section_Key result
)
pure virtual

Opens a named section in an existing section.

Parameters
baseExisting section in which to open the named section.
sub_sectionName of the section to open.
createIf zero, the named section must exist. If non-zero, the named section will be created if it does not exist.
resultReference; receives the section key for the new section.
Return values
0for success.
-1for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Heap, and ACE_Configuration_Win32Registry.

bool ACE_Configuration::operator!= ( const ACE_Configuration rhs) const

Determine if the contents of this object are different from the contents of the object on the right hand side. Returns false if they are equal and true if they are not equal

ACE_Configuration& ACE_Configuration::operator= ( const ACE_Configuration rhs)
protected
bool ACE_Configuration::operator== ( const ACE_Configuration rhs) const

Determine if the contents of this object is the same as the contents of the object on the right hand side. Returns true if they are equal and false if they are not equal

Determine if the contents of this object is the same as the contents of the object on the right hand side. Returns 1 (True) if they are equal and 0 (False) if they are not equal

virtual int ACE_Configuration::remove_section ( const ACE_Configuration_Section_Key key,
const ACE_TCHAR sub_section,
bool  recursive
)
pure virtual

Removes a named section.

Parameters
keySection key to remove the named section from.
sub_sectionName of the section to remove.
recursiveIf true, any subkeys below sub_section are removed as well.
Return values
0for success.
-1for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Heap, and ACE_Configuration_Win32Registry.

virtual int ACE_Configuration::remove_value ( const ACE_Configuration_Section_Key key,
const ACE_TCHAR name
)
pure virtual

Removes a named value.

Parameters
keyConfiguration section to remove the named value from.
nameName of the configuration value to remove.
Return values
0for success.
-1for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Heap, and ACE_Configuration_Win32Registry.

const ACE_Configuration_Section_Key & ACE_Configuration::root_section ( void  ) const
virtual

Obtain a reference to the root section of this configuration.

virtual int ACE_Configuration::set_binary_value ( const ACE_Configuration_Section_Key key,
const ACE_TCHAR name,
const void *  data,
size_t  length
)
pure virtual

Sets a binary-typed value.

Parameters
keyConfiguration section to set the value in.
nameName of the configuration value to set. If a value with the specified name exists, it is replaced.
dataPointer to the binary data for the value.
lengthNumber of bytes for the new value.
Return values
0for success.
-1for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Heap, and ACE_Configuration_Win32Registry.

virtual int ACE_Configuration::set_integer_value ( const ACE_Configuration_Section_Key key,
const ACE_TCHAR name,
u_int  value
)
pure virtual

Sets a integer-typed value.

Parameters
keyConfiguration section to set the value in.
nameName of the configuration value to set. If a value with the specified name exists, it is replaced.
valueThe integer to set the configuration value to.
Return values
0for success.
-1for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Heap, and ACE_Configuration_Win32Registry.

virtual int ACE_Configuration::set_string_value ( const ACE_Configuration_Section_Key key,
const ACE_TCHAR name,
const ACE_TString value
)
pure virtual

Sets a string-typed value.

Parameters
keyConfiguration section to set the value in.
nameName of the configuration value to set. If a value with the specified name exists, it is replaced.
valueThe string to set the configuration value to.
Return values
0for success.
-1for error; ACE_OS::last_error() retrieves error code.

Implemented in ACE_Configuration_Heap, and ACE_Configuration_Win32Registry.

int ACE_Configuration::validate_name ( const ACE_TCHAR name,
int  allow_path = 0
)
protected

Tests to see if name is valid. name must be < 255 characters and not contain the path separator '\', brackets [] or = (maybe just restrict to alphanumeric?) returns non zero if name is not valid. The path separator is allowed, except for the first character, if allow_path is true.

int ACE_Configuration::validate_value_name ( const ACE_TCHAR name)
protected

Test to see if name is valid. The default value for a key can be unnamed, which means either name is == 0 or name == '\0` is valid. Otherwise, it calls validate_name() to test name for the same rules that apply to keys.

Member Data Documentation

ACE_TCHAR ACE_Configuration::NULL_String_ = '\0'
static
  • Represents the "NULL" string to simplify the internal logic.
ACE_Configuration_Section_Key ACE_Configuration::root_
protected

The documentation for this class was generated from the following files:
