ACE_Buffered_Svc_Handler< PEER_STREAM, SYNCH_TRAITS > Class Template Reference

Defines the interface for a service that exchanges data with its connected peer and supports buffering. More...

#include <Svc_Handler.h>

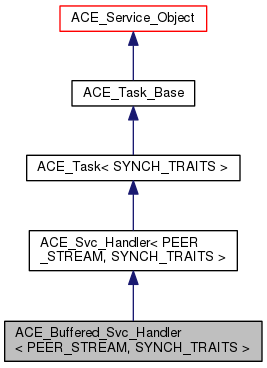

Inheritance diagram for ACE_Buffered_Svc_Handler< PEER_STREAM, SYNCH_TRAITS >:
Inheritance graph
[legend]

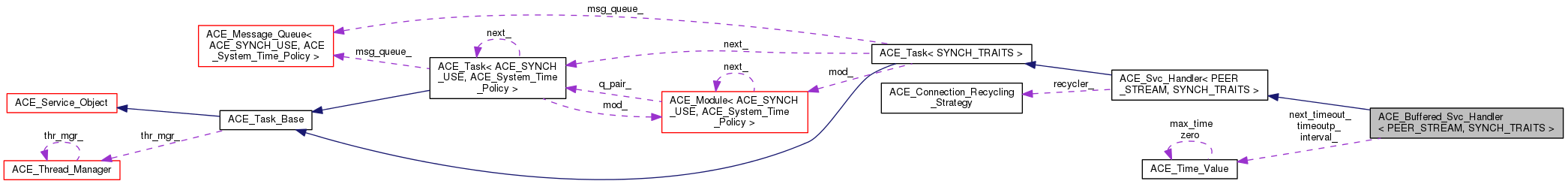

Collaboration diagram for ACE_Buffered_Svc_Handler< PEER_STREAM, SYNCH_TRAITS >:
Collaboration graph
[legend]

Public Member Functions

 ACE_Buffered_Svc_Handler (ACE_Thread_Manager *thr_mgr=0, ACE_Message_Queue< SYNCH_TRAITS > *mq=0, ACE_Reactor *reactor=ACE_Reactor::instance(), size_t max_buffer_size=0, ACE_Time_Value *relative_timeout=0)

virtual ~ACE_Buffered_Svc_Handler (void)
 Destructor, which calls <flush>. More...

virtual int put (ACE_Message_Block *message_block, ACE_Time_Value *timeout=0)

virtual int flush (void)

virtual int handle_timeout (const ACE_Time_Value &time, const void *)

void dump (void) const
 Dump the state of an object. More...

- Public Member Functions inherited from ACE_Svc_Handler< PEER_STREAM, SYNCH_TRAITS >
 ACE_Svc_Handler (ACE_Thread_Manager *thr_mgr=0, ACE_Message_Queue< SYNCH_TRAITS > *mq=0, ACE_Reactor *reactor=ACE_Reactor::instance())

virtual ~ACE_Svc_Handler (void)
 Destructor. More...

virtual int open (void *acceptor_or_connector=0)

virtual int close (u_long flags=0)

virtual int idle (u_long flags=0)

virtual ACE_Recyclable_State recycle_state (void) const

virtual int recycle_state (ACE_Recyclable_State new_state)

virtual void cleanup_hint (void **act_holder=0)

virtual int init (int argc, ACE_TCHAR *argv[])

virtual int fini (void)

virtual int info (ACE_TCHAR **info_string, size_t length) const

virtual int handle_close (ACE_HANDLE=ACE_INVALID_HANDLE, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK)

virtual ACE_HANDLE get_handle (void) const
 Get the underlying handle associated with the <peer_>. More...

virtual void set_handle (ACE_HANDLE)
 Set the underlying handle associated with the <peer_>. More...

PEER_STREAM & peer (void) const

void * operator new (size_t n)

void * operator new (size_t n, void *p)
 This operator permits "placement new" on a per-object basis. More...

virtual void destroy (void)

void operator delete (void *)

void operator delete (void *, void *)

void shutdown (void)
 Close down the descriptor and unregister from the Reactor. More...

void dump (void) const
 Dump the state of an object. More...

virtual void recycler (ACE_Connection_Recycling_Strategy *recycler, const void *recycling_act)

virtual
ACE_Connection_Recycling_Strategy
recycler (void) const
 Get the recycler. More...

virtual const void * recycling_act (void) const
 Get the recycling act. More...

virtual int recycle (void *=0)

- Public Member Functions inherited from ACE_Task< SYNCH_TRAITS >
 ACE_Task (ACE_Thread_Manager *thr_mgr=0, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy > *mq=0)

virtual ~ACE_Task (void)
 Destructor. More...

ACE_Message_Queue
< ACE_SYNCH_USE,
ACE_System_Time_Policy > *
msg_queue (void)
 Gets the message queue associated with this task. More...

void msg_queue (ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy > *)
 Sets the message queue associated with this task. More...

ACE_Time_Value_T
< ACE_System_Time_Policy
gettimeofday (void) const

void set_time_policy (ACE_System_Time_Policyconst &time_policy)

int putq (ACE_Message_Block *, ACE_Time_Value *timeout=0)

int getq (ACE_Message_Block *&mb, ACE_Time_Value *timeout=0)

int ungetq (ACE_Message_Block *, ACE_Time_Value *timeout=0)

int reply (ACE_Message_Block *mb, ACE_Time_Value *tv=0)

int put_next (ACE_Message_Block *msg, ACE_Time_Value *timeout=0)

const ACE_TCHARname (void) const

ACE_Task< ACE_SYNCH_USE,
ACE_System_Time_Policy > *
next (void)
 Get next Task pointer. More...

void next (ACE_Task< ACE_SYNCH_USE, ACE_System_Time_Policy > *)
 Set next Task pointer. More...

ACE_Task< ACE_SYNCH_USE,
ACE_System_Time_Policy > *
sibling (void)

ACE_Module< ACE_SYNCH_USE,
ACE_System_Time_Policy > *
module (void) const
 Return the Task's Module if there is one, else returns 0. More...

int flush (u_long flag=ACE_Task_Flags::ACE_FLUSHALL)

void water_marks (ACE_IO_Cntl_Msg::ACE_IO_Cntl_Cmds, size_t)
 Manipulate watermarks. More...

void dump (void) const
 Dump the state of an object. More...

- Public Member Functions inherited from ACE_Task_Base
 ACE_Task_Base (ACE_Thread_Manager *=0)
 Constructor. More...

virtual ~ACE_Task_Base (void)
 Destructor. More...

virtual int module_closed (void)

virtual int svc (void)
 Run by a daemon thread to handle deferred processing. More...

virtual int activate (long flags=THR_NEW_LWP|THR_JOINABLE|THR_INHERIT_SCHED, int n_threads=1, int force_active=0, long priority=ACE_DEFAULT_THREAD_PRIORITY, int grp_id=-1, ACE_Task_Base *task=0, ACE_hthread_t thread_handles[]=0, void *stack[]=0, size_t stack_size[]=0, ACE_thread_t thread_ids[]=0, const char *thr_name[]=0)

virtual int wait (void)
 Wait for all threads running in a task to exit. More...

virtual int suspend (void)
 Suspend a task. More...

virtual int resume (void)
 Resume a suspended task. More...

int grp_id (void) const
 Get the current group id. More...

void grp_id (int)
 Set the current group id. More...

ACE_Thread_Managerthr_mgr (void) const
 Get the thread manager associated with this Task. More...

void thr_mgr (ACE_Thread_Manager *)
 Set the thread manager associated with this Task. More...

int is_reader (void) const
 True if queue is a reader, else false. More...

int is_writer (void) const
 True if queue is a writer, else false. More...

size_t thr_count (void) const

ACE_thread_t last_thread (void) const

- Public Member Functions inherited from ACE_Service_Object
 ACE_Service_Object (ACE_Reactor *=0)
 Constructor. More...

virtual ~ACE_Service_Object (void)
 Destructor. More...

- Public Member Functions inherited from ACE_Event_Handler
virtual ~ACE_Event_Handler (void)
 Destructor is virtual to enable proper cleanup. More...

virtual int priority (void) const

virtual void priority (int priority)
 Set the priority of the Event_Handler. More...

virtual int handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
 Called when input events occur (e.g., connection or data). More...

virtual int handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
 Called when an exceptional events occur (e.g., SIGURG). More...

virtual int handle_exit (ACE_Process *)
 Called when a process exits. More...

virtual int handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)

virtual int resume_handler (void)

virtual int handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void reactor (ACE_Reactor *reactor)
 Set the event demultiplexors. More...

virtual ACE_Reactorreactor (void) const
 Get the event demultiplexors. More...

virtual
ACE_Reactor_Timer_Interface
reactor_timer_interface (void) const
 Get only the reactor's timer related interface. More...

virtual Reference_Count add_reference (void)
 Increment reference count on the handler. More...

virtual Reference_Count remove_reference (void)
 Decrement reference count on the handler. More...

Reference_Counting_Policyreference_counting_policy (void)
 Current Reference_Counting_Policy. More...

- Public Member Functions inherited from ACE_Shared_Object
 ACE_Shared_Object (void)
 Constructor. More...

virtual ~ACE_Shared_Object (void)
 Destructor. More...


Protected Member Functions

virtual int flush_i (void)


Protected Attributes

size_t maximum_buffer_size_

size_t current_buffer_size_
 Current size in bytes of the <Message_Queue> contents. More...

ACE_Time_Value next_timeout_
 Timeout value used to control when the buffer is flushed. More...

ACE_Time_Value interval_
 Interval of the timeout. More...

ACE_Time_Valuetimeoutp_
 Timeout pointer. More...

- Protected Attributes inherited from ACE_Svc_Handler< PEER_STREAM, SYNCH_TRAITS >
PEER_STREAM peer_
 Maintain connection with client. More...

bool dynamic_
 Have we been dynamically created? More...

bool closing_

ACE_Connection_Recycling_Strategyrecycler_
 Pointer to the connection recycler. More...

const void * recycling_act_


Additional Inherited Members

- Public Types inherited from ACE_Svc_Handler< PEER_STREAM, SYNCH_TRAITS >
typedef PEER_STREAM::PEER_ADDR addr_type

typedef PEER_STREAM stream_type

- Static Public Member Functions inherited from ACE_Task_Base
static ACE_THR_FUNC_RETURN svc_run (void *)
 Routine that runs the service routine as a daemon thread. More...

static void cleanup (void *object, void *params)

- Public Attributes inherited from ACE_Task< SYNCH_TRAITS >
ACE_Message_Queue
< ACE_SYNCH_USE,
ACE_System_Time_Policy > *
msg_queue_
 Queue of messages on the ACE_Task.. More...

bool delete_msg_queue_
 true if should delete Message_Queue, false otherwise. More...

ACE_Module< ACE_SYNCH_USE,
ACE_System_Time_Policy > *
mod_
 Back-pointer to the enclosing module. More...

ACE_Task< ACE_SYNCH_USE,
ACE_System_Time_Policy > *
next_
 Pointer to adjacent ACE_Task. More...

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks. More...

- Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op
< ACE_SYNCH_MUTEX,
Reference_Count
Atomic_Reference_Count
 Typedef for implementation of reference counting. More...


Detailed Description

template<typename PEER_STREAM, typename SYNCH_TRAITS>
class ACE_Buffered_Svc_Handler< PEER_STREAM, SYNCH_TRAITS >

Defines the interface for a service that exchanges data with its connected peer and supports buffering.

The buffering feature makes it possible to queue up ACE_Message_Blocks in an ACE_Message_Queue until (1) the queue is "full" or (2) a period of time elapses, at which point the queue is "flushed" via <sendv_n> to the peer.

Constructor & Destructor Documentation

template<typename PEER_STREAM , typename SYNCH_TRAITS >
ACE_Buffered_Svc_Handler< PEER_STREAM, SYNCH_TRAITS >::ACE_Buffered_Svc_Handler ( ACE_Thread_Manager thr_mgr = 0,
ACE_Message_Queue< SYNCH_TRAITS > *  mq = 0,
ACE_Reactor reactor = ACE_Reactor::instance (),
size_t  max_buffer_size = 0,
ACE_Time_Value relative_timeout = 0
)

Constructor initializes the thr_mgr and mq by passing them down to the ACE_Task base class. The reactor is passed to the ACE_Event_Handler. The max_buffer_size and relative_timeout are used to determine at what point to flush the mq. By default, there's no buffering at all. The relative_timeout value is interpreted to be in a unit that's relative to the current time returned by <ACE_OS::gettimeofday>.

template<typename PEER_STREAM , typename SYNCH_TRAITS >
ACE_Buffered_Svc_Handler< PEER_STREAM, SYNCH_TRAITS >::~ACE_Buffered_Svc_Handler ( void  )
virtual

Destructor, which calls <flush>.

Member Function Documentation

template<typename PEER_STREAM , typename SYNCH_TRAITS >
void ACE_Buffered_Svc_Handler< PEER_STREAM, SYNCH_TRAITS >::dump ( void  ) const

Dump the state of an object.

template<typename PEER_STREAM , typename SYNCH_TRAITS >
int ACE_Buffered_Svc_Handler< PEER_STREAM, SYNCH_TRAITS >::flush ( void  )
virtual

Flush the ACE_Message_Queue, which writes all the queued ACE_Message_Blocks to the <PEER_STREAM>.

template<typename PEER_STREAM , typename SYNCH_TRAITS >
int ACE_Buffered_Svc_Handler< PEER_STREAM, SYNCH_TRAITS >::flush_i ( void  )
protectedvirtual

Implement the flush operation on the ACE_Message_Queue, which writes all the queued ACE_Message_Blocks to the <PEER_STREAM>. Assumes that the caller holds the lock.

template<typename PEER_STREAM , typename SYNCH_TRAITS >
int ACE_Buffered_Svc_Handler< PEER_STREAM, SYNCH_TRAITS >::handle_timeout ( const ACE_Time_Value time,
const void *
)
virtual

This method is not currently implemented – this is where the integration with the <Reactor> would occur.

Reimplemented from ACE_Svc_Handler< PEER_STREAM, SYNCH_TRAITS >.

template<typename PEER_STREAM , typename SYNCH_TRAITS >
int ACE_Buffered_Svc_Handler< PEER_STREAM, SYNCH_TRAITS >::put ( ACE_Message_Block message_block,
ACE_Time_Value timeout = 0
)
virtual

Insert the ACE_Message_Block chain rooted at message_block into the ACE_Message_Queue with the designated timeout. The <flush> method will be called if this <put> causes the number of bytes to exceed the maximum buffer size or if the timeout period has elapsed.

Reimplemented from ACE_Task_Base.

Member Data Documentation

template<typename PEER_STREAM , typename SYNCH_TRAITS >
size_t ACE_Buffered_Svc_Handler< PEER_STREAM, SYNCH_TRAITS >::current_buffer_size_
protected

Current size in bytes of the <Message_Queue> contents.

template<typename PEER_STREAM , typename SYNCH_TRAITS >
ACE_Time_Value ACE_Buffered_Svc_Handler< PEER_STREAM, SYNCH_TRAITS >::interval_
protected

Interval of the timeout.

template<typename PEER_STREAM , typename SYNCH_TRAITS >
size_t ACE_Buffered_Svc_Handler< PEER_STREAM, SYNCH_TRAITS >::maximum_buffer_size_
protected

Maximum size the <Message_Queue> can be before we have to flush the buffer.

template<typename PEER_STREAM , typename SYNCH_TRAITS >
ACE_Time_Value ACE_Buffered_Svc_Handler< PEER_STREAM, SYNCH_TRAITS >::next_timeout_
protected

Timeout value used to control when the buffer is flushed.

template<typename PEER_STREAM , typename SYNCH_TRAITS >
ACE_Time_Value* ACE_Buffered_Svc_Handler< PEER_STREAM, SYNCH_TRAITS >::timeoutp_
protected

Timeout pointer.


The documentation for this class was generated from the following files:
