TAO_SCIOP_Transport Class Reference

#include <SCIOP_Transport.h>

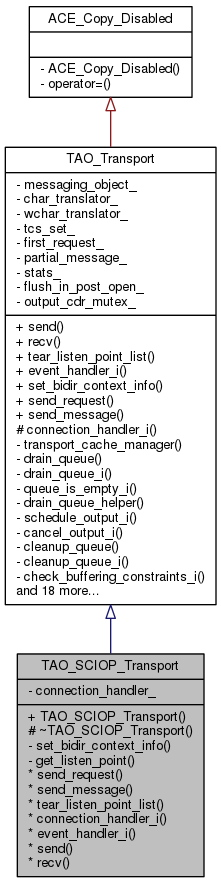

Inheritance diagram for TAO_SCIOP_Transport:

Collaboration diagram for TAO_SCIOP_Transport:

Public Member Functions
	TAO_SCIOP_Transport (TAO_SCIOP_Connection_Handler *handler, TAO_ORB_Core *orb_core)
	Constructor. More...

Protected Member Functions
virtual	~TAO_SCIOP_Transport (void)
	Destructor. More...

Private Member Functions
void	set_bidir_context_info (TAO_Operation_Details &opdetails)
	Set the Bidirectional context info in the service context list. More...
int	get_listen_point (IIOP::ListenPointList &listen_point_list, TAO_Acceptor *acceptor)

Private Attributes
TAO_SCIOP_Connection_Handler *	connection_handler_

Overridden Template Methods
Please check the documentation in "tao/Transport.h" for more details.
virtual int	send_request (TAO_Stub *stub, TAO_ORB_Core *orb_core, TAO_OutputCDR &association, TAO_Message_Semantics message_semantics, ACE_Time_Value *max_wait_time)
virtual int	send_message (TAO_OutputCDR &association, TAO_Stub *stub=0, TAO_ServerRequest *request=0, TAO_Message_Semantics message_semantics=TAO_Message_Semantics(), ACE_Time_Value *max_time_wait=0)
virtual int	tear_listen_point_list (TAO_InputCDR &cdr)
virtual TAO_Connection_Handler *	connection_handler_i (void)
virtual ACE_Event_Handler *	event_handler_i (void)
virtual ssize_t	send (iovec *iov, int iovcnt, size_t &bytes_transferred, const ACE_Time_Value *timeout=0)
virtual ssize_t	recv (char *buf, size_t len, const ACE_Time_Value *s=0)

Detailed Description

Specialization of the base TAO_Transport class to handle the SCIOP protocol.

Constructor & Destructor Documentation

TAO_SCIOP_Transport::TAO_SCIOP_Transport	(	TAO_SCIOP_Connection_Handler *	handler,
		TAO_ORB_Core *	orb_core
	)

Constructor.

TAO_SCIOP_Transport::~TAO_SCIOP_Transport ( void  )

protectedvirtual

Destructor.

Protected destructor to enforce proper memory management through the reference counting mechanism.

Member Function Documentation

TAO_Connection_Handler * TAO_SCIOP_Transport::connection_handler_i ( void  )

virtual

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

ACE_Event_Handler * TAO_SCIOP_Transport::event_handler_i ( void  )

protectedvirtual

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

int TAO_SCIOP_Transport::get_listen_point ( IIOP::ListenPointList &  listen_point_list, TAO_Acceptor *  acceptor  )

private

Add the listen points in <acceptor> to the <listen_point_list> if this connection is in the same interface as that of the endpoints in the <acceptor>

ssize_t TAO_SCIOP_Transport::recv ( char *  buf, size_t  len, const ACE_Time_Value *  s = 0  )

protectedvirtual

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

ssize_t TAO_SCIOP_Transport::send ( iovec *  iov, int  iovcnt, size_t &  bytes_transferred, const ACE_Time_Value *  timeout = 0  )

protectedvirtual

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

int TAO_SCIOP_Transport::send_message ( TAO_OutputCDR &  association, TAO_Stub *  stub = 0, TAO_ServerRequest *  request = 0, TAO_Message_Semantics  message_semantics = TAO_Message_Semantics (), ACE_Time_Value *  max_time_wait = 0  )

virtual

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

int TAO_SCIOP_Transport::send_request ( TAO_Stub *  stub, TAO_ORB_Core *  orb_core, TAO_OutputCDR &  association, TAO_Message_Semantics  message_semantics, ACE_Time_Value *  max_wait_time  )

virtual

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

void TAO_SCIOP_Transport::set_bidir_context_info ( TAO_Operation_Details &  opdetails )

privatevirtual

Set the Bidirectional context info in the service context list.

Reimplemented from TAO_Transport.

int TAO_SCIOP_Transport::tear_listen_point_list ( TAO_InputCDR &  cdr )

virtual

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Reimplemented from TAO_Transport.

Member Data Documentation

TAO_SCIOP_Connection_Handler* TAO_SCIOP_Transport::connection_handler_

private

The connection service handler used for accessing lower layer communication protocols.

---

The documentation for this class was generated from the following files:

• SCIOP_Transport.h
• SCIOP_Transport.cpp
