TAO_Strategies  2.1.9
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Pages
Public Member Functions | Private Member Functions | Private Attributes | Friends | List of all members
TAO_DIOP_Endpoint Class Reference

TAO_DIOP_Endpoint. More...

#include <DIOP_Endpoint.h>

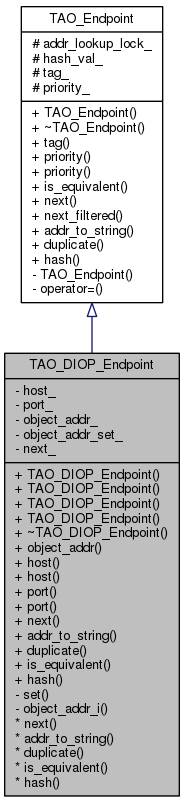

Inheritance diagram for TAO_DIOP_Endpoint:
Inheritance graph

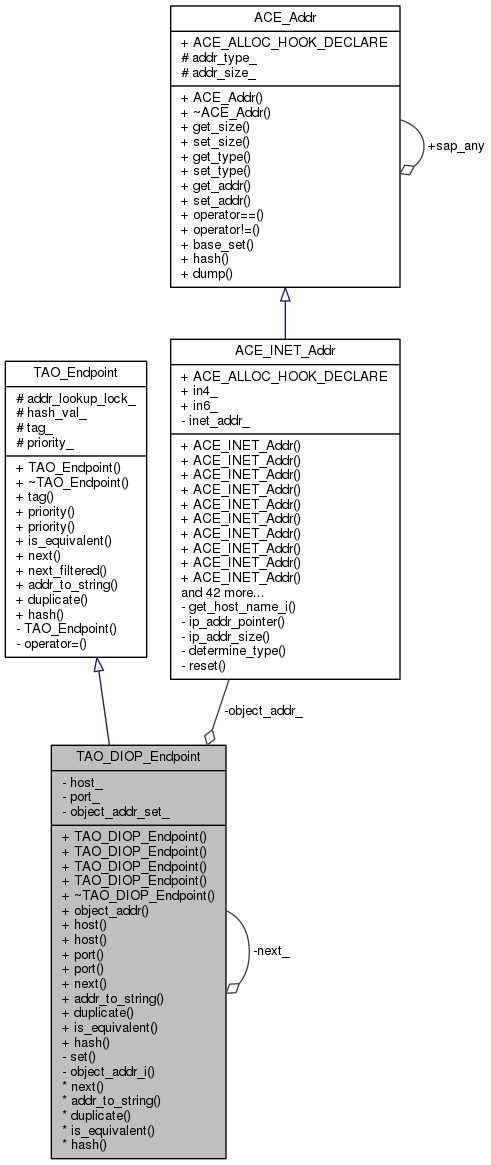

Collaboration diagram for TAO_DIOP_Endpoint:
Collaboration graph

Public Member Functions

 TAO_DIOP_Endpoint (void)
 Default constructor. More...

 TAO_DIOP_Endpoint (const char *host, CORBA::UShort port, const ACE_INET_Addr &addr, CORBA::Short priority=TAO_INVALID_PRIORITY)

 TAO_DIOP_Endpoint (const ACE_INET_Addr &addr, int use_dotted_decimal_addresses)
 Constructor. More...

 TAO_DIOP_Endpoint (const char *host, CORBA::UShort port, CORBA::Short priority)
 Constructor. This constructor is used when decoding endpoints. More...

 ~TAO_DIOP_Endpoint (void)
 Destructor. More...

const ACE_INET_Addrobject_addr (void) const
 Return a reference to the <object_addr>. More...

const char * host (void) const

const char * host (const char *h)

CORBA::UShort port (void) const
 Return the port number. More...

CORBA::UShort port (CORBA::UShort p)
 Set the port number. More...

TAO_Endpoint Methods

Please check the documentation in Endpoint.h for details.

virtual TAO_Endpointnext (void)

virtual int addr_to_string (char *buffer, size_t length)

virtual TAO_Endpointduplicate (void)

CORBA::Boolean is_equivalent (const TAO_Endpoint *other_endpoint)

CORBA::ULong hash (void)
 Return a hash value for this object. More...

- Public Member Functions inherited from TAO_Endpoint
 TAO_Endpoint (CORBA::ULong tag, CORBA::Short priority=TAO_INVALID_PRIORITY)

virtual ~TAO_Endpoint (void)

CORBA::ULong tag (void) const

void priority (CORBA::Short priority)

CORBA::Short priority (void) const

virtual TAO_Endpointnext_filtered (TAO_ORB_Core *, TAO_Endpoint *root)


Private Member Functions

int set (const ACE_INET_Addr &addr, int use_dotted_decimal_addresses)
 Helper method for setting INET_Addr. More...

void object_addr_i (void) const
 Helper method for object_addr () call. More...


Private Attributes

CORBA::String_var host_
 String representing the host name. More...

CORBA::UShort port_
 TCP port number. More...

ACE_INET_Addr object_addr_

bool object_addr_set_
 Flag to indicate if the address has been resolved and set. More...

TAO_DIOP_Endpointnext_


Friends

class TAO_DIOP_Profile

class TAO_SSLIOP_Profile


Additional Inherited Members

- Protected Attributes inherited from TAO_Endpoint
TAO_SYNCH_MUTEX addr_lookup_lock_

CORBA::ULong hash_val_

CORBA::ULong const tag_

CORBA::Short priority_


Detailed Description

TAO_DIOP_Endpoint.

DIOP-specific implementation of PP Framework Endpoint interface.

Constructor & Destructor Documentation

TAO_DIOP_Endpoint::TAO_DIOP_Endpoint ( void  )

Default constructor.

TAO_DIOP_Endpoint::TAO_DIOP_Endpoint ( const char *  host,
CORBA::UShort  port,
const ACE_INET_Addr addr,
CORBA::Short  priority = TAO_INVALID_PRIORITY
)

Constructor. This is the most efficient constructor since it does not require any address resolution processing.

TAO_DIOP_Endpoint::TAO_DIOP_Endpoint ( const ACE_INET_Addr addr,
int  use_dotted_decimal_addresses
)

Constructor.

TAO_DIOP_Endpoint::TAO_DIOP_Endpoint ( const char *  host,
CORBA::UShort  port,
CORBA::Short  priority
)

Constructor. This constructor is used when decoding endpoints.

TAO_DIOP_Endpoint::~TAO_DIOP_Endpoint ( void  )

Destructor.

Member Function Documentation

int TAO_DIOP_Endpoint::addr_to_string ( char *  buffer,
size_t  length
)
virtual

Return true if this endpoint is equivalent to other_endpoint. Two endpoints are equivalent if their port and host are the same.

Implements TAO_Endpoint.

TAO_Endpoint * TAO_DIOP_Endpoint::duplicate ( void  )
virtual

Return true if this endpoint is equivalent to other_endpoint. Two endpoints are equivalent if their port and host are the same.

Implements TAO_Endpoint.

CORBA::ULong TAO_DIOP_Endpoint::hash ( void  )
virtual

Return a hash value for this object.

Implements TAO_Endpoint.

const char * TAO_DIOP_Endpoint::host ( void  ) const
inline

Return a pointer to the host string. This object maintains ownership of this string.

const char * TAO_DIOP_Endpoint::host ( const char *  h)

Copy the string h into <host_> and return the resulting pointer. This object maintains ownership of this string.

CORBA::Boolean TAO_DIOP_Endpoint::is_equivalent ( const TAO_Endpoint other_endpoint)
virtual

Return true if this endpoint is equivalent to other_endpoint. Two endpoints are equivalent if their port and host are the same.

Implements TAO_Endpoint.

TAO_Endpoint * TAO_DIOP_Endpoint::next ( void  )
virtual

Return true if this endpoint is equivalent to other_endpoint. Two endpoints are equivalent if their port and host are the same.

Implements TAO_Endpoint.

const ACE_INET_Addr & TAO_DIOP_Endpoint::object_addr ( void  ) const

Return a reference to the <object_addr>.

void TAO_DIOP_Endpoint::object_addr_i ( void  ) const
private

Helper method for object_addr () call.

CORBA::UShort TAO_DIOP_Endpoint::port ( void  ) const
inline

Return the port number.

CORBA::UShort TAO_DIOP_Endpoint::port ( CORBA::UShort  p)
inline

Set the port number.

int TAO_DIOP_Endpoint::set ( const ACE_INET_Addr addr,
int  use_dotted_decimal_addresses
)
private

Helper method for setting INET_Addr.

Friends And Related Function Documentation

friend class TAO_DIOP_Profile
friend
friend class TAO_SSLIOP_Profile
friend

Member Data Documentation

CORBA::String_var TAO_DIOP_Endpoint::host_
private

String representing the host name.

TAO_DIOP_Endpoint* TAO_DIOP_Endpoint::next_
private

DIOP Endpoints can be strung into a list. Return the next endpoint in the list, if any.

ACE_INET_Addr TAO_DIOP_Endpoint::object_addr_
mutableprivate

Cached instance of <ACE_INET_Addr> for use in making invocations, etc.

bool TAO_DIOP_Endpoint::object_addr_set_
mutableprivate

Flag to indicate if the address has been resolved and set.

CORBA::UShort TAO_DIOP_Endpoint::port_
private

TCP port number.


The documentation for this class was generated from the following files:
