ProxyPushSupplier. More...

#include <CEC_ProxyPushSupplier.h>

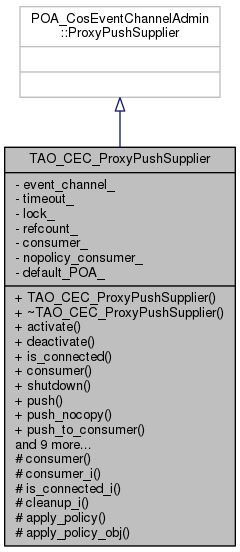

Inheritance diagram for TAO_CEC_ProxyPushSupplier:

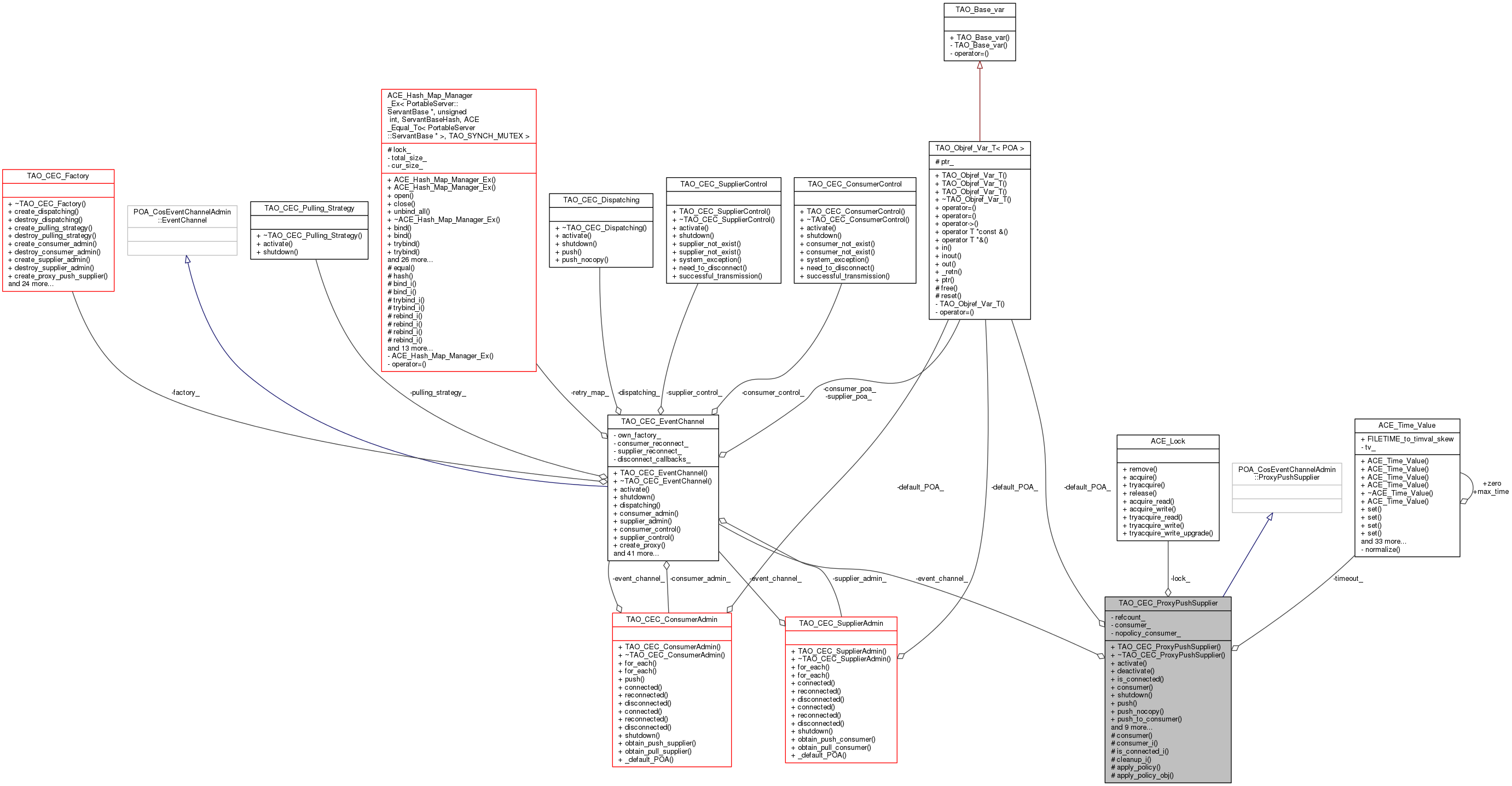

Collaboration diagram for TAO_CEC_ProxyPushSupplier:

Public Types
typedef CosEventChannelAdmin::ProxyPushSupplier_ptr	_ptr_type

typedef CosEventChannelAdmin::ProxyPushSupplier_var	_var_type

Public Member Functions
	TAO_CEC_ProxyPushSupplier (TAO_CEC_EventChannel *event_channel, const ACE_Time_Value &timeout)
	constructor... More...

virtual	~TAO_CEC_ProxyPushSupplier (void)
	typed ec constructor More...

virtual void	activate (CosEventChannelAdmin::ProxyPushSupplier_ptr &)
	Activate in the POA. More...

virtual void	deactivate (void)
	Deactivate from the POA. More...

CORBA::Boolean	is_connected (void) const
	Return 0 if no consumer is connected... More...

CosEventComm::PushConsumer_ptr	consumer (void) const

virtual void	shutdown (void)
	The event channel is shutting down. More...

virtual void	push (const CORBA::Any &event)
	Internal methods to push an event to each consumer. More...

virtual void	push_nocopy (CORBA::Any &event)

void	push_to_consumer (const CORBA::Any &event)
	Internal methods to invoke a typed event to each consumer. More...

void	reactive_push_to_consumer (const CORBA::Any &event)

CORBA::Boolean	consumer_non_existent (CORBA::Boolean_out disconnected)

virtual void	connect_push_consumer (CosEventComm::PushConsumer_ptr push_consumer)

virtual void	disconnect_push_supplier (void)

CORBA::ULong	_incr_refcnt (void)
	Increment and decrement the reference count. More...

CORBA::ULong	_decr_refcnt (void)

virtual PortableServer::POA_ptr	_default_POA (void)

virtual void	_add_ref (void)

virtual void	_remove_ref (void)

Protected Member Functions
void	consumer (CosEventComm::PushConsumer_ptr consumer)

void	consumer_i (CosEventComm::PushConsumer_ptr consumer)

CORBA::Boolean	is_connected_i (void) const
	The private version (without locking) of is_connected(). More...

void	cleanup_i (void)
	Release the child and the consumer. More...

CosEventComm::PushConsumer_ptr	apply_policy (CosEventComm::PushConsumer_ptr c)

CORBA::Object_ptr	apply_policy_obj (CORBA::Object_ptr c)

Private Attributes
TAO_CEC_EventChannel *	event_channel_
	The Event Channel that owns this object. More...

ACE_Time_Value	timeout_

ACE_Lock *	lock_
	The Typed Event Channel that owns this object. More...

CORBA::ULong	refcount_
	The reference count. More...

CosEventComm::PushConsumer_var	consumer_

CosEventComm::PushConsumer_var	nopolicy_consumer_
	The consumer without any policies applied. More...

PortableServer::POA_var	default_POA_
	Store the default POA. More...

Detailed Description

ProxyPushSupplier.

Implement the CosEventChannelAdmin::ProxyPushSupplier interface, remember that this class is used to communicate with a PushConsumer, so, in effect, this is the ambassador for a consumer inside the event channel. = MEMORY MANAGMENT It does not assume ownership of the TAO_CEC_Dispatching object. It makes a copy of the ConsumerQOS and the consumer object reference. = LOCKING Locking is strategized, the event channel acts as a factory for the locking strategies.

Member Typedef Documentation

typedef CosEventChannelAdmin::ProxyPushSupplier_ptr TAO_CEC_ProxyPushSupplier::_ptr_type

typedef CosEventChannelAdmin::ProxyPushSupplier_var TAO_CEC_ProxyPushSupplier::_var_type

Constructor & Destructor Documentation

TAO_CEC_ProxyPushSupplier::TAO_CEC_ProxyPushSupplier	(	TAO_CEC_EventChannel *	event_channel,
		const ACE_Time_Value &	timeout
	)

constructor...

TAO_CEC_ProxyPushSupplier::~TAO_CEC_ProxyPushSupplier ( void )

virtual

typed ec constructor

destructor...

Member Function Documentation

void TAO_CEC_ProxyPushSupplier::_add_ref ( void )

virtual

CORBA::ULong TAO_CEC_ProxyPushSupplier::_decr_refcnt ( void )

PortableServer::POA_ptr TAO_CEC_ProxyPushSupplier::_default_POA ( void )

virtual

CORBA::ULong TAO_CEC_ProxyPushSupplier::_incr_refcnt ( void )

Increment and decrement the reference count.

void TAO_CEC_ProxyPushSupplier::_remove_ref ( void )

virtual

void TAO_CEC_ProxyPushSupplier::activate ( CosEventChannelAdmin::ProxyPushSupplier_ptr & activated_proxy )

virtual

Activate in the POA.

CosEventComm::PushConsumer_ptr TAO_CEC_ProxyPushSupplier::apply_policy ( CosEventComm::PushConsumer_ptr c )

protected

Assigns the parameter to both consumer_ and nopolicy_consumer_, and applies policies (when appropriate) to consumer_.

CORBA::Object_ptr TAO_CEC_ProxyPushSupplier::apply_policy_obj ( CORBA::Object_ptr c )

protected

void TAO_CEC_ProxyPushSupplier::cleanup_i ( void )

protected

Release the child and the consumer.

void TAO_CEC_ProxyPushSupplier::connect_push_consumer ( CosEventComm::PushConsumer_ptr push_consumer )

virtual

CosEventComm::PushConsumer_ptr TAO_CEC_ProxyPushSupplier::consumer ( void ) const

Return the consumer object reference. It returns nil() if it has not connected yet. NOTE: This method does not return a new reference!!! Doing so will increase the locking overhead on the critical path.

void TAO_CEC_ProxyPushSupplier::consumer ( CosEventComm::PushConsumer_ptr consumer )

protected

Set the consumer, used by some implementations to change the policies used when invoking operations on the consumer.

void TAO_CEC_ProxyPushSupplier::consumer_i ( CosEventComm::PushConsumer_ptr consumer )

protected

CORBA::Boolean TAO_CEC_ProxyPushSupplier::consumer_non_existent ( CORBA::Boolean_out disconnected )

Invoke the _non_existent() pseudo-operation on the consumer. If it is disconnected then it returns true and sets the <disconnected> flag.

void TAO_CEC_ProxyPushSupplier::deactivate ( void )

virtual

Deactivate from the POA.

void TAO_CEC_ProxyPushSupplier::disconnect_push_supplier ( void )

virtual

CORBA::Boolean TAO_CEC_ProxyPushSupplier::is_connected ( void ) const

Return 0 if no consumer is connected...

CORBA::Boolean TAO_CEC_ProxyPushSupplier::is_connected_i ( void ) const

protected

The private version (without locking) of is_connected().

void TAO_CEC_ProxyPushSupplier::push ( const CORBA::Any & event )

virtual

Internal methods to push an event to each consumer.

void TAO_CEC_ProxyPushSupplier::push_nocopy ( CORBA::Any & event )

virtual

void TAO_CEC_ProxyPushSupplier::push_to_consumer ( const CORBA::Any & event )

Internal methods to invoke a typed event to each consumer.

Pushes to the consumer, verifies that it is connected.

void TAO_CEC_ProxyPushSupplier::reactive_push_to_consumer ( const CORBA::Any & event )

void TAO_CEC_ProxyPushSupplier::shutdown ( void )

virtual

The event channel is shutting down.

Member Data Documentation

CosEventComm::PushConsumer_var TAO_CEC_ProxyPushSupplier::consumer_

private

The consumer – use apply_policy() instead of assigning directly to consumer_. This will keep consumer_ and nopolicy_consumer_ in sync.

PortableServer::POA_var TAO_CEC_ProxyPushSupplier::default_POA_

private

Store the default POA.

TAO_CEC_EventChannel* TAO_CEC_ProxyPushSupplier::event_channel_

private

The Event Channel that owns this object.

ACE_Lock* TAO_CEC_ProxyPushSupplier::lock_

private

The Typed Event Channel that owns this object.

The locking strategy.

CosEventComm::PushConsumer_var TAO_CEC_ProxyPushSupplier::nopolicy_consumer_

private

The consumer without any policies applied.

CORBA::ULong TAO_CEC_ProxyPushSupplier::refcount_

private

The reference count.

ACE_Time_Value TAO_CEC_ProxyPushSupplier::timeout_

private

The documentation for this class was generated from the following files:
