TAO_Default_Server_Strategy_Factory Class Reference

This is the default strategy factory for CORBA servers. It allows developers to choose strategies via argument flags. This design gives substantial freedom for experimentation. More...

#include <default_server.h>

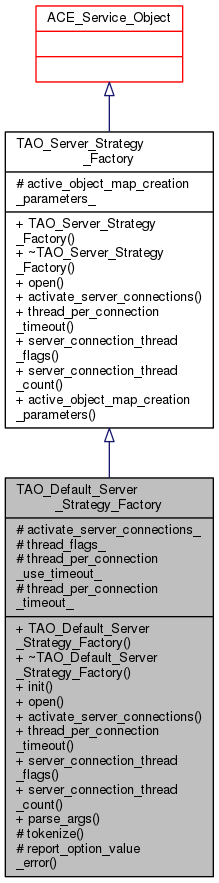

Inheritance diagram for TAO_Default_Server_Strategy_Factory:

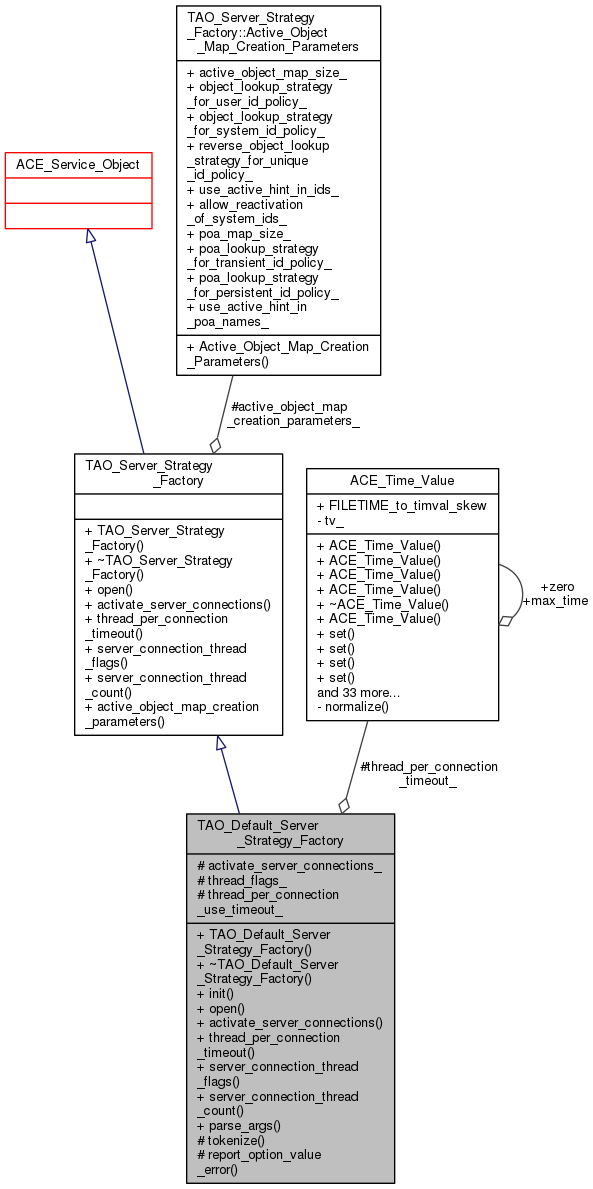

Collaboration diagram for TAO_Default_Server_Strategy_Factory:

Public Member Functions
	TAO_Default_Server_Strategy_Factory (void)
virtual	~TAO_Default_Server_Strategy_Factory (void)
virtual int	init (int argc, ACE_TCHAR *argv[])
virtual int	open (TAO_ORB_Core *)
virtual int	activate_server_connections (void)
	Are server connections active (i.e. run in their own thread) More...
virtual int	thread_per_connection_timeout (ACE_Time_Value &timeout)
virtual int	server_connection_thread_flags (void)
	The thread activation parameters. More...
virtual int	server_connection_thread_count (void)
int	parse_args (int argc, ACE_TCHAR *argv[])
Public Member Functions inherited from TAO_Server_Strategy_Factory
	TAO_Server_Strategy_Factory (void)
	Constructor. More...
virtual	~TAO_Server_Strategy_Factory (void)
	Destructor. More...
virtual const Active_Object_Map_Creation_Parameters &	active_object_map_creation_parameters (void) const
	Return the active object map creation parameters. More...

Protected Member Functions
void	tokenize (ACE_TCHAR *flag_string)
void	report_option_value_error (const ACE_TCHAR *option_name, const ACE_TCHAR *option_value)

Protected Attributes
int	activate_server_connections_
	Should the server connection handlers run in their own thread? More...
int	thread_flags_
	Default thread flags passed to thr_create(). More...
int	thread_per_connection_use_timeout_
	The timeout flag and value for the thread-per-connection model. More...
ACE_Time_Value	thread_per_connection_timeout_
Protected Attributes inherited from TAO_Server_Strategy_Factory
Active_Object_Map_Creation_Parameters	active_object_map_creation_parameters_
	Active object map creation parameters. More...

Detailed Description

This is the default strategy factory for CORBA servers. It allows developers to choose strategies via argument flags. This design gives substantial freedom for experimentation.

Constructor & Destructor Documentation

TAO_Default_Server_Strategy_Factory::TAO_Default_Server_Strategy_Factory

(

void

)

TAO_Default_Server_Strategy_Factory::~TAO_Default_Server_Strategy_Factory ( void  )

virtual

Member Function Documentation

int TAO_Default_Server_Strategy_Factory::activate_server_connections ( void  )

virtual

Are server connections active (i.e. run in their own thread)

Implements TAO_Server_Strategy_Factory.

int TAO_Default_Server_Strategy_Factory::init ( int  argc, ACE_TCHAR *  argv[]  )

virtual

int TAO_Default_Server_Strategy_Factory::open ( TAO_ORB_Core *  orb_core )

virtual

Call <open> on various strategies. This is not performed in <init> so that the other portions of the ORB have a chance to "settle" in their initialization since the strategies herein might need some of that information.

Implements TAO_Server_Strategy_Factory.

int TAO_Default_Server_Strategy_Factory::parse_args	(	int	argc,
		ACE_TCHAR *	argv[]
	)

Parse the arguments, check the documentation in $TAO_ROOT/docs/Options.html for details

void TAO_Default_Server_Strategy_Factory::report_option_value_error ( const ACE_TCHAR *  option_name, const ACE_TCHAR *  option_value  )

protected

int TAO_Default_Server_Strategy_Factory::server_connection_thread_count ( void  )

virtual

Implements TAO_Server_Strategy_Factory.

int TAO_Default_Server_Strategy_Factory::server_connection_thread_flags ( void  )

virtual

The thread activation parameters.

Implements TAO_Server_Strategy_Factory.

int TAO_Default_Server_Strategy_Factory::thread_per_connection_timeout ( ACE_Time_Value &  timeout )

virtual

Obtain the timeout value used by the thread-per-connection server threads to poll the shutdown flag in the ORB. Return -1 if the ORB should use the compile-time defaults. If the return value is zero then the threads block without timeouts.

Implements TAO_Server_Strategy_Factory.

void TAO_Default_Server_Strategy_Factory::tokenize ( ACE_TCHAR *  flag_string )

protected

Member Data Documentation

int TAO_Default_Server_Strategy_Factory::activate_server_connections_

protected

Should the server connection handlers run in their own thread?

int TAO_Default_Server_Strategy_Factory::thread_flags_

protected

Default thread flags passed to thr_create().

ACE_Time_Value TAO_Default_Server_Strategy_Factory::thread_per_connection_timeout_

protected

int TAO_Default_Server_Strategy_Factory::thread_per_connection_use_timeout_

protected

The timeout flag and value for the thread-per-connection model.

---

The documentation for this class was generated from the following files:

• default_server.h
• default_server.cpp
