TAO::Remote_Invocation Class Reference

Base class for remote invocations. More...

#include <Remote_Invocation.h>

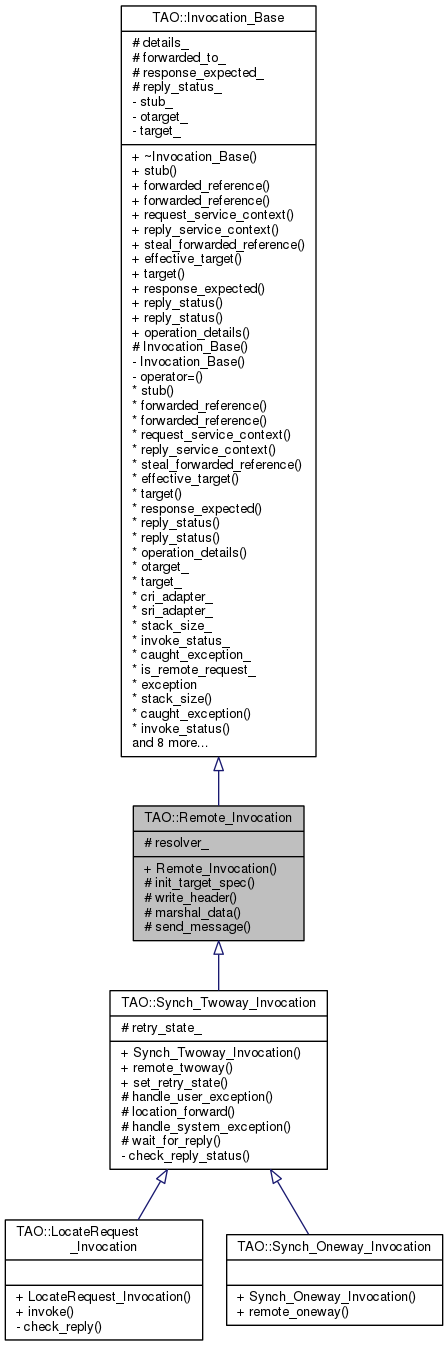

Inheritance diagram for TAO::Remote_Invocation:

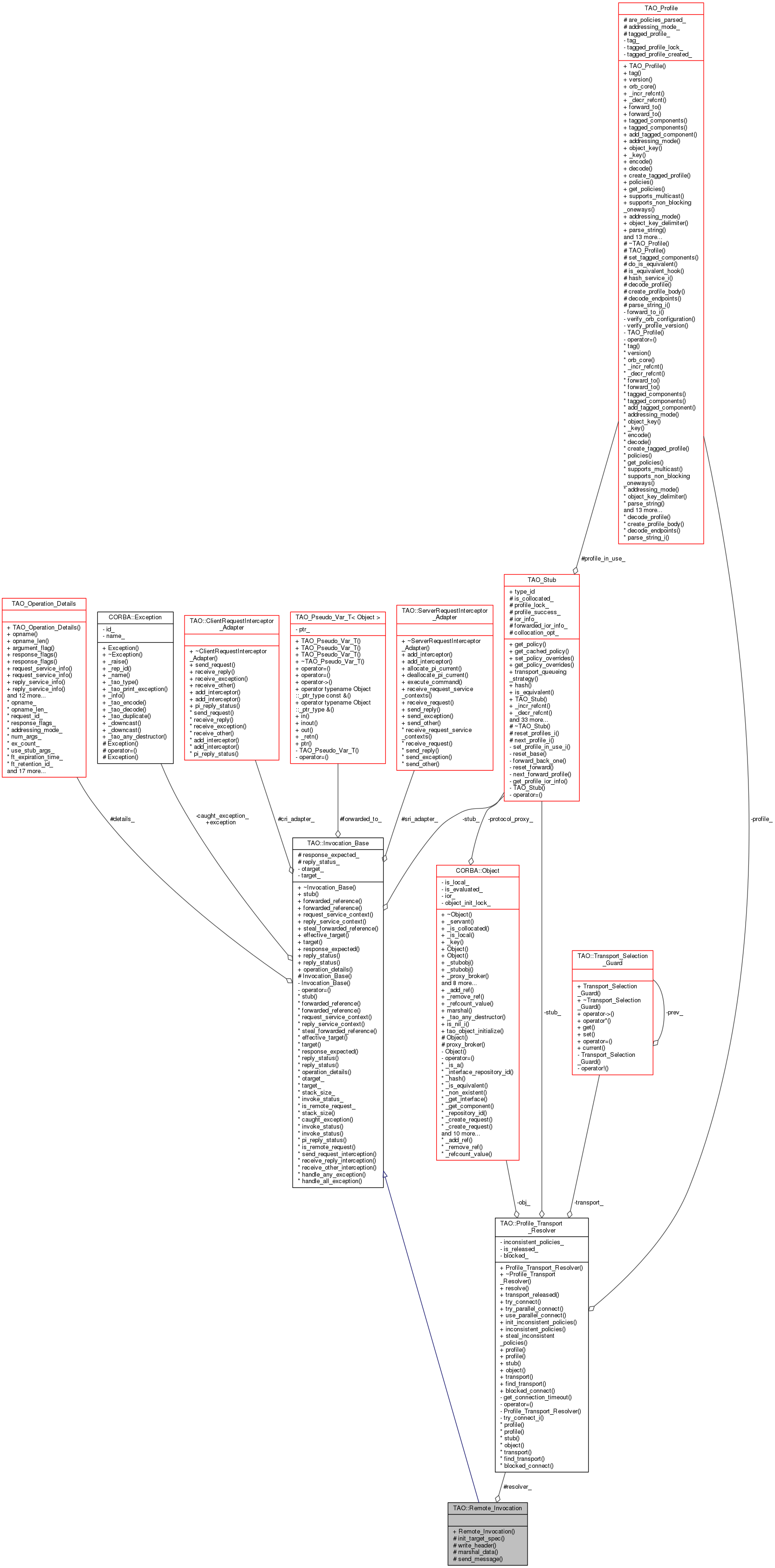

Collaboration diagram for TAO::Remote_Invocation:

Public Member Functions
	Remote_Invocation (CORBA::Object_ptr otarget, Profile_Transport_Resolver &resolver, TAO_Operation_Details &detail, bool response_expected)
Public Member Functions inherited from TAO::Invocation_Base
virtual	~Invocation_Base (void)
TAO_Stub *	stub (void) const
	Accessor and mutator methods. More...
CORBA::Object_ptr	forwarded_reference (void)
void	forwarded_reference (CORBA::Object_ptr o)
	Accessor and mutator methods. More...
TAO_Service_Context &	request_service_context (void)
	Accessors for the service context list. More...
TAO_Service_Context &	reply_service_context (void)
	Accessor and mutator methods. More...
CORBA::Object_ptr	steal_forwarded_reference (void)
	Return the forwarded object location by loosing ownership. More...
CORBA::Object_ptr	effective_target (void) const
	Return the effective target of the invocation. More...
CORBA::Object_ptr	target (void) const
	Return the target object. More...
CORBA::Boolean	response_expected (void) const
	Does this invocation return a response? More...
GIOP::ReplyStatusType	reply_status (void) const
	Accessor of reply_status of the invocation. More...
void	reply_status (GIOP::ReplyStatusType s)
	Mutator of reply_status of the invocation. More...
TAO_Operation_Details &	operation_details (void)
	The operaton details of the invocation. More...
size_t &	stack_size (void)
CORBA::Exception *	caught_exception (void)
	The client requestor adapter. More...
TAO::Invocation_Status	invoke_status (void) const
	Invocation status. More...
void	invoke_status (Invocation_Status s)
	Mutator to set the invocation status. More...
PortableInterceptor::ReplyStatus	pi_reply_status (void) const
	The client requestor adapter. More...
bool	is_remote_request () const

Protected Member Functions
void	init_target_spec (TAO_Target_Specification &spec, TAO_OutputCDR &output)
	Initialize the spec. More...
void	write_header (TAO_OutputCDR &out_stream)
	Write the GIOP header into the stream. More...
void	marshal_data (TAO_OutputCDR &cdr)
	Marshal the arguments into the stream. More...
Invocation_Status	send_message (TAO_OutputCDR &cdr, TAO_Message_Semantics message_semantics, ACE_Time_Value *max_wait_time)
	Write the message onto the socket. More...
Protected Member Functions inherited from TAO::Invocation_Base
	Invocation_Base (CORBA::Object_ptr otarget, CORBA::Object_ptr target, TAO_Stub *stub, TAO_Operation_Details &op, bool response_expected, bool request_is_remote)
Invocation_Status	send_request_interception (void)
Invocation_Status	receive_reply_interception (void)
Invocation_Status	receive_other_interception (void)
PortableInterceptor::ReplyStatus	handle_any_exception (CORBA::Exception *e)
PortableInterceptor::ReplyStatus	handle_all_exception (void)
	The client requestor adapter. More...

Protected Attributes
Profile_Transport_Resolver &	resolver_
	Our resolver. More...
Protected Attributes inherited from TAO::Invocation_Base
TAO_Operation_Details &	details_
	The operation details on which we are operating on. More...
CORBA::Object_var	forwarded_to_
	Forwarded object reference. More...
bool	response_expected_
	Is response expected? More...
GIOP::ReplyStatusType	reply_status_
	A GIOP reply status of the invocation. More...
ClientRequestInterceptor_Adapter *	cri_adapter_
	The client requestor adapter. More...
ServerRequestInterceptor_Adapter *	sri_adapter_
	The client requestor adapter. More...
size_t	stack_size_
	The client requestor adapter. More...
TAO::Invocation_Status	invoke_status_
	The client requestor adapter. More...

Additional Inherited Members
Public Attributes inherited from TAO::Invocation_Base
void exception CORBA::Exception *	exception
	Change the exception status. More...

Detailed Description

Base class for remote invocations.

This class encapsulates some of the common functionalities used by synchronous, asynchronous, DII and DSI invocations.

Constructor & Destructor Documentation

TAO::Remote_Invocation::Remote_Invocation	(	CORBA::Object_ptr	otarget,
		Profile_Transport_Resolver &	resolver,
		TAO_Operation_Details &	detail,
		bool	response_expected
	)

Parameters

otarget	The original target on which this invocation was started. This is there to be passed up to its parent class.
resolver	The profile and transport holder.
detail	Pperation details of the invocation on the target
response_expected	Flag to indicate whether the operation encapsulated by op returns a response or not.

Member Function Documentation

void TAO::Remote_Invocation::init_target_spec ( TAO_Target_Specification &  spec, TAO_OutputCDR &  output  )

protected

Initialize the spec.

void TAO::Remote_Invocation::marshal_data ( TAO_OutputCDR &  cdr )

protected

Marshal the arguments into the stream.

Invocation_Status TAO::Remote_Invocation::send_message ( TAO_OutputCDR &  cdr, TAO_Message_Semantics  message_semantics, ACE_Time_Value *  max_wait_time  )

protected

Write the message onto the socket.

void TAO::Remote_Invocation::write_header ( TAO_OutputCDR &  out_stream )

protected

Write the GIOP header into the stream.

Member Data Documentation

Profile_Transport_Resolver& TAO::Remote_Invocation::resolver_

protected

Our resolver.

---

The documentation for this class was generated from the following files:

• Remote_Invocation.h
• Remote_Invocation.cpp
