Proxy for dealing with remote server process managing NET_LOCAL NameBindings. More...

#include <Name_Proxy.h>

Inheritance diagram for ACE_Name_Proxy:

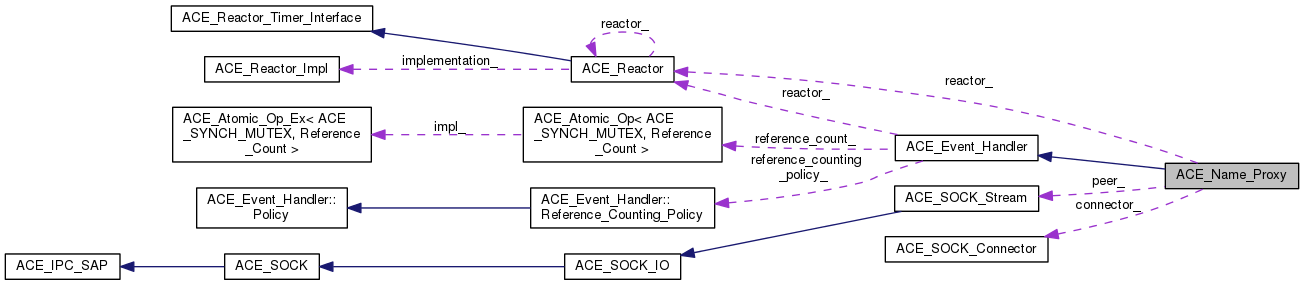

Collaboration diagram for ACE_Name_Proxy:

Public Member Functions
	ACE_Name_Proxy (void)
	Default constructor. More...

	ACE_Name_Proxy (const ACE_INET_Addr &remote_addr, ACE_Synch_Options &options=ACE_Synch_Options::defaults)

int	open (const ACE_INET_Addr &remote_addr, ACE_Synch_Options &options=ACE_Synch_Options::defaults)

int	request_reply (ACE_Name_Request &request)
	Perform the request and wait for the reply. More...

int	send_request (ACE_Name_Request &request)
	Perform the request. More...

int	recv_reply (ACE_Name_Request &reply)
	Receive the reply. More...

virtual ACE_HANDLE	get_handle (void) const
	Obtain underlying handle. More...

virtual	~ACE_Name_Proxy (void)
	Close down the connection to the server. More...

void	dump (void) const
	Dump the state of the object;. More...

Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler (void)
	Destructor is virtual to enable proper cleanup. More...

virtual void	set_handle (ACE_HANDLE)
	Set the I/O handle. More...

virtual int	priority (void) const

virtual void	priority (int priority)
	Set the priority of the Event_Handler. More...

virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when input events occur (e.g., connection or data). More...

virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when an exceptional events occur (e.g., SIGURG). More...

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int	handle_exit (ACE_Process *)
	Called when a process exits. More...

virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)

virtual int	resume_handler (void)

virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void	reactor (ACE_Reactor *reactor)
	Set the event demultiplexors. More...

virtual ACE_Reactor *	reactor (void) const
	Get the event demultiplexors. More...

virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const
	Get only the reactor's timer related interface. More...

virtual Reference_Count	add_reference (void)
	Increment reference count on the handler. More...

virtual Reference_Count	remove_reference (void)
	Decrement reference count on the handler. More...

Reference_Counting_Policy &	reference_counting_policy (void)
	Current Reference_Counting_Policy. More...

Private Member Functions
	ACE_Name_Proxy (const ACE_Name_Proxy &)

ACE_Name_Proxy &	operator= (const ACE_Name_Proxy &)

Private Attributes
ACE_SOCK_Connector	connector_
	ACE_Connector factory used to establish connections actively. More...

ACE_SOCK_Stream	peer_
	Connection to ACE_Name Server peer. More...

ACE_Reactor *	reactor_
	Pointer to ACE_Reactor (used if we are run in "reactive-mode"). More...

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
enum	{ LO_PRIORITY = 0, HI_PRIORITY = 10, NULL_MASK = 0, READ_MASK = (1 << 0), WRITE_MASK = (1 << 1), EXCEPT_MASK = (1 << 2), ACCEPT_MASK = (1 << 3), CONNECT_MASK = (1 << 4), TIMER_MASK = (1 << 5), QOS_MASK = (1 << 6), GROUP_QOS_MASK = (1 << 7), SIGNAL_MASK = (1 << 8), ALL_EVENTS_MASK, RWE_MASK, DONT_CALL = (1 << 9) }

enum	{ ACE_EVENT_HANDLER_NOT_RESUMED = -1, ACE_REACTOR_RESUMES_HANDLER = 0, ACE_APPLICATION_RESUMES_HANDLER }

typedef long	Reference_Count
	Reference count type. More...

Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)

static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)
	Performs the inverse of the register_stdin_handler() method. More...

Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op < ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count
	Typedef for implementation of reference counting. More...

Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)
	Force ACE_Event_Handler to be an abstract base class. More...

Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_
	Reference count. More...

Detailed Description

Proxy for dealing with remote server process managing NET_LOCAL NameBindings.

Shields applications from details of interacting with the ACE_Name Server.

Constructor & Destructor Documentation

ACE_Name_Proxy::ACE_Name_Proxy ( void )

Default constructor.

ACE_Name_Proxy::ACE_Name_Proxy	(	const ACE_INET_Addr &	remote_addr,
		ACE_Synch_Options &	options = `ACE_Synch_Options::defaults`
	)

ACE_Name_Proxy::~ACE_Name_Proxy ( void )

virtual

Close down the connection to the server.

ACE_Name_Proxy::ACE_Name_Proxy ( const ACE_Name_Proxy & )

private

Member Function Documentation

void ACE_Name_Proxy::dump ( void ) const

Dump the state of the object;.

ACE_HANDLE ACE_Name_Proxy::get_handle ( void ) const

virtual

Obtain underlying handle.

Reimplemented from ACE_Event_Handler.

int ACE_Name_Proxy::open	(	const ACE_INET_Addr &	remote_addr,
		ACE_Synch_Options &	options = `ACE_Synch_Options::defaults`
	)

ACE_Name_Proxy& ACE_Name_Proxy::operator= ( const ACE_Name_Proxy & )

private

int ACE_Name_Proxy::recv_reply ( ACE_Name_Request & reply )

Receive the reply.

int ACE_Name_Proxy::request_reply ( ACE_Name_Request & request )

Perform the request and wait for the reply.

int ACE_Name_Proxy::send_request ( ACE_Name_Request & request )

Perform the request.

Member Data Documentation

ACE_SOCK_Connector ACE_Name_Proxy::connector_

private

ACE_Connector factory used to establish connections actively.

ACE_SOCK_Stream ACE_Name_Proxy::peer_

private

Connection to ACE_Name Server peer.

ACE_Reactor* ACE_Name_Proxy::reactor_

private

Pointer to ACE_Reactor (used if we are run in "reactive-mode").

The documentation for this class was generated from the following files:
