Handles requests on a single connection. More...

#include <IIOP_Connection_Handler.h>

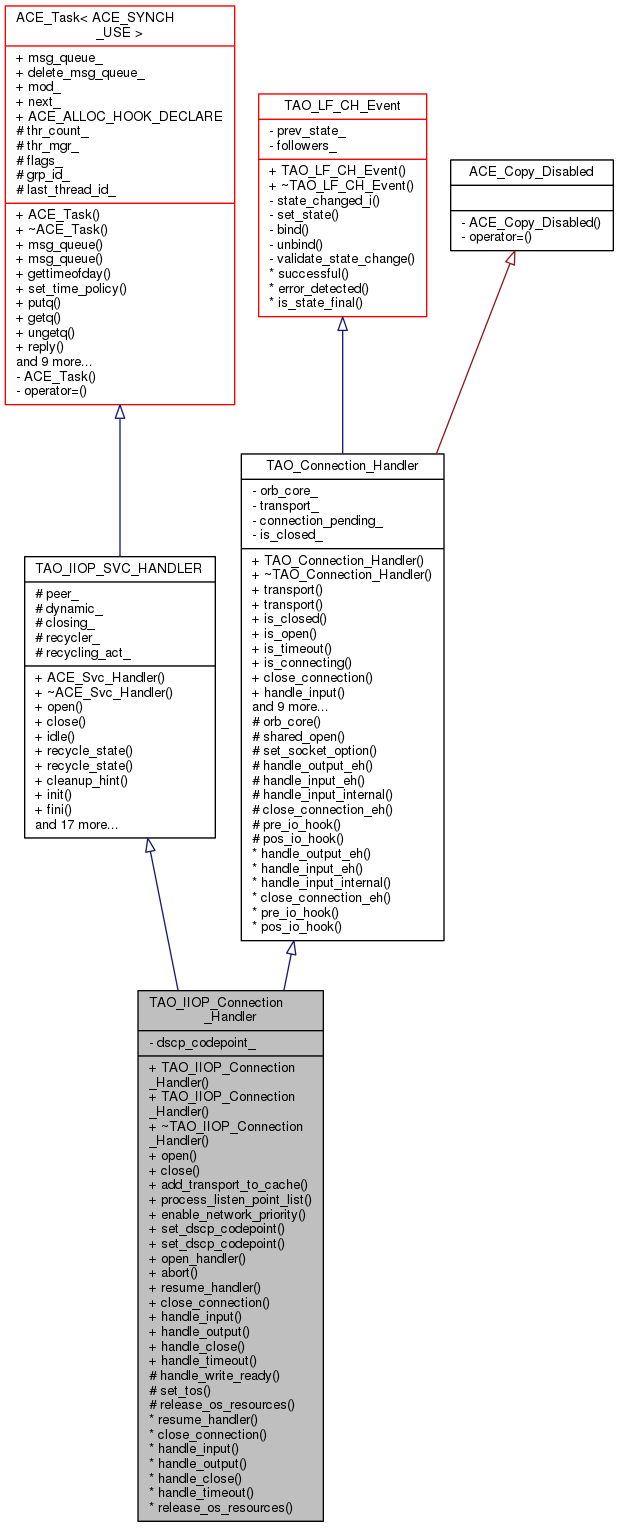

Inheritance diagram for TAO_IIOP_Connection_Handler:

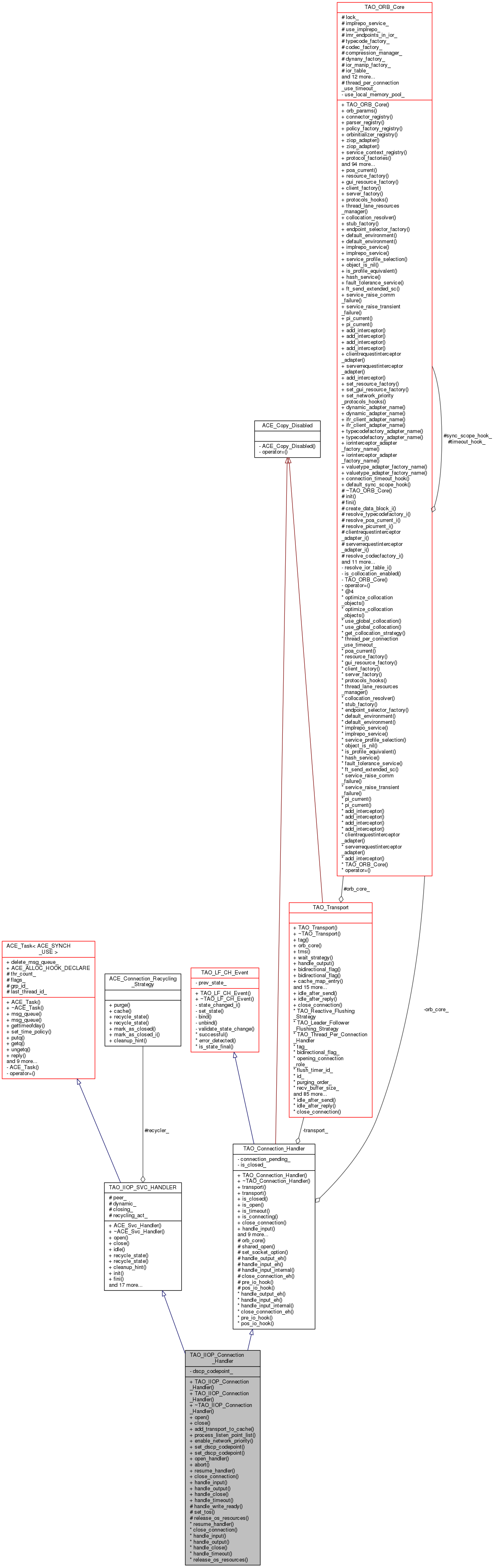

Collaboration diagram for TAO_IIOP_Connection_Handler:

Public Member Functions
	TAO_IIOP_Connection_Handler (ACE_Thread_Manager *=0)

	TAO_IIOP_Connection_Handler (TAO_ORB_Core *orb_core)
	Constructor. More...

	~TAO_IIOP_Connection_Handler (void)
	Destructor. More...

virtual int	open (void *)

int	close (u_long=0)

int	add_transport_to_cache (void)
	Add ourselves to Cache. More...

int	process_listen_point_list (IIOP::ListenPointList &listen_list)
	Process the listen_list. More...

int	enable_network_priority (void)
	Check if network priority needs to be enabled. More...

int	set_dscp_codepoint (CORBA::Boolean set_network_priority)
	Set Diff-Serv codepoint on outgoing packets. More...

int	set_dscp_codepoint (CORBA::Long dscp_codepoint)

virtual int	open_handler (void *)
	A open () hook. More...

void	abort (void)

Event Handler overloads
virtual int	resume_handler (void)

virtual int	close_connection (void)
	Close the underlying connection. More...

virtual int	handle_input (ACE_HANDLE)

virtual int	handle_output (ACE_HANDLE)

virtual int	handle_close (ACE_HANDLE, ACE_Reactor_Mask)

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

Public Member Functions inherited from ACE_Svc_Handler< ACE_SOCK_STREAM, ACE_NULL_SYNCH >
	ACE_Svc_Handler (ACE_Thread_Manager thr_mgr=0, ACE_Message_Queue< ACE_SYNCH_USE > mq=0, ACE_Reactor *reactor=ACE_Reactor::instance())

virtual	~ACE_Svc_Handler (void)

virtual int	idle (u_long flags=0)

virtual ACE_Recyclable_State	recycle_state (void) const

virtual int	recycle_state (ACE_Recyclable_State new_state)

virtual void	cleanup_hint (void **act_holder=0)

virtual int	init (int argc, ACE_TCHAR *argv[])

virtual int	fini (void)

virtual int	info (ACE_TCHAR **info_string, size_t length) const

virtual ACE_HANDLE	get_handle (void) const

virtual void	set_handle (ACE_HANDLE)

ACE_PEER_STREAM &	peer (void) const

void *	operator new (size_t n)

void *	operator new (size_t n, void *p)

virtual void	destroy (void)

void	operator delete (void *)

void	operator delete (void , void )

void	shutdown (void)

void	dump (void) const

virtual void	recycler (ACE_Connection_Recycling_Strategy recycler, const void recycling_act)

virtual ACE_Connection_Recycling_Strategy *	recycler (void) const

virtual const void *	recycling_act (void) const

virtual int	recycle (void *=0)

Public Member Functions inherited from ACE_Task< ACE_SYNCH_USE >
	ACE_Task (ACE_Thread_Manager thr_mgr=0, ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY > mq=0)

virtual	~ACE_Task (void)

ACE_Message_Queue < ACE_SYNCH_USE, TIME_POLICY > *	msg_queue (void)

void	msg_queue (ACE_Message_Queue< ACE_SYNCH_USE, TIME_POLICY > *)

ACE_Time_Value_T< TIME_POLICY >	gettimeofday (void) const

void	set_time_policy (TIME_POLICY const &time_policy)

int	putq (ACE_Message_Block , ACE_Time_Value timeout=0)

int	getq (ACE_Message_Block &mb, ACE_Time_Value timeout=0)

int	ungetq (ACE_Message_Block , ACE_Time_Value timeout=0)

int	reply (ACE_Message_Block mb, ACE_Time_Value tv=0)

int	put_next (ACE_Message_Block msg, ACE_Time_Value timeout=0)

const ACE_TCHAR *	name (void) const

ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *	next (void)

void	next (ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *)

ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *	sibling (void)

ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	module (void) const

int	flush (u_long flag=ACE_Task_Flags::ACE_FLUSHALL)

void	water_marks (ACE_IO_Cntl_Msg::ACE_IO_Cntl_Cmds, size_t)

void	dump (void) const

Public Member Functions inherited from TAO_Connection_Handler
	TAO_Connection_Handler (TAO_ORB_Core *orb_core)
	Constructor. More...

virtual	~TAO_Connection_Handler (void)
	Destructor. More...

TAO_Transport *	transport (void)
	Return the underlying transport object. More...

void	transport (TAO_Transport *transport)
	Set the underlying transport object. More...

bool	is_closed (void) const
	Is the handler closed or timed out? More...

bool	is_open (void) const
	Is the handler open? More...

bool	is_timeout (void) const
	Closed due to timeout? More...

bool	is_connecting (void) const
	Is the handler in the process of being connected? More...

int	svc_i (void)

virtual int	close_handler (u_long flags=0)

void	connection_pending (void)

void	cancel_pending_connection (void)

Public Member Functions inherited from TAO_LF_CH_Event
	TAO_LF_CH_Event (void)
	Constructor. More...

virtual	~TAO_LF_CH_Event (void)
	Destructor. More...

int	successful (void) const

int	error_detected (void) const

Public Member Functions inherited from TAO_LF_Event
	TAO_LF_Event (void)
	Constructor. More...

virtual	~TAO_LF_Event (void)
	Destructor. More...

void	reset_state (int new_state)
	Reset the state, irrespective of the previous states. More...

void	state_changed (int new_state, TAO_Leader_Follower &lf)

int	keep_waiting (void)
	Check if we should keep waiting. More...

Protected Member Functions
virtual int	handle_write_ready (const ACE_Time_Value *timeout)

int	set_tos (int tos)

TAO_Connection Handler overloads
virtual int	release_os_resources (void)
	Release the OS resources related to this handler. More...

Protected Member Functions inherited from TAO_Connection_Handler
TAO_ORB_Core *	orb_core (void)
	Return our TAO_ORB_Core pointer. More...

int	shared_open (void)

int	set_socket_option (ACE_SOCK &sock, int snd_size, int rcv_size)
	Set options on the socket. More...

int	handle_output_eh (ACE_HANDLE h, ACE_Event_Handler *eh)
	Implement the handle_output() callback. More...

int	handle_input_eh (ACE_HANDLE h, ACE_Event_Handler *eh)
	Implement the handle_input() callback. More...

int	handle_input_internal (ACE_HANDLE h, ACE_Event_Handler *eh)
	Implement the handle_output() callback. More...

int	close_connection_eh (ACE_Event_Handler *eh)

virtual void	pre_io_hook (int &return_value)

virtual void	pos_io_hook (int &return_value)

Protected Member Functions inherited from TAO_LF_CH_Event
virtual int	is_state_final (void)
	Check whether we have reached the final state.. More...

Private Attributes
int	dscp_codepoint_
	Stores the type of service value. More...

Additional Inherited Members
Public Types inherited from ACE_Svc_Handler< ACE_SOCK_STREAM, ACE_NULL_SYNCH >
typedef ACE_PEER_STREAM_ADDR	addr_type

typedef ACE_PEER_STREAM	stream_type

Public Types inherited from TAO_LF_Event
enum	{ LFS_IDLE = 0, LFS_ACTIVE, LFS_CONNECTION_WAIT, LFS_SUCCESS, LFS_FAILURE, LFS_TIMEOUT, LFS_CONNECTION_CLOSED }

Static Public Member Functions inherited from TAO_LF_Event
static const char *	state_name (int st)

Public Attributes inherited from ACE_Task< ACE_SYNCH_USE >
ACE_Message_Queue < ACE_SYNCH_USE, TIME_POLICY > *	msg_queue_

bool	delete_msg_queue_

ACE_Module< ACE_SYNCH_USE, TIME_POLICY > *	mod_

ACE_Task< ACE_SYNCH_USE, TIME_POLICY > *	next_

	ACE_ALLOC_HOOK_DECLARE

Protected Attributes inherited from ACE_Svc_Handler< ACE_SOCK_STREAM, ACE_NULL_SYNCH >
ACE_PEER_STREAM	peer_

bool	dynamic_

bool	closing_

ACE_Connection_Recycling_Strategy *	recycler_

const void *	recycling_act_

Protected Attributes inherited from TAO_LF_Event
int	state_
	The current state. More...

TAO_LF_Follower *	follower_
	The bounded follower. More...

Detailed Description

Handles requests on a single connection.

The Connection handler which is common for the Acceptor and the Connector

Constructor & Destructor Documentation

TAO_IIOP_Connection_Handler::TAO_IIOP_Connection_Handler ( ACE_Thread_Manager * t = 0 )

TAO_IIOP_Connection_Handler::TAO_IIOP_Connection_Handler ( TAO_ORB_Core * orb_core )

Constructor.

TAO_IIOP_Connection_Handler::~TAO_IIOP_Connection_Handler ( void )

Destructor.

Member Function Documentation

void TAO_IIOP_Connection_Handler::abort ( void )

This is used during a canceled connection attempt. Force the SO_LINGER timeout to 0 so that when the peer is closed, it won't hang around.

int TAO_IIOP_Connection_Handler::add_transport_to_cache ( void )

Add ourselves to Cache.

int TAO_IIOP_Connection_Handler::close ( u_long flags = 0 )

virtual

Close called by the Acceptor or Connector when connection establishment fails.

Reimplemented from ACE_Svc_Handler< ACE_SOCK_STREAM, ACE_NULL_SYNCH >.

int TAO_IIOP_Connection_Handler::close_connection ( void )

virtual

Close the underlying connection.

Used by the ORB to actively close connections that are idle, stale or somehow are determined to be broken before the Reactor does.

Returns: Return 0 if the connection was already closed, non-zero otherwise.

Implements TAO_Connection_Handler.

int TAO_IIOP_Connection_Handler::enable_network_priority ( void )

Check if network priority needs to be enabled.

int TAO_IIOP_Connection_Handler::handle_close	(	ACE_HANDLE	,
		ACE_Reactor_Mask
	)

virtual

Reimplemented from ACE_Svc_Handler< ACE_SOCK_STREAM, ACE_NULL_SYNCH >.

int TAO_IIOP_Connection_Handler::handle_input ( ACE_HANDLE fd )

virtual

The event handler calls, here so that other objects who hold a reference to this object can call the event handler methods.

Implements TAO_Connection_Handler.

int TAO_IIOP_Connection_Handler::handle_output ( ACE_HANDLE handle )

virtual

int TAO_IIOP_Connection_Handler::handle_timeout	(	const ACE_Time_Value &	current_time,
		const void *	act = `0`
	)

virtual

Reimplemented from ACE_Svc_Handler< ACE_SOCK_STREAM, ACE_NULL_SYNCH >.

int TAO_IIOP_Connection_Handler::handle_write_ready ( const ACE_Time_Value * timeout )

protectedvirtual

Derived classes should implement this for proper support with the Blocking Flushing Strategy.

Reimplemented from TAO_Connection_Handler.

int TAO_IIOP_Connection_Handler::open ( void * )

virtual

Called by the Strategy_Acceptor when the handler is completely connected. Argument is unused.

Reimplemented from ACE_Svc_Handler< ACE_SOCK_STREAM, ACE_NULL_SYNCH >.

int TAO_IIOP_Connection_Handler::open_handler ( void * )

virtual

A open () hook.

See Thread_Per_Connection_Handler for a use case

Implements TAO_Connection_Handler.

int TAO_IIOP_Connection_Handler::process_listen_point_list ( IIOP::ListenPointList & listen_list )

Process the listen_list.

int TAO_IIOP_Connection_Handler::release_os_resources ( void )

protectedvirtual

Release the OS resources related to this handler.

Reimplemented from TAO_Connection_Handler.

int TAO_IIOP_Connection_Handler::resume_handler ( void )

virtual

int TAO_IIOP_Connection_Handler::set_dscp_codepoint ( CORBA::Boolean set_network_priority )

virtual

Set Diff-Serv codepoint on outgoing packets.

Reimplemented from TAO_Connection_Handler.

int TAO_IIOP_Connection_Handler::set_dscp_codepoint ( CORBA::Long dscp_codepoint )

virtual

Reimplemented from TAO_Connection_Handler.

int TAO_IIOP_Connection_Handler::set_tos ( int tos )

protected

helper function used by the set_dscp_codepoint () methods to set the TOS field in the IP packets.

Member Data Documentation

int TAO_IIOP_Connection_Handler::dscp_codepoint_

private

Stores the type of service value.

The documentation for this class was generated from the following files:
