TAO_EC_Reactive_Timeout_Generator Class Reference

A simple implementation of the Timeout_Generator based on the Reactor. More...

#include <EC_Reactive_Timeout_Generator.h>

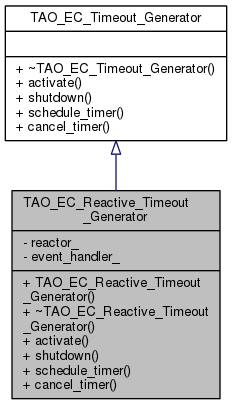

Inheritance diagram for TAO_EC_Reactive_Timeout_Generator:

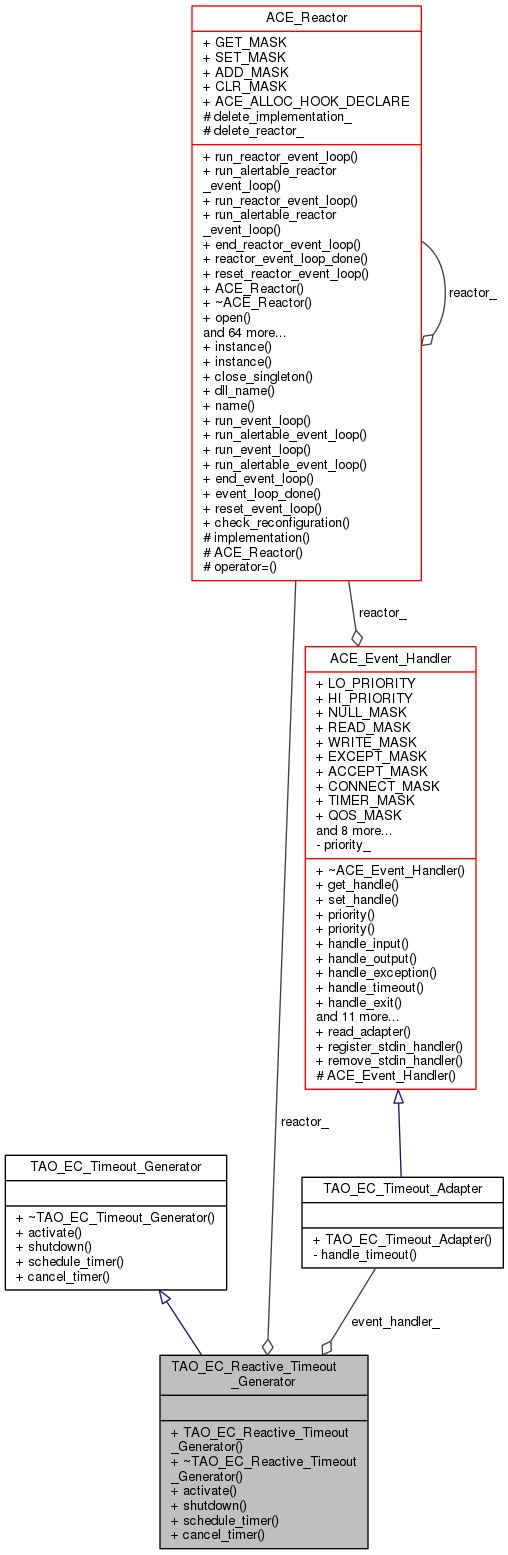

Collaboration diagram for TAO_EC_Reactive_Timeout_Generator:

List of all members.

Public Member Functions
	TAO_EC_Reactive_Timeout_Generator (ACE_Reactor *reactor=0)
virtual	~TAO_EC_Reactive_Timeout_Generator (void)
	destructor
virtual void	activate (void)
	Activate any internal threads.
virtual void	shutdown (void)
virtual int	schedule_timer (TAO_EC_Timeout_Filter *filter, const ACE_Time_Value &delta, const ACE_Time_Value &interval)
	Add a timer at the given priority, returns the timer ID.
virtual int	cancel_timer (const TAO_EC_QOS_Info &info, int id)
	Cancel a timer at the given priority.
Public Member Functions inherited from TAO_EC_Timeout_Generator
virtual	~TAO_EC_Timeout_Generator (void)
	destructor

Private Attributes
ACE_Reactor *	reactor_
	The reactor.
TAO_EC_Timeout_Adapter	event_handler_
	An adapter to receive the timeout events.

---

Detailed Description

A simple implementation of the Timeout_Generator based on the Reactor.

Implements the Timeout_Generator using an ACE_Reactor. Usually the same reactor that is used by the ORB where the EC runs.

---

Constructor & Destructor Documentation

TAO_EC_Reactive_Timeout_Generator::TAO_EC_Reactive_Timeout_Generator

(

ACE_Reactor *

reactor = 0

)

Constructor. If <reactor> is 0 then we use the reactor in the ORB singleton.

TAO_EC_Reactive_Timeout_Generator::~TAO_EC_Reactive_Timeout_Generator ( void  )

virtual

destructor

---

Member Function Documentation

void TAO_EC_Reactive_Timeout_Generator::activate ( void  )

virtual

Activate any internal threads.

Implements TAO_EC_Timeout_Generator.

int TAO_EC_Reactive_Timeout_Generator::cancel_timer ( const TAO_EC_QOS_Info &  info, int  id  )

virtual

Cancel a timer at the given priority.

Implements TAO_EC_Timeout_Generator.

int TAO_EC_Reactive_Timeout_Generator::schedule_timer ( TAO_EC_Timeout_Filter *  filter, const ACE_Time_Value &  delta, const ACE_Time_Value &  interval  )

virtual

Add a timer at the given priority, returns the timer ID.

Implements TAO_EC_Timeout_Generator.

void TAO_EC_Reactive_Timeout_Generator::shutdown ( void  )

virtual

Deactivate any internal threads, clients can destroy the object after calling this method.

Implements TAO_EC_Timeout_Generator.

---

Member Data Documentation

TAO_EC_Timeout_Adapter TAO_EC_Reactive_Timeout_Generator::event_handler_

private

An adapter to receive the timeout events.

ACE_Reactor* TAO_EC_Reactive_Timeout_Generator::reactor_

private

The reactor.

---

The documentation for this class was generated from the following files:

• EC_Reactive_Timeout_Generator.h
• EC_Reactive_Timeout_Generator.cpp
