This is the default strategy factory for CORBA servers. It allows developers to choose strategies via argument flags. This design gives substantial freedom for experimentation. More...

#include <default_server.h>

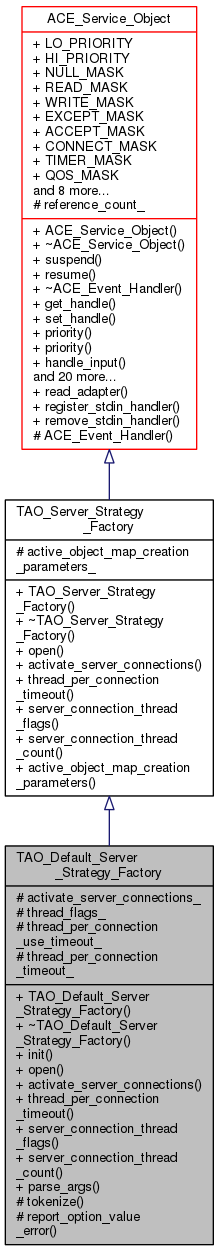

Inheritance diagram for TAO_Default_Server_Strategy_Factory:

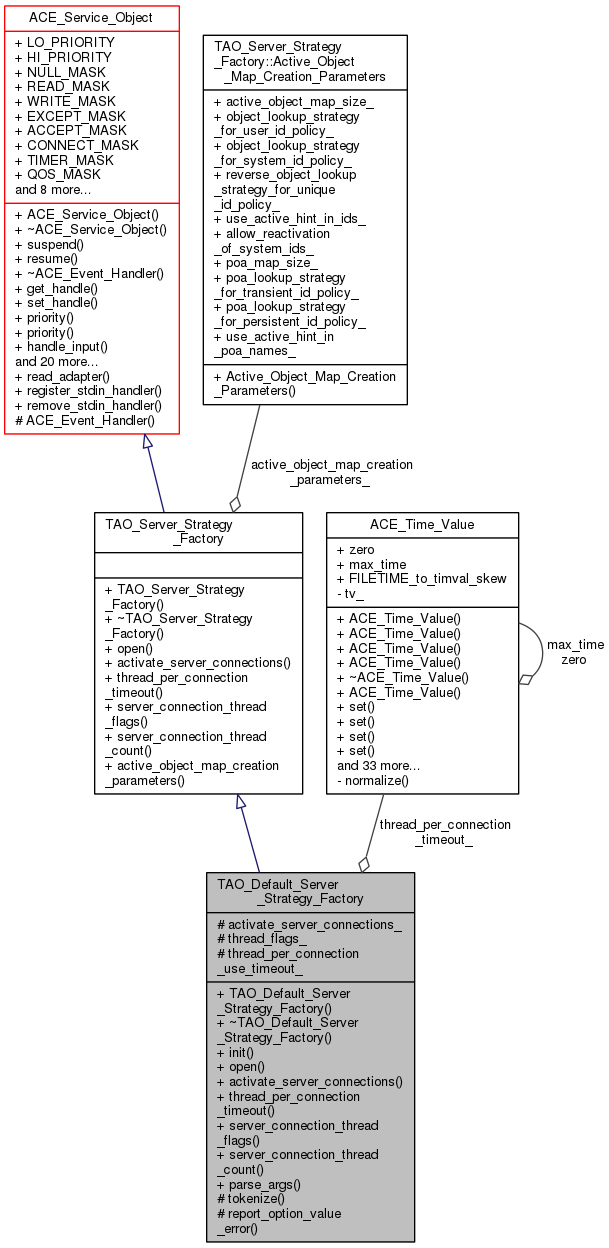

Collaboration diagram for TAO_Default_Server_Strategy_Factory:

List of all members.

Public Member Functions
	TAO_Default_Server_Strategy_Factory (void)
virtual	~TAO_Default_Server_Strategy_Factory (void)
virtual int	init (int argc, ACE_TCHAR *argv[])
virtual int	open (TAO_ORB_Core *)
virtual int	activate_server_connections (void)
	Are server connections active (i.e. run in their own thread)
virtual int	thread_per_connection_timeout (ACE_Time_Value &timeout)
virtual int	server_connection_thread_flags (void)
	The thread activation parameters.
virtual int	server_connection_thread_count (void)
int	parse_args (int argc, ACE_TCHAR *argv[])
Public Member Functions inherited from TAO_Server_Strategy_Factory
	TAO_Server_Strategy_Factory (void)
	Constructor.
virtual	~TAO_Server_Strategy_Factory (void)
	Destructor.
virtual const Active_Object_Map_Creation_Parameters &	active_object_map_creation_parameters (void) const
	Return the active object map creation parameters.
Public Member Functions inherited from ACE_Service_Object
	ACE_Service_Object (ACE_Reactor *=0)
virtual	~ACE_Service_Object (void)
virtual int	suspend (void)
virtual int	resume (void)
virtual	~ACE_Event_Handler (void)
virtual ACE_HANDLE	get_handle (void) const
virtual void	set_handle (ACE_HANDLE)
virtual int	priority (void) const
virtual void	priority (int priority)
virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int	handle_exit (ACE_Process *)
virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)
virtual int	resume_handler (void)
virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void	reactor (ACE_Reactor *reactor)
virtual ACE_Reactor *	reactor (void) const
virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const
virtual Reference_Count	add_reference (void)
virtual Reference_Count	remove_reference (void)
Reference_Counting_Policy &	reference_counting_policy (void)
	ACE_Shared_Object (void)
virtual	~ACE_Shared_Object (void)
virtual int	fini (void)
virtual int	info (ACE_TCHAR **info_string, size_t length=0) const

Protected Member Functions
void	tokenize (ACE_TCHAR *flag_string)
void	report_option_value_error (const ACE_TCHAR option_name, const ACE_TCHAR option_value)

Protected Attributes
int	activate_server_connections_
	Should the server connection handlers run in their own thread?
int	thread_flags_
	Default thread flags passed to thr_create().
int	thread_per_connection_use_timeout_
	The timeout flag and value for the thread-per-connection model.
ACE_Time_Value	thread_per_connection_timeout_
Protected Attributes inherited from TAO_Server_Strategy_Factory
Active_Object_Map_Creation_Parameters	active_object_map_creation_parameters_
	Active object map creation parameters.
Protected Attributes inherited from ACE_Service_Object
Atomic_Reference_Count	reference_count_
Protected Attributes inherited from ACE_Event_Handler

Detailed Description

This is the default strategy factory for CORBA servers. It allows developers to choose strategies via argument flags. This design gives substantial freedom for experimentation.

Constructor & Destructor Documentation

TAO_Default_Server_Strategy_Factory::TAO_Default_Server_Strategy_Factory ( void )

TAO_Default_Server_Strategy_Factory::~TAO_Default_Server_Strategy_Factory ( void )

virtual

Member Function Documentation

int TAO_Default_Server_Strategy_Factory::activate_server_connections ( void )

virtual

Are server connections active (i.e. run in their own thread)

Implements TAO_Server_Strategy_Factory.

int TAO_Default_Server_Strategy_Factory::init	(	int	argc,
		ACE_TCHAR *	argv[]
	)

virtual

Reimplemented from ACE_Service_Object.

int TAO_Default_Server_Strategy_Factory::open ( TAO_ORB_Core * orb_core )

virtual

Call <open> on various strategies. This is not performed in <init> so that the other portions of the ORB have a chance to "settle" in their initialization since the strategies herein might need some of that information.

Implements TAO_Server_Strategy_Factory.

int TAO_Default_Server_Strategy_Factory::parse_args	(	int	argc,
		ACE_TCHAR *	argv[]
	)

Parse the arguments, check the documentation in $TAO_ROOT/docs/Options.html for details

void TAO_Default_Server_Strategy_Factory::report_option_value_error	(	const ACE_TCHAR *	option_name,
		const ACE_TCHAR *	option_value
	)

protected

int TAO_Default_Server_Strategy_Factory::server_connection_thread_count ( void )

virtual

Implements TAO_Server_Strategy_Factory.

int TAO_Default_Server_Strategy_Factory::server_connection_thread_flags ( void )

virtual

The thread activation parameters.

Implements TAO_Server_Strategy_Factory.

int TAO_Default_Server_Strategy_Factory::thread_per_connection_timeout ( ACE_Time_Value & timeout )

virtual

Obtain the timeout value used by the thread-per-connection server threads to poll the shutdown flag in the ORB. Return -1 if the ORB should use the compile-time defaults. If the return value is zero then the threads block without timeouts.

Implements TAO_Server_Strategy_Factory.

void TAO_Default_Server_Strategy_Factory::tokenize ( ACE_TCHAR * flag_string )

protected

Member Data Documentation

int TAO_Default_Server_Strategy_Factory::activate_server_connections_

protected

Should the server connection handlers run in their own thread?

int TAO_Default_Server_Strategy_Factory::thread_flags_

protected

Default thread flags passed to thr_create().

ACE_Time_Value TAO_Default_Server_Strategy_Factory::thread_per_connection_timeout_

protected

int TAO_Default_Server_Strategy_Factory::thread_per_connection_use_timeout_

protected

The timeout flag and value for the thread-per-connection model.
