TAO_Default_Endpoint_Selector_Factory Class Reference

Factory for initializing <Endpoint_Selection_State> and obtaining appropriate <Invocation_Endpoint_Selector>. More...

#include <Default_Endpoint_Selector_Factory.h>

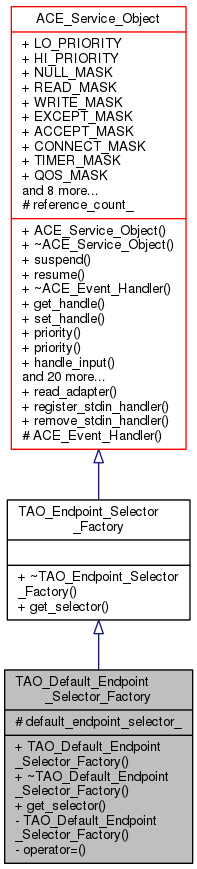

Inheritance diagram for TAO_Default_Endpoint_Selector_Factory:
Inheritance graph

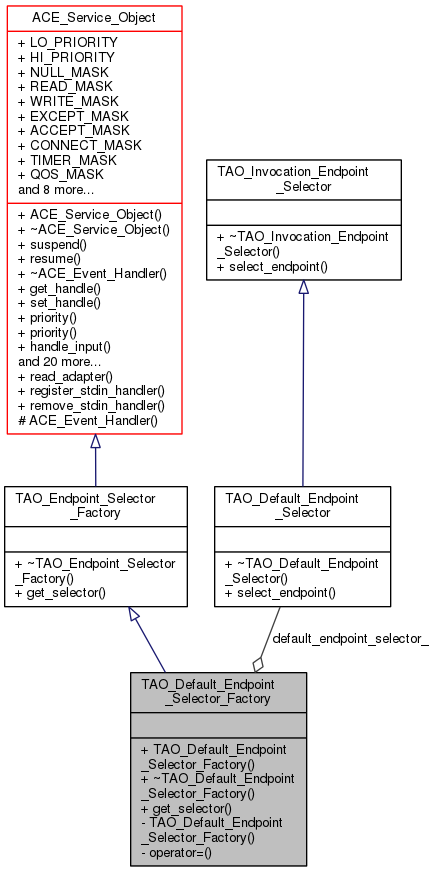

Collaboration diagram for TAO_Default_Endpoint_Selector_Factory:
Collaboration graph

List of all members.

Public Member Functions

 TAO_Default_Endpoint_Selector_Factory (void)
 Constructor.
virtual ~TAO_Default_Endpoint_Selector_Factory (void)
 Destructor.
virtual
TAO_Invocation_Endpoint_Selector
get_selector (void)
- Public Member Functions inherited from TAO_Endpoint_Selector_Factory
virtual ~TAO_Endpoint_Selector_Factory (void)
 Destructor.
- Public Member Functions inherited from ACE_Service_Object
 ACE_Service_Object (ACE_Reactor *=0)
virtual ~ACE_Service_Object (void)
virtual int suspend (void)
virtual int resume (void)
virtual ~ACE_Event_Handler (void)
virtual ACE_HANDLE get_handle (void) const
virtual void set_handle (ACE_HANDLE)
virtual int priority (void) const
virtual void priority (int priority)
virtual int handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int handle_exit (ACE_Process *)
virtual int handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)
virtual int resume_handler (void)
virtual int handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void reactor (ACE_Reactor *reactor)
virtual ACE_Reactorreactor (void) const
virtual
ACE_Reactor_Timer_Interface
reactor_timer_interface (void) const
virtual Reference_Count add_reference (void)
virtual Reference_Count remove_reference (void)
Reference_Counting_Policyreference_counting_policy (void)
 ACE_Shared_Object (void)
virtual ~ACE_Shared_Object (void)
virtual int init (int argc, ACE_TCHAR *argv[])
virtual int fini (void)
virtual int info (ACE_TCHAR **info_string, size_t length=0) const

Protected Attributes

TAO_Default_Endpoint_Selector
*const
default_endpoint_selector_

Private Member Functions

 TAO_Default_Endpoint_Selector_Factory (TAO_Default_Endpoint_Selector_Factory const &)
void operator= (TAO_Default_Endpoint_Selector_Factory const &)

Detailed Description

Factory for initializing <Endpoint_Selection_State> and obtaining appropriate <Invocation_Endpoint_Selector>.

Used by Invocation classes to initialize its endpoint selection strategy and state based on the effective policies. Endpoint selection strategies are stateless objects - all the state they need is contained by Invocation in <Endpoint_Selection_State>. Thus, rather than allocating an endpoint selection strategy object for each Invocation, the factory simply returns the appropriate one from the set preallocated in the ORB_Core. One endpoint selection strategy object can be used by many invocations concurrently.


Constructor & Destructor Documentation

TAO_Default_Endpoint_Selector_Factory::TAO_Default_Endpoint_Selector_Factory ( void  )

Constructor.

TAO_Default_Endpoint_Selector_Factory::~TAO_Default_Endpoint_Selector_Factory ( void  )
virtual

Destructor.

TAO_Default_Endpoint_Selector_Factory::TAO_Default_Endpoint_Selector_Factory ( TAO_Default_Endpoint_Selector_Factory const &  )
private

Member Function Documentation

TAO_Invocation_Endpoint_Selector * TAO_Default_Endpoint_Selector_Factory::get_selector ( void  )
virtual

Get an Invocation's endpoint selection strategy and initialize the endpoint selection state instance.

Implements TAO_Endpoint_Selector_Factory.

void TAO_Default_Endpoint_Selector_Factory::operator= ( TAO_Default_Endpoint_Selector_Factory const &  )
private

Member Data Documentation

TAO_Default_Endpoint_Selector* const TAO_Default_Endpoint_Selector_Factory::default_endpoint_selector_
protected

The possible endpoint selector strategies that can be returned by this factory


The documentation for this class was generated from the following files:
