TAO::LocateRequest_Invocation Class Reference

Object created by TAO::LocateRequest_Invocation_Adapter to create and send LocateRequest invocation. More...

#include <LocateRequest_Invocation.h>

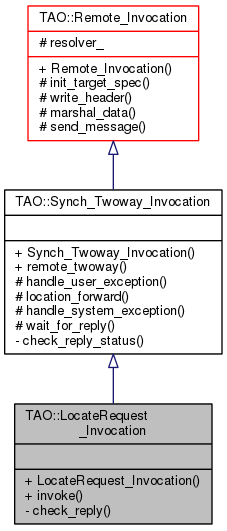

Inheritance diagram for TAO::LocateRequest_Invocation:

Collaboration diagram for TAO::LocateRequest_Invocation:

List of all members.

Public Member Functions
	LocateRequest_Invocation (CORBA::Object_ptr otarget, Profile_Transport_Resolver &resolver, TAO_Operation_Details &detail)
Invocation_Status	invoke (ACE_Time_Value *max_wait_time)
	Start the invocation.
Public Member Functions inherited from TAO::Synch_Twoway_Invocation
	Synch_Twoway_Invocation (CORBA::Object_ptr otarget, Profile_Transport_Resolver &resolver, TAO_Operation_Details &detail, bool response_expected=true)
	Constructor used by TAO::Invocation_Adapter.
Invocation_Status	remote_twoway (ACE_Time_Value *max_wait_time)
Public Member Functions inherited from TAO::Remote_Invocation
	Remote_Invocation (CORBA::Object_ptr otarget, Profile_Transport_Resolver &resolver, TAO_Operation_Details &detail, bool response_expected)
Public Member Functions inherited from TAO::Invocation_Base
virtual	~Invocation_Base (void)
TAO_Stub *	stub (void) const
	Accessor and mutator methods.
CORBA::Object_ptr	forwarded_reference (void)
void	forwarded_reference (CORBA::Object_ptr o)
	Accessor and mutator methods.
TAO_Service_Context &	request_service_context (void)
	Accessors for the service context list.
TAO_Service_Context &	reply_service_context (void)
	Accessor and mutator methods.
CORBA::Object_ptr	steal_forwarded_reference (void)
	Return the forwarded object location by loosing ownership.
CORBA::Object_ptr	effective_target (void) const
	Return the effective target of the invocation.
CORBA::Object_ptr	target (void) const
	Return the target object.
CORBA::Boolean	response_expected (void) const
	Does this invocation return a response?
GIOP::ReplyStatusType	reply_status (void) const
	Accessor of reply_status of the invocation.
void	reply_status (GIOP::ReplyStatusType s)
	Mutator of reply_status of the invocation.
TAO_Operation_Details &	operation_details (void)
	The operaton details of the invocation.
size_t &	stack_size (void)
CORBA::Exception *	caught_exception (void)
	The client requestor adapter.
TAO::Invocation_Status	invoke_status (void) const
	Invocation status.
void	invoke_status (Invocation_Status s)
	Mutator to set the invocation status.
PortableInterceptor::ReplyStatus	pi_reply_status (void) const
	The client requestor adapter.
bool	is_remote_request () const

Private Member Functions
Invocation_Status	check_reply (TAO_Synch_Reply_Dispatcher &rd)
	Helper to check the reply status.

Additional Inherited Members
Protected Member Functions inherited from TAO::Synch_Twoway_Invocation
virtual Invocation_Status	handle_user_exception (TAO_InputCDR &cdr)
Invocation_Status	location_forward (TAO_InputCDR &cdr)
	Helper method used to handle location forwarded replies.
Invocation_Status	handle_system_exception (TAO_InputCDR &cdr)
Invocation_Status	wait_for_reply (ACE_Time_Value *max_wait_time, TAO_Synch_Reply_Dispatcher &rd, TAO_Bind_Dispatcher_Guard &bd)
	As the name suggests waits for a reply from the remote ORB.
Protected Member Functions inherited from TAO::Remote_Invocation
void	init_target_spec (TAO_Target_Specification &spec, TAO_OutputCDR &output)
	Initialize the spec.
void	write_header (TAO_OutputCDR &out_stream)
	Write the GIOP header into the stream.
void	marshal_data (TAO_OutputCDR &cdr)
	Marshal the arguments into the stream.
Invocation_Status	send_message (TAO_OutputCDR &cdr, TAO_Message_Semantics message_semantics, ACE_Time_Value *max_wait_time)
	Write the message onto the socket.
Protected Member Functions inherited from TAO::Invocation_Base
	Invocation_Base (CORBA::Object_ptr otarget, CORBA::Object_ptr target, TAO_Stub *stub, TAO_Operation_Details &op, bool response_expected, bool request_is_remote)
Invocation_Status	send_request_interception (void)
Invocation_Status	receive_reply_interception (void)
Invocation_Status	receive_other_interception (void)
PortableInterceptor::ReplyStatus	handle_any_exception (CORBA::Exception *e)
PortableInterceptor::ReplyStatus	handle_all_exception (void)
	The client requestor adapter.

---

Detailed Description

Object created by TAO::LocateRequest_Invocation_Adapter to create and send LocateRequest invocation.

---

Constructor & Destructor Documentation

TAO::LocateRequest_Invocation::LocateRequest_Invocation	(	CORBA::Object_ptr	otarget,
		Profile_Transport_Resolver &	resolver,
		TAO_Operation_Details &	detail
	)

Parameters:

otarget	The target on which this invocation was started.
resolver	Container of the profile and transport on which this invocation is on
detail	Operation details of the invocation on target. This is of no practical importance since it is not used in this class. This is just to keep our base class happy.

---

Member Function Documentation

Invocation_Status TAO::LocateRequest_Invocation::check_reply ( TAO_Synch_Reply_Dispatcher &  rd )

private

Helper to check the reply status.

Invocation_Status TAO::LocateRequest_Invocation::invoke

(

ACE_Time_Value *

max_wait_time

)

Start the invocation.

---

The documentation for this class was generated from the following files:

• LocateRequest_Invocation.h
• LocateRequest_Invocation.cpp
