Defines the member functions for the ACE_SOCK datagram abstraction. More...

#include <SOCK_Dgram_Bcast.h>

Inheritance diagram for ACE_SOCK_Dgram_Bcast:

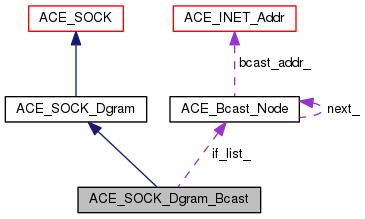

Collaboration diagram for ACE_SOCK_Dgram_Bcast:

Public Member Functions
	ACE_SOCK_Dgram_Bcast (void)
	Default constructor.
	ACE_SOCK_Dgram_Bcast (const ACE_Addr &local, int protocol_family=PF_INET, int protocol=0, int reuse_addr=0, const ACE_TCHAR *host_name=0)
	~ACE_SOCK_Dgram_Bcast (void)
	Default dtor.
int	open (const ACE_Addr &local, int protocol_family=PF_INET, int protocol=0, int reuse_addr=0, const ACE_TCHAR *host_name=0)
	Initiate a connectionless datagram broadcast endpoint.
int	close (void)
	Close up and release dynamically allocated resources.
ssize_t	send (const void *buf, size_t n, u_short portnum, int flags=0) const
ssize_t	send (const iovec iov[], int n, u_short portnum, int flags=0) const
ssize_t	send (const void *buf, size_t n, const ACE_Addr &addr, int flags=0) const
ssize_t	send (const iovec iov[], int n, const ACE_Addr &addr, int flags=0) const
void	dump (void) const
	Dump the state of an object.
Public Member Functions inherited from ACE_SOCK_Dgram
	ACE_SOCK_Dgram (void)
	Default constructor.
	ACE_SOCK_Dgram (const ACE_Addr &local, int protocol_family=ACE_PROTOCOL_FAMILY_INET, int protocol=0, int reuse_addr=0)
	ACE_SOCK_Dgram (const ACE_Addr &local, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0)
int	open (const ACE_Addr &local, int protocol_family=ACE_PROTOCOL_FAMILY_INET, int protocol=0, int reuse_addr=0)
int	open (const ACE_Addr &local, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0)
	~ACE_SOCK_Dgram (void)
	Default dtor.
ssize_t	recv (void *buf, size_t n, ACE_Addr &addr, int flags=0) const
ssize_t	recv (iovec io_vec, ACE_Addr &addr, int flags=0, const ACE_Time_Value timeout=0) const
ssize_t	recv (iovec iov[], int n, ACE_Addr &addr, int flags=0) const
ssize_t	recv (void buf, size_t n, ACE_Addr &addr, int flags, const ACE_Time_Value timeout) const
ssize_t	send (const void buf, size_t n, const ACE_Addr &addr, int flags, const ACE_Time_Value timeout) const
ssize_t	send (const iovec buffers[], int buffer_count, size_t &number_of_bytes_sent, int flags, const ACE_Addr &addr, ACE_OVERLAPPED *overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
ssize_t	recv (iovec buffers[], int buffer_count, size_t &number_of_bytes_recvd, int &flags, ACE_Addr &addr, ACE_OVERLAPPED *overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
ssize_t	send (const void buf, size_t n, const ACE_Addr &addr, int flags, ACE_OVERLAPPED overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
	Send an n byte buf to the datagram socket (uses <WSASendTo>).
ssize_t	recv (void buf, size_t n, ACE_Addr &addr, int flags, ACE_OVERLAPPED overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
int	set_nic (const ACE_TCHAR *net_if, int addr_family=AF_UNSPEC)
	Set NIC to use as multicast interface.
Public Member Functions inherited from ACE_SOCK
int	set_option (int level, int option, void *optval, int optlen) const
	Wrapper around the `setsockopt` system call.
int	get_option (int level, int option, void optval, int optlen) const
	Wrapper around the `getsockopt` system call.
int	get_local_addr (ACE_Addr &) const
int	open (int type, int protocol_family, int protocol, int reuse_addr)
	Wrapper around the BSD-style `socket` system call (no QoS).
int	open (int type, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr)
	Wrapper around the QoS-enabled `WSASocket` function.
Public Member Functions inherited from ACE_IPC_SAP
int	control (int cmd, void *) const
	Interface for <ioctl>.
int	enable (int value) const
int	disable (int value) const
ACE_HANDLE	get_handle (void) const
	Get the underlying handle.
void	set_handle (ACE_HANDLE handle)
	Set the underlying handle.

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Public Attributes inherited from ACE_SOCK_Dgram
Public Attributes inherited from ACE_SOCK
Public Attributes inherited from ACE_IPC_SAP

Private Member Functions
int	mk_broadcast (const ACE_TCHAR *host_name)
	Make broadcast available for Datagram socket.
int	get_remote_addr (ACE_Addr &) const
	Do not allow this function to percolate up to this interface...

Private Attributes
ACE_Bcast_Node *	if_list_
	Points to the head of the list of broadcast interfaces.

Additional Inherited Members
Public Types inherited from ACE_SOCK_Dgram
typedef ACE_INET_Addr	PEER_ADDR
Protected Member Functions inherited from ACE_SOCK_Dgram
int	shared_open (const ACE_Addr &local, int protocol_family)
	Open is shared by this and by <LSOCK_Dgram>.
int	make_multicast_ifaddr (ip_mreq mreq, const ACE_INET_Addr &mcast_addr, const ACE_TCHAR net_if)
int	make_multicast_ifaddr6 (ipv6_mreq mreq, const ACE_INET_Addr &mcast_addr, const ACE_TCHAR net_if)
Protected Member Functions inherited from ACE_SOCK
	ACE_SOCK (int type, int protocol_family, int protocol=0, int reuse_addr=0)
	ACE_SOCK (int type, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr)
	ACE_SOCK (void)
	~ACE_SOCK (void)
	Protected destructor.
Protected Member Functions inherited from ACE_IPC_SAP
	ACE_IPC_SAP (void)
	Default constructor.
	~ACE_IPC_SAP (void)
	Protected destructor.

Detailed Description

Defines the member functions for the ACE_SOCK datagram abstraction.

Constructor & Destructor Documentation

ACE_SOCK_Dgram_Bcast::ACE_SOCK_Dgram_Bcast ( void )

Default constructor.

ACE_SOCK_Dgram_Bcast::ACE_SOCK_Dgram_Bcast	(	const ACE_Addr &	local,
		int	protocol_family = `PF_INET`,
		int	protocol = `0`,
		int	reuse_addr = `0`,
		const ACE_TCHAR *	host_name = `0`
	)

ACE_SOCK_Dgram_Bcast::~ACE_SOCK_Dgram_Bcast ( void )

inline

Default dtor.

Member Function Documentation

int ACE_SOCK_Dgram_Bcast::close ( void )

Close up and release dynamically allocated resources.

Reimplemented from ACE_SOCK.

void ACE_SOCK_Dgram_Bcast::dump ( void ) const

Dump the state of an object.

Reimplemented from ACE_SOCK_Dgram.

int ACE_SOCK_Dgram_Bcast::get_remote_addr ( ACE_Addr & ) const

private

Do not allow this function to percolate up to this interface...

Reimplemented from ACE_SOCK_Dgram.

int ACE_SOCK_Dgram_Bcast::mk_broadcast ( const ACE_TCHAR * host_name )

private

Make broadcast available for Datagram socket.

int ACE_SOCK_Dgram_Bcast::open	(	const ACE_Addr &	local,
		int	protocol_family = `PF_INET`,
		int	protocol = `0`,
		int	reuse_addr = `0`,
		const ACE_TCHAR *	host_name = `0`
	)

Initiate a connectionless datagram broadcast endpoint.

ssize_t ACE_SOCK_Dgram_Bcast::send	(	const void *	buf,
		size_t	n,
		u_short	portnum,
		int	flags = `0`
	)		const

Broadcast the datagram to every interface. Returns the average number of bytes sent.

ssize_t ACE_SOCK_Dgram_Bcast::send	(	const iovec	iov[],
		int	n,
		u_short	portnum,
		int	flags = `0`
	)		const

Broadcast the iov datagrams to every interface. Returns the average number of bytes sent.

ssize_t ACE_SOCK_Dgram_Bcast::send	(	const void *	buf,
		size_t	n,
		const ACE_Addr &	addr,
		int	flags = `0`
	)		const

inline

Broadcast an N byte datagram to ADDR (note that addr must be preassigned to the broadcast address of the subnet...).

Reimplemented from ACE_SOCK_Dgram.

ssize_t ACE_SOCK_Dgram_Bcast::send	(	const iovec	iov[],
		int	n,
		const ACE_Addr &	addr,
		int	flags = `0`
	)		const

Broadcast an iovec of size n to addr as a datagram (note that addr must be preassigned to the broadcast address of the subnet...)

Reimplemented from ACE_SOCK_Dgram.

Member Data Documentation

ACE_SOCK_Dgram_Bcast::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented from ACE_SOCK_Dgram.

ACE_Bcast_Node* ACE_SOCK_Dgram_Bcast::if_list_

private

Points to the head of the list of broadcast interfaces.

The documentation for this class was generated from the following files:
