ACE_Locked_Data_Block< ACE_LOCK > Class Template Reference

A Data_Block with a concrete locking strategy. More...

#include <Message_Block_T.h>

Inheritance diagram for ACE_Locked_Data_Block< ACE_LOCK >:

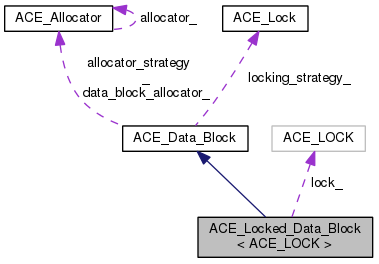

Collaboration diagram for ACE_Locked_Data_Block< ACE_LOCK >:

List of all members.

Public Member Functions
	ACE_Locked_Data_Block (void)
	Default "do-nothing" constructor.
	ACE_Locked_Data_Block (size_t size, ACE_Message_Block::ACE_Message_Type msg_type, const char *msg_data, ACE_Allocator *allocator_strategy, ACE_Message_Block::Message_Flags flags, ACE_Allocator *data_block_allocator)
	Initialize.
virtual	~ACE_Locked_Data_Block (void)
	Delete all the resources held in the message.
virtual ACE_Data_Block *	clone_nocopy (ACE_Message_Block::Message_Flags mask=0, size_t max_size=0) const
Public Member Functions inherited from ACE_Data_Block
	ACE_Data_Block (void)
	Default "do-nothing" constructor.
	ACE_Data_Block (size_t size, ACE_Message_Block::ACE_Message_Type msg_type, const char *msg_data, ACE_Allocator *allocator_strategy, ACE_Lock *locking_strategy, ACE_Message_Block::Message_Flags flags, ACE_Allocator *data_block_allocator)
	Initialize.
virtual	~ACE_Data_Block (void)
	Delete all the resources held in the message.
ACE_Message_Block::ACE_Message_Type	msg_type (void) const
	Get type of the message.
void	msg_type (ACE_Message_Block::ACE_Message_Type type)
	Set type of the message.
char *	base (void) const
	Get message data pointer.
void	base (char *data, size_t size, ACE_Message_Block::Message_Flags mflags=ACE_Message_Block::DONT_DELETE)
	Set message data pointer (doesn't reallocate).
char *	end (void) const
	Return a pointer to 1 past the end of the allocated data in a message.
char *	mark (void) const
size_t	size (void) const
int	size (size_t length)
size_t	capacity (void) const
	Get the total amount of allocated space.
virtual ACE_Data_Block *	clone (ACE_Message_Block::Message_Flags mask=0) const
ACE_Data_Block *	duplicate (void)
	Return a "shallow" copy that increments our reference count by 1.
ACE_Data_Block *	release (ACE_Lock *lock=0)
ACE_Message_Block::Message_Flags	set_flags (ACE_Message_Block::Message_Flags more_flags)
ACE_Message_Block::Message_Flags	clr_flags (ACE_Message_Block::Message_Flags less_flags)
ACE_Message_Block::Message_Flags	flags (void) const
	Get the current message flags.
ACE_Allocator *	allocator_strategy (void) const
	Obtain the allocator strategy.
ACE_Lock *	locking_strategy (void)
	Get the locking strategy.
ACE_Lock *	locking_strategy (ACE_Lock *)
	Set a new locking strategy and return the hold one.
void	dump (void) const
	Dump the state of an object.
int	reference_count (void) const
	Get the current reference count.
ACE_Allocator *	data_block_allocator (void) const
	Get the allocator used to create this object.

Private Member Functions
ACE_Locked_Data_Block< ACE_LOCK > &	operator= (const ACE_Locked_Data_Block< ACE_LOCK > &)
	ACE_Locked_Data_Block (const ACE_Locked_Data_Block< ACE_LOCK > &)

Private Attributes
ACE_LOCK	lock_
	The lock.

Additional Inherited Members
Protected Member Functions inherited from ACE_Data_Block
virtual ACE_Data_Block *	release_i (void)
	Internal release implementation.
int	reference_count_i (void) const
	Internal get the current reference count.
ACE_Data_Block *	release_no_delete (ACE_Lock *lock)
Protected Attributes inherited from ACE_Data_Block
ACE_Message_Block::ACE_Message_Type	type_
	Type of message.
size_t	cur_size_
	Current size of message block.
size_t	max_size_
	Total size of buffer.
ACE_Message_Block::Message_Flags	flags_
	Misc flags (e.g., DONT_DELETE and USER_FLAGS).
char *	base_
	Pointer To beginning of message payload.
ACE_Allocator *	allocator_strategy_
ACE_Lock *	locking_strategy_
int	reference_count_
ACE_Allocator *	data_block_allocator_
	The allocator use to destroy ourselves.

---

Detailed Description

template<class ACE_LOCK>
class ACE_Locked_Data_Block< ACE_LOCK >

A Data_Block with a concrete locking strategy.

Data_Blocks can be parametric on the kind of lock they use; in many cases the lifetime of the lock is tied to the lifetime of the Data_Block itself. But since Data_Blocks are reference counted it is hard for users to control the lock lifetime. This class is parametric over the kind of lock used.

---

Constructor & Destructor Documentation

template<class ACE_LOCK >

ACE_Locked_Data_Block< ACE_LOCK >::ACE_Locked_Data_Block ( void  )

inline

Default "do-nothing" constructor.

template<class ACE_LOCK >

ACE_Locked_Data_Block< ACE_LOCK >::ACE_Locked_Data_Block ( size_t  size, ACE_Message_Block::ACE_Message_Type  msg_type, const char *  msg_data, ACE_Allocator *  allocator_strategy, ACE_Message_Block::Message_Flags  flags, ACE_Allocator *  data_block_allocator  )

inline

Initialize.

template<class L >

ACE_Locked_Data_Block< L >::~ACE_Locked_Data_Block ( void  )

virtual

Delete all the resources held in the message.

template<class ACE_LOCK >

ACE_Locked_Data_Block< ACE_LOCK >::ACE_Locked_Data_Block ( const ACE_Locked_Data_Block< ACE_LOCK > &  )

private

---

Member Function Documentation

template<class ACE_LOCK >

ACE_Data_Block * ACE_Locked_Data_Block< ACE_LOCK >::clone_nocopy ( ACE_Message_Block::Message_Flags  mask = 0, size_t  max_size = 0  ) const

virtual

Return an exact "deep copy" of the message, the dynamic type is ACE_Locked_Data_Block<> See the documentation in Message_Block.h for details.

Reimplemented from ACE_Data_Block.

template<class ACE_LOCK >

ACE_Locked_Data_Block<ACE_LOCK>& ACE_Locked_Data_Block< ACE_LOCK >::operator= ( const ACE_Locked_Data_Block< ACE_LOCK > &  )

private

---

Member Data Documentation

template<class ACE_LOCK >

ACE_LOCK ACE_Locked_Data_Block< ACE_LOCK >::lock_

private

The lock.

---

The documentation for this class was generated from the following files:

• Message_Block_T.h
• Message_Block_T.cpp
• Message_Block_T.inl
