Defines the member functions for the ACE QoS enabled socket wrapper for UDP/IP multicast. More...

#include <SOCK_Dgram_Mcast_QoS.h>

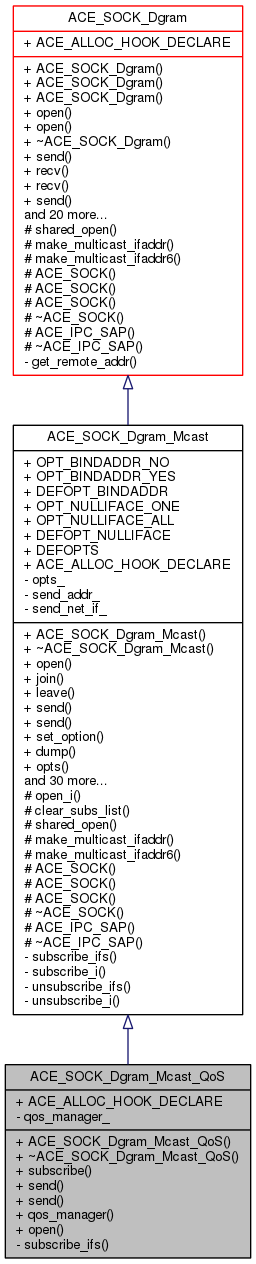

Inheritance diagram for ACE_SOCK_Dgram_Mcast_QoS:

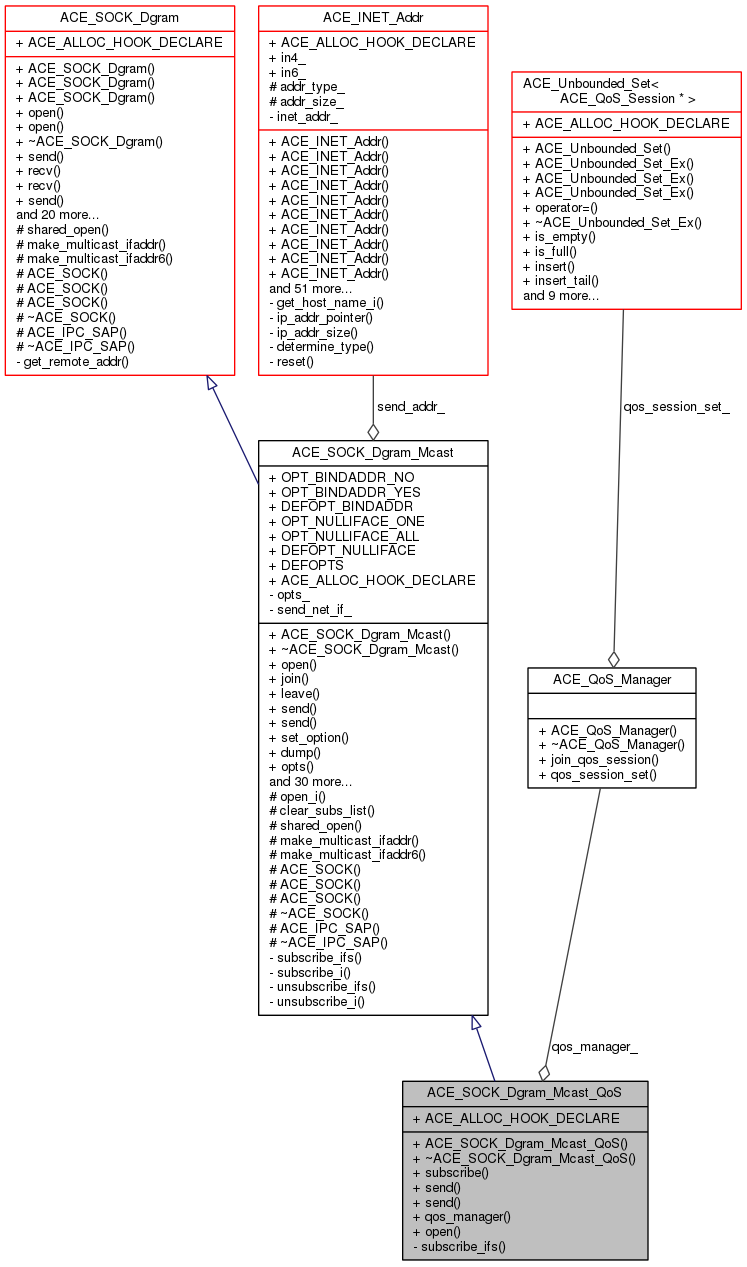

Collaboration diagram for ACE_SOCK_Dgram_Mcast_QoS:

Public Member Functions
	ACE_SOCK_Dgram_Mcast_QoS (options opts=DEFOPTS)
	Ctor, has same defaults as ACE_SOCK_Dgram_Mcast.
	~ACE_SOCK_Dgram_Mcast_QoS (void)
	Default dtor.
int	subscribe (const ACE_INET_Addr &mcast_addr, const ACE_QoS_Params &qos_params, int reuse_addr=1, const ACE_TCHAR net_if=0, int protocol_family=PF_INET, int protocol=0, ACE_Protocol_Info protocolinfo=0, ACE_SOCK_GROUP g=0, u_long flags=0, ACE_QoS_Session *qos_session=0)
ssize_t	send (const iovec buffers[], int buffer_count, size_t &number_of_bytes_sent, int flags, const ACE_Addr &addr, ACE_OVERLAPPED *overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
ssize_t	send (const void buf, size_t n, const ACE_Addr &addr, int flags, ACE_OVERLAPPED overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
	Send an n byte buf to the datagram socket (uses <WSASentTo>).
ACE_QoS_Manager	qos_manager (void)
	Returns the QoS manager for this socket.
int	open (const ACE_INET_Addr &addr, const ACE_QoS_Params &qos_params, int protocol_family=PF_INET, int protocol=0, ACE_Protocol_Info *protocolinfo=0, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0)
Public Member Functions inherited from ACE_SOCK_Dgram_Mcast
	ACE_SOCK_Dgram_Mcast (options opts=DEFOPTS)
	~ACE_SOCK_Dgram_Mcast (void)
int	open (const ACE_INET_Addr &mcast_addr, const ACE_TCHAR *net_if=0, int reuse_addr=1)
int	join (const ACE_INET_Addr &mcast_addr, int reuse_addr=1, const ACE_TCHAR *net_if=0)
int	leave (const ACE_INET_Addr &mcast_addr, const ACE_TCHAR *net_if=0)
ssize_t	send (const void *buf, size_t n, int flags=0) const
ssize_t	send (const iovec iov[], int n, int flags=0) const
int	set_option (int option, char optval)
void	dump (void) const
void	opts (int opts)
int	opts () const
	ACE_SOCK_Dgram (void)
	ACE_SOCK_Dgram (const ACE_Addr &local, int protocol_family=ACE_PROTOCOL_FAMILY_INET, int protocol=0, int reuse_addr=0)
	ACE_SOCK_Dgram (const ACE_Addr &local, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0)
int	open (const ACE_Addr &local, int protocol_family=ACE_PROTOCOL_FAMILY_INET, int protocol=0, int reuse_addr=0)
int	open (const ACE_Addr &local, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0)
	~ACE_SOCK_Dgram (void)
ssize_t	send (const void *buf, size_t n, const ACE_Addr &addr, int flags=0) const
ssize_t	recv (void *buf, size_t n, ACE_Addr &addr, int flags=0) const
ssize_t	recv (iovec io_vec, ACE_Addr &addr, int flags=0, const ACE_Time_Value timeout=0) const
ssize_t	send (const iovec iov[], int n, const ACE_Addr &addr, int flags=0) const
ssize_t	recv (iovec iov[], int n, ACE_Addr &addr, int flags=0) const
ssize_t	recv (void buf, size_t n, ACE_Addr &addr, int flags, const ACE_Time_Value timeout) const
ssize_t	send (const void buf, size_t n, const ACE_Addr &addr, int flags, const ACE_Time_Value timeout) const
ssize_t	recv (iovec buffers[], int buffer_count, size_t &number_of_bytes_recvd, int &flags, ACE_Addr &addr, ACE_OVERLAPPED *overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
ssize_t	recv (void buf, size_t n, ACE_Addr &addr, int flags, ACE_OVERLAPPED overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
int	set_nic (const ACE_TCHAR *net_if, int addr_family=AF_UNSPEC)
int	set_option (int level, int option, void *optval, int optlen) const
int	get_option (int level, int option, void optval, int optlen) const
int	close (void)
int	get_local_addr (ACE_Addr &) const
int	open (int type, int protocol_family, int protocol, int reuse_addr)
int	open (int type, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr)
int	control (int cmd, void *) const
int	enable (int value) const
int	disable (int value) const
ACE_HANDLE	get_handle (void) const
void	set_handle (ACE_HANDLE handle)

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Public Attributes inherited from ACE_SOCK_Dgram_Mcast
	OPT_BINDADDR_NO
	OPT_BINDADDR_YES
	DEFOPT_BINDADDR
	OPT_NULLIFACE_ONE
	OPT_NULLIFACE_ALL
	DEFOPT_NULLIFACE
	DEFOPTS
Public Attributes inherited from ACE_SOCK_Dgram
Public Attributes inherited from ACE_SOCK
Public Attributes inherited from ACE_IPC_SAP

Private Member Functions
int	subscribe_ifs (const ACE_INET_Addr &mcast_addr, const ACE_QoS_Params &qos_params, const ACE_TCHAR net_if, int protocol_family, int protocol, int reuse_addr, ACE_Protocol_Info protocolinfo)
	Subscribe to the multicast interface using QoS-enabled semantics.

Private Attributes
ACE_QoS_Manager	qos_manager_
	Manages the QoS sessions that this socket subscribes to.

Additional Inherited Members
Public Types inherited from ACE_SOCK_Dgram_Mcast
enum	options
typedef ACE_INET_Addr	PEER_ADDR
Public Types inherited from ACE_SOCK_Dgram
Protected Member Functions inherited from ACE_SOCK_Dgram_Mcast
int	open_i (const ACE_INET_Addr &mcast_addr, const ACE_TCHAR *net_if=0, int reuse_addr=1)
int	clear_subs_list (void)
int	shared_open (const ACE_Addr &local, int protocol_family)
int	make_multicast_ifaddr (ip_mreq mreq, const ACE_INET_Addr &mcast_addr, const ACE_TCHAR net_if)
int	make_multicast_ifaddr6 (ipv6_mreq mreq, const ACE_INET_Addr &mcast_addr, const ACE_TCHAR net_if)
	ACE_SOCK (int type, int protocol_family, int protocol=0, int reuse_addr=0)
	ACE_SOCK (int type, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr)
	ACE_SOCK (void)
	~ACE_SOCK (void)
	ACE_IPC_SAP (void)
	~ACE_IPC_SAP (void)

Detailed Description

Defines the member functions for the ACE QoS enabled socket wrapper for UDP/IP multicast.

Constructor & Destructor Documentation

ACE_SOCK_Dgram_Mcast_QoS::ACE_SOCK_Dgram_Mcast_QoS ( options opts = DEFOPTS )

Ctor, has same defaults as ACE_SOCK_Dgram_Mcast.

ACE_SOCK_Dgram_Mcast_QoS::~ACE_SOCK_Dgram_Mcast_QoS ( void )

inline

Default dtor.

Member Function Documentation

int ACE_SOCK_Dgram_Mcast_QoS::open	(	const ACE_INET_Addr &	addr,
		const ACE_QoS_Params &	qos_params,
		int	protocol_family = `PF_INET`,
		int	protocol = `0`,
		ACE_Protocol_Info *	protocolinfo = `0`,
		ACE_SOCK_GROUP	g = `0`,
		u_long	flags = `0`,
		int	reuse_addr = `0`
	)

ACE_QoS_Manager ACE_SOCK_Dgram_Mcast_QoS::qos_manager ( void )

inline

Returns the QoS manager for this socket.

ssize_t ACE_SOCK_Dgram_Mcast_QoS::send	(	const iovec	buffers[],
		int	buffer_count,
		size_t &	number_of_bytes_sent,
		int	flags,
		const ACE_Addr &	addr,
		ACE_OVERLAPPED *	overlapped,
		ACE_OVERLAPPED_COMPLETION_FUNC	func
	)		const

inline

Send <buffer_count> worth of buffers to addr using overlapped I/O (uses <WSASentTo>). Returns 0 on success.

Reimplemented from ACE_SOCK_Dgram_Mcast.

ssize_t ACE_SOCK_Dgram_Mcast_QoS::send	(	const void *	buf,
		size_t	n,
		const ACE_Addr &	addr,
		int	flags,
		ACE_OVERLAPPED *	overlapped,
		ACE_OVERLAPPED_COMPLETION_FUNC	func
	)		const

inline

Send an n byte buf to the datagram socket (uses <WSASentTo>).

Reimplemented from ACE_SOCK_Dgram_Mcast.

int ACE_SOCK_Dgram_Mcast_QoS::subscribe	(	const ACE_INET_Addr &	mcast_addr,
		const ACE_QoS_Params &	qos_params,
		int	reuse_addr = `1`,
		const ACE_TCHAR *	net_if = `0`,
		int	protocol_family = `PF_INET`,
		int	protocol = `0`,
		ACE_Protocol_Info *	protocolinfo = `0`,
		ACE_SOCK_GROUP	g = `0`,
		u_long	flags = `0`,
		ACE_QoS_Session *	qos_session = `0`
	)

This is a QoS-enabled method for joining a multicast group, which passes <qos_params> via <ACE_OS::join_leaf>. The network interface device driver is instructed to accept datagrams with <mcast_addr> multicast addresses. If the socket has already been opened, <subscribe> closes the socket and opens a new socket bound to the <mcast_addr>. The session object specifies the QoS session that the socket wants to subscribe to. A socket may subscribe to multiple QoS sessions by calling this method multiple times with different session objects.

The <net_if> interface is hardware specific, e.g., use "netstat -i" to find whether your interface is, such as "le0" or something else. If net_if == 0, <subscribe> uses the default mcast interface. Returns: -1 if the call fails.

Note that some platforms, such as pSoS, support only number, not names, for network interfaces. For these platforms, just give these numbers in alphanumeric form and <subscribe> will convert them into numbers via <ACE_OS::atoi>.

int ACE_SOCK_Dgram_Mcast_QoS::subscribe_ifs	(	const ACE_INET_Addr &	mcast_addr,
		const ACE_QoS_Params &	qos_params,
		const ACE_TCHAR *	net_if,
		int	protocol_family,
		int	protocol,
		int	reuse_addr,
		ACE_Protocol_Info *	protocolinfo
	)

private

Subscribe to the multicast interface using QoS-enabled semantics.

Member Data Documentation

ACE_SOCK_Dgram_Mcast_QoS::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented from ACE_SOCK_Dgram_Mcast.

ACE_QoS_Manager ACE_SOCK_Dgram_Mcast_QoS::qos_manager_

private

Manages the QoS sessions that this socket subscribes to.

The documentation for this class was generated from the following files:
