Factory for the EC_Gateway_IIOP settings. More...

#include <EC_Gateway_IIOP_Factory.h>

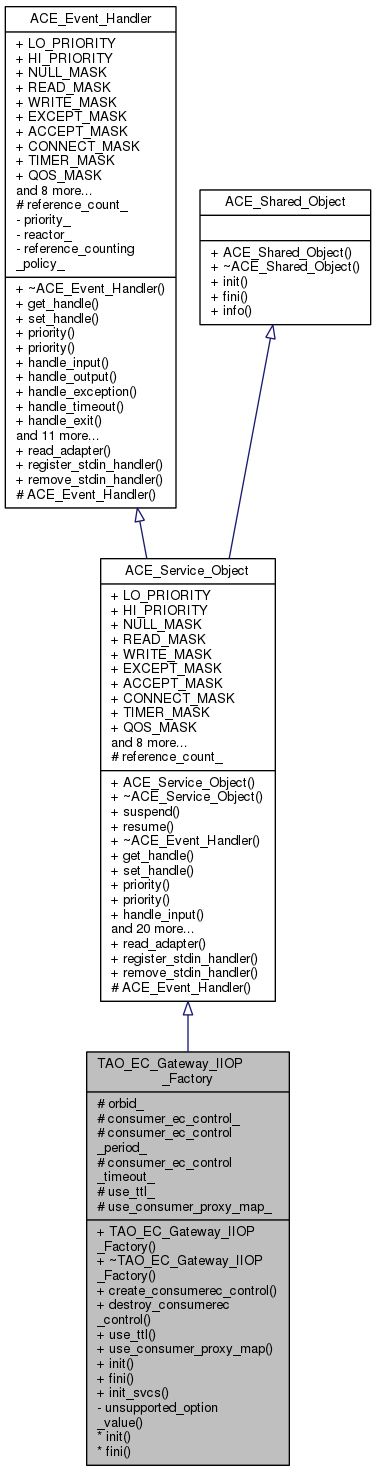

Inheritance diagram for TAO_EC_Gateway_IIOP_Factory:

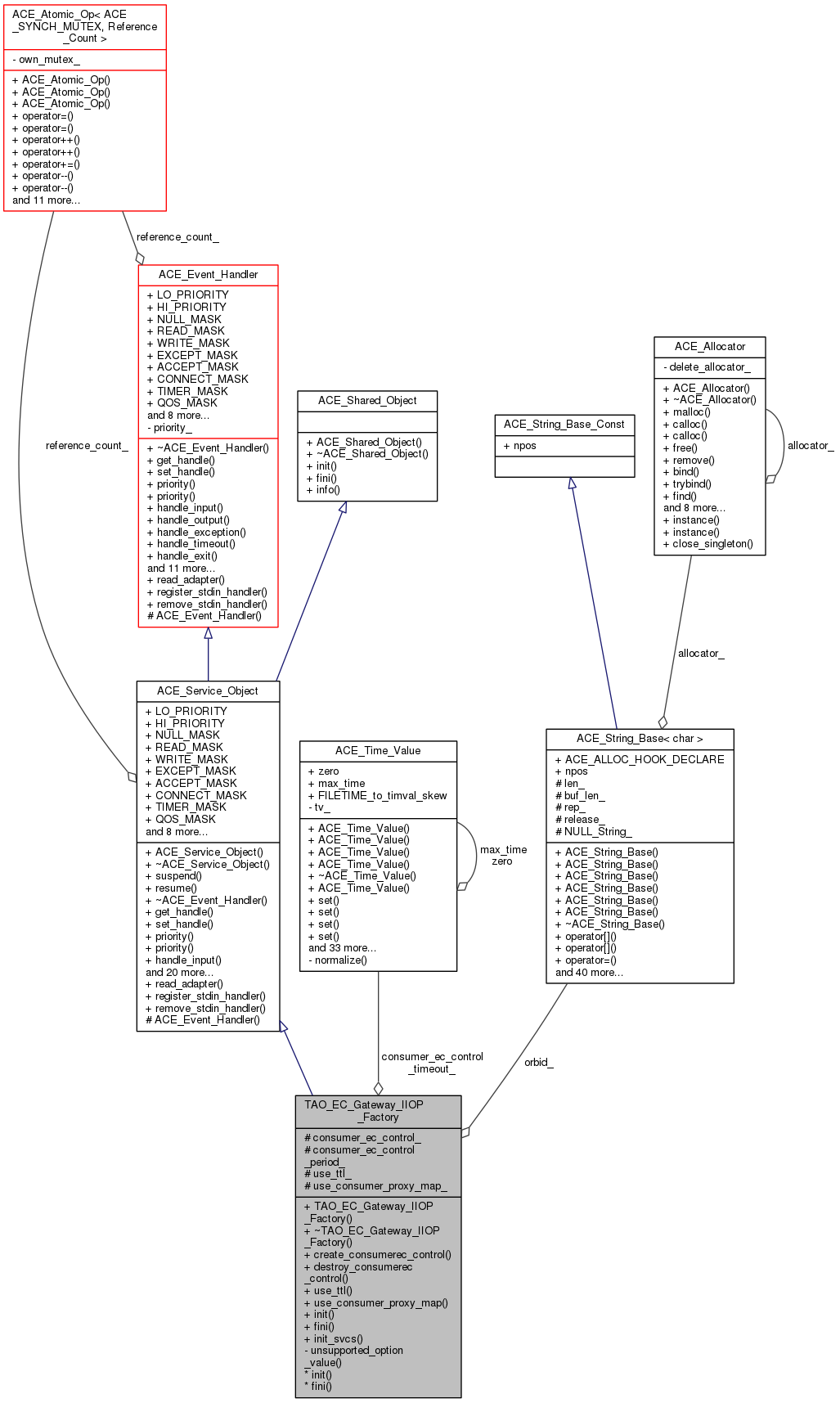

Collaboration diagram for TAO_EC_Gateway_IIOP_Factory:

Public Member Functions
	TAO_EC_Gateway_IIOP_Factory (void)
virtual	~TAO_EC_Gateway_IIOP_Factory (void)
TAO_ECG_ConsumerEC_Control *	create_consumerec_control (TAO_EC_Gateway_IIOP *gateway)
	Create the consumer event channel control.
void	destroy_consumerec_control (TAO_ECG_ConsumerEC_Control *x)
	Destroy consumer event channel control.
int	use_ttl (void) const
	Accessors to use_ttl flag.
int	use_consumer_proxy_map (void) const
	Accessors to use_consumer_proxy_map flag.

virtual int	init (int argc, ACE_TCHAR *argv[])
	The Service_Object entry points.
virtual int	fini (void)
	The Service_Object entry points.
Public Member Functions inherited from ACE_Service_Object
	ACE_Service_Object (ACE_Reactor *=0)
virtual	~ACE_Service_Object (void)
virtual int	suspend (void)
virtual int	resume (void)
virtual	~ACE_Event_Handler (void)
virtual ACE_HANDLE	get_handle (void) const
virtual void	set_handle (ACE_HANDLE)
virtual int	priority (void) const
virtual void	priority (int priority)
virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int	handle_exit (ACE_Process *)
virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)
virtual int	resume_handler (void)
virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void	reactor (ACE_Reactor *reactor)
virtual ACE_Reactor *	reactor (void) const
virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const
virtual Reference_Count	add_reference (void)
virtual Reference_Count	remove_reference (void)
Reference_Counting_Policy &	reference_counting_policy (void)
	ACE_Shared_Object (void)
virtual	~ACE_Shared_Object (void)
virtual int	info (ACE_TCHAR **info_string, size_t length=0) const

Static Public Member Functions
static int	init_svcs (void)
Static Public Member Functions inherited from ACE_Service_Object
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)
static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)
static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)

Protected Attributes
ACE_CString	orbid_
	Use this ORB to locate global resources.
int	consumer_ec_control_
	The control policy for the consumer event channel.
int	consumer_ec_control_period_
	The consumer event channel control periods in usecs.
ACE_Time_Value	consumer_ec_control_timeout_
	The control timeout in usecs for the consumer event channel.
int	use_ttl_
int	use_consumer_proxy_map_
Protected Attributes inherited from ACE_Service_Object
Atomic_Reference_Count	reference_count_
Protected Attributes inherited from ACE_Event_Handler

Private Member Functions
void	unsupported_option_value (const ACE_TCHAR option_name, const ACE_TCHAR option_value)

Additional Inherited Members
Public Types inherited from ACE_Service_Object
typedef long	Reference_Count
Public Types inherited from ACE_Event_Handler
Public Attributes inherited from ACE_Service_Object
	LO_PRIORITY
	HI_PRIORITY
	NULL_MASK
	READ_MASK
	WRITE_MASK
	EXCEPT_MASK
	ACCEPT_MASK
	CONNECT_MASK
	TIMER_MASK
	QOS_MASK
	GROUP_QOS_MASK
	SIGNAL_MASK
	ALL_EVENTS_MASK
	RWE_MASK
	DONT_CALL
	ACE_EVENT_HANDLER_NOT_RESUMED
	ACE_REACTOR_RESUMES_HANDLER
	ACE_APPLICATION_RESUMES_HANDLER
Public Attributes inherited from ACE_Event_Handler
Protected Types inherited from ACE_Service_Object
typedef ACE_Atomic_Op < ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count
Protected Types inherited from ACE_Event_Handler
Protected Member Functions inherited from ACE_Service_Object
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)

Detailed Description

Factory for the EC_Gateway_IIOP settings.

Default configuration values can be found in ECG_Defaults.h

Constructor & Destructor Documentation

TAO_EC_Gateway_IIOP_Factory::TAO_EC_Gateway_IIOP_Factory ( void )

TAO_EC_Gateway_IIOP_Factory::~TAO_EC_Gateway_IIOP_Factory ( void )

virtual

Member Function Documentation

TAO_ECG_ConsumerEC_Control * TAO_EC_Gateway_IIOP_Factory::create_consumerec_control ( TAO_EC_Gateway_IIOP * gateway )

Create the consumer event channel control.

void TAO_EC_Gateway_IIOP_Factory::destroy_consumerec_control ( TAO_ECG_ConsumerEC_Control * x )

Destroy consumer event channel control.

int TAO_EC_Gateway_IIOP_Factory::fini ( void )

virtual

The Service_Object entry points.

Reimplemented from ACE_Service_Object.

int TAO_EC_Gateway_IIOP_Factory::init	(	int	argc,
		ACE_TCHAR *	argv[]
	)

virtual

The Service_Object entry points.

Reimplemented from ACE_Service_Object.

int TAO_EC_Gateway_IIOP_Factory::init_svcs ( void )

static

Helper function to register the Gateway into the service configurator.

void TAO_EC_Gateway_IIOP_Factory::unsupported_option_value	(	const ACE_TCHAR *	option_name,
		const ACE_TCHAR *	option_value
	)

private

Helper for agrument parsing. Prints out an error message about unsupported option value.

int TAO_EC_Gateway_IIOP_Factory::use_consumer_proxy_map ( void ) const

Accessors to use_consumer_proxy_map flag.

int TAO_EC_Gateway_IIOP_Factory::use_ttl ( void ) const

Accessors to use_ttl flag.

Member Data Documentation

int TAO_EC_Gateway_IIOP_Factory::consumer_ec_control_

protected

The control policy for the consumer event channel.

int TAO_EC_Gateway_IIOP_Factory::consumer_ec_control_period_

protected

The consumer event channel control periods in usecs.

ACE_Time_Value TAO_EC_Gateway_IIOP_Factory::consumer_ec_control_timeout_

protected

The control timeout in usecs for the consumer event channel.

ACE_CString TAO_EC_Gateway_IIOP_Factory::orbid_

protected

Use this ORB to locate global resources.

int TAO_EC_Gateway_IIOP_Factory::use_consumer_proxy_map_

protected

The flag for using the consumer proxy map. With 1 the consumer proxy map is used, meaning that for each unique source id we use a different proxy push consumer, if 0, we only use one proxy push consumer for all source ids.

int TAO_EC_Gateway_IIOP_Factory::use_ttl_

protected

If 1, we use the TTL flags, if 0, we just ignore TTL.

Note:: When this flag is set to 0, make sure that no recursive structures exists in the gateway setup for the same source/type combination, else one event will flow continuosly through all gateways.

The documentation for this class was generated from the following files:
