Specialization of the base TAO_Transport class to handle the server side MIOP protocol. More...

#include <UIPMC_Mcast_Transport.h>

Inheritance diagram for TAO_UIPMC_Mcast_Transport:

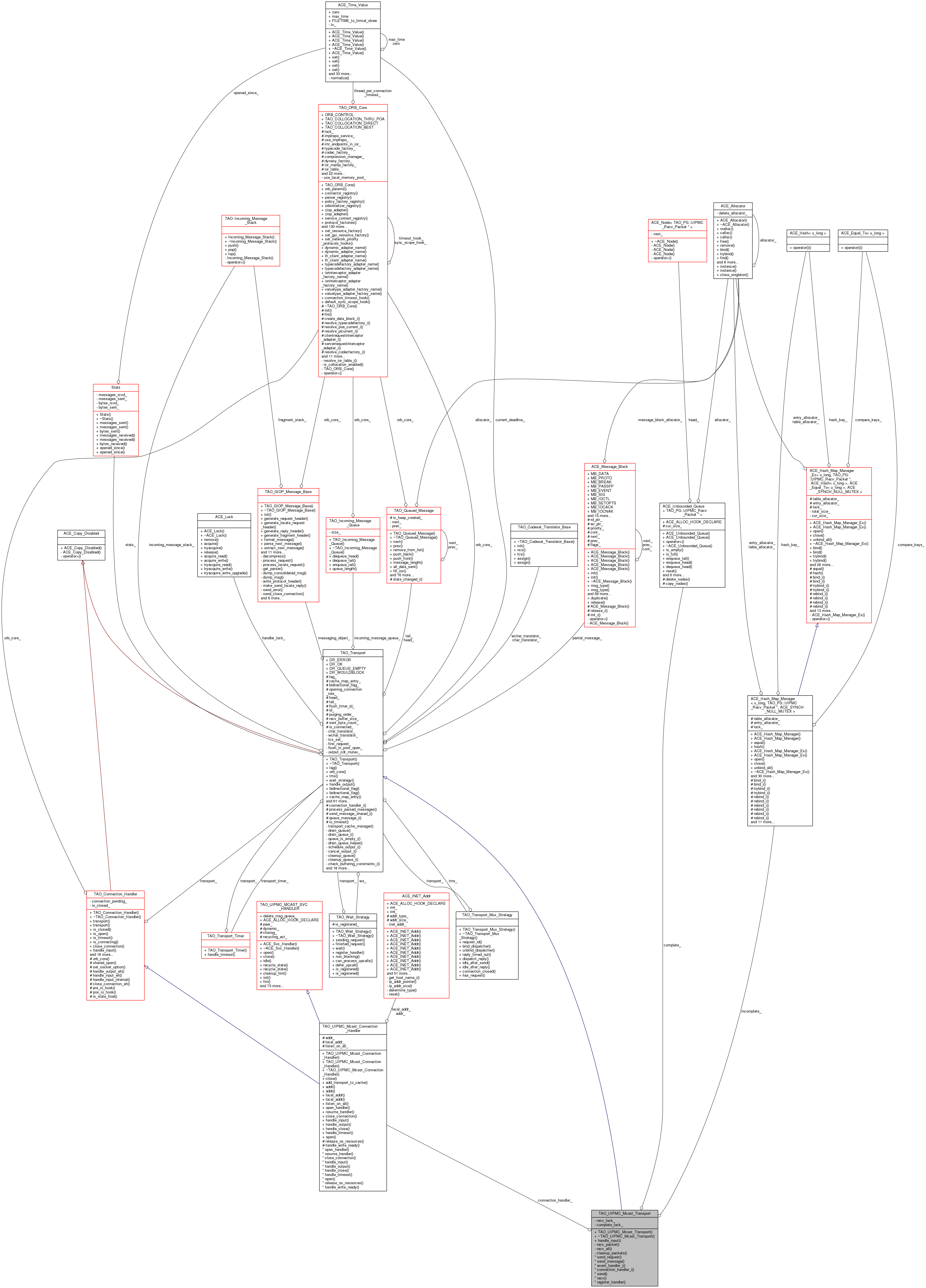

Collaboration diagram for TAO_UIPMC_Mcast_Transport:

Public Types
typedef ACE_Hash_Map_Manager < u_long, TAO_PG::UIPMC_Recv_Packet *, ACE_SYNCH_NULL_MUTEX >	Packets_Map
Public Types inherited from TAO_Transport
enum	Drain_Result_Enum

Public Member Functions
	TAO_UIPMC_Mcast_Transport (TAO_UIPMC_Mcast_Connection_Handler handler, TAO_ORB_Core orb_core)
	Constructor.
	~TAO_UIPMC_Mcast_Transport (void)
	Default destructor.
virtual int	handle_input (TAO_Resume_Handle &rh, ACE_Time_Value *max_wait_time=0)
	Look for the documentation in Transport.h.
Public Member Functions inherited from TAO_Transport
	TAO_Transport (CORBA::ULong tag, TAO_ORB_Core *orb_core, size_t input_cdr_size=ACE_CDR::DEFAULT_BUFSIZE)
virtual	~TAO_Transport (void)
CORBA::ULong	tag (void) const
TAO_ORB_Core *	orb_core (void) const
TAO_Transport_Mux_Strategy *	tms (void) const
TAO_Wait_Strategy *	wait_strategy (void) const
Drain_Result	handle_output (TAO::Transport::Drain_Constraints const &c)
int	bidirectional_flag (void) const
void	bidirectional_flag (int flag)
void	cache_map_entry (TAO::Transport_Cache_Manager::HASH_MAP_ENTRY *entry)
TAO::Transport_Cache_Manager::HASH_MAP_ENTRY *	cache_map_entry (void)
size_t	id (void) const
void	id (size_t id)
TAO::Connection_Role	opened_as (void) const
void	opened_as (TAO::Connection_Role)
unsigned long	purging_order (void) const
void	purging_order (unsigned long value)
bool	queue_is_empty (void)
bool	register_if_necessary (void)
void	provide_handler (TAO::Connection_Handler_Set &handlers)
bool	provide_blockable_handler (TAO::Connection_Handler_Set &handlers)
virtual int	remove_handler (void)
bool	idle_after_send (void)
bool	idle_after_reply (void)
virtual void	close_connection (void)
void	messaging_init (TAO_GIOP_Message_Version const &version)
virtual int	tear_listen_point_list (TAO_InputCDR &cdr)
virtual bool	post_connect_hook (void)
ACE_Event_Handler::Reference_Count	add_reference (void)
ACE_Event_Handler::Reference_Count	remove_reference (void)
TAO_GIOP_Message_Base *	messaging_object (void)
bool	is_connected (void) const
bool	post_open (size_t id)
void	pre_close (void)
TAO_Connection_Handler *	connection_handler (void)
TAO_OutputCDR &	out_stream (void)
TAO_SYNCH_MUTEX &	output_cdr_lock (void)
void	set_flush_in_post_open (void)
bool	can_be_purged (void)
virtual void	set_bidir_context_info (TAO_Operation_Details &opdetails)
int	generate_locate_request (TAO_Target_Specification &spec, TAO_Operation_Details &opdetails, TAO_OutputCDR &output)
virtual int	generate_request_header (TAO_Operation_Details &opd, TAO_Target_Specification &spec, TAO_OutputCDR &msg)
int	recache_transport (TAO_Transport_Descriptor_Interface *desc)
virtual int	send_message_shared (TAO_Stub stub, TAO_Message_Semantics message_semantics, const ACE_Message_Block message_block, ACE_Time_Value *max_wait_time)
int	format_queue_message (TAO_OutputCDR &stream, ACE_Time_Value max_wait_time, TAO_Stub stub)
int	send_message_block_chain (const ACE_Message_Block message_block, size_t &bytes_transferred, ACE_Time_Value max_wait_time=0)
int	send_message_block_chain_i (const ACE_Message_Block *message_block, size_t &bytes_transferred, TAO::Transport::Drain_Constraints const &dc)
int	purge_entry (void)
int	make_idle (void)
int	update_transport (void)
int	handle_timeout (const ACE_Time_Value &current_time, const void *act)
size_t	recv_buffer_size (void) const
size_t	sent_byte_count (void) const
TAO_Codeset_Translator_Base *	char_translator (void) const
TAO_Codeset_Translator_Base *	wchar_translator (void) const
void	char_translator (TAO_Codeset_Translator_Base *)
void	wchar_translator (TAO_Codeset_Translator_Base *)
void	assign_translators (TAO_InputCDR , TAO_OutputCDR )
void	clear_translators (TAO_InputCDR , TAO_OutputCDR )
CORBA::Boolean	is_tcs_set () const
void	first_request_sent (bool flag=false)
bool	first_request () const
void	send_connection_closed_notifications (void)
TAO::Transport::Stats *	stats (void) const

Private Types
typedef ACE_Unbounded_Queue < TAO_PG::UIPMC_Recv_Packet * >	Packets_Queue
	Complete packets.

Private Member Functions
char *	recv_packet (char *buf, size_t len, ACE_INET_Addr &from_addr, CORBA::UShort &packet_length, CORBA::ULong &packet_number, bool &stop_packet, u_long &id_hash) const
bool	recv_all (void)
	Receive as much UDP packets as possible.
void	cleanup_packets (bool expired_only)

Private Attributes
TAO_UIPMC_Mcast_Connection_Handler *	connection_handler_
Packets_Map	incomplete_
	Incomplete packets.
TAO_SYNCH_MUTEX	recv_lock_
	A lock for ensuring that only one thread is doing recv.
Packets_Queue	complete_
TAO_SYNCH_MUTEX	complete_lock_
	A lock for access synchronization to complete queue.

Friends
class	TAO_PG::UIPMC_Recv_Packet_Cleanup_Guard

Overridden Template Methods
These are implementations of template methods declared by TAO_Transport.
virtual int	send_request (TAO_Stub , TAO_ORB_Core , TAO_OutputCDR &, TAO_Message_Semantics, ACE_Time_Value *)
virtual int	send_message (TAO_OutputCDR &, TAO_Stub =0, TAO_ServerRequest =0, TAO_Message_Semantics=TAO_Message_Semantics(), ACE_Time_Value *=0)
	Shouldn't ever be called on the server side.
virtual ACE_Event_Handler *	event_handler_i (void)
virtual TAO_Connection_Handler *	connection_handler_i (void)
virtual ssize_t	send (iovec , int, size_t &, ACE_Time_Value const )
virtual ssize_t	recv (char , size_t, ACE_Time_Value const )
	Shouldn't ever be called. We use recv_all() with different semantics.
virtual int	register_handler (void)

Additional Inherited Members
Public Attributes inherited from TAO_Transport
	DR_ERROR
	DR_OK
	DR_QUEUE_EMPTY
	DR_WOULDBLOCK
Protected Member Functions inherited from TAO_Transport
int	process_parsed_messages (TAO_Queued_Data *qd, TAO_Resume_Handle &rh)
int	send_message_shared_i (TAO_Stub stub, TAO_Message_Semantics message_semantics, const ACE_Message_Block message_block, ACE_Time_Value *max_wait_time)
int	queue_message_i (const ACE_Message_Block message_block, ACE_Time_Value max_wait_time, bool back=true)
ACE_Time_Value const *	io_timeout (TAO::Transport::Drain_Constraints const &dc) const
Protected Attributes inherited from TAO_Transport
CORBA::ULong const	tag_
TAO_ORB_Core *const	orb_core_
TAO::Transport_Cache_Manager::HASH_MAP_ENTRY *	cache_map_entry_
TAO_Transport_Mux_Strategy *	tms_
TAO_Wait_Strategy *	ws_
int	bidirectional_flag_
TAO::Connection_Role	opening_connection_role_
TAO_Queued_Message *	head_
TAO_Queued_Message *	tail_
TAO_Incoming_Message_Queue	incoming_message_queue_
TAO::Incoming_Message_Stack	incoming_message_stack_
ACE_Time_Value	current_deadline_
long	flush_timer_id_
TAO_Transport_Timer	transport_timer_
ACE_Lock *	handler_lock_
size_t	id_
unsigned long	purging_order_
size_t	recv_buffer_size_
size_t	sent_byte_count_
bool	is_connected_

Detailed Description

Specialization of the base TAO_Transport class to handle the server side MIOP protocol.

Member Typedef Documentation

typedef ACE_Hash_Map_Manager<u_long, TAO_PG::UIPMC_Recv_Packet *, ACE_SYNCH_NULL_MUTEX> TAO_UIPMC_Mcast_Transport::Packets_Map

typedef ACE_Unbounded_Queue<TAO_PG::UIPMC_Recv_Packet *> TAO_UIPMC_Mcast_Transport::Packets_Queue

private

Complete packets.

Constructor & Destructor Documentation

TAO_UIPMC_Mcast_Transport::TAO_UIPMC_Mcast_Transport	(	TAO_UIPMC_Mcast_Connection_Handler *	handler,
		TAO_ORB_Core *	orb_core
	)

Constructor.

TAO_UIPMC_Mcast_Transport::~TAO_UIPMC_Mcast_Transport ( void )

Default destructor.

Member Function Documentation

void TAO_UIPMC_Mcast_Transport::cleanup_packets ( bool expired_only )

private

Cleanup either all packets or expired only depending the expired_only flag.

TAO_Connection_Handler * TAO_UIPMC_Mcast_Transport::connection_handler_i ( void )

protectedvirtual

@TODO: These methods IMHO should have more meaningful names. The names seem to indicate nothing. Shouldn't ever be called on the server side.

Implements TAO_Transport.

ACE_Event_Handler * TAO_UIPMC_Mcast_Transport::event_handler_i ( void )

protectedvirtual

@TODO: These methods IMHO should have more meaningful names. The names seem to indicate nothing. Shouldn't ever be called on the server side.

Implements TAO_Transport.

int TAO_UIPMC_Mcast_Transport::handle_input	(	TAO_Resume_Handle &	rh,
		ACE_Time_Value *	max_wait_time = `0`
	)

virtual

Look for the documentation in Transport.h.

Reimplemented from TAO_Transport.

ssize_t TAO_UIPMC_Mcast_Transport::recv	(	char *	,
		size_t	,
		ACE_Time_Value const *
	)

protectedvirtual

Shouldn't ever be called. We use recv_all() with different semantics.

Implements TAO_Transport.

bool TAO_UIPMC_Mcast_Transport::recv_all ( void )

private

Receive as much UDP packets as possible.

char * TAO_UIPMC_Mcast_Transport::recv_packet	(	char *	buf,
		size_t	len,
		ACE_INET_Addr &	from_addr,
		CORBA::UShort &	packet_length,
		CORBA::ULong &	packet_number,
		bool &	stop_packet,
		u_long &	id_hash
	)		const

private

Receive a UDP message and extract all necessary info from the MIOP header. If everything is fine return a pointer to the first byte of the non-MIOP data.

int TAO_UIPMC_Mcast_Transport::register_handler ( void )

protectedvirtual

@TODO: These methods IMHO should have more meaningful names. The names seem to indicate nothing. Shouldn't ever be called on the server side.

Reimplemented from TAO_Transport.

ssize_t TAO_UIPMC_Mcast_Transport::send	(	iovec *	,
		int	,
		size_t &	,
		ACE_Time_Value const *
	)

protectedvirtual

Write the complete Message_Block chain to the connection. Shouldn't ever be called on the server side.

Implements TAO_Transport.

int TAO_UIPMC_Mcast_Transport::send_message	(	TAO_OutputCDR &	,
		TAO_Stub *	= `0`,
		TAO_ServerRequest *	= `0`,
		TAO_Message_Semantics	= `TAO_Message_Semantics ()`,
		ACE_Time_Value *	= `0`
	)

virtual

Shouldn't ever be called on the server side.

Implements TAO_Transport.

int TAO_UIPMC_Mcast_Transport::send_request	(	TAO_Stub *	,
		TAO_ORB_Core *	,
		TAO_OutputCDR &	,
		TAO_Message_Semantics	,
		ACE_Time_Value *
	)

virtual

@TODO: These methods IMHO should have more meaningful names. The names seem to indicate nothing. Shouldn't ever be called on the server side.

Implements TAO_Transport.

Friends And Related Function Documentation

friend class TAO_PG::UIPMC_Recv_Packet_Cleanup_Guard

friend

Member Data Documentation

Packets_Queue TAO_UIPMC_Mcast_Transport::complete_

private

TAO_SYNCH_MUTEX TAO_UIPMC_Mcast_Transport::complete_lock_

private

A lock for access synchronization to complete queue.

TAO_UIPMC_Mcast_Connection_Handler* TAO_UIPMC_Mcast_Transport::connection_handler_

private

The connection service handler used for accessing lower layer communication protocols.

Packets_Map TAO_UIPMC_Mcast_Transport::incomplete_

private

Incomplete packets.

TAO_SYNCH_MUTEX TAO_UIPMC_Mcast_Transport::recv_lock_

private

A lock for ensuring that only one thread is doing recv.

The documentation for this class was generated from the following files:
