TAO's MIOP resource factory. More...

#include <miop_resource.h>

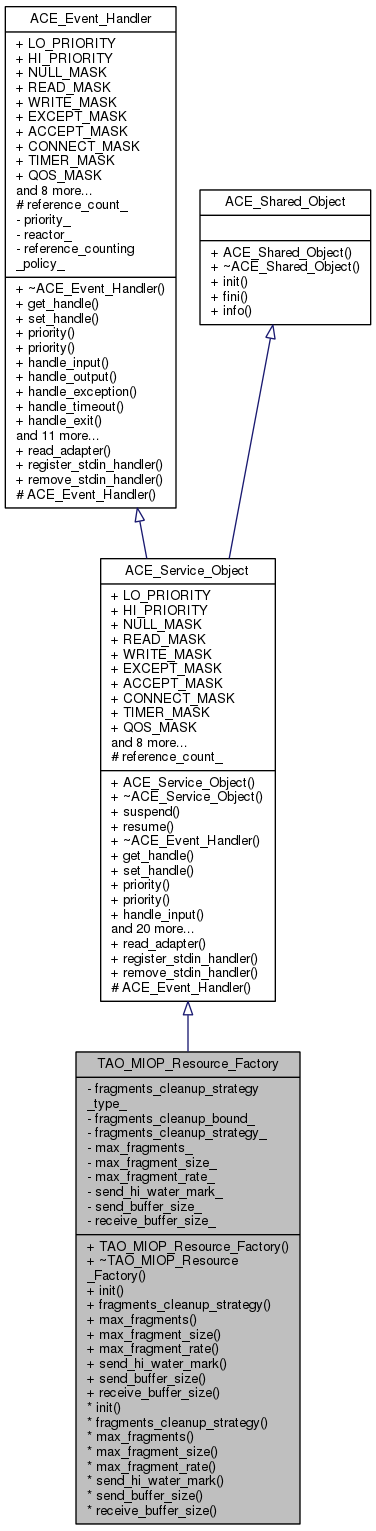

Inheritance diagram for TAO_MIOP_Resource_Factory:

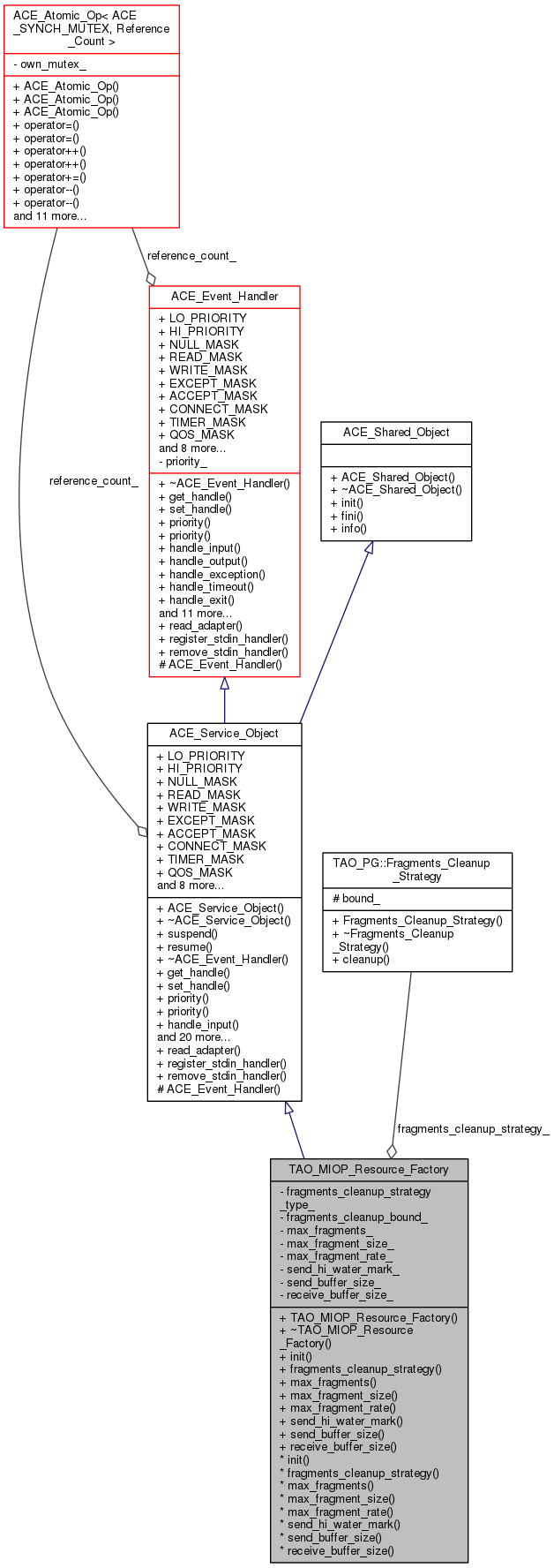

Collaboration diagram for TAO_MIOP_Resource_Factory:

Public Member Functions
	TAO_MIOP_Resource_Factory (void)
	Constructor.
virtual	~TAO_MIOP_Resource_Factory (void)
	Destructor.
Service Configurator Hooks
virtual int	init (int argc, ACE_TCHAR *argv[])
	Dynamic linking hook.
Member Accessors
TAO_PG::Fragments_Cleanup_Strategy *	fragments_cleanup_strategy (void) const
	Get Maximum number of fragments allowed.
u_long	max_fragments (void) const
	Get Maximum number of fragments allowed.
u_long	max_fragment_size (void) const
	Get MTU value (roughly).
u_long	max_fragment_rate (void) const
	Get time required for transfering one maximum sized fragment.
u_long	send_hi_water_mark (void) const
	Get number of bytes that can be sent without delay.
u_long	send_buffer_size (void) const
	Get the desired socket transmit buffer's size in bytes (Zero is unspecified).
u_long	receive_buffer_size (void) const
	Get the desired socket receive buffer's size in bytes (Zero is unspecified).
Public Member Functions inherited from ACE_Service_Object
	ACE_Service_Object (ACE_Reactor *=0)
virtual	~ACE_Service_Object (void)
virtual int	suspend (void)
virtual int	resume (void)
virtual	~ACE_Event_Handler (void)
virtual ACE_HANDLE	get_handle (void) const
virtual void	set_handle (ACE_HANDLE)
virtual int	priority (void) const
virtual void	priority (int priority)
virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int	handle_exit (ACE_Process *)
virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)
virtual int	resume_handler (void)
virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void	reactor (ACE_Reactor *reactor)
virtual ACE_Reactor *	reactor (void) const
virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const
virtual Reference_Count	add_reference (void)
virtual Reference_Count	remove_reference (void)
Reference_Counting_Policy &	reference_counting_policy (void)
	ACE_Shared_Object (void)
virtual	~ACE_Shared_Object (void)
virtual int	fini (void)
virtual int	info (ACE_TCHAR **info_string, size_t length=0) const

Private Types
enum	Fragments_Cleanup_Strategy_Type { TAO_MIOP_CLEANUP_TIME_BOUND, TAO_MIOP_CLEANUP_NUMBER_BOUND, TAO_MIOP_CLEANUP_MEMORY_BOUND }

Private Attributes
Fragments_Cleanup_Strategy_Type	fragments_cleanup_strategy_type_
int	fragments_cleanup_bound_
TAO_PG::Fragments_Cleanup_Strategy *	fragments_cleanup_strategy_
u_long	max_fragments_
	Maximum number of fragments.
u_long	max_fragment_size_
	Maximum Size of a single fragment.
u_long	max_fragment_rate_
	Time required for transfering one maximum sized fragment.
u_long	send_hi_water_mark_
	Number of bytes that can be sent without delay.
u_long	send_buffer_size_
	Get the desired socket send buffer's size in bytes.
u_long	receive_buffer_size_
	Get the desired socket receive buffer's size in bytes.

Additional Inherited Members
Public Types inherited from ACE_Service_Object
typedef long	Reference_Count
Public Types inherited from ACE_Event_Handler
Static Public Member Functions inherited from ACE_Service_Object
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)
static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)
static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)
Public Attributes inherited from ACE_Service_Object
	LO_PRIORITY
	HI_PRIORITY
	NULL_MASK
	READ_MASK
	WRITE_MASK
	EXCEPT_MASK
	ACCEPT_MASK
	CONNECT_MASK
	TIMER_MASK
	QOS_MASK
	GROUP_QOS_MASK
	SIGNAL_MASK
	ALL_EVENTS_MASK
	RWE_MASK
	DONT_CALL
	ACE_EVENT_HANDLER_NOT_RESUMED
	ACE_REACTOR_RESUMES_HANDLER
	ACE_APPLICATION_RESUMES_HANDLER
Public Attributes inherited from ACE_Event_Handler
Protected Types inherited from ACE_Service_Object
typedef ACE_Atomic_Op < ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count
Protected Types inherited from ACE_Event_Handler
Protected Member Functions inherited from ACE_Service_Object
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)
Protected Attributes inherited from ACE_Service_Object
Atomic_Reference_Count	reference_count_
Protected Attributes inherited from ACE_Event_Handler

Detailed Description

TAO's MIOP resource factory.

Using a <{resource source specifier}> as a discriminator, the factory can return resource instances which are, e.g., global, stored in thread-specific storage, stored in shared memory, etc.

Member Enumeration Documentation

enum TAO_MIOP_Resource_Factory::Fragments_Cleanup_Strategy_Type

private

Enumerator:

TAO_MIOP_CLEANUP_TIME_BOUND
TAO_MIOP_CLEANUP_NUMBER_BOUND
TAO_MIOP_CLEANUP_MEMORY_BOUND

Constructor & Destructor Documentation

TAO_MIOP_Resource_Factory::TAO_MIOP_Resource_Factory ( void )

Constructor.

TAO_MIOP_Resource_Factory::~TAO_MIOP_Resource_Factory ( void )

virtual

Destructor.

Member Function Documentation

TAO_PG::Fragments_Cleanup_Strategy * TAO_MIOP_Resource_Factory::fragments_cleanup_strategy ( void ) const

Get Maximum number of fragments allowed.

int TAO_MIOP_Resource_Factory::init	(	int	argc,
		ACE_TCHAR *	argv[]
	)

virtual

Dynamic linking hook.

Reimplemented from ACE_Service_Object.

u_long TAO_MIOP_Resource_Factory::max_fragment_rate ( void ) const

Get time required for transfering one maximum sized fragment.

u_long TAO_MIOP_Resource_Factory::max_fragment_size ( void ) const

Get MTU value (roughly).

u_long TAO_MIOP_Resource_Factory::max_fragments ( void ) const

Get Maximum number of fragments allowed.

u_long TAO_MIOP_Resource_Factory::receive_buffer_size ( void ) const

Get the desired socket receive buffer's size in bytes (Zero is unspecified).

u_long TAO_MIOP_Resource_Factory::send_buffer_size ( void ) const

Get the desired socket transmit buffer's size in bytes (Zero is unspecified).

u_long TAO_MIOP_Resource_Factory::send_hi_water_mark ( void ) const

Get number of bytes that can be sent without delay.

Member Data Documentation

int TAO_MIOP_Resource_Factory::fragments_cleanup_bound_

private

TAO_PG::Fragments_Cleanup_Strategy* TAO_MIOP_Resource_Factory::fragments_cleanup_strategy_

mutableprivate

Fragments_Cleanup_Strategy_Type TAO_MIOP_Resource_Factory::fragments_cleanup_strategy_type_

private

u_long TAO_MIOP_Resource_Factory::max_fragment_rate_

private

Time required for transfering one maximum sized fragment.

u_long TAO_MIOP_Resource_Factory::max_fragment_size_

private

Maximum Size of a single fragment.

u_long TAO_MIOP_Resource_Factory::max_fragments_

private

Maximum number of fragments.

u_long TAO_MIOP_Resource_Factory::receive_buffer_size_

private

Get the desired socket receive buffer's size in bytes.

u_long TAO_MIOP_Resource_Factory::send_buffer_size_

private

Get the desired socket send buffer's size in bytes.

u_long TAO_MIOP_Resource_Factory::send_hi_water_mark_

private

Number of bytes that can be sent without delay.
