Implementation Repository Forwarder. More...

#include <Forwarder.h>

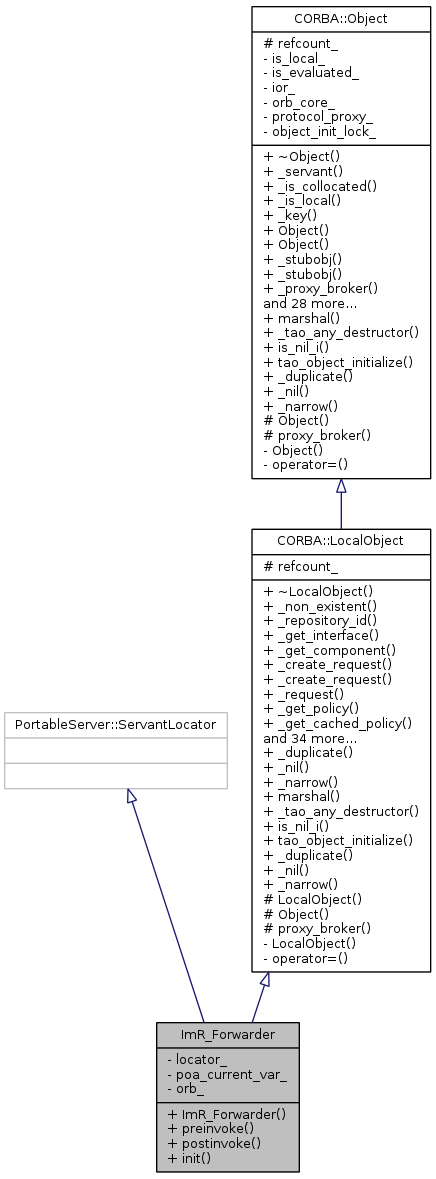

Inheritance diagram for ImR_Forwarder:

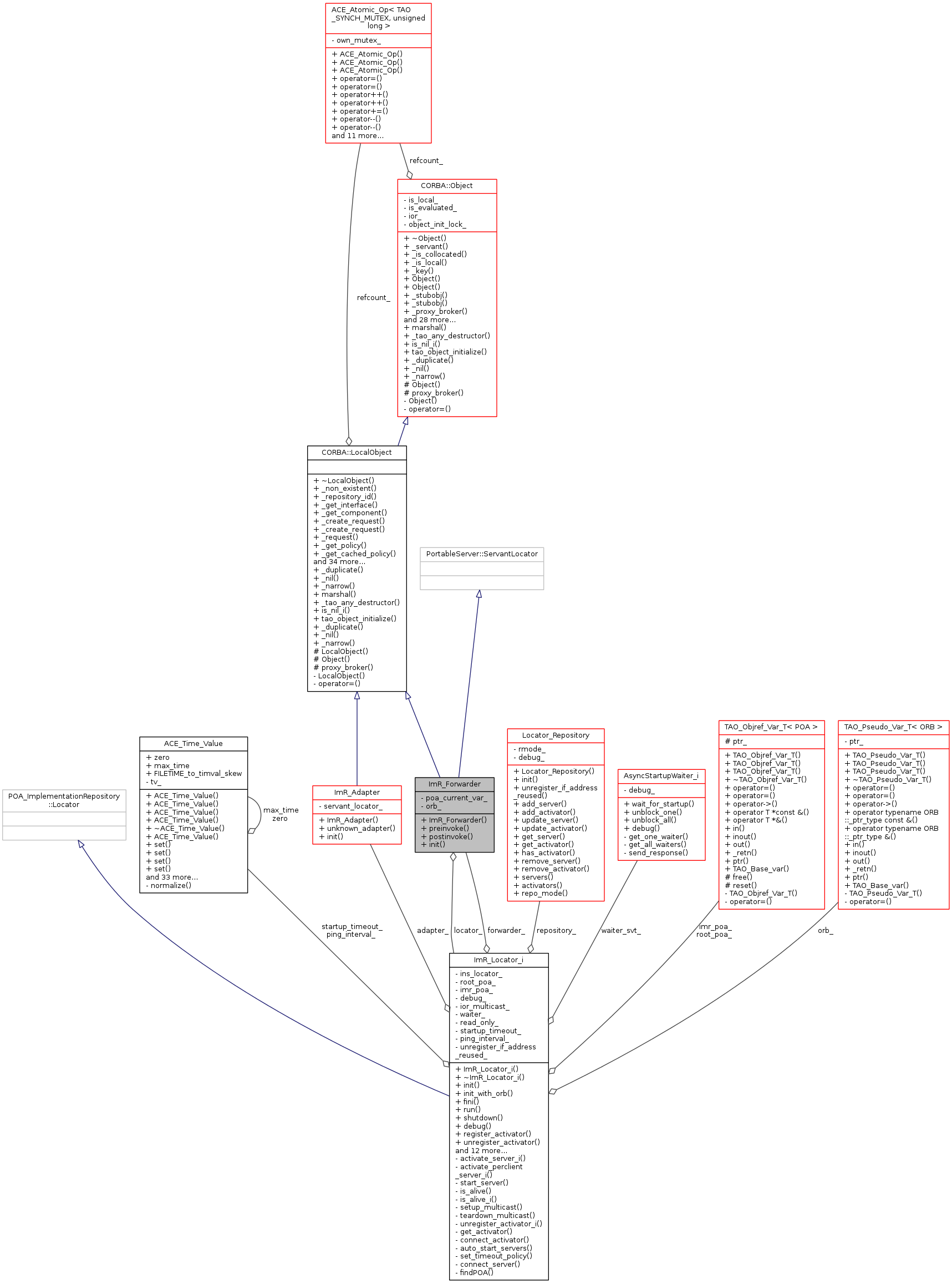

Collaboration diagram for ImR_Forwarder:

Public Member Functions
	ImR_Forwarder (ImR_Locator_i &imr_impl)

virtual PortableServer::Servant	preinvoke (const PortableServer::ObjectId &oid, PortableServer::POA_ptr poa, const char *operation, PortableServer::ServantLocator::Cookie &cookie)
	Called before the invocation begins.

virtual void	postinvoke (const PortableServer::ObjectId &oid, PortableServer::POA_ptr adapter, const char *operation, PortableServer::ServantLocator::Cookie the_cookie, PortableServer::Servant the_servant)

void	init (CORBA::ORB_ptr orb)

Public Member Functions inherited from CORBA::LocalObject
virtual	~LocalObject (void)

virtual CORBA::Boolean	_non_existent (void)

virtual char *	_repository_id (void)

virtual CORBA::InterfaceDef_ptr	_get_interface (void)

virtual CORBA::Object_ptr	_get_component (void)

virtual void	_create_request (CORBA::Context_ptr ctx, const char *operation, CORBA::NVList_ptr arg_list, CORBA::NamedValue_ptr result, CORBA::Request_ptr &request, CORBA::Flags req_flags)

virtual void	_create_request (CORBA::Context_ptr ctx, const char *operation, CORBA::NVList_ptr arg_list, CORBA::NamedValue_ptr result, CORBA::ExceptionList_ptr exclist, CORBA::ContextList_ptr ctxtlist, CORBA::Request_ptr &request, CORBA::Flags req_flags)

virtual CORBA::Request_ptr	_request (const char *operation)

CORBA::Policy_ptr	_get_policy (CORBA::PolicyType type)

CORBA::Policy_ptr	_get_cached_policy (TAO_Cached_Policy_Type type)

CORBA::Object_ptr	_set_policy_overrides (const CORBA::PolicyList &policies, CORBA::SetOverrideType set_add)

CORBA::PolicyList *	_get_policy_overrides (const CORBA::PolicyTypeSeq &types)

CORBA::Boolean	_validate_connection (CORBA::PolicyList_out inconsistent_policies)

virtual CORBA::ULong	_hash (CORBA::ULong maximum)

virtual CORBA::Boolean	_is_equivalent (CORBA::Object_ptr other_obj)

virtual CORBA::ORB_ptr	_get_orb (void)

virtual TAO::ObjectKey *	_key (void)

virtual	~Object (void)

virtual TAO_Abstract_ServantBase *	_servant (void) const

virtual CORBA::Boolean	_is_collocated (void) const

virtual CORBA::Boolean	_is_local (void) const

	Object (TAO_Stub p, CORBA::Boolean collocated=false, TAO_Abstract_ServantBase servant=0, TAO_ORB_Core *orb_core=0)

	Object (IOP::IOR ior, TAO_ORB_Core orb_core)

virtual TAO_Stub *	_stubobj (void) const

virtual TAO_Stub *	_stubobj (void)

virtual void	_proxy_broker (TAO::Object_Proxy_Broker *proxy_broker)

virtual CORBA::Boolean	marshal (TAO_OutputCDR &cdr)

CORBA::Boolean	is_evaluated (void) const

TAO_ORB_Core *	orb_core (void) const

IOP::IOR *	steal_ior (void)

const IOP::IOR &	ior (void) const

virtual bool	can_convert_to_ior (void) const

virtual char *	convert_to_ior (bool use_omg_ior_format, const char *ior_prefix) const

void	_decr_refcount (void)

virtual void	_add_ref (void)

virtual void	_remove_ref (void)

virtual CORBA::ULong	_refcount_value (void) const

virtual CORBA::Boolean	_is_a (const char *logical_type_id)

virtual const char *	_interface_repository_id (void) const

CORBA::Policy_ptr	_get_policy (CORBA::PolicyType type)

CORBA::Policy_ptr	_get_cached_policy (TAO_Cached_Policy_Type type)

CORBA::Object_ptr	_set_policy_overrides (const CORBA::PolicyList &policies, CORBA::SetOverrideType set_add)

CORBA::PolicyList *	_get_policy_overrides (const CORBA::PolicyTypeSeq &types)

CORBA::Boolean	_validate_connection (CORBA::PolicyList_out inconsistent_policies)

Public Member Functions inherited from CORBA::Object
	Object (TAO_Stub p, CORBA::Boolean collocated=false, TAO_Abstract_ServantBase servant=0, TAO_ORB_Core *orb_core=0)

	Object (IOP::IOR ior, TAO_ORB_Core orb_core)

CORBA::Boolean	is_evaluated (void) const

TAO_ORB_Core *	orb_core (void) const

IOP::IOR *	steal_ior (void)

const IOP::IOR &	ior (void) const

void	_decr_refcount (void)

CORBA::Policy_ptr	_get_policy (CORBA::PolicyType type)

CORBA::Policy_ptr	_get_cached_policy (TAO_Cached_Policy_Type type)

CORBA::Object_ptr	_set_policy_overrides (const CORBA::PolicyList &policies, CORBA::SetOverrideType set_add)

CORBA::PolicyList *	_get_policy_overrides (const CORBA::PolicyTypeSeq &types)

CORBA::Boolean	_validate_connection (CORBA::PolicyList_out inconsistent_policies)

Private Attributes
ImR_Locator_i &	locator_
	Where we find out where to forward to.

PortableServer::Current_var	poa_current_var_
	POA reference.

CORBA::ORB_ptr	orb_
	Variable to save the ORB reference passed to the constr.

Additional Inherited Members
Public Types inherited from CORBA::LocalObject
typedef LocalObject_ptr	_ptr_type

typedef LocalObject_var	_var_type

typedef LocalObject_out	_out_type

typedef Object_ptr	_ptr_type

typedef Object_var	_var_type

typedef Object_out	_out_type

Static Public Member Functions inherited from CORBA::LocalObject
static LocalObject_ptr	_duplicate (LocalObject_ptr obj)

static LocalObject_ptr	_nil (void)

static LocalObject_ptr	_narrow (CORBA::Object_ptr obj)

static CORBA::Boolean	marshal (const Object_ptr x, TAO_OutputCDR &cdr)

static void	_tao_any_destructor (void *)

static CORBA::Boolean	is_nil_i (CORBA::Object_ptr obj)

static void	tao_object_initialize (Object *)

static CORBA::Object_ptr	_duplicate (CORBA::Object_ptr obj)

static CORBA::Object_ptr	_nil (void)

static CORBA::Object_ptr	_narrow (CORBA::Object_ptr obj)

Protected Member Functions inherited from CORBA::LocalObject
	LocalObject (void)

	Object (int dummy=0)

TAO::Object_Proxy_Broker *	proxy_broker () const

Protected Attributes inherited from CORBA::LocalObject
ACE_Atomic_Op< TAO_SYNCH_MUTEX, unsigned long >	refcount_

Detailed Description

Implementation Repository Forwarder.

This class provides a ServantLocator implementation that is used to handle arbitrary calls and forward them to the correct place.

Constructor & Destructor Documentation

ImR_Forwarder::ImR_Forwarder ( ImR_Locator_i & imr_impl )

This constructor takes in orb and ImR_Locator_i pointers to store for later use. It also grabs a reference to the POACurrent object for use in preinvoke.

Member Function Documentation

void ImR_Forwarder::init ( CORBA::ORB_ptr orb )

void ImR_Forwarder::postinvoke	(	const PortableServer::ObjectId &	oid,
		PortableServer::POA_ptr	adapter,
		const char *	operation,
		PortableServer::ServantLocator::Cookie	the_cookie,
		PortableServer::Servant	the_servant
	)

virtual

PortableServer::Servant ImR_Forwarder::preinvoke	(	const PortableServer::ObjectId &	oid,
		PortableServer::POA_ptr	poa,
		const char *	operation,
		PortableServer::ServantLocator::Cookie &	cookie
	)

virtual

Called before the invocation begins.

We figure out the intended recipient from the POA name. After activating the server, we throw a forwarding exception to the correct server.

The big complicated thing here is that we have to create the forwarding ior based on what we already have. So we combine the endpoint received from activate_server_i and append the objectid from the request to it.

Member Data Documentation

ImR_Locator_i& ImR_Forwarder::locator_

private

Where we find out where to forward to.

CORBA::ORB_ptr ImR_Forwarder::orb_

private

Variable to save the ORB reference passed to the constr.

PortableServer::Current_var ImR_Forwarder::poa_current_var_

private

POA reference.

The documentation for this class was generated from the following files:
