TAO_LF_Multi_Event Class Reference

Use the Leader/Follower loop to wait for one specific event in the invocation path. More...

#include <LF_Multi_Event.h>

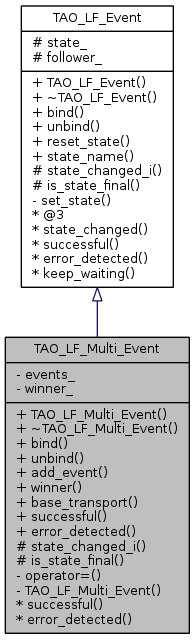

Inheritance diagram for TAO_LF_Multi_Event:

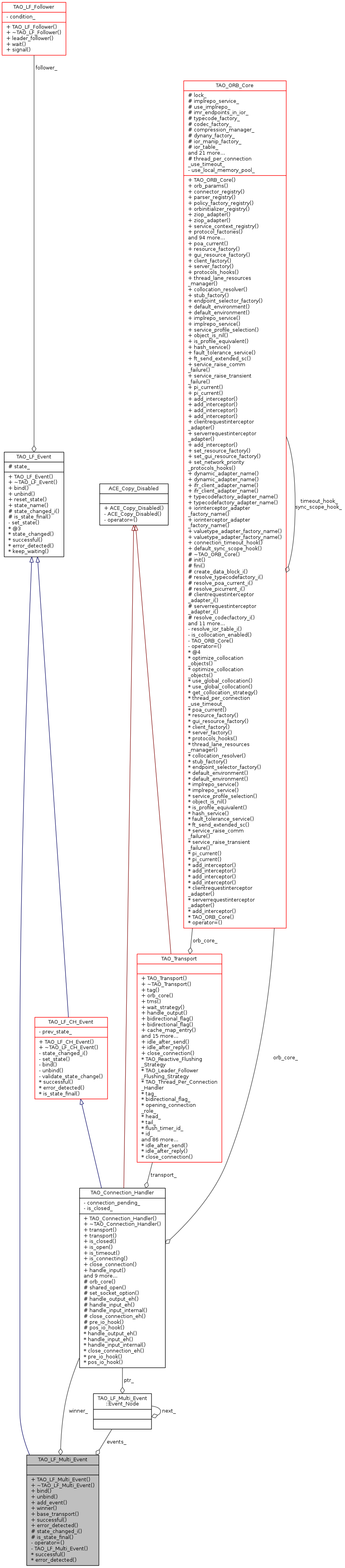

Collaboration diagram for TAO_LF_Multi_Event:

Classes
struct	Event_Node

Public Member Functions
	TAO_LF_Multi_Event (void)
	Constructor.
virtual	~TAO_LF_Multi_Event (void)
	Destructor.
virtual int	bind (TAO_LF_Follower *follower)
	Propagate the follower to all the events in the collection.
virtual int	unbind (TAO_LF_Follower *follower)
	Unbind the follower from all the collected events.
void	add_event (TAO_Connection_Handler *ch)
	Adds a handler to the collection.
TAO_Connection_Handler *	winner (void)
TAO_Transport *	base_transport (void)
	Returns the transport associated with the first entry in the collection.
int	successful (void) const
int	error_detected (void) const
Public Member Functions inherited from TAO_LF_Event
	TAO_LF_Event (void)
	Constructor.
virtual	~TAO_LF_Event (void)
	Destructor.
void	reset_state (int new_state)
	Reset the state, irrespective of the previous states.
void	state_changed (int new_state, TAO_Leader_Follower &lf)
int	keep_waiting (void)
	Check if we should keep waiting.

Protected Member Functions
virtual void	state_changed_i (int new_state)
	Validate the state change.
virtual int	is_state_final (void)
	Check whether we have reached the final state..

Private Member Functions
void	operator= (const TAO_LF_Multi_Event &)
	TAO_LF_Multi_Event (const TAO_LF_Multi_Event &)

Private Attributes
struct Event_Node *	events_
TAO_Connection_Handler *	winner_

Additional Inherited Members
Public Types inherited from TAO_LF_Event
enum	{   LFS_IDLE = 0, LFS_ACTIVE, LFS_CONNECTION_WAIT, LFS_SUCCESS,   LFS_FAILURE, LFS_TIMEOUT, LFS_CONNECTION_CLOSED }
Static Public Member Functions inherited from TAO_LF_Event
static const char *	state_name (int st)
Protected Attributes inherited from TAO_LF_Event
int	state_
	The current state.
TAO_LF_Follower *	follower_
	The bounded follower.

Detailed Description

Use the Leader/Follower loop to wait for one specific event in the invocation path.

Used by the parallel connection strategy for waiting on one of many connections.

Constructor & Destructor Documentation

TAO_LF_Multi_Event::TAO_LF_Multi_Event

(

void

)

Constructor.

TAO_LF_Multi_Event::~TAO_LF_Multi_Event ( void  )

virtual

Destructor.

TAO_LF_Multi_Event::TAO_LF_Multi_Event ( const TAO_LF_Multi_Event &  )

private

Member Function Documentation

void TAO_LF_Multi_Event::add_event

(

TAO_Connection_Handler *

ch

)

Adds a handler to the collection.

TAO_Transport * TAO_LF_Multi_Event::base_transport

(

void

)

Returns the transport associated with the first entry in the collection.

int TAO_LF_Multi_Event::bind ( TAO_LF_Follower *  follower )

virtual

Propagate the follower to all the events in the collection.

Reimplemented from TAO_LF_Event.

int TAO_LF_Multi_Event::error_detected ( void  ) const

virtual

Return 1 if an error was detected while waiting for the event - This iterates over the list of events and returns 1 only if all of them return 1 from error_detected().

Implements TAO_LF_Event.

int TAO_LF_Multi_Event::is_state_final ( void  )

protectedvirtual

Check whether we have reached the final state..

Implements TAO_LF_Event.

void TAO_LF_Multi_Event::operator= ( const TAO_LF_Multi_Event &  )

private

void TAO_LF_Multi_Event::state_changed_i ( int  new_state )

protectedvirtual

Validate the state change.

Implements TAO_LF_Event.

int TAO_LF_Multi_Event::successful ( void  ) const

virtual

Return 1 if the condition was satisfied successfully, 0 if it has not - This iterates over the list of attached events and returns 1 if any of them return 1 from successful.

Implements TAO_LF_Event.

int TAO_LF_Multi_Event::unbind ( TAO_LF_Follower *  follower )

virtual

Unbind the follower from all the collected events.

Reimplemented from TAO_LF_Event.

TAO_Connection_Handler * TAO_LF_Multi_Event::winner

(

void

)

Returns the connection handler that caused the successful status to be returned.

Member Data Documentation

struct Event_Node* TAO_LF_Multi_Event::events_

private

TAO_Connection_Handler* TAO_LF_Multi_Event::winner_

mutableprivate

---

The documentation for this class was generated from the following files:

• LF_Multi_Event.h
• LF_Multi_Event.cpp
