TAO_GIOP_Message_Base Class Reference

Definitions of the GIOP specific stuff. More...

#include <GIOP_Message_Base.h>

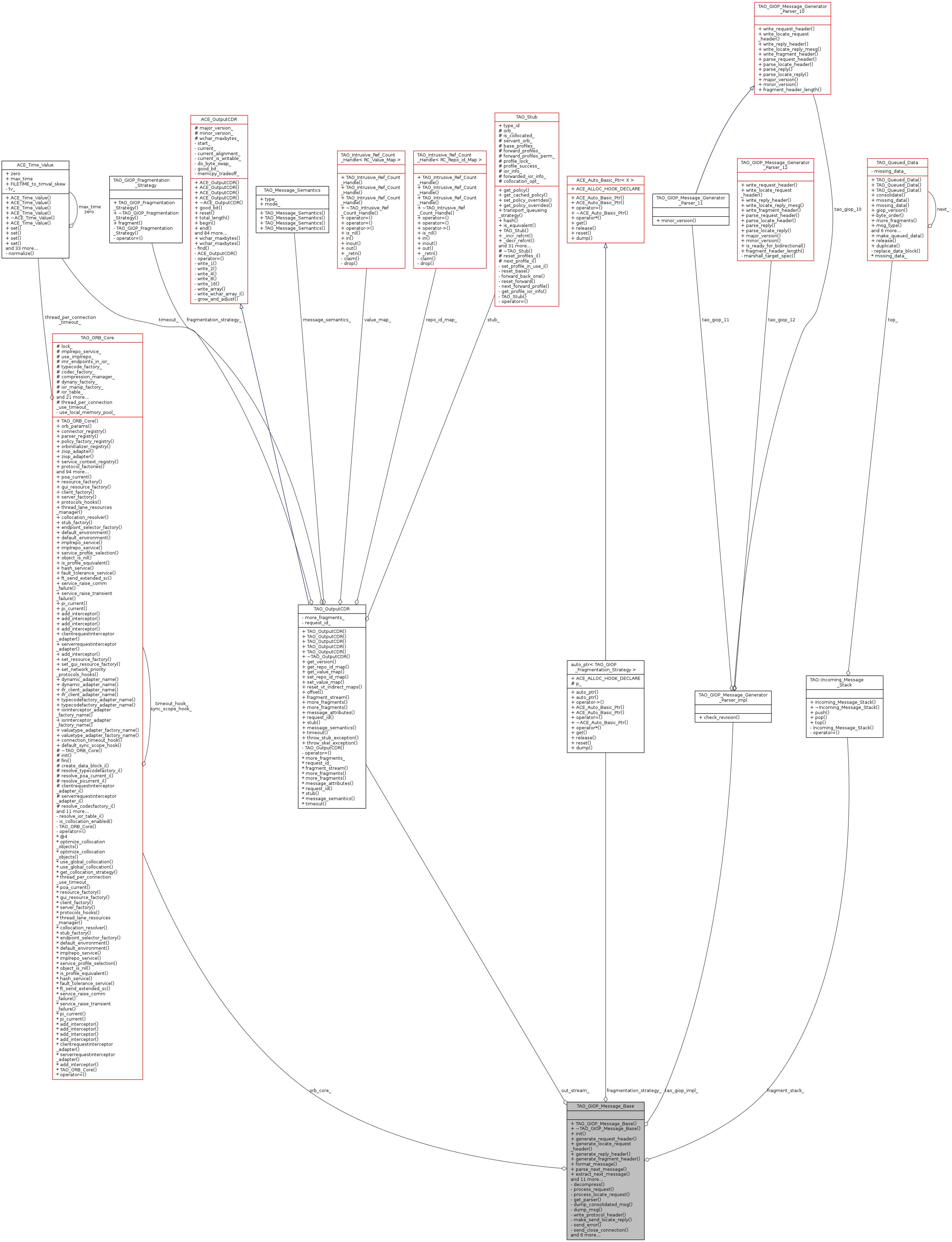

Collaboration diagram for TAO_GIOP_Message_Base:

Public Member Functions
	TAO_GIOP_Message_Base (TAO_ORB_Core *orb_core, TAO_Transport *transport, size_t input_cdr_size=ACE_CDR::DEFAULT_BUFSIZE)
	Constructor.
	~TAO_GIOP_Message_Base (void)
	Destructor.
void	init (CORBA::Octet major, CORBA::Octet minor)
int	generate_request_header (TAO_Operation_Details &op, TAO_Target_Specification &spec, TAO_OutputCDR &cdr)
int	generate_locate_request_header (TAO_Operation_Details &op, TAO_Target_Specification &spec, TAO_OutputCDR &cdr)
	Write the RequestHeader in to the cdr stream.
int	generate_reply_header (TAO_OutputCDR &cdr, TAO_Pluggable_Reply_Params_Base &params)
	Write the reply header.
int	generate_fragment_header (TAO_OutputCDR &cdr, CORBA::ULong request_id)
int	format_message (TAO_OutputCDR &cdr, TAO_Stub *stub, TAO_ServerRequest *req)
int	parse_next_message (TAO_Queued_Data &qd, size_t &mesg_length)
int	extract_next_message (ACE_Message_Block &incoming, TAO_Queued_Data *&qd)
int	consolidate_node (TAO_Queued_Data *qd, ACE_Message_Block &incoming)
	Check whether the node qd needs consolidation from incoming.
int	process_request_message (TAO_Transport *transport, TAO_Queued_Data *qd)
int	process_reply_message (TAO_Pluggable_Reply_Params &reply_info, TAO_Queued_Data *qd)
int	generate_exception_reply (TAO_OutputCDR &cdr, TAO_Pluggable_Reply_Params_Base &params, const CORBA::Exception &x)
	Generate a reply message with the exception ex.
size_t	header_length (void) const
	Header length.
size_t	fragment_header_length (const TAO_GIOP_Message_Version &giop_version) const
	The header length of a fragment.
TAO_OutputCDR &	out_stream (void)
int	consolidate_fragmented_message (TAO_Queued_Data *qd, TAO_Queued_Data *&msg)
int	discard_fragmented_message (const TAO_Queued_Data *cancel_request)
TAO_GIOP_Fragmentation_Strategy *	fragmentation_strategy (void)
	Outgoing GIOP message fragmentation strategy.
bool	is_ready_for_bidirectional (TAO_OutputCDR &msg) const

Protected Attributes
Outgoing GIOP Fragment Related Attributes
These attributes are only used when fragmenting outgoing GIOP requests and replies.
auto_ptr < TAO_GIOP_Fragmentation_Strategy >	fragmentation_strategy_
TAO_OutputCDR	out_stream_
	Buffer where the request is placed.

Private Member Functions
bool	decompress (ACE_Data_Block **db, TAO_Queued_Data &qd, size_t &rd_pos, size_t &wr_pos)
int	process_request (TAO_Transport *transport, TAO_InputCDR &input, TAO_OutputCDR &output, TAO_GIOP_Message_Generator_Parser *)
	Processes the GIOP_REQUEST messages.
int	process_locate_request (TAO_Transport *transport, TAO_InputCDR &input, TAO_OutputCDR &output, TAO_GIOP_Message_Generator_Parser *)
	Processes the GIOP_LOCATE_REQUEST messages.
TAO_GIOP_Message_Generator_Parser *	get_parser (const TAO_GIOP_Message_Version &version) const
	Get the parser.
int	dump_consolidated_msg (TAO_OutputCDR &stream)
	Print out consolidate messages.
void	dump_msg (const char *label, const u_char *ptr, size_t len)
	Print out a debug messages..
int	write_protocol_header (GIOP::MsgType t, const TAO_GIOP_Message_Version &version, TAO_OutputCDR &msg)
int	make_send_locate_reply (TAO_Transport *transport, TAO_GIOP_Locate_Request_Header &request, TAO_GIOP_Locate_Status_Msg &status, TAO_OutputCDR &output, TAO_GIOP_Message_Generator_Parser *)
int	send_error (TAO_Transport *transport)
	Send error messages.
void	send_close_connection (const TAO_GIOP_Message_Version &version, TAO_Transport *transport)
	Close a connection, first sending GIOP::CloseConnection.
int	send_reply_exception (TAO_Transport *transport, TAO_OutputCDR &cdr, CORBA::ULong request_id, IOP::ServiceContextList *svc_info, CORBA::Exception *x)
int	generate_locate_reply_header (TAO_OutputCDR &cdr, TAO_Pluggable_Reply_Params_Base &params)
	Write the locate reply header.
TAO_Queued_Data *	make_queued_data (size_t sz)
int	parse_request_id (const TAO_Queued_Data *qd, CORBA::ULong &request_id) const
int	parse_request_id (const TAO_InputCDR &cdr, CORBA::ULong &request_id) const
void	set_giop_flags (TAO_OutputCDR &msg) const

Private Attributes
TAO_ORB_Core *	orb_core_
	Cached ORB_Core pointer...
TAO_GIOP_Message_Generator_Parser_Impl	tao_giop_impl_
	All the implementations of GIOP message generator and parsers.
TAO::Incoming_Message_Stack	fragment_stack_

Detailed Description

Definitions of the GIOP specific stuff.

This class will hold the specific details common to all the GIOP versions. Some of them which are here may be shifted if things start changing between versions.

Constructor & Destructor Documentation

TAO_GIOP_Message_Base::TAO_GIOP_Message_Base	(	TAO_ORB_Core *	orb_core,
		TAO_Transport *	transport,
		size_t	input_cdr_size = ACE_CDR::DEFAULT_BUFSIZE
	)

Constructor.

TAO_GIOP_Message_Base::~TAO_GIOP_Message_Base

(

void

)

Destructor.

Member Function Documentation

int TAO_GIOP_Message_Base::consolidate_fragmented_message	(	TAO_Queued_Data *	qd,
		TAO_Queued_Data *&	msg
	)

Consolidate fragmented message with associated fragments, being stored within this class. If reliable transport is used (like TCP) fragments are partially ordered on stack, last fragment on top. Otherwise If un-reliable transport is used (like UDP) fragments may be dis-ordered, and must be ordered before consolidation.

Returns

0 on success and msg points to consolidated message, 1 if there are still fragments outstanding, in case of error -1 is being returned. In any case qd must be released by method implementation.

int TAO_GIOP_Message_Base::consolidate_node	(	TAO_Queued_Data *	qd,
		ACE_Message_Block &	incoming
	)

Check whether the node qd needs consolidation from incoming.

bool TAO_GIOP_Message_Base::decompress ( ACE_Data_Block **  db, TAO_Queued_Data &  qd, size_t &  rd_pos, size_t &  wr_pos  )

private

Decompresses a ZIOP message and turns it into a GIOP message When decompressed, db contains a complete new ACE_Data_Block and therefore qd its data block is also replaced.

int TAO_GIOP_Message_Base::discard_fragmented_message

(

const TAO_Queued_Data *

cancel_request

)

Discard all fragments associated to request-id encoded in cancel_request. This operation will never be called concurrently by multiple threads nor concurrently to consolidate_fragmented_message

Returns

-1 on failure, 0 on success, 1 no fragment on stack relating to CancelRequest.

int TAO_GIOP_Message_Base::dump_consolidated_msg ( TAO_OutputCDR &  stream )

private

Print out consolidate messages.

void TAO_GIOP_Message_Base::dump_msg ( const char *  label, const u_char *  ptr, size_t  len  )

private

Print out a debug messages..

int TAO_GIOP_Message_Base::extract_next_message	(	ACE_Message_Block &	incoming,
		TAO_Queued_Data *&	qd
	)

Extract the details of the next message from the incoming through qd. Returns 0 if the message header could not be parsed completely, returns a 1 if the message header could be parsed completely and returns -1 on error.

int TAO_GIOP_Message_Base::format_message	(	TAO_OutputCDR &	cdr,
		TAO_Stub *	stub,
		TAO_ServerRequest *	req
	)

Format the message. As we have not written the message length in the header, we make use of this opportunity to insert and format the message. (Called by client, for requests, provides stub pointer but not the req pointer; called by server, for replies, provides req pointer, not stub pointer.)

size_t TAO_GIOP_Message_Base::fragment_header_length

(

const TAO_GIOP_Message_Version &

giop_version

)

const

The header length of a fragment.

TAO_GIOP_Fragmentation_Strategy * TAO_GIOP_Message_Base::fragmentation_strategy

(

void

)

Outgoing GIOP message fragmentation strategy.

int TAO_GIOP_Message_Base::generate_exception_reply	(	TAO_OutputCDR &	cdr,
		TAO_Pluggable_Reply_Params_Base &	params,
		const CORBA::Exception &	x
	)

Generate a reply message with the exception ex.

int TAO_GIOP_Message_Base::generate_fragment_header	(	TAO_OutputCDR &	cdr,
		CORBA::ULong	request_id
	)

int TAO_GIOP_Message_Base::generate_locate_reply_header ( TAO_OutputCDR &  cdr, TAO_Pluggable_Reply_Params_Base &  params  )

private

Write the locate reply header.

int TAO_GIOP_Message_Base::generate_locate_request_header	(	TAO_Operation_Details &	op,
		TAO_Target_Specification &	spec,
		TAO_OutputCDR &	cdr
	)

Write the RequestHeader in to the cdr stream.

int TAO_GIOP_Message_Base::generate_reply_header	(	TAO_OutputCDR &	cdr,
		TAO_Pluggable_Reply_Params_Base &	params
	)

Write the reply header.

int TAO_GIOP_Message_Base::generate_request_header	(	TAO_Operation_Details &	op,
		TAO_Target_Specification &	spec,
		TAO_OutputCDR &	cdr
	)

Write the RequestHeader in to the cdr stream. The underlying implementation of the messaging should do the right thing.

TAO_GIOP_Message_Generator_Parser * TAO_GIOP_Message_Base::get_parser ( const TAO_GIOP_Message_Version &  version ) const

private

Get the parser.

size_t TAO_GIOP_Message_Base::header_length

(

void

)

const

Header length.

void TAO_GIOP_Message_Base::init	(	CORBA::Octet	major,
		CORBA::Octet	minor
	)

Initialize the underlying state object based on the major and minor revision numbers

bool TAO_GIOP_Message_Base::is_ready_for_bidirectional

(

TAO_OutputCDR &

msg

)

const

Is the messaging object ready for processing BiDirectional request/response?

TAO_Queued_Data * TAO_GIOP_Message_Base::make_queued_data ( size_t  sz )

private

Creates a new node for the queue with a message block in the node of size sz.

int TAO_GIOP_Message_Base::make_send_locate_reply ( TAO_Transport *  transport, TAO_GIOP_Locate_Request_Header &  request, TAO_GIOP_Locate_Status_Msg &  status, TAO_OutputCDR &  output, TAO_GIOP_Message_Generator_Parser *  parser  )

private

Make a GIOP_LOCATEREPLY and hand that over to the transport so that it can be sent over the connection.

Note

As on date 1.1 & 1.2 seem to have similar headers. Till an unmanageable difference comes let them be implemented here.

TAO_OutputCDR & TAO_GIOP_Message_Base::out_stream

(

void

)

int TAO_GIOP_Message_Base::parse_next_message	(	TAO_Queued_Data &	qd,
		size_t &	mesg_length
	)

Parse the details of the next message from the incoming and initializes attributes of qd.

Return values

0	If the message header could not be parsed completely,
1	If the message header could be parsed completely
-1	On error.

int TAO_GIOP_Message_Base::parse_request_id ( const TAO_Queued_Data *  qd, CORBA::ULong &  request_id  ) const

private

Parse GIOP request-id of TAO_Queued_Data qd

Returns

0 on success, otherwise -1

int TAO_GIOP_Message_Base::parse_request_id ( const TAO_InputCDR &  cdr, CORBA::ULong &  request_id  ) const

private

Parse GIOP request-id of TAO_InputCDR cdr.

Returns

0 on success, otherwise -1

int TAO_GIOP_Message_Base::process_locate_request ( TAO_Transport *  transport, TAO_InputCDR &  input, TAO_OutputCDR &  output, TAO_GIOP_Message_Generator_Parser *  parser  )

private

Processes the GIOP_LOCATE_REQUEST messages.

int TAO_GIOP_Message_Base::process_reply_message	(	TAO_Pluggable_Reply_Params &	reply_info,
		TAO_Queued_Data *	qd
	)

Parse the reply message that we received and return the reply information through reply_info

int TAO_GIOP_Message_Base::process_request ( TAO_Transport *  transport, TAO_InputCDR &  input, TAO_OutputCDR &  output, TAO_GIOP_Message_Generator_Parser *  parser  )

private

Processes the GIOP_REQUEST messages.

int TAO_GIOP_Message_Base::process_request_message	(	TAO_Transport *	transport,
		TAO_Queued_Data *	qd
	)

Process the request message that we have received on the connection

void TAO_GIOP_Message_Base::send_close_connection ( const TAO_GIOP_Message_Version &  version, TAO_Transport *  transport  )

private

Close a connection, first sending GIOP::CloseConnection.

int TAO_GIOP_Message_Base::send_error ( TAO_Transport *  transport )

private

Send error messages.

int TAO_GIOP_Message_Base::send_reply_exception ( TAO_Transport *  transport, TAO_OutputCDR &  cdr, CORBA::ULong  request_id, IOP::ServiceContextList *  svc_info, CORBA::Exception *  x  )

private

We must send a LocateReply through transport, this request resulted in some kind of exception.

void TAO_GIOP_Message_Base::set_giop_flags ( TAO_OutputCDR &  msg ) const

private

Set GIOP message flags in message that has been marshaled into the output CDR stream msg.

Note

It is assumed that the GIOP message header is the first thing marshaled into the output CDR stream msg.

int TAO_GIOP_Message_Base::write_protocol_header ( GIOP::MsgType  t, const TAO_GIOP_Message_Version &  version, TAO_OutputCDR &  msg  )

private

Writes the GIOP header in to msg

Note

If the GIOP header happens to change in the future, we can push this method in to the generator_parser classes.

Member Data Documentation

TAO::Incoming_Message_Stack TAO_GIOP_Message_Base::fragment_stack_

private

All Fragments being received are stored on stack in reverse order, last top

auto_ptr<TAO_GIOP_Fragmentation_Strategy> TAO_GIOP_Message_Base::fragmentation_strategy_

protected

Strategy that sends data currently marshaled into this TAO_OutputCDR stream if necessary.

TAO_ORB_Core* TAO_GIOP_Message_Base::orb_core_

private

Cached ORB_Core pointer...

TAO_OutputCDR TAO_GIOP_Message_Base::out_stream_

protected

Buffer where the request is placed.

TAO_GIOP_Message_Generator_Parser_Impl TAO_GIOP_Message_Base::tao_giop_impl_

private

All the implementations of GIOP message generator and parsers.

---

The documentation for this class was generated from the following files:

• GIOP_Message_Base.h
• GIOP_Message_Base.cpp
