TAO_Asynch_Reply_Dispatcher_Base Class Referenceabstract

Base class for TAO_Asynch_Reply_Dispatcher and TAO_DII_Deferred_Reply_Dispatcher. More...

#include <Asynch_Reply_Dispatcher_Base.h>

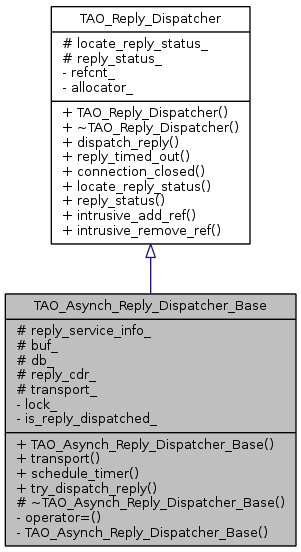

Inheritance diagram for TAO_Asynch_Reply_Dispatcher_Base:
Inheritance graph

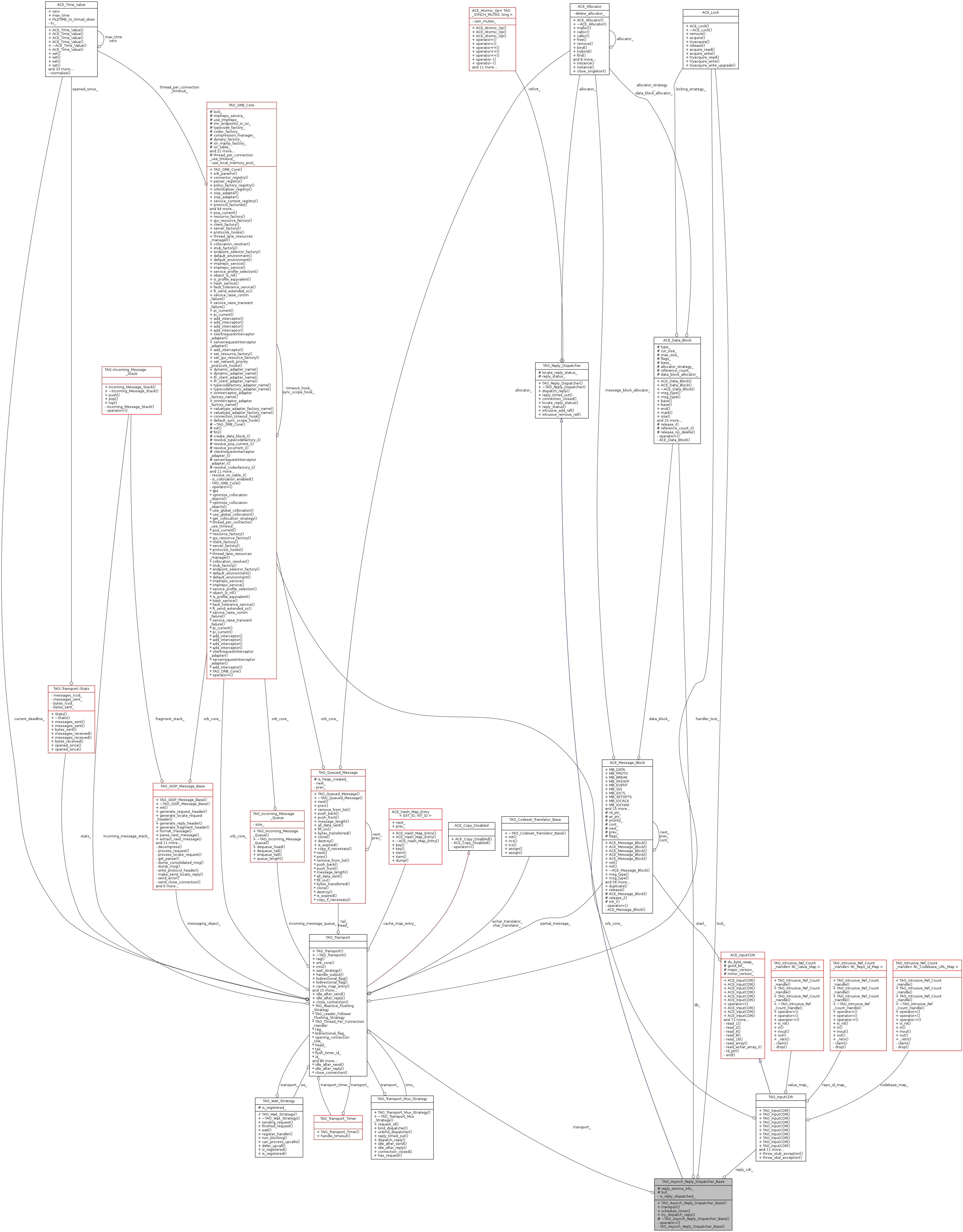

Collaboration diagram for TAO_Asynch_Reply_Dispatcher_Base:
Collaboration graph

Public Member Functions

 TAO_Asynch_Reply_Dispatcher_Base (TAO_ORB_Core *orb_core, ACE_Allocator *allocator=0)
 Default constructor.
void transport (TAO_Transport *t)
 Sets the transport for this invocation.
virtual long schedule_timer (CORBA::ULong, const ACE_Time_Value &)=0
 Install the timeout handler.
bool try_dispatch_reply (void)
 A helper method that can be used by the subclasses.
- Public Member Functions inherited from TAO_Reply_Dispatcher
 TAO_Reply_Dispatcher (ACE_Allocator *allocator=0)
virtual ~TAO_Reply_Dispatcher (void)
virtual int dispatch_reply (TAO_Pluggable_Reply_Params &params)=0
virtual void reply_timed_out (void)=0
 Inform that the reply timed out.
virtual void connection_closed (void)=0
GIOP::LocateStatusType locate_reply_status (void) const
 Get the locate reply status.
GIOP::ReplyStatusType reply_status (void) const

Protected Member Functions

virtual ~TAO_Asynch_Reply_Dispatcher_Base (void)

Protected Attributes

IOP::ServiceContextList reply_service_info_
 The service context list.
 The buffer that is used to initialise the data block.
ACE_Data_Block db_
TAO_InputCDR reply_cdr_
 This invocation is using this transport, may change...
- Protected Attributes inherited from TAO_Reply_Dispatcher
GIOP::LocateStatusType locate_reply_status_
 LocateReply status.
GIOP::ReplyStatusType reply_status_

Private Member Functions

void operator= (const TAO_Asynch_Reply_Dispatcher_Base &)
 TAO_Asynch_Reply_Dispatcher_Base (const TAO_Asynch_Reply_Dispatcher_Base &)

Private Attributes

 Lock to protect is_reply_dispatched_ flag.
bool is_reply_dispatched_
 Has the reply been dispatched?

Additional Inherited Members

- Static Public Member Functions inherited from TAO_Reply_Dispatcher
static void intrusive_add_ref (TAO_Reply_Dispatcher *)
static void intrusive_remove_ref (TAO_Reply_Dispatcher *)

Detailed Description

Base class for TAO_Asynch_Reply_Dispatcher and TAO_DII_Deferred_Reply_Dispatcher.

Constructor & Destructor Documentation

TAO_Asynch_Reply_Dispatcher_Base::TAO_Asynch_Reply_Dispatcher_Base ( TAO_ORB_Core orb_core,
ACE_Allocator allocator = 0

Default constructor.

TAO_Asynch_Reply_Dispatcher_Base::~TAO_Asynch_Reply_Dispatcher_Base ( void  )


TAO_Asynch_Reply_Dispatcher_Base::TAO_Asynch_Reply_Dispatcher_Base ( const TAO_Asynch_Reply_Dispatcher_Base )

Member Function Documentation

void TAO_Asynch_Reply_Dispatcher_Base::operator= ( const TAO_Asynch_Reply_Dispatcher_Base )
virtual long TAO_Asynch_Reply_Dispatcher_Base::schedule_timer ( CORBA::ULong  ,
const ACE_Time_Value
pure virtual

Install the timeout handler.

void TAO_Asynch_Reply_Dispatcher_Base::transport ( TAO_Transport t)

Sets the transport for this invocation.

bool TAO_Asynch_Reply_Dispatcher_Base::try_dispatch_reply ( void  )

A helper method that can be used by the subclasses.

The semantics of this helper method needs careful attention. A call to this method will do the following

  • If the reply has already been dispatched, the return value will be false to signify not to try.
  • If the reply has not been dispatched, this method will set the flag to be true and return a true value to signify that the caller thread can go ahead and dispatch reply.

Why are we clumping everything in one method. Answer is we need atomicity?

Member Data Documentation

char TAO_Asynch_Reply_Dispatcher_Base::buf_[ACE_CDR::DEFAULT_BUFSIZE]

The buffer that is used to initialise the data block.

ACE_Data_Block TAO_Asynch_Reply_Dispatcher_Base::db_

Datablock that is created on the stack to initialise the CDR stream underneath.

bool TAO_Asynch_Reply_Dispatcher_Base::is_reply_dispatched_

Has the reply been dispatched?

ACE_Lock* TAO_Asynch_Reply_Dispatcher_Base::lock_

Lock to protect is_reply_dispatched_ flag.

TAO_InputCDR TAO_Asynch_Reply_Dispatcher_Base::reply_cdr_

CDR stream which has the reply information that needs to be demarshalled by the stubs

IOP::ServiceContextList TAO_Asynch_Reply_Dispatcher_Base::reply_service_info_

The service context list.

Note, that this is not a reference as in the synchronous case. We own the reply_service_info because our TAO_Asynch_Invocation or TAO_DII_Deferred_Invocation will go out of scope before we are done.

TAO_Transport* TAO_Asynch_Reply_Dispatcher_Base::transport_

This invocation is using this transport, may change...

The documentation for this class was generated from the following files:
