ACE_Token_Request Class Reference

Message format for delivering requests to the ACE_Token Server. More...

#include <Token_Request_Reply.h>

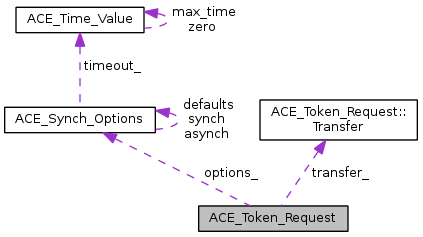

Collaboration diagram for ACE_Token_Request:
Collaboration graph
[legend]

Classes

struct  Transfer


Public Types

enum  OPERATION {
  ACQUIRE, RELEASE, RENEW, REMOVE,
  TRY_ACQUIRE
}
 Operation types. More...


Public Member Functions

 ACE_Token_Request (void)
 Default constructor.

 ACE_Token_Request (int token_type, int proxy_type, ACE_UINT32 operation, const ACE_TCHAR token_name[], const ACE_TCHAR client_id[], const ACE_Synch_Options &options)

ACE_UINT32 length (void) const
 Get the length of the encoded/decoded message.

void length (ACE_UINT32)
 Set the length of the encoded/decoded message.

int proxy_type (void) const
 Get the type of proxy.

void proxy_type (int proxy_type)
 Set the type of proxy.

int token_type (void) const
 Get the type of token.

void token_type (int token_type)
 Set the type of token.

ACE_UINT32 operation_type (void) const
 Get the type of the operation.

void operation_type (ACE_UINT32)
 Set the type of the operation.

ACE_UINT32 requeue_position (void) const

void requeue_position (ACE_UINT32)

ACE_UINT32 notify (void) const
 Get notify. These should be used when acquire is the operation type.

void notify (ACE_UINT32)
 Set notify. These should be used when acquire is the operation type.

ACE_Synch_Optionsoptions (void) const
 Get the timeout.

void options (const ACE_Synch_Options &options)
 Set the timeout.

ACE_TCHARtoken_name (void) const

ACE_TCHARclient_id (void) const

void token_name (const ACE_TCHAR *token_name, const ACE_TCHAR *client_id)

int encode (void *&)
 Encode the message before transmission.

int decode (void)

void dump (void) const
 Print out the values of the message for debugging purposes.


Private Attributes

struct ACE_Token_Request::Transfer transfer_

ACE_TCHARtoken_name_
 Pointer to the beginning of the token name in this->data_.

ACE_TCHARclient_id_
 Pointer to the beginning of the client id in this->data_;.

ACE_Synch_Options options_
 Holds arg, sec, usec, etc.


Detailed Description

Message format for delivering requests to the ACE_Token Server.

This class is implemented to minimize data copying. In particular, all marshaling is done in situ...

Member Enumeration Documentation

Operation types.

Enumerator:
ACQUIRE

Acquire the token.

RELEASE

Release the token.

RENEW

Renew the token.

REMOVE

Remove the token.

TRY_ACQUIRE

Constructor & Destructor Documentation

ACE_Token_Request::ACE_Token_Request ( void  )

Default constructor.

ACE_Token_Request::ACE_Token_Request ( int  token_type,
int  proxy_type,
ACE_UINT32  operation,
const ACE_TCHAR  token_name[],
const ACE_TCHAR  client_id[],
const ACE_Synch_Options options
)
Parameters
token_typeMUTEX, RWLOCK
proxy_typeMUTEX, RLOCK, WLOCK (acquires mean different things)
operationmethod
token_name
client_id
optionsWe check USE_TIMEOUT and use the arg.

Member Function Documentation

ACE_TCHAR * ACE_Token_Request::client_id ( void  ) const
inline
int ACE_Token_Request::decode ( void  )

Decode message after reception. This must be called to set the internal options.

void ACE_Token_Request::dump ( void  ) const

Print out the values of the message for debugging purposes.

int ACE_Token_Request::encode ( void *&  buf)

Encode the message before transmission.

ACE_UINT32 ACE_Token_Request::length ( void  ) const
inline

Get the length of the encoded/decoded message.

void ACE_Token_Request::length ( ACE_UINT32  l)
inline

Set the length of the encoded/decoded message.

ACE_UINT32 ACE_Token_Request::notify ( void  ) const
inline

Get notify. These should be used when acquire is the operation type.

void ACE_Token_Request::notify ( ACE_UINT32  rq)
inline

Set notify. These should be used when acquire is the operation type.

ACE_UINT32 ACE_Token_Request::operation_type ( void  ) const
inline

Get the type of the operation.

void ACE_Token_Request::operation_type ( ACE_UINT32  t)
inline

Set the type of the operation.

ACE_Synch_Options & ACE_Token_Request::options ( void  ) const
inline

Get the timeout.

void ACE_Token_Request::options ( const ACE_Synch_Options options)
inline

Set the timeout.

int ACE_Token_Request::proxy_type ( void  ) const
inline

Get the type of proxy.

void ACE_Token_Request::proxy_type ( int  proxy_type)
inline

Set the type of proxy.

ACE_UINT32 ACE_Token_Request::requeue_position ( void  ) const
inline

Get the requeue position. These should be used when renew is the operation type.

void ACE_Token_Request::requeue_position ( ACE_UINT32  rq)
inline

Set the requeue position. These should be used when renew is the operation type.

ACE_TCHAR * ACE_Token_Request::token_name ( void  ) const
inline
void ACE_Token_Request::token_name ( const ACE_TCHAR token_name,
const ACE_TCHAR client_id
)
inline
int ACE_Token_Request::token_type ( void  ) const
inline

Get the type of token.

void ACE_Token_Request::token_type ( int  token_type)
inline

Set the type of token.

Member Data Documentation

ACE_TCHAR* ACE_Token_Request::client_id_
private

Pointer to the beginning of the client id in this->data_;.

ACE_Synch_Options ACE_Token_Request::options_
private

Holds arg, sec, usec, etc.

ACE_TCHAR* ACE_Token_Request::token_name_
private

Pointer to the beginning of the token name in this->data_.

struct ACE_Token_Request::Transfer ACE_Token_Request::transfer_
private

The documentation for this class was generated from the following files:
