ACE_TLI_Acceptor Class Reference

Defines the member functions for ACE_TLI_Acceptor abstraction. More...

#include <TLI_Acceptor.h>

Inheritance diagram for ACE_TLI_Acceptor:
Inheritance graph
[legend]

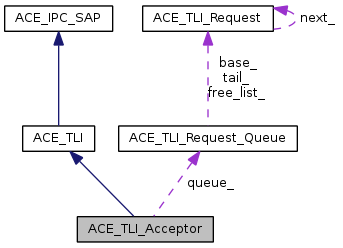

Collaboration diagram for ACE_TLI_Acceptor:
Collaboration graph
[legend]

Public Types

typedef ACE_INET_Addr PEER_ADDR

typedef ACE_TLI_Stream PEER_STREAM


Public Member Functions

 ACE_TLI_Acceptor (void)
 Default constructor.

 ACE_TLI_Acceptor (const ACE_Addr &remote_sap, int reuse_addr=0, int oflag=O_RDWR, struct t_info *info=0, int backlog=ACE_DEFAULT_BACKLOG, const char device[]=ACE_TLI_TCP_DEVICE)
 Initiate a passive mode socket.

ACE_HANDLE open (const ACE_Addr &remote_sap, int reuse_addr=0, int oflag=O_RDWR, struct t_info *info=0, int backlog=ACE_DEFAULT_BACKLOG, const char device[]=ACE_TLI_TCP_DEVICE)
 Initiate a passive mode socket.

int close (void)
 Close down the acceptor and release resources.

int accept (ACE_TLI_Stream &new_tli_sap, ACE_Addr *remote_addr=0, ACE_Time_Value *timeout=0, bool restart=true, bool reset_new_handle=false, int rwflag=1, netbuf *udata=0, netbuf *opt=0)

void dump (void) const
 Dump the state of an object.

- Public Member Functions inherited from ACE_TLI
ACE_HANDLE open (const char device[], int oflag=O_RDWR, struct t_info *info=0)
 Initialize a TLI endpoint.

int close (void)
 Close a TLI endpoint and release resources.

int set_option (int level, int option, void *optval, int optlen)
 Set underlying protocol options.

int get_option (int level, int option, void *optval, int &optlen)
 Get underlying protocol options.

int look (void) const

int rcvdis (struct t_discon *=0) const

int snddis (struct t_call *=0) const

int sndrel (void) const

int rcvrel (void) const

int get_local_addr (ACE_Addr &) const
 Return our local endpoint address.

void dump (void) const
 Dump the state of an object.

- Public Member Functions inherited from ACE_IPC_SAP
int control (int cmd, void *) const
 Interface for <ioctl>.

int enable (int value) const

int disable (int value) const

ACE_HANDLE get_handle (void) const
 Get the underlying handle.

void set_handle (ACE_HANDLE handle)
 Set the underlying handle.

void dump (void) const
 Dump the state of an object.


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

- Public Attributes inherited from ACE_TLI
 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

- Public Attributes inherited from ACE_IPC_SAP
 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.


Private Member Functions

int handle_async_event (bool restart, int rwflag)
 Handle TLI accept insanity...


Private Attributes

const char * device_
 Network "device" we are using.

int backlog_
 Number of connections to queue.

int rwflag_
 Are we using "tirdwr" mod?

ACE_TLI_Request_Queuequeue_
 Used for queueing up pending requests.

struct t_discon * disp_
 Used for handling disconnects.


Friends

class ACE_Request_Queue


Additional Inherited Members

- Protected Member Functions inherited from ACE_TLI
 ACE_TLI (void)
 Default constructor.

 ~ACE_TLI (void)
 Destructor.

 ACE_TLI (const char device[], int oflag=O_RDWR, struct t_info *info=0)
 Initialize a TLI endpoint.


Detailed Description

Defines the member functions for ACE_TLI_Acceptor abstraction.

This class implements the algorithm described in Steve Rago's book on System V UNIX network programming. It basically makes TLI look like the C++ SOCK_SAP socket wrappers with respect to establishing passive-mode listener endpoints.

Member Typedef Documentation

Constructor & Destructor Documentation

ACE_TLI_Acceptor::ACE_TLI_Acceptor ( void  )

Default constructor.

ACE_TLI_Acceptor::ACE_TLI_Acceptor ( const ACE_Addr remote_sap,
int  reuse_addr = 0,
int  oflag = O_RDWR,
struct t_info *  info = 0,
int  backlog = ACE_DEFAULT_BACKLOG,
const char  device[] = ACE_TLI_TCP_DEVICE
)

Initiate a passive mode socket.

Member Function Documentation

int ACE_TLI_Acceptor::accept ( ACE_TLI_Stream new_tli_sap,
ACE_Addr remote_addr = 0,
ACE_Time_Value timeout = 0,
bool  restart = true,
bool  reset_new_handle = false,
int  rwflag = 1,
netbuf *  udata = 0,
netbuf *  opt = 0
)

Accept a new data transfer connection. A timeout of 0 means block forever, a timeout of {0, 0} means poll. <restart> == 1 means "restart if interrupted."

int ACE_TLI_Acceptor::close ( void  )

Close down the acceptor and release resources.

void ACE_TLI_Acceptor::dump ( void  ) const

Dump the state of an object.

int ACE_TLI_Acceptor::handle_async_event ( bool  restart,
int  rwflag
)
private

Handle TLI accept insanity...

ACE_HANDLE ACE_TLI_Acceptor::open ( const ACE_Addr remote_sap,
int  reuse_addr = 0,
int  oflag = O_RDWR,
struct t_info *  info = 0,
int  backlog = ACE_DEFAULT_BACKLOG,
const char  device[] = ACE_TLI_TCP_DEVICE
)

Initiate a passive mode socket.

Friends And Related Function Documentation

friend class ACE_Request_Queue
friend

Member Data Documentation

ACE_TLI_Acceptor::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

int ACE_TLI_Acceptor::backlog_
private

Number of connections to queue.

const char* ACE_TLI_Acceptor::device_
private

Network "device" we are using.

struct t_discon* ACE_TLI_Acceptor::disp_
private

Used for handling disconnects.

ACE_TLI_Request_Queue* ACE_TLI_Acceptor::queue_
private

Used for queueing up pending requests.

int ACE_TLI_Acceptor::rwflag_
private

Are we using "tirdwr" mod?


The documentation for this class was generated from the following files:
