A connection strategy which caches connections to peers (represented by SVC_HANDLER instances), thereby allowing subsequent re-use of unused, but available, connections. This strategy should be used when the cache is bounded by maximum size. More...

#include <Cached_Connect_Strategy_T.h>

Inheritance diagram for ACE_Bounded_Cached_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_1, CACHING_STRATEGY, ATTRIBUTES, MUTEX >:

[legend]

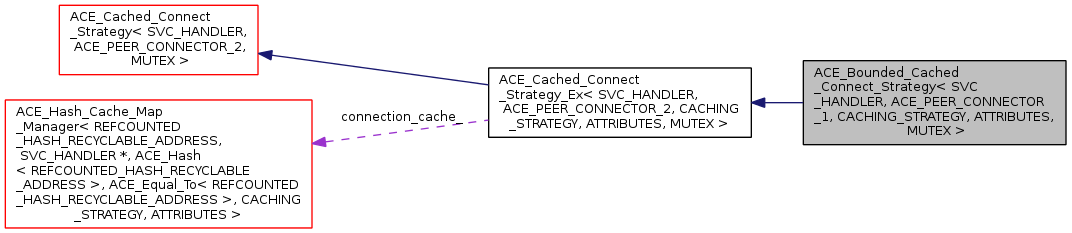

Collaboration diagram for ACE_Bounded_Cached_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_1, CACHING_STRATEGY, ATTRIBUTES, MUTEX >:

[legend]

Public Member Functions
	ACE_Bounded_Cached_Connect_Strategy (size_t max_size, CACHING_STRATEGY &caching_s, ACE_Creation_Strategy< SVC_HANDLER > cre_s=0, ACE_Concurrency_Strategy< SVC_HANDLER > con_s=0, ACE_Recycling_Strategy< SVC_HANDLER > rec_s=0, MUTEX lock=0, int delete_lock=0)
	Constructor.

virtual	~ACE_Bounded_Cached_Connect_Strategy (void)
	Destructor.

Public Member Functions inherited from ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER, ACE_PEER_CONNECTOR_2, CACHING_STRATEGY, ATTRIBUTES, MUTEX >
	ACE_Cached_Connect_Strategy_Ex (CACHING_STRATEGY &caching_s, ACE_Creation_Strategy< SVC_HANDLER > cre_s=0, ACE_Concurrency_Strategy< SVC_HANDLER > con_s=0, ACE_Recycling_Strategy< SVC_HANDLER > rec_s=0, MUTEX lock=0, int delete_lock=0)
	Constructor.

virtual	~ACE_Cached_Connect_Strategy_Ex (void)
	Destructor.

virtual int	purge_connections (void)
	Explicit purging of connection entries from the connection cache.

virtual int	mark_as_closed_i (const void *recycling_act)

void	cleanup (void)

CACHING_STRATEGY &	caching_strategy (void)

Public Member Functions inherited from ACE_Cached_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2, MUTEX >
	ACE_Cached_Connect_Strategy (ACE_Creation_Strategy< SVC_HANDLER > cre_s=0, ACE_Concurrency_Strategy< SVC_HANDLER > con_s=0, ACE_Recycling_Strategy< SVC_HANDLER > rec_s=0, MUTEX mutex=0, bool delete_lock=false)
	Constructor.

virtual	~ACE_Cached_Connect_Strategy (void)
	Destructor.

virtual int	open (ACE_Creation_Strategy< SVC_HANDLER > cre_s, ACE_Concurrency_Strategy< SVC_HANDLER > con_s, ACE_Recycling_Strategy< SVC_HANDLER > *rec_s)

virtual int	make_svc_handler (SVC_HANDLER *&sh)
	Template method for making a new <svc_handler>

virtual int	activate_svc_handler (SVC_HANDLER *svc_handler)
	Template method for activating a new svc_handler.

virtual int	assign_recycler (SVC_HANDLER svc_handler, ACE_Connection_Recycling_Strategy recycler, const void *recycling_act)

virtual int	prepare_for_recycling (SVC_HANDLER *svc_handler)
	Template method for preparing the svc_handler for recycling.

virtual int	connect_svc_handler (SVC_HANDLER &sh, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, bool reuse_addr, int flags, int perms)

virtual int	connect_svc_handler (SVC_HANDLER &sh, SVC_HANDLER &sh_copy, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value *timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, bool reuse_addr, int flags, int perms)

virtual int	purge (const void *recycling_act)
	Remove from cache.

virtual int	cache (const void *recycling_act)
	Add to cache.

virtual int	recycle_state (const void *recycling_act, ACE_Recyclable_State new_state)
	Get/Set <recycle_state>.

virtual ACE_Recyclable_State	recycle_state (const void *recycling_act) const
	Get/Set recycle_state.

virtual int	mark_as_closed (const void *recycling_act)
	Mark as closed.

virtual int	cleanup_hint (const void recycling_act, void *act_holder=0)
	Cleanup hint and reset <*act_holder> to zero if <act_holder != 0>.

virtual ACE_Creation_Strategy < SVC_HANDLER > *	creation_strategy (void) const

virtual ACE_Recycling_Strategy < SVC_HANDLER > *	recycling_strategy (void) const

virtual ACE_Concurrency_Strategy < SVC_HANDLER > *	concurrency_strategy (void) const

Public Member Functions inherited from ACE_Connection_Recycling_Strategy
virtual	~ACE_Connection_Recycling_Strategy (void)
	Virtual Destructor.

Public Member Functions inherited from ACE_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >
	ACE_Connect_Strategy (void)
	Default constructor.

virtual ACE_PEER_CONNECTOR &	connector (void) const
	Return a reference to the <peer_connector_>.

virtual	~ACE_Connect_Strategy (void)

void	dump (void) const
	Dump the state of an object.

Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.

Protected Member Functions
virtual int	find_or_create_svc_handler_i (SVC_HANDLER &sh, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, bool reuse_addr, int flags, int perms, ACE_Hash_Map_Entry< ACE_Refcounted_Hash_Recyclable< ACE_PEER_CONNECTOR_ADDR >, std::pair< SVC_HANDLER , ATTRIBUTES > > &entry, int &found)

Protected Member Functions inherited from ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER, ACE_PEER_CONNECTOR_2, CACHING_STRATEGY, ATTRIBUTES, MUTEX >
int	find (ACE_Refcounted_Hash_Recyclable< ACE_PEER_CONNECTOR_ADDR > &search_addr, ACE_Hash_Map_Entry< ACE_Refcounted_Hash_Recyclable< ACE_PEER_CONNECTOR_ADDR >, std::pair< SVC_HANDLER , ATTRIBUTES > > &entry)
	Find an idle handle.

virtual int	purge_i (const void *recycling_act)
	Remove from cache (non-locking version).

virtual int	cache_i (const void *recycling_act)
	Add to cache (non-locking version).

virtual int	recycle_state_i (const void *recycling_act, ACE_Recyclable_State new_state)
	Get/Set recycle_state (non-locking version).

virtual ACE_Recyclable_State	recycle_state_i (const void *recycling_act) const
	Get <recycle_state> (non-locking version).

virtual int	cleanup_hint_i (const void recycling_act, void *act_holder)
	Cleanup hint and reset `act_holder` to zero if act_holder* != 0.

int	check_hint_i (SVC_HANDLER &sh, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, bool reuse_addr, int flags, int perms, ACE_Hash_Map_Entry< ACE_Refcounted_Hash_Recyclable< ACE_PEER_CONNECTOR_ADDR >, std::pair< SVC_HANDLER , ATTRIBUTES > > &entry, int &found)

virtual int	connect_svc_handler_i (SVC_HANDLER &sh, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, bool reuse_addr, int flags, int perms, int &found)

virtual int	cached_connect (SVC_HANDLER &sh, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, bool reuse_addr, int flags, int perms)

Protected Member Functions inherited from ACE_Cached_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2, MUTEX >
virtual int	new_connection (SVC_HANDLER &sh, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, bool reuse_addr, int flags, int perms)
	Creates a new connection.

int	find (REFCOUNTED_HASH_RECYCLABLE_ADDRESS &search_addr, CONNECTION_MAP_ENTRY *&entry)
	Find an idle handle.

int	check_hint_i (SVC_HANDLER &sh, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, bool reuse_addr, int flags, int perms, CONNECTION_MAP_ENTRY *&entry, int &found)

int	find_or_create_svc_handler_i (SVC_HANDLER &sh, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, bool reuse_addr, int flags, int perms, CONNECTION_MAP_ENTRY *&entry, int &found)

Protected Attributes
size_t	max_size_
	Max items in the cache, used as a bound for the creation of svc_handlers.

Protected Attributes inherited from ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER, ACE_PEER_CONNECTOR_2, CACHING_STRATEGY, ATTRIBUTES, MUTEX >
CONNECTION_CACHE	connection_cache_
	Table that maintains the cache of connected SVC_HANDLERs.

Protected Attributes inherited from ACE_Cached_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2, MUTEX >
CONNECTION_MAP	connection_map_
	Table that maintains the cache of connected SVC_HANDLERs.

MUTEX *	lock_
	Mutual exclusion for this object.

bool	delete_lock_
	Mutual exclusion for this object.

REVERSE_MUTEX *	reverse_lock_
	Reverse lock.

CREATION_STRATEGY *	creation_strategy_
	Creation strategy for an <Connector>.

bool	delete_creation_strategy_

CONCURRENCY_STRATEGY *	concurrency_strategy_
	Concurrency strategy for an <Connector>.

bool	delete_concurrency_strategy_

RECYCLING_STRATEGY *	recycling_strategy_
	Recycling strategy for an <Connector>.

bool	delete_recycling_strategy_

Protected Attributes inherited from ACE_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >
ACE_PEER_CONNECTOR	connector_
	Factory that establishes connections actively.

Private Types
typedef ACE_Cached_Connect_Strategy_Ex < SVC_HANDLER, ACE_PEER_CONNECTOR_2, CACHING_STRATEGY, ATTRIBUTES, MUTEX >	CCSEBASE

typedef ACE_Refcounted_Hash_Recyclable < ACE_PEER_CONNECTOR_ADDR >	REFCOUNTED_HASH_RECYCLABLE_ADDRESS

Additional Inherited Members
Public Types inherited from ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER, ACE_PEER_CONNECTOR_2, CACHING_STRATEGY, ATTRIBUTES, MUTEX >
typedef ACE_Refcounted_Hash_Recyclable < ACE_PEER_CONNECTOR_ADDR >	REFCOUNTED_HASH_RECYCLABLE_ADDRESS

typedef ACE_Hash_Cache_Map_Manager < REFCOUNTED_HASH_RECYCLABLE_ADDRESS, SVC_HANDLER *, ACE_Hash < REFCOUNTED_HASH_RECYCLABLE_ADDRESS > , ACE_Equal_To < REFCOUNTED_HASH_RECYCLABLE_ADDRESS > , CACHING_STRATEGY, ATTRIBUTES >	CONNECTION_CACHE

typedef CONNECTION_CACHE::CACHE_ENTRY	CONNECTION_CACHE_ENTRY

typedef CONNECTION_CACHE::key_type	KEY

typedef CONNECTION_CACHE::mapped_type	VALUE

typedef ACE_Recyclable_Handler_Cleanup_Strategy < REFCOUNTED_HASH_RECYCLABLE_ADDRESS, std::pair< SVC_HANDLER , ATTRIBUTES > , ACE_Hash_Map_Manager_Ex < REFCOUNTED_HASH_RECYCLABLE_ADDRESS, std::pair< SVC_HANDLER , ATTRIBUTES >, ACE_Hash < REFCOUNTED_HASH_RECYCLABLE_ADDRESS > , ACE_Equal_To < REFCOUNTED_HASH_RECYCLABLE_ADDRESS > , MUTEX > >	CLEANUP_STRATEGY

typedef ACE_Cached_Connect_Strategy < SVC_HANDLER, ACE_PEER_CONNECTOR_2, MUTEX >	CCSBASE

Detailed Description

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1, class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
class ACE_Bounded_Cached_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_1, CACHING_STRATEGY, ATTRIBUTES, MUTEX >

A connection strategy which caches connections to peers (represented by SVC_HANDLER instances), thereby allowing subsequent re-use of unused, but available, connections. This strategy should be used when the cache is bounded by maximum size.

Bounded_Cached_Connect_Strategy is intended to be used as a plug-in connection strategy for ACE_Strategy_Connector. It's added value is re-use of established connections and tweaking the role of the cache as per the caching strategy. Thanks to Edan Ayal edana.nosp@m.@ban.nosp@m.dwiz..nosp@m.com for contributing this class and Susan Liebeskind shl@j.nosp@m.anis.nosp@m..gtri.nosp@m..gat.nosp@m.ech.e.nosp@m.du for brainstorming about it.
