This class encapsulates all the necessary information to break down or build up an RTP data packet as well as operations to access all data items in the packet. More...

#include <RTP.h>

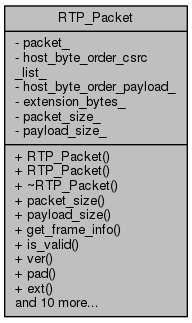

Collaboration diagram for RTP_Packet:

Public Member Functions
	RTP_Packet (char *buffer, int length)
	Constructor for incoming RTP packets.

	RTP_Packet (unsigned char padding, unsigned char marker, unsigned char payloadType, ACE_UINT32 sequenceNumber, ACE_UINT32 timeStamp, ACE_UINT32 syncSource, unsigned char contribSourcCount, ACE_UINT32 contribSourceList[], char *data, ACE_UINT16 dataSize)
	Constructor for outgoing RTP packets.

	~RTP_Packet (void)
	Destructor.

ACE_UINT16	packet_size (void)
	Returns the size of the RTP packet in bytes.

ACE_UINT16	payload_size (void)
	Returns the size of the payload in bytes.

void	get_frame_info (TAO_AV_frame_info *frame_info)
	Populates the passed in frame_info.

int	is_valid (void)
	Returns 1 if packet is valid and 0 if not.

unsigned int	ver (void)
	Returns the RTP version of the packet.

unsigned int	pad (void)
	Returns 1 if the padding bit is set, 0 if not.

unsigned int	ext (void)
	Returns 1 if the header extension bit is set, 0 if not.

unsigned int	ext_bytes (void)
	Returns the number of bytes in the header extension or 0 if no extension.

unsigned int	cc (void)

unsigned int	mrk (void)
	Returns 1 if the marker bit is set, 0 if not.

unsigned int	pt (void)
	Returns the payload type of the packet.

ACE_UINT16	sn (void)
	Returns the sequence number of the packet.

ACE_UINT32	ts (void)
	Returns the timestamp of the packet.

ACE_UINT32	ssrc (void)
	Returns the synchronization source id of the packet.

void	get_csrc_list (ACE_UINT32 **csrc_list, ACE_UINT16 &length)

void	get_payload (char **payload, ACE_UINT16 &size)

void	get_packet_data (char **packet, ACE_UINT16 &size)

Private Attributes
char	packet_ [RTP_MTU]
	Local buffer to hold the RTP packet.

ACE_UINT32	host_byte_order_csrc_list_ [15]

char	host_byte_order_payload_ [RTP_MTU]
	Local buffer to hold the payload with the values stored in host byte order.

unsigned int	extension_bytes_
	The number of bytes in the header extension - 0 if no extension.

ACE_UINT16	packet_size_
	The size of the overall data packet.

ACE_UINT16	payload_size_
	The size of the payload portion of the packet.

Detailed Description

This class encapsulates all the necessary information to break down or build up an RTP data packet as well as operations to access all data items in the packet.

Constructor & Destructor Documentation

RTP_Packet::RTP_Packet	(	char *	buffer,
		int	length
	)

Constructor for incoming RTP packets.

RTP_Packet::RTP_Packet	(	unsigned char	padding,
		unsigned char	marker,
		unsigned char	payloadType,
		ACE_UINT32	sequenceNumber,
		ACE_UINT32	timeStamp,
		ACE_UINT32	syncSource,
		unsigned char	contribSourcCount,
		ACE_UINT32	contribSourceList[],
		char *	data,
		ACE_UINT16	dataSize
	)

Constructor for outgoing RTP packets.

RTP_Packet::~RTP_Packet ( void )

Destructor.

Member Function Documentation

unsigned int RTP_Packet::cc ( void )

Returns the contributing source count. This should only be non-zero for mixers.

unsigned int RTP_Packet::ext ( void )

Returns 1 if the header extension bit is set, 0 if not.

unsigned int RTP_Packet::ext_bytes ( void )

Returns the number of bytes in the header extension or 0 if no extension.

void RTP_Packet::get_csrc_list	(	ACE_UINT32 **	csrc_list,
		ACE_UINT16 &	length
	)

Returns a pointer to the local contributing source list and its length. This should be empty except for mixers. RTP_Packet retains ownership.

void RTP_Packet::get_frame_info ( TAO_AV_frame_info * frame_info )

Populates the passed in frame_info.

void RTP_Packet::get_packet_data	(	char **	packet,
		ACE_UINT16 &	size
	)

Returns a pointer to the locally stored rtp packet and its size in bytes. RTP_Packet retains ownership.

void RTP_Packet::get_payload	(	char **	payload,
		ACE_UINT16 &	size
	)

Returns a pointer to the locally stored payload and its size in bytes. The payload is returned in host byte order. RTP_Packet retains ownership.

int RTP_Packet::is_valid ( void )

Returns 1 if packet is valid and 0 if not.

unsigned int RTP_Packet::mrk ( void )

Returns 1 if the marker bit is set, 0 if not.

ACE_UINT16 RTP_Packet::packet_size ( void )

Returns the size of the RTP packet in bytes.

unsigned int RTP_Packet::pad ( void )

Returns 1 if the padding bit is set, 0 if not.

ACE_UINT16 RTP_Packet::payload_size ( void )

Returns the size of the payload in bytes.

unsigned int RTP_Packet::pt ( void )

Returns the payload type of the packet.

ACE_UINT16 RTP_Packet::sn ( void )

Returns the sequence number of the packet.

ACE_UINT32 RTP_Packet::ssrc ( void )

Returns the synchronization source id of the packet.

ACE_UINT32 RTP_Packet::ts ( void )

Returns the timestamp of the packet.

unsigned int RTP_Packet::ver ( void )

Returns the RTP version of the packet.

Member Data Documentation

unsigned int RTP_Packet::extension_bytes_

private

The number of bytes in the header extension - 0 if no extension.

ACE_UINT32 RTP_Packet::host_byte_order_csrc_list_[15]

private

Local buffer to hold the contributing source list with the values stored in host byte order.

char RTP_Packet::host_byte_order_payload_[RTP_MTU]

private

Local buffer to hold the payload with the values stored in host byte order.

char RTP_Packet::packet_[RTP_MTU]

private

Local buffer to hold the RTP packet.

ACE_UINT16 RTP_Packet::packet_size_

private

The size of the overall data packet.

ACE_UINT16 RTP_Packet::payload_size_

private

The size of the payload portion of the packet.

The documentation for this class was generated from the following files:
