RTCP_RR_Packet Class Reference

The Receiver Report packet is sent by all members of a session that are not sending data. It contains a list of RR_Block to represent each source this party is receiving data from. More...

#include <RTCP_Packet.h>

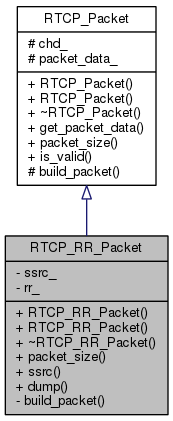

Inheritance diagram for RTCP_RR_Packet:

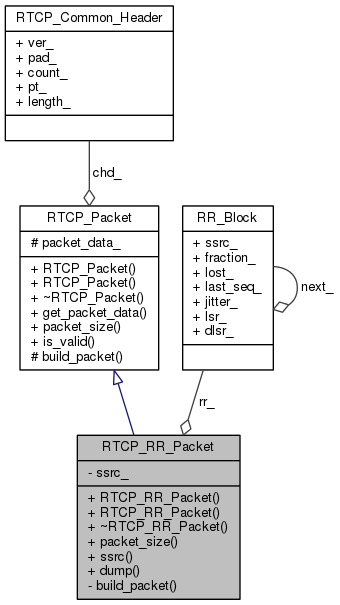

Collaboration diagram for RTCP_RR_Packet:

Public Member Functions
	RTCP_RR_Packet (char *buffer, int *len)
	Constructor for incoming receiver reports.
	RTCP_RR_Packet (ACE_UINT32 ssrc, RR_Block *blocks)
	Constructor for outgoing receiver reports.
virtual	~RTCP_RR_Packet (void)
	Destructor.
unsigned int	packet_size (void)
	Returns the size of the packet in bytes.
ACE_INT32	ssrc (void)
	Returns the synchronization source id of the source sending this packet.
void	dump (void)
	Prints the contents of the packet.
Public Member Functions inherited from RTCP_Packet
	RTCP_Packet (void)
	Constructor for outgoing RTCP packets.
	RTCP_Packet (char *buffer)
	Constructor for incoming RTCP packets.
virtual	~RTCP_Packet ()
	Destructor.
void	get_packet_data (char **buffer, ACE_UINT16 &length)
	Returns a pointer to a local buffer containing the packet.
int	is_valid (char is_first)

Private Member Functions
void	build_packet (void)
	Used to create the byte representation of the RTCP packet.

Private Attributes
ACE_UINT32	ssrc_
	The synchronization source id of the sender of this report.
RR_Block *	rr_
	A linked list of the receiver report block(s) being sent.

Additional Inherited Members
Protected Attributes inherited from RTCP_Packet
RTCP_Common_Header	chd_
	Header data common to all RTCP packets.
char *	packet_data_
	Buffer to hold byte representation of the RTCP packet.

Detailed Description

The Receiver Report packet is sent by all members of a session that are not sending data. It contains a list of RR_Block to represent each source this party is receiving data from.

Constructor & Destructor Documentation

RTCP_RR_Packet::RTCP_RR_Packet	(	char *	buffer,
		int *	len
	)

Constructor for incoming receiver reports.

RTCP_RR_Packet::RTCP_RR_Packet	(	ACE_UINT32	ssrc,
		RR_Block *	blocks
	)

Constructor for outgoing receiver reports.

RTCP_RR_Packet::~RTCP_RR_Packet ( void  )

virtual

Destructor.

Member Function Documentation

void RTCP_RR_Packet::build_packet ( void  )

privatevirtual

Used to create the byte representation of the RTCP packet.

Implements RTCP_Packet.

void RTCP_RR_Packet::dump

(

void

)

Prints the contents of the packet.

unsigned int RTCP_RR_Packet::packet_size ( void  )

virtual

Returns the size of the packet in bytes.

Implements RTCP_Packet.

ACE_INT32 RTCP_RR_Packet::ssrc ( void  )

inline

Returns the synchronization source id of the source sending this packet.

Member Data Documentation

RR_Block* RTCP_RR_Packet::rr_

private

A linked list of the receiver report block(s) being sent.

ACE_UINT32 RTCP_RR_Packet::ssrc_

private

The synchronization source id of the sender of this report.

---

The documentation for this class was generated from the following files:

• RTCP_Packet.h
• RTCP_Packet.cpp
