ACEXML_Element_Def_Builder Class Reference

An abstract virtual class that defines the interface to define an element definition. More...

#include <Element_Def_Builder.h>

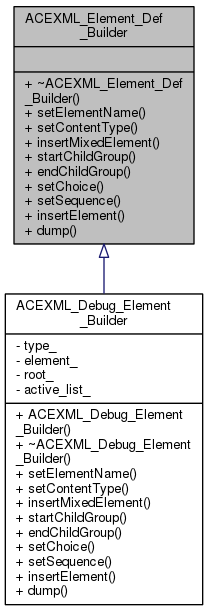

Inheritance diagram for ACEXML_Element_Def_Builder:

Collaboration diagram for ACEXML_Element_Def_Builder:

Public Types
enum	CONTENT_TYPE {   EMPTY, ANY, MIXED, CHILDREN,   UNDEFINED }
enum	CARDINALITY { ONE, ZERO_OR_MORE, ONE_OR_MORE, ONE_OR_ZERO }
typedef auto_ptr < ACEXML_Element_Def_Builder >	VAR

Public Member Functions
virtual	~ACEXML_Element_Def_Builder ()=0
virtual int	setElementName (const ACEXML_Char *namespaceURI, const ACEXML_Char *localName, const ACEXML_Char *qName)=0
virtual int	setContentType (CONTENT_TYPE type)=0
virtual int	insertMixedElement (const ACEXML_Char *namespaceURI, const ACEXML_Char *localName, const ACEXML_Char *qName)=0
virtual int	startChildGroup ()=0
virtual int	endChildGroup (CARDINALITY card)=0
virtual int	setChoice ()=0
virtual int	setSequence ()=0
virtual int	insertElement (const ACEXML_Char *namespaceURI, const ACEXML_Char *localName, const ACEXML_Char *qName)=0
virtual void	dump (void)=0

Detailed Description

An abstract virtual class that defines the interface to define an element definition.

This class defines how to define an element definition after parsing a DTD.

Member Typedef Documentation

typedef auto_ptr<ACEXML_Element_Def_Builder> ACEXML_Element_Def_Builder::VAR

Member Enumeration Documentation

enum ACEXML_Element_Def_Builder::CARDINALITY

Enumerator:

ONE
ZERO_OR_MORE
ONE_OR_MORE
ONE_OR_ZERO

enum ACEXML_Element_Def_Builder::CONTENT_TYPE

Enumerator:

EMPTY
ANY
MIXED
CHILDREN
UNDEFINED

Constructor & Destructor Documentation

ACEXML_Element_Def_Builder::~ACEXML_Element_Def_Builder ( )

pure virtual

Member Function Documentation

virtual void ACEXML_Element_Def_Builder::dump ( void  )

pure virtual

Dump the content of the attribute definition.

Implemented in ACEXML_Debug_Element_Builder.

virtual int ACEXML_Element_Def_Builder::endChildGroup ( CARDINALITY  card )

pure virtual

End a new group of children.

Return values

0	on success.

Implemented in ACEXML_Debug_Element_Builder.

virtual int ACEXML_Element_Def_Builder::insertElement ( const ACEXML_Char *  namespaceURI, const ACEXML_Char *  localName, const ACEXML_Char *  qName  )

pure virtual

Insert an new element into the current child group.

Return values

0	on success, -1 otherwise.

Implemented in ACEXML_Debug_Element_Builder.

virtual int ACEXML_Element_Def_Builder::insertMixedElement ( const ACEXML_Char *  namespaceURI, const ACEXML_Char *  localName, const ACEXML_Char *  qName  )

pure virtual

Insert one more element into Mixed definition.

Implemented in ACEXML_Debug_Element_Builder.

virtual int ACEXML_Element_Def_Builder::setChoice ( )

pure virtual

Set the type of current child group to Choice.

Return values

0	on success, -1 if the type of the child group has already been set and this action conflicts with the previous setting.

Implemented in ACEXML_Debug_Element_Builder.

virtual int ACEXML_Element_Def_Builder::setContentType ( CONTENT_TYPE  type )

pure virtual

Define the content type of the element.

Return values

0	if valid, -1 otherwise.

Implemented in ACEXML_Debug_Element_Builder.

virtual int ACEXML_Element_Def_Builder::setElementName ( const ACEXML_Char *  namespaceURI, const ACEXML_Char *  localName, const ACEXML_Char *  qName  )

pure virtual

Define the name of the element.

Return values

0	if valid, -1 otherwise.

Implemented in ACEXML_Debug_Element_Builder.

virtual int ACEXML_Element_Def_Builder::setSequence ( )

pure virtual

Set the type of current child group to Sequence.

Return values

0	on success, -1 if the type of the child group has already been set and this action conflicts with the previous setting.

Implemented in ACEXML_Debug_Element_Builder.

virtual int ACEXML_Element_Def_Builder::startChildGroup ( )

pure virtual

Start a new group of children.

Implemented in ACEXML_Debug_Element_Builder.

---

The documentation for this class was generated from the following files:

• Element_Def_Builder.h
• Element_Def_Builder.cpp
