ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 > Class Template Reference

Abstract factory for creating a service handler (SVC_HANDLER), connecting the SVC_HANDLER, and activating the SVC_HANDLER. More...

#include <Connector.h>

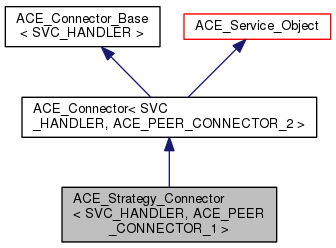

Inheritance diagram for ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >:
Inheritance graph
[legend]

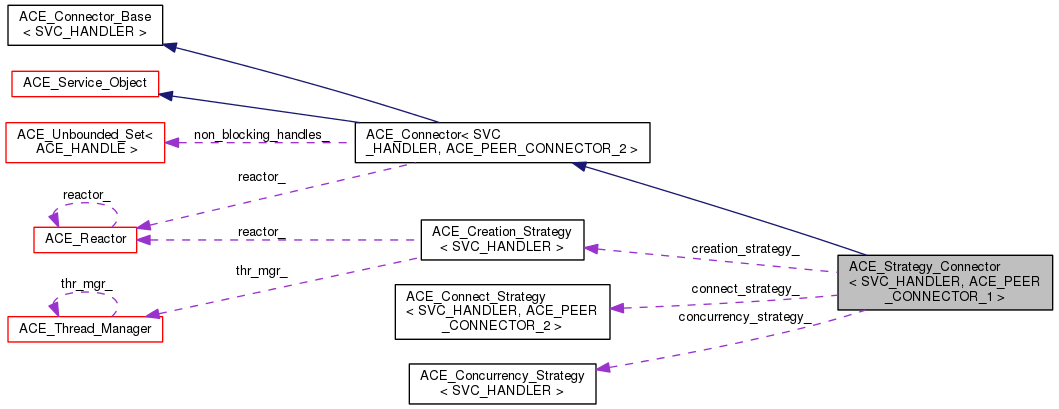

Collaboration diagram for ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >:
Collaboration graph
[legend]

Public Types

typedef ACE_Creation_Strategy
< SVC_HANDLER > 		creation_strategy_type

typedef ACE_Connect_Strategy
< SVC_HANDLER,
ACE_PEER_CONNECTOR_2 > 		connect_strategy_type

typedef
ACE_Concurrency_Strategy
< SVC_HANDLER > 		concurrency_strategy_type

typedef ACE_Connector
< SVC_HANDLER,
ACE_PEER_CONNECTOR_2 > 		base_type

typedef ACE_Creation_Strategy
< SVC_HANDLER > 		CREATION_STRATEGY

typedef ACE_Connect_Strategy
< SVC_HANDLER,
ACE_PEER_CONNECTOR_2 > 		CONNECT_STRATEGY

typedef
ACE_Concurrency_Strategy
< SVC_HANDLER > 		CONCURRENCY_STRATEGY

typedef ACE_Connector
< SVC_HANDLER,
ACE_PEER_CONNECTOR_2 > 		SUPER

- Public Types inherited from ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >
typedef SVC_HANDLER::addr_type addr_type

typedef ACE_PEER_CONNECTOR connector_type

typedef SVC_HANDLER handler_type

typedef SVC_HANDLER::stream_type stream_type

typedef
ACE_PEER_CONNECTOR::PEER_ADDR 		peer_addr_type

typedef ACE_PEER_CONNECTOR_ADDR ACE_PEER_ADDR_TYPEDEF


Public Member Functions

 ACE_Strategy_Connector (ACE_Reactor *r=ACE_Reactor::instance(), ACE_Creation_Strategy< SVC_HANDLER > *=0, ACE_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2 > *=0, ACE_Concurrency_Strategy< SVC_HANDLER > *=0, int flags=0)

virtual int open (ACE_Reactor *r, int flags)

virtual int open (ACE_Reactor *r=ACE_Reactor::instance(), ACE_Creation_Strategy< SVC_HANDLER > *=0, ACE_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2 > *=0, ACE_Concurrency_Strategy< SVC_HANDLER > *=0, int flags=0)

virtual ~ACE_Strategy_Connector (void)
 Shutdown a connector and release resources.

virtual int close (void)
 Close down the Connector.

virtual ACE_Creation_Strategy
< SVC_HANDLER > * 		creation_strategy (void) const

virtual ACE_Connect_Strategy
< SVC_HANDLER,
ACE_PEER_CONNECTOR_2 > * 		connect_strategy (void) const

virtual
ACE_Concurrency_Strategy
< SVC_HANDLER > * 		concurrency_strategy (void) const

- Public Member Functions inherited from ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >
 ACE_Connector (ACE_Reactor *r=ACE_Reactor::instance(), int flags=0)

virtual ~ACE_Connector (void)
 Shutdown a connector and release resources.

virtual int connect (SVC_HANDLER *&svc_handler, const ACE_PEER_CONNECTOR_ADDR &remote_addr, const ACE_Synch_Options &synch_options=ACE_Synch_Options::defaults, const ACE_PEER_CONNECTOR_ADDR &local_addr=(peer_addr_type &) ACE_PEER_CONNECTOR_ADDR_ANY, int reuse_addr=0, int flags=O_RDWR, int perms=0)

virtual int connect (SVC_HANDLER *&svc_handler_hint, SVC_HANDLER *&svc_handler, const ACE_PEER_CONNECTOR_ADDR &remote_addr, const ACE_Synch_Options &synch_options=ACE_Synch_Options::defaults, const ACE_PEER_CONNECTOR_ADDR &local_addr=(peer_addr_type &) ACE_PEER_CONNECTOR_ADDR_ANY, int reuse_addr=0, int flags=O_RDWR, int perms=0)

virtual int connect_n (size_t n, SVC_HANDLER *svc_handlers[], ACE_PEER_CONNECTOR_ADDR remote_addrs[], ACE_TCHAR *failed_svc_handlers=0, const ACE_Synch_Options &synch_options=ACE_Synch_Options::defaults)

virtual int cancel (SVC_HANDLER *svc_handler)

virtual ACE_PEER_CONNECTOR & connector (void) const
 Return the underlying PEER_CONNECTOR object.

virtual void initialize_svc_handler (ACE_HANDLE handle, SVC_HANDLER *svc_handler)
 Initialize Svc_Handler.

virtual void reactor (ACE_Reactor *reactor)
 Set Reactor.

virtual ACE_Reactor * reactor (void) const
 Get Reactor.

void dump (void) const
 Dump the state of an object.

- Public Member Functions inherited from ACE_Connector_Base< SVC_HANDLER >
virtual ~ACE_Connector_Base (void)

- Public Member Functions inherited from ACE_Service_Object
 ACE_Service_Object (ACE_Reactor *=0)
 Constructor.

virtual ~ACE_Service_Object (void)
 Destructor.

- Public Member Functions inherited from ACE_Event_Handler
virtual ~ACE_Event_Handler (void)
 Destructor is virtual to enable proper cleanup.

virtual ACE_HANDLE get_handle (void) const
 Get the I/O handle.

virtual void set_handle (ACE_HANDLE)
 Set the I/O handle.

virtual int priority (void) const

virtual void priority (int priority)
 Set the priority of the Event_Handler.

virtual int handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
 Called when input events occur (e.g., connection or data).

virtual int handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
 Called when an exceptional events occur (e.g., SIGURG).

virtual int handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int handle_exit (ACE_Process *)
 Called when a process exits.

virtual int handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)

virtual int resume_handler (void)

virtual int handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual
ACE_Reactor_Timer_Interface * 		reactor_timer_interface (void) const
 Get only the reactor's timer related interface.

virtual Reference_Count add_reference (void)
 Increment reference count on the handler.

virtual Reference_Count remove_reference (void)
 Decrement reference count on the handler.

Reference_Counting_Policy & reference_counting_policy (void)
 Current Reference_Counting_Policy.

- Public Member Functions inherited from ACE_Shared_Object
 ACE_Shared_Object (void)
 Constructor.

virtual ~ACE_Shared_Object (void)
 Destructor.


Protected Member Functions

virtual int make_svc_handler (SVC_HANDLER *&sh)

virtual int connect_svc_handler (SVC_HANDLER *&sh, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value *timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, int reuse_addr, int flags, int perms)

virtual int connect_svc_handler (SVC_HANDLER *&sh, SVC_HANDLER *&sh_copy, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value *timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, int reuse_addr, int flags, int perms)

virtual int activate_svc_handler (SVC_HANDLER *svc_handler)

- Protected Member Functions inherited from ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >
int nonblocking_connect (SVC_HANDLER *, const ACE_Synch_Options &)
 Creates and registers ACE_NonBlocking_Connect_Handler.

virtual int connect_i (SVC_HANDLER *&svc_handler, SVC_HANDLER **sh_copy, const ACE_PEER_CONNECTOR_ADDR &remote_addr, const ACE_Synch_Options &synch_options, const ACE_PEER_CONNECTOR_ADDR &local_addr, int reuse_addr, int flags, int perms)
 Implementation of the connect methods.

ACE_Unbounded_Set< ACE_HANDLE > & non_blocking_handles (void)

virtual int init (int argc, ACE_TCHAR *argv[])

virtual int fini (void)
 Calls handle_close() to shutdown the Connector gracefully.

virtual int info (ACE_TCHAR **strp, size_t length) const
 Default version returns address info in buf.

virtual int suspend (void)

virtual int resume (void)


Protected Attributes

CREATION_STRATEGY * creation_strategy_
 Creation strategy for an Connector.

bool delete_creation_strategy_

CONNECT_STRATEGY * connect_strategy_
 Connect strategy for a Connector.

bool delete_connect_strategy_

CONCURRENCY_STRATEGY * concurrency_strategy_
 Concurrency strategy for a Connector.

bool delete_concurrency_strategy_


Additional Inherited Members

- Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN read_adapter (void *event_handler)

static int register_stdin_handler (ACE_Event_Handler *eh, ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int remove_stdin_handler (ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr)
 Performs the inverse of the register_stdin_handler() method.

- Public Attributes inherited from ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >
 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

- Protected Types inherited from ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >
typedef
ACE_NonBlocking_Connect_Handler
< SVC_HANDLER > 		NBCH


Detailed Description

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1>
class ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >

Abstract factory for creating a service handler (SVC_HANDLER), connecting the SVC_HANDLER, and activating the SVC_HANDLER.

Implements a flexible and extensible set of strategies for actively establishing connections with clients. There are three main strategies: (1) creating a SVC_HANDLER, (2) actively initiating a new connection from the client, and (3) activating the SVC_HANDLER with a particular concurrency mechanism after the connection is established.

Member Typedef Documentation

template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
typedef ACE_Connector<SVC_HANDLER, ACE_PEER_CONNECTOR_2> ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::base_type
template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
typedef ACE_Concurrency_Strategy<SVC_HANDLER> ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::CONCURRENCY_STRATEGY
template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
typedef ACE_Concurrency_Strategy<SVC_HANDLER> ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::concurrency_strategy_type
template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
typedef ACE_Connect_Strategy<SVC_HANDLER, ACE_PEER_CONNECTOR_2> ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::CONNECT_STRATEGY
template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
typedef ACE_Connect_Strategy<SVC_HANDLER, ACE_PEER_CONNECTOR_2> ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::connect_strategy_type
template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
typedef ACE_Creation_Strategy<SVC_HANDLER> ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::CREATION_STRATEGY
template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
typedef ACE_Creation_Strategy<SVC_HANDLER> ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::creation_strategy_type
template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
typedef ACE_Connector<SVC_HANDLER, ACE_PEER_CONNECTOR_2> ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::SUPER

Constructor & Destructor Documentation

template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::ACE_Strategy_Connector ( ACE_Reactor *  r = ACE_Reactor::instance (),
ACE_Creation_Strategy< SVC_HANDLER > *  cre_s = 0,
ACE_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2 > *  conn_s = 0,
ACE_Concurrency_Strategy< SVC_HANDLER > *  con_s = 0,
int  flags = 0
)

Initialize a connector. flags indicates how SVC_HANDLER's should be initialized prior to being activated. Right now, the only flag that is processed is ACE_NONBLOCK, which enabled non-blocking I/O on the SVC_HANDLER when it is opened.

template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::~ACE_Strategy_Connector ( void  )
virtual

Shutdown a connector and release resources.

Member Function Documentation

template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::activate_svc_handler ( SVC_HANDLER *  svc_handler)
protectedvirtual

Bridge method for activating a SVC_HANDLER with the appropriate concurrency strategy. The default behavior of this method is to activate the SVC_HANDLER by calling its <open> method (which allows the SVC_HANDLER to define its own concurrency strategy). However, subclasses can override this strategy to do more sophisticated concurrency activations (such as creating the SVC_HANDLER as an "active object" via multi-threading or multi-processing).

Reimplemented from ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >.

template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::close ( void  )
virtual

Close down the Connector.

Reimplemented from ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >.

template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
ACE_Concurrency_Strategy< SVC_HANDLER > * ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::concurrency_strategy ( void  ) const
virtual
template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
ACE_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2 > * ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::connect_strategy ( void  ) const
virtual
template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::connect_svc_handler ( SVC_HANDLER *&  sh,
const ACE_PEER_CONNECTOR_ADDR &  remote_addr,
ACE_Time_Value *  timeout,
const ACE_PEER_CONNECTOR_ADDR &  local_addr,
int  reuse_addr,
int  flags,
int  perms
)
protectedvirtual

Bridge method for connecting the new connection into the SVC_HANDLER. The default behavior delegates to the <PEER_CONNECTOR::connect> in the <Connect_Strategy>.

Reimplemented from ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >.

template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::connect_svc_handler ( SVC_HANDLER *&  sh,
SVC_HANDLER *&  sh_copy,
const ACE_PEER_CONNECTOR_ADDR &  remote_addr,
ACE_Time_Value *  timeout,
const ACE_PEER_CONNECTOR_ADDR &  local_addr,
int  reuse_addr,
int  flags,
int  perms
)
protectedvirtual

Bridge method for connecting the new connection into the SVC_HANDLER. The default behavior delegates to the <PEER_CONNECTOR::connect> in the <Connect_Strategy>. sh_copy is used to obtain a copy of the sh pointer, but that can be kept in the stack; the motivation is a bit too long to include here, but basically we want to modify sh safely, using the internal locks in the Connect_Strategy, while saving a TSS copy in sh_copy, usually located in the stack.

Reimplemented from ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >.

template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
ACE_Creation_Strategy< SVC_HANDLER > * ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::creation_strategy ( void  ) const
virtual
template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::make_svc_handler ( SVC_HANDLER *&  sh)
protectedvirtual

Bridge method for creating a SVC_HANDLER. The strategy for creating a SVC_HANDLER are configured into the Connector via it's <creation_strategy_>. The default is to create a new SVC_HANDLER only if sh == 0, else sh is unchanged. However, subclasses can override this policy to perform SVC_HANDLER creation in any way that they like (such as creating subclass instances of SVC_HANDLER, using a singleton, dynamically linking the handler, etc.). Returns -1 if failure, else 0.

Reimplemented from ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >.

template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::open ( ACE_Reactor *  r,
int  flags
)
virtual

Initialize a connector. flags indicates how SVC_HANDLER's should be initialized prior to being activated. Right now, the only flag that is processed is ACE_NONBLOCK, which enabled non-blocking I/O on the SVC_HANDLER when it is opened. Default strategies would be created and used.

Reimplemented from ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >.

template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::open ( ACE_Reactor *  r = ACE_Reactor::instance (),
ACE_Creation_Strategy< SVC_HANDLER > *  cre_s = 0,
ACE_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2 > *  conn_s = 0,
ACE_Concurrency_Strategy< SVC_HANDLER > *  con_s = 0,
int  flags = 0
)
virtual

Initialize a connector. flags indicates how SVC_HANDLER's should be initialized prior to being activated. Right now, the only flag that is processed is ACE_NONBLOCK, which enabled non-blocking I/O on the SVC_HANDLER when it is opened.

Member Data Documentation

template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
CONCURRENCY_STRATEGY* ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::concurrency_strategy_
protected

Concurrency strategy for a Connector.

template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
CONNECT_STRATEGY* ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::connect_strategy_
protected

Connect strategy for a Connector.

template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
CREATION_STRATEGY* ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::creation_strategy_
protected

Creation strategy for an Connector.

template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
bool ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::delete_concurrency_strategy_
protected

True if Connector created the concurrency strategy and thus should delete it, else false.

template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
bool ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::delete_connect_strategy_
protected

True if Connector created the connect strategy and thus should delete it, else false.

template<class SVC_HANDLER , ACE_PEER_CONNECTOR_1 >
bool ACE_Strategy_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_1 >::delete_creation_strategy_
protected

True if Connector created the creation strategy and thus should delete it, else false.

The documentation for this class was generated from the following files:
Generated by   doxygen 1.8.2
