This is that class which will be passed back to the completion handler when the asynchronous connect completes. More...

#include <POSIX_Asynch_IO.h>

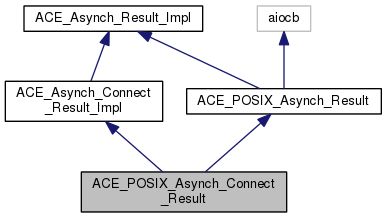

Inheritance diagram for ACE_POSIX_Asynch_Connect_Result:

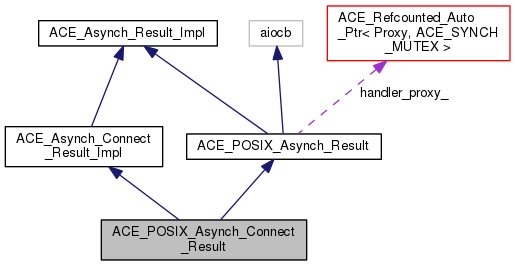

Collaboration diagram for ACE_POSIX_Asynch_Connect_Result:

Public Member Functions
ACE_HANDLE	connect_handle (void) const
	I/O handle for the connection.

Public Member Functions inherited from ACE_Asynch_Connect_Result_Impl
virtual	~ACE_Asynch_Connect_Result_Impl (void)

Public Member Functions inherited from ACE_Asynch_Result_Impl
virtual	~ACE_Asynch_Result_Impl (void)

Public Member Functions inherited from ACE_POSIX_Asynch_Result
size_t	bytes_transferred (void) const
	Number of bytes transferred by the operation.

const void *	act (void) const
	ACT associated with the operation.

int	success (void) const
	Did the operation succeed?

const void *	completion_key (void) const

u_long	error (void) const
	Error value if the operation fails.

ACE_HANDLE	event (void) const
	This returns ACE_INVALID_HANDLE on POSIX4 platforms.

u_long	offset (void) const

u_long	offset_high (void) const

int	priority (void) const
	Priority of the operation.

int	signal_number (void) const

int	post_completion (ACE_Proactor_Impl *proactor)
	Post `this` to the Proactor.

virtual	~ACE_POSIX_Asynch_Result (void)
	Destructor.

void	set_error (u_long errcode)
	Simulate error value to use in the post_completion ()

void	set_bytes_transferred (size_t nbytes)
	Simulate value to use in the post_completion ()

Protected Member Functions
	ACE_POSIX_Asynch_Connect_Result (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE connect_handle, const void *act, ACE_HANDLE event, int priority, int signal_number)

virtual void	complete (size_t bytes_transferred, int success, const void *completion_key, u_long error)
	ACE_Proactor will call this method when the accept completes.

virtual	~ACE_POSIX_Asynch_Connect_Result (void)
	Destructor.

void	connect_handle (ACE_HANDLE handle)

Protected Member Functions inherited from ACE_Asynch_Connect_Result_Impl
	ACE_Asynch_Connect_Result_Impl (void)
	Do-nothing constructor.

Protected Member Functions inherited from ACE_Asynch_Result_Impl
	ACE_Asynch_Result_Impl (void)
	Do-nothing constructor.

Protected Member Functions inherited from ACE_POSIX_Asynch_Result
	ACE_POSIX_Asynch_Result (const ACE_Handler::Proxy_Ptr &handler_proxy, const void *act, ACE_HANDLE event, u_long offset, u_long offset_high, int priority, int signal_number)
	Constructor. <Event> is not used on POSIX.

Friends
class	ACE_POSIX_Asynch_Connect
	Factory classes will have special permissions.

class	ACE_POSIX_Proactor
	The Proactor constructs the Result class for faking results.

Additional Inherited Members
Protected Attributes inherited from ACE_POSIX_Asynch_Result
ACE_Handler::Proxy_Ptr	handler_proxy_
	Handler that will be called back.

const void *	act_

size_t	bytes_transferred_
	Bytes transferred by this operation.

int	success_
	Success indicator.

const void *	completion_key_
	ACT associated with handle.

u_long	error_
	Error if operation failed.

Detailed Description

This is that class which will be passed back to the completion handler when the asynchronous connect completes.

This class has all the information necessary for a completion handler to uniquely identify the completion of the asynchronous connect.

Constructor & Destructor Documentation

ACE_POSIX_Asynch_Connect_Result::ACE_POSIX_Asynch_Connect_Result	(	const ACE_Handler::Proxy_Ptr &	handler_proxy,
		ACE_HANDLE	connect_handle,
		const void *	act,
		ACE_HANDLE	event,
		int	priority,
		int	signal_number
	)
