SSLIOP-specific protocol factory implementation. More...

#include <SSLIOP_Factory.h>

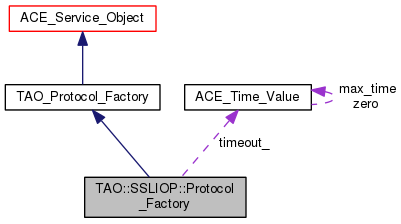

Inheritance diagram for TAO::SSLIOP::Protocol_Factory:

Collaboration diagram for TAO::SSLIOP::Protocol_Factory:

Public Member Functions
	Protocol_Factory (void)
	Constructor.
virtual	~Protocol_Factory (void)
	Destructor.
virtual int	init (int argc, ACE_TCHAR *argv[])
	Dynamic linking hook.
virtual int	match_prefix (const ACE_CString &prefix)
	Verify prefix is a match.
virtual const char *	prefix (void) const
	Returns the prefix used by the protocol.
virtual char	options_delimiter (void) const
virtual TAO_Acceptor *	make_acceptor (void)
virtual TAO_Connector *	make_connector (void)
virtual int	requires_explicit_endpoint (void) const
Public Member Functions inherited from TAO_Protocol_Factory
	TAO_Protocol_Factory (CORBA::ULong tag)
virtual	~TAO_Protocol_Factory (void)
CORBA::ULong	tag (void) const
Public Member Functions inherited from ACE_Service_Object
	ACE_Service_Object (ACE_Reactor *=0)
virtual	~ACE_Service_Object (void)
virtual int	suspend (void)
virtual int	resume (void)
virtual	~ACE_Event_Handler (void)
virtual ACE_HANDLE	get_handle (void) const
virtual void	set_handle (ACE_HANDLE)
virtual int	priority (void) const
virtual void	priority (int priority)
virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int	handle_exit (ACE_Process *)
virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)
virtual int	resume_handler (void)
virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void	reactor (ACE_Reactor *reactor)
virtual ACE_Reactor *	reactor (void) const
virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const
virtual Reference_Count	add_reference (void)
virtual Reference_Count	remove_reference (void)
Reference_Counting_Policy &	reference_counting_policy (void)
	ACE_Shared_Object (void)
virtual	~ACE_Shared_Object (void)
virtual int	fini (void)
virtual int	info (ACE_TCHAR **info_string, size_t length=0) const

Private Member Functions
int	register_orb_initializer (CSIIOP::AssociationOptions csiv2_target_supports, CSIIOP::AssociationOptions csiv2_target_requires)
	Create and register the SSLIOP ORB initializer.

Static Private Member Functions
static int	parse_x509_file (char arg, char *path)

Private Attributes
::Security::QOP	qop_
ACE_Time_Value	timeout_
	The accept() timeout.

Additional Inherited Members
Public Types inherited from ACE_Service_Object
typedef long	Reference_Count
Static Public Member Functions inherited from ACE_Service_Object
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)
static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)
static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)
Public Attributes inherited from ACE_Service_Object
	LO_PRIORITY
	HI_PRIORITY
	NULL_MASK
	READ_MASK
	WRITE_MASK
	EXCEPT_MASK
	ACCEPT_MASK
	CONNECT_MASK
	TIMER_MASK
	QOS_MASK
	GROUP_QOS_MASK
	SIGNAL_MASK
	ALL_EVENTS_MASK
	RWE_MASK
	DONT_CALL
	ACE_EVENT_HANDLER_NOT_RESUMED
	ACE_REACTOR_RESUMES_HANDLER
	ACE_APPLICATION_RESUMES_HANDLER
Protected Types inherited from ACE_Service_Object
typedef ACE_Atomic_Op < ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count
Protected Member Functions inherited from ACE_Service_Object
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)
Protected Attributes inherited from ACE_Service_Object
Atomic_Reference_Count	reference_count_

Detailed Description

SSLIOP-specific protocol factory implementation.

This class implements the SSLIOP-specific protocol factory implementation for use in TAO's pluggable protocols framework.

Constructor & Destructor Documentation

TAO::SSLIOP::Protocol_Factory::Protocol_Factory ( void )

Constructor.

TAO::SSLIOP::Protocol_Factory::~Protocol_Factory ( void )

virtual

Destructor.

Member Function Documentation

int TAO::SSLIOP::Protocol_Factory::init	(	int	argc,
		ACE_TCHAR *	argv[]
	)

virtual

Dynamic linking hook.

Implements TAO_Protocol_Factory.

TAO_Acceptor * TAO::SSLIOP::Protocol_Factory::make_acceptor ( void )

virtual

Implements TAO_Protocol_Factory.

TAO_Connector * TAO::SSLIOP::Protocol_Factory::make_connector ( void )

virtual

Implements TAO_Protocol_Factory.

int TAO::SSLIOP::Protocol_Factory::match_prefix ( const ACE_CString & prefix )

virtual

Verify prefix is a match.

Implements TAO_Protocol_Factory.

char TAO::SSLIOP::Protocol_Factory::options_delimiter ( void ) const

virtual

Return the character used to mark where an endpoint ends and where its options begin.

Implements TAO_Protocol_Factory.

int TAO::SSLIOP::Protocol_Factory::parse_x509_file	(	char *	arg,
		char **	path
	)

staticprivate

Parse an X509 file path, which is expected to looks like: <X509Path> ::= <Prefix> ':' <Path> <Prefix> ::= 'PEM' | 'ASN1' <Path> ::= any-string Returns either SSL_FILETYPE_ASN1, SSL_FILETYPE_PEM or -1 if the prefix can not be recognized. The *path will point to the part of the original buffer, after the initial ':', or will contain 0, if no path was specified.

Beware: This function modifies the buffer pointed to by arg!

const char * TAO::SSLIOP::Protocol_Factory::prefix ( void ) const

virtual

Returns the prefix used by the protocol.

Implements TAO_Protocol_Factory.

int TAO::SSLIOP::Protocol_Factory::register_orb_initializer	(	CSIIOP::AssociationOptions	csiv2_target_supports,
		CSIIOP::AssociationOptions	csiv2_target_requires
	)

private

Create and register the SSLIOP ORB initializer.

int TAO::SSLIOP::Protocol_Factory::requires_explicit_endpoint ( void ) const

virtual

Implements TAO_Protocol_Factory.

Member Data Documentation

::Security::QOP TAO::SSLIOP::Protocol_Factory::qop_

private

Default quality-of-protection settings for the SSLIOP pluggable protocol.

ACE_Time_Value TAO::SSLIOP::Protocol_Factory::timeout_

private

The accept() timeout.

This timeout includes the overall time to complete the SSL handshake. This includes both the TCP handshake and the SSL handshake.
