This class defines the protocol specific attributes required for locating ORBs over a TCP/IP network. More...

#include <UIPMC_Profile.h>

Inheritance diagram for TAO_UIPMC_Profile:

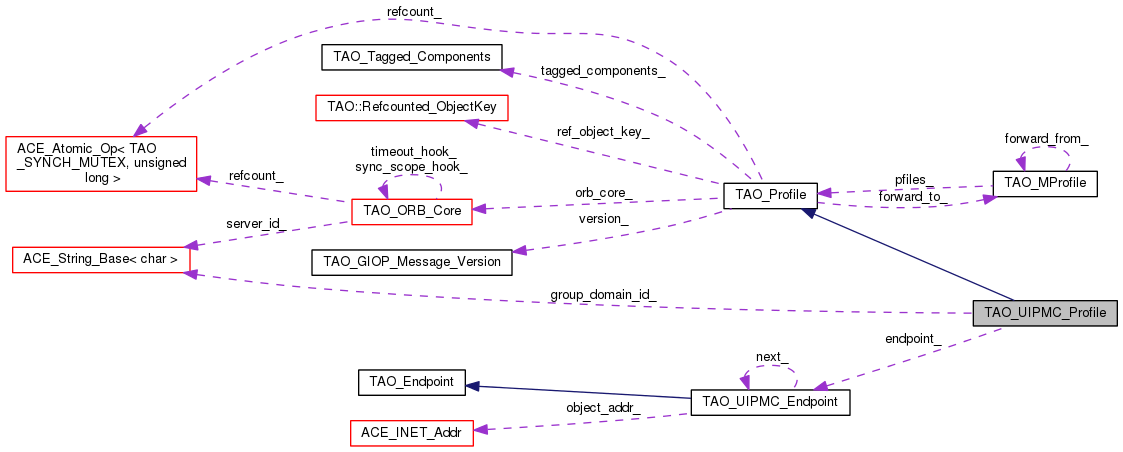

Collaboration diagram for TAO_UIPMC_Profile:

Public Member Functions
virtual char	object_key_delimiter (void) const
	TAO_UIPMC_Profile (TAO_ORB_Core *orb_core)
	TAO_UIPMC_Profile (const ACE_INET_Addr &addr, TAO_ORB_Core *orb_core)
	TAO_UIPMC_Profile (const CORBA::Octet class_d_address[4], CORBA::UShort port, TAO_ORB_Core *orb_core)
	Profile constructor. @ Vadym - deprecate this.
	TAO_UIPMC_Profile (const char string, TAO_ORB_Core orb_core)
	Create object using a string ior.
	~TAO_UIPMC_Profile (void)
	Destructor is to be called only through _decr_refcnt.
virtual int	decode (TAO_InputCDR &cdr)
	Template methods. Please see tao/Profile.h for documentation.
virtual void	parse_string (const char *string)
virtual char *	to_string (void)
virtual int	encode_endpoints (void)
virtual TAO_Endpoint *	endpoint (void)
virtual CORBA::ULong	endpoint_count (void) const
virtual CORBA::ULong	hash (CORBA::ULong max)
virtual IOP::TaggedProfile &	create_tagged_profile (void)
virtual void	request_target_specifier (TAO_Target_Specification &target_spec, TAO_Target_Specification::TAO_Target_Address r)
virtual int	supports_multicast (void) const
virtual void	addressing_mode (CORBA::Short addr_mode)
void	set_group_info (const char *domain_id, PortableGroup::ObjectGroupId group_id, PortableGroup::ObjectGroupRefVersion ref_version)
	Add the mandatory group component to this profile.
Public Member Functions inherited from TAO_Profile
	TAO_Profile (CORBA::ULong tag, TAO_ORB_Core *orb_core, const TAO_GIOP_Message_Version &version)
CORBA::ULong	tag (void) const
const TAO_GIOP_Message_Version &	version (void) const
TAO_ORB_Core *	orb_core (void) const
unsigned long	_incr_refcnt (void)
unsigned long	_decr_refcnt (void)
void	forward_to (TAO_MProfile *mprofiles)
TAO_MProfile *	forward_to (void)
const TAO_Tagged_Components &	tagged_components (void) const
TAO_Tagged_Components &	tagged_components (void)
void	add_tagged_component (const IOP::TaggedComponent &component)
CORBA::Short	addressing_mode (void) const
const TAO::ObjectKey &	object_key (void) const
TAO::ObjectKey *	_key (void) const
virtual int	encode (TAO_OutputCDR &stream) const
virtual void	policies (CORBA::PolicyList *policy_list)
virtual void	get_policies (CORBA::PolicyList &policy_list)
virtual bool	supports_non_blocking_oneways (void) const
virtual int	encode_alternate_endpoints (void)
virtual TAO_Endpoint *	base_endpoint (void)
TAO_Endpoint *	first_filtered_endpoint (void)
TAO_Endpoint *	next_filtered_endpoint (TAO_Endpoint *source)
virtual void	remove_generic_endpoint (TAO_Endpoint *ep)
virtual void	add_generic_endpoint (TAO_Endpoint *ep)
CORBA::Boolean	is_equivalent (const TAO_Profile *other_profile)
CORBA::Boolean	compare_key (const TAO_Profile *other) const

Static Public Member Functions
static const char *	prefix (void)
	Return the char string prefix.
static int	extract_group_component (const IOP::TaggedProfile &profile, PortableGroup::TagGroupTaggedComponent &group)

Static Public Attributes
static const char	object_key_delimiter_ = '/'
	The object key delimiter that UIPMC uses or expects.

Protected Member Functions
virtual int	decode_profile (TAO_InputCDR &cdr)
	Template methods, please see documentation in tao/Profile.h.
virtual int	decode_endpoints (void)
virtual void	parse_string_i (const char *)
virtual void	create_profile_body (TAO_OutputCDR &cdr) const
virtual CORBA::Boolean	do_is_equivalent (const TAO_Profile *other_profile)
virtual void	update_cached_group_component (void)
Protected Member Functions inherited from TAO_Profile
virtual	~TAO_Profile (void)
	TAO_Profile (CORBA::ULong tag, TAO_ORB_Core *orb_core, const TAO::ObjectKey &key, const TAO_GIOP_Message_Version &version)
void	set_tagged_components (TAO_OutputCDR &cdr)
virtual TAO_Service_Callbacks::Profile_Equivalence	is_equivalent_hook (const TAO_Profile *other)
CORBA::ULong	hash_service_i (CORBA::ULong m)

Protected Attributes
TAO_UIPMC_Endpoint	endpoint_
Protected Attributes inherited from TAO_Profile
TAO_GIOP_Message_Version	version_
TAO_Tagged_Components	tagged_components_
CORBA::Boolean	are_policies_parsed_
CORBA::Short	addressing_mode_
IOP::TaggedProfile *	tagged_profile_
TAO::Refcounted_ObjectKey *	ref_object_key_

Private Attributes
IOP::TaggedProfile	tagged_profile_
	Cached version of our tagged profile.
ACE_CString	group_domain_id_
	Group Domain ID.
PortableGroup::ObjectGroupId	group_id_
	Our group ID within the group domain.
PortableGroup::ObjectGroupRefVersion	ref_version_
	The group reference's version.
bool	has_ref_version_
	A sign whether ref_version is really present.

Detailed Description

This class defines the protocol specific attributes required for locating ORBs over a TCP/IP network.

This class defines the UIPMC profile as specified in the CORBA specification.

Note: This class inherits the ObjectKey from TAO_Profile which may not be needed at all! But lets punt on this for the timebeing.

Constructor & Destructor Documentation

TAO_UIPMC_Profile::TAO_UIPMC_Profile ( TAO_ORB_Core * orb_core )

Profile constructor, default. Used when the profile contents are not yet known or when it is being decoded from an IOR.

TAO_UIPMC_Profile::TAO_UIPMC_Profile	(	const ACE_INET_Addr &	addr,
		TAO_ORB_Core *	orb_core
	)

Profile constructor, same as above except the object_key has already been marshaled.

TAO_UIPMC_Profile::TAO_UIPMC_Profile	(	const CORBA::Octet	class_d_address[4],
		CORBA::UShort	port,
		TAO_ORB_Core *	orb_core
	)

Profile constructor. @ Vadym - deprecate this.

TAO_UIPMC_Profile::TAO_UIPMC_Profile	(	const char *	string,
		TAO_ORB_Core *	orb_core
	)

Create object using a string ior.

TAO_UIPMC_Profile::~TAO_UIPMC_Profile ( void )

Destructor is to be called only through _decr_refcnt.

Member Function Documentation

void TAO_UIPMC_Profile::addressing_mode ( CORBA::Short addr_mode )

virtual

Reimplemented from TAO_Profile.

void TAO_UIPMC_Profile::create_profile_body ( TAO_OutputCDR & cdr ) const

protectedvirtual

Implements TAO_Profile.

IOP::TaggedProfile & TAO_UIPMC_Profile::create_tagged_profile ( void )

virtual

Reimplemented from TAO_Profile.

int TAO_UIPMC_Profile::decode ( TAO_InputCDR & cdr )

virtual

Template methods. Please see tao/Profile.h for documentation.

N.B. We have to override the TAO_Profile default decode because in UIPMC there is no object key marshalled and we do not implement a useable decode_endpoints

Reimplemented from TAO_Profile.

int TAO_UIPMC_Profile::decode_endpoints ( void )

protectedvirtual

Implements TAO_Profile.

int TAO_UIPMC_Profile::decode_profile ( TAO_InputCDR & cdr )

protectedvirtual

Template methods, please see documentation in tao/Profile.h.

Implements TAO_Profile.

CORBA::Boolean TAO_UIPMC_Profile::do_is_equivalent ( const TAO_Profile * other_profile )

protectedvirtual

Implements TAO_Profile.

int TAO_UIPMC_Profile::encode_endpoints ( void )

virtual

Implements TAO_Profile.

TAO_Endpoint * TAO_UIPMC_Profile::endpoint ( void )

virtual

Implements TAO_Profile.

CORBA::ULong TAO_UIPMC_Profile::endpoint_count ( void ) const

virtual

Implements TAO_Profile.

int TAO_UIPMC_Profile::extract_group_component	(	const IOP::TaggedProfile &	profile,
		PortableGroup::TagGroupTaggedComponent &	group
	)

static

CORBA::ULong TAO_UIPMC_Profile::hash ( CORBA::ULong max )

virtual

Implements TAO_Profile.

char TAO_UIPMC_Profile::object_key_delimiter ( void ) const

virtual

Implements TAO_Profile.

void TAO_UIPMC_Profile::parse_string ( const char * string )

virtual

Reimplemented from TAO_Profile.

void TAO_UIPMC_Profile::parse_string_i ( const char * string )

protectedvirtual

Implements TAO_Profile.

const char * TAO_UIPMC_Profile::prefix ( void )

static

Return the char string prefix.

void TAO_UIPMC_Profile::request_target_specifier	(	TAO_Target_Specification &	target_spec,
		TAO_Target_Specification::TAO_Target_Address	r
	)

virtual

void TAO_UIPMC_Profile::set_group_info	(	const char *	domain_id,
		PortableGroup::ObjectGroupId	group_id,
		PortableGroup::ObjectGroupRefVersion	ref_version
	)

Add the mandatory group component to this profile.

int TAO_UIPMC_Profile::supports_multicast ( void ) const

virtual

Reimplemented from TAO_Profile.

char * TAO_UIPMC_Profile::to_string ( void )

virtual

Implements TAO_Profile.

void TAO_UIPMC_Profile::update_cached_group_component ( void )

protectedvirtual

Member Data Documentation

TAO_UIPMC_Endpoint TAO_UIPMC_Profile::endpoint_

protected

Head of this profile's list of endpoints. This endpoint is not dynamically allocated because a profile always contains at least one endpoint.

Currently, a profile contains more than one endpoint, i.e., list contains more than just the head, only when RTCORBA is enabled. However, in the near future, this will be used in nonRT mode as well, e.g., to support TAG_ALTERNATE_IIOP_ADDRESS feature. Addressing info of the default endpoint, i.e., head of the list, is transmitted using standard UIPMC ProfileBody components. See encode_endpoints() method documentation above for how the rest of the endpoint list is transmitted.

ACE_CString TAO_UIPMC_Profile::group_domain_id_

private

Group Domain ID.

PortableGroup::ObjectGroupId TAO_UIPMC_Profile::group_id_

private

Our group ID within the group domain.

bool TAO_UIPMC_Profile::has_ref_version_

private

A sign whether ref_version is really present.

const char TAO_UIPMC_Profile::object_key_delimiter_ = '/'

static

The object key delimiter that UIPMC uses or expects.

PortableGroup::ObjectGroupRefVersion TAO_UIPMC_Profile::ref_version_

private

The group reference's version.

IOP::TaggedProfile TAO_UIPMC_Profile::tagged_profile_

private

Cached version of our tagged profile.
