TAO_CosEvent: TAO_CEC_Dispatching Class Reference

TAO_CosEvent 2.1.3

All Classes Namespaces Files Functions Variables Typedefs Enumerations Friends Macros Pages

Define the interface for the dispatching strategies. More...

#include <CEC_Dispatching.h>

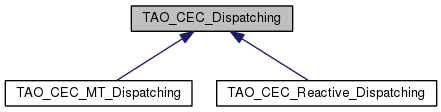

Inheritance diagram for TAO_CEC_Dispatching:

Inheritance graph

Public Member Functions
virtual	~TAO_CEC_Dispatching (void)
	destructor...
virtual void	activate (void)=0
virtual void	shutdown (void)=0
virtual void	push (TAO_CEC_ProxyPushSupplier *proxy, const CORBA::Any &event)=0
	The consumer represented by <proxy> should receive <event>.
virtual void	push_nocopy (TAO_CEC_ProxyPushSupplier *proxy, CORBA::Any &event)=0

Detailed Description

Define the interface for the dispatching strategies.

The EC may be configured with different dispatching strategies, for instance, it can use a pool of threads to dispatch the events, or a set of queues with threads at different priorities for each queue or can simply push the event to the consumer in FIFO order.

Constructor & Destructor Documentation

TAO_CEC_Dispatching::~TAO_CEC_Dispatching ( void )

virtual

destructor...

Member Function Documentation

virtual void TAO_CEC_Dispatching::activate ( void )

pure virtual

Initialize all the data structures, activate any internal threads, etc.

Implemented in TAO_CEC_Reactive_Dispatching, and TAO_CEC_MT_Dispatching.

virtual void TAO_CEC_Dispatching::push	(	TAO_CEC_ProxyPushSupplier *	proxy,
		const CORBA::Any &	event
	)

pure virtual

The consumer represented by <proxy> should receive <event>.

Implemented in TAO_CEC_Reactive_Dispatching, and TAO_CEC_MT_Dispatching.

virtual void TAO_CEC_Dispatching::push_nocopy	(	TAO_CEC_ProxyPushSupplier *	proxy,
		CORBA::Any &	event
	)

pure virtual

Implemented in TAO_CEC_Reactive_Dispatching, and TAO_CEC_MT_Dispatching.

virtual void TAO_CEC_Dispatching::shutdown ( void )

pure virtual

Deactivate any internal threads and cleanup internal data structures, it should only return once the threads have finished their jobs.

Implemented in TAO_CEC_Reactive_Dispatching, and TAO_CEC_MT_Dispatching.

The documentation for this class was generated from the following files:
