ProxyPushConsumer. More...

#include <EC_ProxyConsumer.h>

Inheritance diagram for TAO_EC_ProxyPushConsumer:

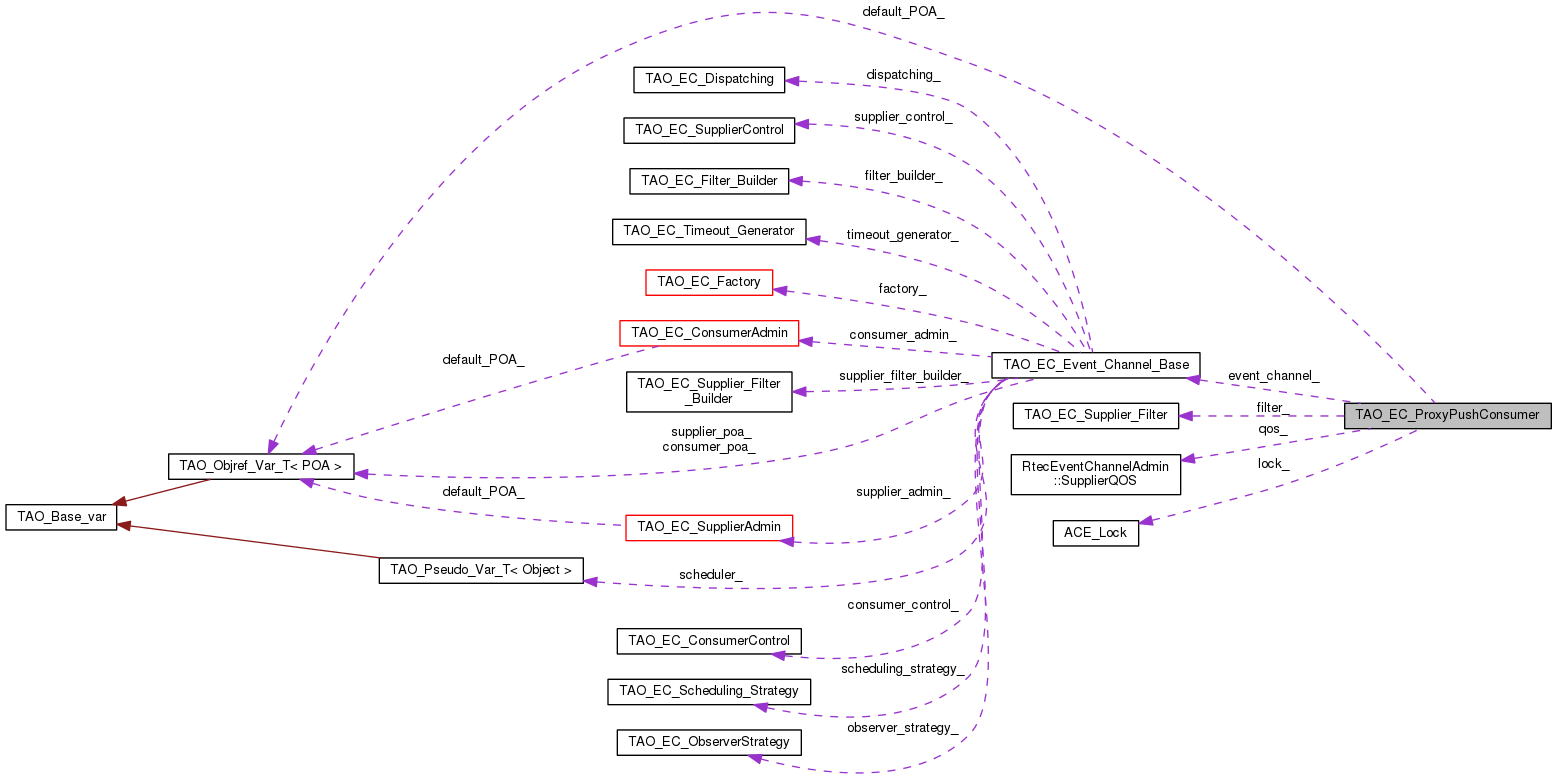

Collaboration diagram for TAO_EC_ProxyPushConsumer:

Public Types
typedef RtecEventChannelAdmin::ProxyPushConsumer	Interface
typedef RtecEventChannelAdmin::ProxyPushConsumer_var	_var_type
typedef RtecEventChannelAdmin::ProxyPushConsumer_ptr	_ptr_type
Public Member Functions
	TAO_EC_ProxyPushConsumer (TAO_EC_Event_Channel_Base *event_channel)
	constructor...
virtual	~TAO_EC_ProxyPushConsumer (void)
	destructor...
virtual void	activate (RtecEventChannelAdmin::ProxyPushConsumer_ptr &proxy)=0
	Activate in the POA.
virtual void	deactivate (void)
	Deactivate from the POA.
virtual void	disconnect_push_consumer ()=0
	Disconnect this from.
CORBA::Boolean	is_connected (void) const
	Return false if no supplier is connected...
RtecEventComm::PushSupplier_ptr	supplier (void) const
const RtecEventChannelAdmin::SupplierQOS &	publications (void) const
	The QoS (subscription) used to connect to the EC.
CORBA::Boolean	supplier_non_existent (CORBA::Boolean_out disconnected)
virtual void	connected (TAO_EC_ProxyPushSupplier *supplier)
virtual void	reconnected (TAO_EC_ProxyPushSupplier *supplier)
virtual void	disconnected (TAO_EC_ProxyPushSupplier *supplier)
virtual void	connected (TAO_EC_ProxyPushConsumer *consumer)
virtual void	reconnected (TAO_EC_ProxyPushConsumer *consumer)
virtual void	disconnected (TAO_EC_ProxyPushConsumer *consumer)
virtual void	shutdown (void)
	The event channel is shutting down.
const RtecEventChannelAdmin::SupplierQOS &	publications_i (void) const
CORBA::ULong	_incr_refcnt (void)
	Increment and decrement the reference count.
CORBA::ULong	_decr_refcnt (void)
Protected Member Functions
void	supplier (RtecEventComm::PushSupplier_ptr supplier)
void	supplier_i (RtecEventComm::PushSupplier_ptr supplier)
CORBA::Boolean	is_connected_i (void) const
	The private version (without locking) of is_connected().
TAO_EC_Supplier_Filter *	filter_i (void) const
	Return the current filter, assumes the locks are held.
void	cleanup_i (void)
	Release the filter and the supplier.
Protected Attributes
TAO_EC_Event_Channel_Base *	event_channel_
	The supplier admin, used for activation and memory managment.
ACE_Lock *	lock_
	The locking strategy.
CORBA::ULong	refcount_
	The reference count.
RtecEventComm::PushSupplier_var	supplier_
	The supplier....
bool	connected_
RtecEventChannelAdmin::SupplierQOS	qos_
	The publication and QoS information...
PortableServer::POA_var	default_POA_
	Store the default POA.
TAO_EC_Supplier_Filter *	filter_
	The strategy to do filtering close to the supplier.
Private Member Functions
virtual void	shutdown_hook (void)
	Template method hooks.
virtual void	refcount_zero_hook (void)
virtual PortableServer::ObjectId	object_id (void)=0
Friends
class	TAO_EC_ProxyPushConsumer_Guard

Detailed Description

ProxyPushConsumer.

Implement the RtecEventChannelAdmin::ProxyPushConsumer interface, remember that this class is used to communicate with a PushSupplier, so, in effect, this is the ambassador for a supplier inside the event channel.

Memory Management

It makes a copy of the SupplierQOS and the supplier object reference. It uses bind/unbind to control the lifetime of the Supplier_Filter object. The object commits suicide when disconnect_push_consumer() is called.

Locking

No provisions for locking, access must be serialized externally.

Member Typedef Documentation

typedef RtecEventChannelAdmin::ProxyPushConsumer_ptr TAO_EC_ProxyPushConsumer::_ptr_type

typedef RtecEventChannelAdmin::ProxyPushConsumer_var TAO_EC_ProxyPushConsumer::_var_type

typedef RtecEventChannelAdmin::ProxyPushConsumer TAO_EC_ProxyPushConsumer::Interface

Constructor & Destructor Documentation

TAO_EC_ProxyPushConsumer::TAO_EC_ProxyPushConsumer ( TAO_EC_Event_Channel_Base * event_channel )

constructor...

TAO_EC_ProxyPushConsumer::~TAO_EC_ProxyPushConsumer ( void )

virtual

destructor...

Member Function Documentation

CORBA::ULong TAO_EC_ProxyPushConsumer::_decr_refcnt ( void )

CORBA::ULong TAO_EC_ProxyPushConsumer::_incr_refcnt ( void )

Increment and decrement the reference count.

virtual void TAO_EC_ProxyPushConsumer::activate ( RtecEventChannelAdmin::ProxyPushConsumer_ptr & proxy )

pure virtual

Activate in the POA.

Implemented in TAO_EC_Default_ProxyPushConsumer.

void TAO_EC_ProxyPushConsumer::cleanup_i ( void )

protected

Release the filter and the supplier.

void TAO_EC_ProxyPushConsumer::connected ( TAO_EC_ProxyPushSupplier * supplier )

virtual

Concrete implementations can use this methods to keep track of the consumers interested in this events.

void TAO_EC_ProxyPushConsumer::connected ( TAO_EC_ProxyPushConsumer * consumer )

virtual

Usually implemented as no-ops, but some configurations may require this methods.

void TAO_EC_ProxyPushConsumer::deactivate ( void )

virtual

Deactivate from the POA.

virtual void TAO_EC_ProxyPushConsumer::disconnect_push_consumer ( )

pure virtual

Disconnect this from.

Implemented in TAO_EC_Default_ProxyPushConsumer, and TAO_EC_TPC_ProxyPushConsumer.

void TAO_EC_ProxyPushConsumer::disconnected ( TAO_EC_ProxyPushSupplier * supplier )

virtual

void TAO_EC_ProxyPushConsumer::disconnected ( TAO_EC_ProxyPushConsumer * consumer )

virtual

TAO_EC_Supplier_Filter * TAO_EC_ProxyPushConsumer::filter_i ( void ) const

protected

Return the current filter, assumes the locks are held.

CORBA::Boolean TAO_EC_ProxyPushConsumer::is_connected ( void ) const

Return false if no supplier is connected...

CORBA::Boolean TAO_EC_ProxyPushConsumer::is_connected_i ( void ) const

protected

The private version (without locking) of is_connected().

virtual PortableServer::ObjectId TAO_EC_ProxyPushConsumer::object_id ( void )

privatepure virtual

Implemented in TAO_EC_Default_ProxyPushConsumer.

const RtecEventChannelAdmin::SupplierQOS & TAO_EC_ProxyPushConsumer::publications ( void ) const

The QoS (subscription) used to connect to the EC.

const RtecEventChannelAdmin::SupplierQOS & TAO_EC_ProxyPushConsumer::publications_i ( void ) const

The QoS (subscription) used to connect to the EC, assumes the locks are held, use with care!

void TAO_EC_ProxyPushConsumer::reconnected ( TAO_EC_ProxyPushSupplier * supplier )

virtual

void TAO_EC_ProxyPushConsumer::reconnected ( TAO_EC_ProxyPushConsumer * consumer )

virtual

void TAO_EC_ProxyPushConsumer::refcount_zero_hook ( void )

privatevirtual

void TAO_EC_ProxyPushConsumer::shutdown ( void )

virtual

The event channel is shutting down.

void TAO_EC_ProxyPushConsumer::shutdown_hook ( void )

privatevirtual

Template method hooks.

RtecEventComm::PushSupplier_ptr TAO_EC_ProxyPushConsumer::supplier ( void ) const

Return the consumer object reference. It returns nil() if it has not connected yet.

void TAO_EC_ProxyPushConsumer::supplier ( RtecEventComm::PushSupplier_ptr supplier )

protected

Set the supplier, used by some implementations to change the policies used when invoking operations on the supplier.

void TAO_EC_ProxyPushConsumer::supplier_i ( RtecEventComm::PushSupplier_ptr supplier )

protected

CORBA::Boolean TAO_EC_ProxyPushConsumer::supplier_non_existent ( CORBA::Boolean_out disconnected )

Invoke the _non_existent() pseudo-operation on the supplier. If it is disconnected then it returns true and sets the <disconnected> flag.

Friends And Related Function Documentation

friend class TAO_EC_ProxyPushConsumer_Guard

friend

Member Data Documentation

bool TAO_EC_ProxyPushConsumer::connected_

protected

If the flag is not zero then we are connected, notice that the supplier can be nil.

PortableServer::POA_var TAO_EC_ProxyPushConsumer::default_POA_

protected

Store the default POA.

TAO_EC_Event_Channel_Base* TAO_EC_ProxyPushConsumer::event_channel_

protected

The supplier admin, used for activation and memory managment.

TAO_EC_Supplier_Filter* TAO_EC_ProxyPushConsumer::filter_

protected

The strategy to do filtering close to the supplier.

ACE_Lock* TAO_EC_ProxyPushConsumer::lock_

protected

The locking strategy.

RtecEventChannelAdmin::SupplierQOS TAO_EC_ProxyPushConsumer::qos_

protected

The publication and QoS information...

CORBA::ULong TAO_EC_ProxyPushConsumer::refcount_

protected

The reference count.

RtecEventComm::PushSupplier_var TAO_EC_ProxyPushConsumer::supplier_

protected

The supplier....

The documentation for this class was generated from the following files:
