TAO_Leader_Follower Class Reference

TAO_Leader_Follower. More...

#include <Leader_Follower.h>

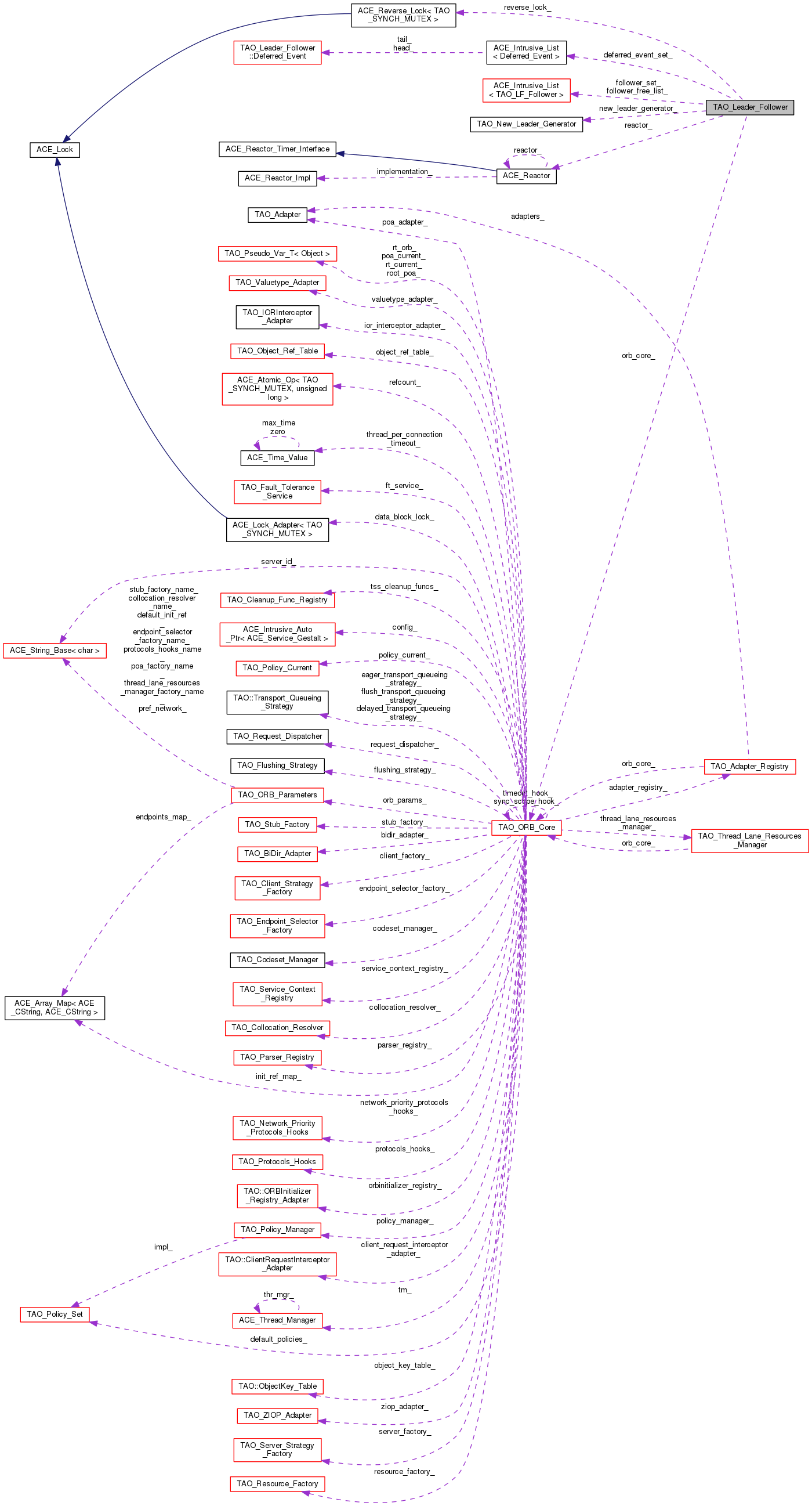

Collaboration diagram for TAO_Leader_Follower:
Collaboration graph
[legend]

List of all members.

Classes

class  Deferred_Event
 Class used to register deferred event handlers. More...

Public Member Functions

 TAO_Leader_Follower (TAO_ORB_Core *orb_core, TAO_New_Leader_Generator *new_leader_generator=0)
 Constructor.
 ~TAO_Leader_Follower (void)
 Destructor.
int set_event_loop_thread (ACE_Time_Value *max_wait_time)
void reset_event_loop_thread (void)
void set_upcall_thread (void)
bool leader_available (void) const
 Is there any thread running as a leader?
void set_client_thread (void)
 A server thread is making a request.
void reset_client_thread (void)
 A server thread has finished is making a request.
int wait_for_event (TAO_LF_Event *event, TAO_Transport *transport, ACE_Time_Value *max_wait_time)
 Wait on the Leader/Followers loop until one event happens.
void set_client_leader_thread (void)
void reset_client_leader_thread (void)
void set_client_leader_thread (ACE_thread_t thread_ID)
bool is_client_leader_thread (void) const
 Checks if we are a leader thread.
int elect_new_leader (void)
TAO_SYNCH_MUTEXlock (void)
 Get a reference to the underlying mutex.
ACE_Reverse_Lock
< TAO_SYNCH_MUTEX > &
reverse_lock (void)
bool has_clients (void) const
 Check if there are any client threads running.
ACE_Reactorreactor (void)
 Accesor to the reactor.
void no_leaders_available (void)
 Called when we are out of leaders.
void set_new_leader_generator (TAO_New_Leader_Generator *new_leader_generator)
 Set the new leader generator.
int defer_event (ACE_Event_Handler *)
Follower creation/destruction

The Leader/Followers set acts as a factory for the Follower objects. Followers are used to represent a thread blocked waiting in the Follower set.

The Leader/Followers abstraction keeps a list of the waiting followers, so it can wake up one when the leader thread stops handling events.

For performance reasons the Leader/Followers set uses a pool (or free-list) to keep Follower objects unattached to any thread. It could be tempting to use TSS to keep such followers, after all a thread can only need one such Follower object, however, that does not work with multiple Leader/Followers sets, consult this bug report for more details:

http://bugzilla.dre.vanderbilt.edu/show_bug.cgi?id=296

TAO_LF_Followerallocate_follower (void)
 Allocate a new follower to the caller.
void release_follower (TAO_LF_Follower *)
 The caller has finished using a follower.

Private Types

typedef ACE_Intrusive_List
< TAO_LF_Follower
Follower_Set
 Implement the Leader/Followers set using an intrusive list.
typedef ACE_Intrusive_List
< Deferred_Event
Deferred_Event_Set
 The set of deferred event handlers.

Private Member Functions

TAO_ORB_Core_TSS_Resourcesget_tss_resources (void) const
 Shortcut to obtain the TSS resources of the orb core.
int wait_for_client_leader_to_complete (ACE_Time_Value *max_wait_time)
 Wait for the client leader to complete.
void reset_event_loop_thread_i (TAO_ORB_Core_TSS_Resources *tss)
void resume_events ()

Private Attributes

TAO_ORB_Coreorb_core_
 The orb core.
TAO_SYNCH_MUTEX lock_
 To synchronize access to the members.
ACE_Reverse_Lock< TAO_SYNCH_MUTEXreverse_lock_
 Do protect the access to the following three members.
Follower_Set follower_set_
Follower_Set follower_free_list_
 Use a free list to allocate and release Follower objects.
int leaders_
int clients_
ACE_Reactorreactor_
 The reactor.
int client_thread_is_leader_
 Is a client thread the current leader?
int event_loop_threads_waiting_
 Are server threads waiting for the client leader to complete?
TAO_SYNCH_CONDITION event_loop_threads_condition_
TAO_New_Leader_Generatornew_leader_generator_
Deferred_Event_Set deferred_event_set_

Follower Set Operations

void add_follower (TAO_LF_Follower *follower)
 Add a new follower to the set.
void remove_follower (TAO_LF_Follower *follower)
 Removes a follower from the leader-follower set.
bool follower_available (void) const
 Checks if there are any followers available.
int elect_new_leader_i (void)

Detailed Description

TAO_Leader_Follower.

TAO_Leader_Follower


Member Typedef Documentation

The set of deferred event handlers.

Implement the Leader/Followers set using an intrusive list.


Constructor & Destructor Documentation

TAO_Leader_Follower::TAO_Leader_Follower ( TAO_ORB_Core orb_core,
TAO_New_Leader_Generator new_leader_generator = 0
)

Constructor.

Destructor.


Member Function Documentation

Add a new follower to the set.

Allocate a new follower to the caller.

Method to support deffering an event till later (f.i. in cases where transport()->wait_strategy()->can_process_upcalls() returns false).

A leader thread is relinquishing its role, unless there are more leader threads running pick up a follower (if there is any) to play the leader role.

Remove a follower from the Followers set and promote it to the leader role. This is a helper routine for elect_new_leader(), after verifying that all the pre-conditions are satisfied the Follower set is changed and the promoted Follower is signaled.

Checks if there are any followers available.

Returns:
true if there follower set is not empty

Shortcut to obtain the TSS resources of the orb core.

bool TAO_Leader_Follower::has_clients ( void  ) const

Check if there are any client threads running.

Checks if we are a leader thread.

Is there any thread running as a leader?

Get a reference to the underlying mutex.

Called when we are out of leaders.

Accesor to the reactor.

The caller has finished using a follower.

Removes a follower from the leader-follower set.

The current thread is no longer the leader thread in the client side leader-follower set.

A server thread has finished is making a request.

The current thread is not a server thread anymore, reset any flags and counters.

Implement the reset_event_loop_thread() method, once the TSS resources have been acquired. Also used in the set_upcall_thread.

Method to allow the Leader_Follower to resume deferred events when it is opportune to do so.

Provide a pre-initialized reverse lock for the Leader/Followers set. The Leader/Followers set mutex must be release during some long running operations. This helper class simplifies the process of releasing and reacquiring said mutex.

The current thread has become the leader thread in the client side leader-follower set.

Sets the thread ID of the leader thread in the leader-follower model

A server thread is making a request.

The current thread has become a server thread (i.e. called ORB::run), update any flags and counters.

Set the new leader generator.

This thread is going to perform an upcall, it will no longer be an event loop thread.

Wait for the client leader to complete.

int TAO_Leader_Follower::wait_for_event ( TAO_LF_Event event,
TAO_Transport transport,
ACE_Time_Value max_wait_time
)

Wait on the Leader/Followers loop until one event happens.

Parameters:
eventThe event we wait for, the loop iterates until the event is successful, or it fails due to timeout, and error or a connection closed.
transportThe transport attached to the event
max_wait_timeLimit the time spent on the loop
Returns:
Returns -1 on error, 0 or non-zero value otherwise.
Todo:
Document this better, split the Follower code to the TAO_LF_Follower class, we probably don't need the transport object.

There should be no reason to reset the value of result here. If there was an error in handle_events () that the leader saw, I (Bala) believe it should be propagated to the clients. result = 0;


Member Data Documentation

Is a client thread the current leader?

Count the number of active clients, this is useful to know when to deactivate the reactor

Condition variable for server threads waiting for the client leader to complete.

Are server threads waiting for the client leader to complete?

Use a free list to allocate and release Follower objects.

Count the number of active leaders. There could be many leaders in the thread pool (i.e. calling ORB::run), and the same leader could show up multiple times as it receives nested upcalls and sends more requests.

To synchronize access to the members.

Leader/Follower class uses this method to notify the system that we are out of leaders.

The orb core.

The reactor.

Do protect the access to the following three members.


The documentation for this class was generated from the following files:
