TAO::Profile_Transport_Resolver Class Reference

Chooses the profile and a transport for a target object on which an invocation can be made. More...

#include <Profile_Transport_Resolver.h>

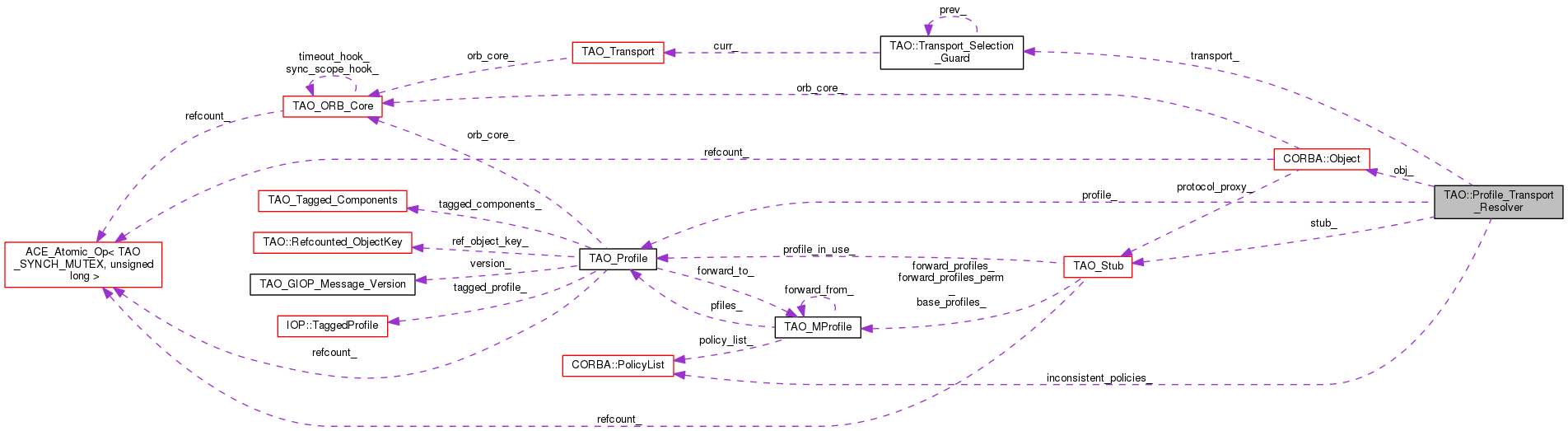

Collaboration diagram for TAO::Profile_Transport_Resolver:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 Profile_Transport_Resolver (CORBA::Object *p, TAO_Stub *stub, bool block=true)
 Constructor.
 ~Profile_Transport_Resolver (void)
void resolve (ACE_Time_Value *val)
 Method where the bunch of the action takes place.
void transport_released (void) const
bool try_connect (TAO_Transport_Descriptor_Interface *desc, ACE_Time_Value *val)
bool try_parallel_connect (TAO_Transport_Descriptor_Interface *desc, ACE_Time_Value *val)
bool use_parallel_connect (void) const
void init_inconsistent_policies (void)
CORBA::PolicyListinconsistent_policies (void) const
CORBA::PolicyListsteal_inconsistent_policies (void)
Accessors and mutators for this class. The following methods

are used by the clients of this class to access strategies and other internal workings.

void profile (TAO_Profile *pfile)
 Mutator for profile.
TAO_Profileprofile (void) const
 Accessor for profile.
TAO_Stubstub (void) const
 Accessor for TAO_Stub.
CORBA::Objectobject (void) const
 Accessor for the target in use.
TAO_Transporttransport (void) const
 Accessor for the transport reserved for this invocation.
int find_transport (TAO_Transport_Descriptor_Interface *)
bool blocked_connect (void) const

Private Member Functions

bool get_connection_timeout (ACE_Time_Value &max_wait_time)
void operator= (const Profile_Transport_Resolver &)
 Profile_Transport_Resolver (const Profile_Transport_Resolver &)
bool try_connect_i (TAO_Transport_Descriptor_Interface *desc, ACE_Time_Value *val, bool parallel)

Private Attributes

CORBA::Objectobj_
 Target object.
TAO_Stubstub_
 Stub object for the target object.
TAO::Transport_Selection_Guard transport_
 The transport selected for this invocation.
TAO_Profileprofile_
 The profile that has been selected for this invocation.
CORBA::PolicyListinconsistent_policies_
 List of inconsistent policies.
bool is_released_
 Has the transport been idle?
bool const blocked_
 Should we block while trying to make a connection.

Detailed Description

Chooses the profile and a transport for a target object on which an invocation can be made.

A target object is represented by multiple profiles, which theoretically provides multiple paths to the same target object. This class helps in choosing the right profile, and pick a transport from cache (or create a new transport if needed) that represents the profile.


Constructor & Destructor Documentation

TAO::Profile_Transport_Resolver::Profile_Transport_Resolver ( CORBA::Object p,
TAO_Stub stub,
bool  block = true
)

Constructor.

With block we tell whether this resolved should always deliver a connection by blocking or unblock before the connection is completely established. Please note that this has nothing to do with the synchronous or asynch connect strategy used for making connections. This is a local flag used by the clients of this to dictate some local behavior.

TAO::Profile_Transport_Resolver::~Profile_Transport_Resolver ( void  )
TAO::Profile_Transport_Resolver::Profile_Transport_Resolver ( const Profile_Transport_Resolver )
private

Member Function Documentation

bool TAO::Profile_Transport_Resolver::blocked_connect ( void  ) const

Accessor to indicate whether we should block while establishing a connection.

int TAO::Profile_Transport_Resolver::find_transport ( TAO_Transport_Descriptor_Interface desc)

See if the transport cache has an available transport and use that one rather than trying to connect via the connector. Separating this functionality enables the look up of many endpoints before trying the more time-consuming trip through the actual connector.

bool TAO::Profile_Transport_Resolver::get_connection_timeout ( ACE_Time_Value max_wait_time)
private

Helper method to access get the connection timeout from the ORB.

CORBA::PolicyList * TAO::Profile_Transport_Resolver::inconsistent_policies ( void  ) const
void TAO::Profile_Transport_Resolver::init_inconsistent_policies ( void  )

Initialize the inconsistent policy list that this object has cached.

CORBA::Object_ptr TAO::Profile_Transport_Resolver::object ( void  ) const

Accessor for the target in use.

void TAO::Profile_Transport_Resolver::operator= ( const Profile_Transport_Resolver )
private
void TAO::Profile_Transport_Resolver::profile ( TAO_Profile pfile)

Mutator for profile.

TAO_Profile * TAO::Profile_Transport_Resolver::profile ( void  ) const

Accessor for profile.

void TAO::Profile_Transport_Resolver::resolve ( ACE_Time_Value val)

Method where the bunch of the action takes place.

This is the entry point from the TAO::Invocation_Adapter class. This method accesses the endpoint selector factory from the ORB_Core to decide on the strategy to be used for selecting the profile.

CORBA::PolicyList * TAO::Profile_Transport_Resolver::steal_inconsistent_policies ( void  )
TAO_Stub * TAO::Profile_Transport_Resolver::stub ( void  ) const

Accessor for TAO_Stub.

TAO_Transport * TAO::Profile_Transport_Resolver::transport ( void  ) const

Accessor for the transport reserved for this invocation.

void TAO::Profile_Transport_Resolver::transport_released ( void  ) const

Signal to let the resolver know that the transport has been released back to the cache.

bool TAO::Profile_Transport_Resolver::try_connect ( TAO_Transport_Descriptor_Interface desc,
ACE_Time_Value val
)

This is a callback method used by the endpoint selectors to delegate the responsibility of reserving a transport from the connection cache for this invocation. When the descriptor contains more than one endpoint (as part of a linked list) and the parallel flag is true then the connector will look for a connection on any of the endpoints if it supports that behavior, otherwise an ENOTSUP errno will be set and the method will return false.

bool TAO::Profile_Transport_Resolver::try_connect_i ( TAO_Transport_Descriptor_Interface desc,
ACE_Time_Value val,
bool  parallel
)
private
bool TAO::Profile_Transport_Resolver::try_parallel_connect ( TAO_Transport_Descriptor_Interface desc,
ACE_Time_Value val
)
bool TAO::Profile_Transport_Resolver::use_parallel_connect ( void  ) const

This method wraps a call to the orb core to see if parallel connection attempts are even desired. This is controlled by the -ORBUseParallelConnects 1|0 commandline option.


Member Data Documentation

bool const TAO::Profile_Transport_Resolver::blocked_
private

Should we block while trying to make a connection.

CORBA::PolicyList* TAO::Profile_Transport_Resolver::inconsistent_policies_
private

List of inconsistent policies.

If current effective policies cause the invocation to raise CORBA::INV_POLICY exception, the conflicting/problematic policies are stored in this list. This is used by

Parameters:
Object::_validate_connectionmethod to inform clients about causes of invocation failure.
Conflicting policies are only stored in this list if
Parameters:
init_inconsistent_policiesmethod has been called prior to the beginning of invocation. This saves extra work of conflicting policies 'logging' when it's not needed.
Note:
We don't use _var with a reason. Using _var would involve including the header file for at least Policy_ForwardC.h, and that is what we precisely want to avoid.
bool TAO::Profile_Transport_Resolver::is_released_
mutableprivate

Has the transport been idle?

CORBA::Object* TAO::Profile_Transport_Resolver::obj_
mutableprivate

Target object.

TAO_Profile* TAO::Profile_Transport_Resolver::profile_
private

The profile that has been selected for this invocation.

TAO_Stub* TAO::Profile_Transport_Resolver::stub_
private

Stub object for the target object.

TAO::Transport_Selection_Guard TAO::Profile_Transport_Resolver::transport_
private

The transport selected for this invocation.

Using the wrapper guard ensures it is available for use with the Transport Current interfaces.


The documentation for this class was generated from the following files:
