import "CCM_NavigationC.h";

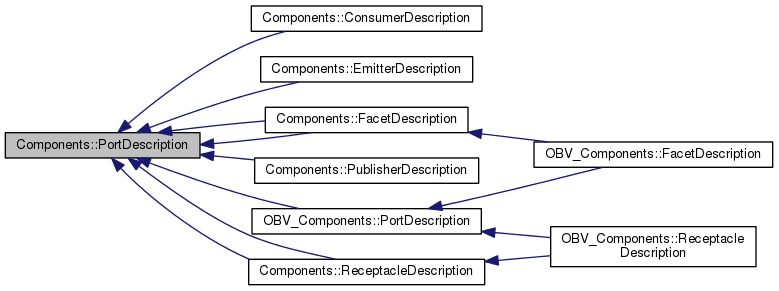

Inheritance diagram for Components::PortDescription:

Public Types
typedef PortDescription *	_ptr_type
typedef PortDescription_var	_var_type
typedef PortDescription_out	_out_type
Public Member Functions
virtual const char *	_tao_obv_repository_id (void) const
virtual void	_tao_obv_truncatable_repo_ids (Repository_Id_List &) const
virtual ::CORBA::TypeCode_ptr	_tao_type (void) const
virtual void	name (char *val)=0
virtual void	name (const char *val)=0
virtual void	name (const ::CORBA::String_var &val)=0
virtual const char *	name (void) const =0
virtual void	type_id (char *val)=0
virtual void	type_id (const char *val)=0
virtual void	type_id (const ::CORBA::String_var &val)=0
virtual const char *	type_id (void) const =0
Static Public Member Functions
static void	_tao_any_destructor (void *)
static PortDescription *	_downcast (::CORBA::ValueBase *v)
::CORBA::Boolean	_tao_unmarshal (TAO_InputCDR &strm, PortDescription *&new_object)
	TAO extensions or internals.
static const char *	_tao_obv_static_repository_id (void)
Public Attributes
public FeatureName	name
public CORBA::RepositoryId	type_id
Protected Member Functions
	PortDescription (void)
virtual	~PortDescription (void)
virtual ::CORBA::Boolean	_tao_marshal_v (TAO_OutputCDR &) const
virtual ::CORBA::Boolean	_tao_unmarshal_v (TAO_InputCDR &)
virtual ::CORBA::Boolean	_tao_match_formal_type (ptrdiff_t) const
virtual ::CORBA::Boolean	_tao_marshal__Components_PortDescription (TAO_OutputCDR &, TAO_ChunkInfo &) const =0
virtual ::CORBA::Boolean	_tao_unmarshal__Components_PortDescription (TAO_InputCDR &, TAO_ChunkInfo &)=0
Private Member Functions
	PortDescription (const PortDescription &)
void	operator= (const PortDescription &)

Member Typedef Documentation

typedef PortDescription_out Components::PortDescription::_out_type

Reimplemented in Components::FacetDescription, and Components::ReceptacleDescription.

typedef PortDescription* Components::PortDescription::_ptr_type

Reimplemented in Components::FacetDescription, and Components::ReceptacleDescription.

typedef PortDescription_var Components::PortDescription::_var_type

Reimplemented in Components::FacetDescription, and Components::ReceptacleDescription.

Constructor & Destructor Documentation

Components::PortDescription::PortDescription ( void )

protected

Code generated by the The ACE ORB (TAO) IDL Compiler v2.1.1 TAO and the TAO IDL Compiler have been developed by: Center for Distributed Object Computing Washington University St. Louis, MO USA http://www.cs.wustl.edu/~schmidt/doc-center.html and Distributed Object Computing Laboratory University of California at Irvine Irvine, CA USA and Institute for Software Integrated Systems Vanderbilt University Nashville, TN USA http://www.isis.vanderbilt.edu/

Information about TAO is available at: http://www.cs.wustl.edu/~schmidt/TAO.html

Reimplemented in OBV_Components::PortDescription.

Components::PortDescription::~PortDescription ( void )

protectedvirtual

Reimplemented in OBV_Components::PortDescription.

Components::PortDescription::PortDescription ( const PortDescription & )

private

Member Function Documentation

Components::PortDescription * Components::PortDescription::_downcast ( ::CORBA::ValueBase * v )

static

Reimplemented in Components::FacetDescription, and Components::ReceptacleDescription.

void Components::PortDescription::_tao_any_destructor ( void * _tao_void_pointer )

static

Reimplemented in Components::FacetDescription, and Components::ReceptacleDescription.

virtual ::CORBA::Boolean Components::PortDescription::_tao_marshal__Components_PortDescription	(	TAO_OutputCDR &	,
		TAO_ChunkInfo &
	)		const

protectedpure virtual

Implemented in OBV_Components::PortDescription.

CORBA::Boolean Components::PortDescription::_tao_marshal_v ( TAO_OutputCDR & strm ) const

protected

Reimplemented in Components::FacetDescription, and Components::ReceptacleDescription.

CORBA::Boolean Components::PortDescription::_tao_match_formal_type ( ptrdiff_t formal_type_id ) const

protected

Reimplemented in Components::FacetDescription, and Components::ReceptacleDescription.

const char * Components::PortDescription::_tao_obv_repository_id ( void ) const

virtual

Reimplemented in Components::FacetDescription, and Components::ReceptacleDescription.

const char * Components::PortDescription::_tao_obv_static_repository_id ( void )

static

Reimplemented in Components::FacetDescription, and Components::ReceptacleDescription.

void Components::PortDescription::_tao_obv_truncatable_repo_ids ( Repository_Id_List & ids ) const

virtual

Reimplemented in Components::FacetDescription, and Components::ReceptacleDescription.

CORBA::TypeCode_ptr Components::PortDescription::_tao_type ( void ) const

Reimplemented in Components::FacetDescription, and Components::ReceptacleDescription.

CORBA::Boolean Components::PortDescription::_tao_unmarshal	(	TAO_InputCDR &	strm,
		PortDescription *&	new_object
	)

static

TAO extensions or internals.

virtual ::CORBA::Boolean Components::PortDescription::_tao_unmarshal__Components_PortDescription	(	TAO_InputCDR &	,
		TAO_ChunkInfo &
	)

protectedpure virtual

Implemented in OBV_Components::PortDescription.

CORBA::Boolean Components::PortDescription::_tao_unmarshal_v ( TAO_InputCDR & strm )

protected

Reimplemented in Components::FacetDescription, and Components::ReceptacleDescription.

virtual void Components::PortDescription::name ( char * val )

pure virtual

Implemented in OBV_Components::PortDescription.

virtual void Components::PortDescription::name ( const char * val )

pure virtual

Implemented in OBV_Components::PortDescription.

virtual void Components::PortDescription::name ( const ::CORBA::String_var & val )

pure virtual

Implemented in OBV_Components::PortDescription.

virtual const char* Components::PortDescription::name ( void ) const

pure virtual

Implemented in OBV_Components::PortDescription.

void Components::PortDescription::operator= ( const PortDescription & )

private

virtual void Components::PortDescription::type_id ( char * val )

pure virtual

Implemented in OBV_Components::PortDescription.

virtual void Components::PortDescription::type_id ( const char * val )

pure virtual

Implemented in OBV_Components::PortDescription.

virtual void Components::PortDescription::type_id ( const ::CORBA::String_var & val )

pure virtual

Implemented in OBV_Components::PortDescription.

virtual const char* Components::PortDescription::type_id ( void ) const

pure virtual

Implemented in OBV_Components::PortDescription.

Member Data Documentation

public FeatureName Components::PortDescription::name

public CORBA::RepositoryId Components::PortDescription::type_id

The documentation for this class was generated from the following files:
