ACEXML_NamespaceSupport Class Reference

ACEXML_NamespaceSupport provides namespace management operation for an XML parser. More...

#include <ACEXML/common/NamespaceSupport.h>

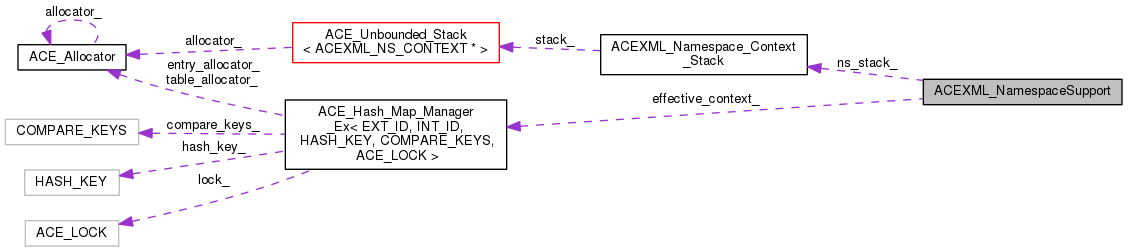

Collaboration diagram for ACEXML_NamespaceSupport:
Collaboration graph

List of all members.

Public Member Functions

 ACEXML_NamespaceSupport (void)
 ~ACEXML_NamespaceSupport (void)
int init (void)
int declarePrefix (const ACEXML_Char *prefix, const ACEXML_Char *uri)
int getDeclaredPrefixes (ACEXML_STR_LIST &prefixes) const
const ACEXML_ChargetPrefix (const ACEXML_Char *uri) const
int getPrefixes (ACEXML_STR_LIST &prefixes) const
int getPrefixes (const ACEXML_Char *uri, ACEXML_STR_LIST &prefixes) const
const ACEXML_ChargetURI (const ACEXML_Char *prefix) const
int popContext (void)
int processName (const ACEXML_Char *qName, const ACEXML_Char *&uri, const ACEXML_Char *&name, int is_attribute) const
int pushContext (void)
int reset (void)

Static Public Attributes

static const ACEXML_CharXMLNS = ACEXML_XMLNS_URI_name

Private Attributes

ACEXML_Namespace_Context_Stack ns_stack_

Detailed Description

ACEXML_NamespaceSupport provides namespace management operation for an XML parser.

This class encapsulates the logic of Namespace processing: it tracks the declarations currently in force for each context and automatically processes qualified XML 1.0 names into their Namespace parts; it can also be used in reverse for generating XML 1.0 from Namespaces.

Namespace support objects are reusable, but the reset method must be invoked between each session.

Here is a simple session (in Java :-p):

  String parts[] = new String[3];
  NamespaceSupport support = new NamespaceSupport();

  support.declarePrefix("", "");
  support.declarePrefix("dc", "");

  String parts[] = support.processName("p", parts, false);
  System.out.println("Namespace URI: " + parts[0]);
  System.out.println("Local name: " + parts[1]);
  System.out.println("Raw name: " + parts[2]);

  String parts[] = support.processName("dc:title", parts, false);
  System.out.println("Namespace URI: " + parts[0]);
  System.out.println("Local name: " + parts[1]);
  System.out.println("Raw name: " + parts[2]);


Note that this class is optimized for the use case where most elements do not contain Namespace declarations: if the same prefix/URI mapping is repeated for each context (for example), this class will be somewhat less efficient.

See also:

Constructor & Destructor Documentation

Default constructor.

Default destructor.

Member Function Documentation

int ACEXML_NamespaceSupport::declarePrefix ( const ACEXML_Char prefix,
const ACEXML_Char uri

Declare a Namespace prefix. Return -1 if the prefix was illegal or an internal error occured. Return 0 if the prefix gets declared successfully, 1 if the prefix replaces an existing prefix definition.

Return all prefixes declared in current context in the user-supplied list prefixes. It is user's reponsibility to ensure the list was empty originally.

Return one of the prefixes mapped to a Namespace URI.

Return all prefixes currently declared in the user-supplied list. @ Known bug: This function should only return user-defined prefixes.

int ACEXML_NamespaceSupport::getPrefixes ( const ACEXML_Char uri,
) const

Return all prefixes currently declared for a URI in the user-supplied list.

const ACEXML_Char * ACEXML_NamespaceSupport::getURI ( const ACEXML_Char prefix) const

Look up a prefix and get the currently-mapped Namespace URI.

Initialize the namespace support object

Revert to the previous namespace context.

int ACEXML_NamespaceSupport::processName ( const ACEXML_Char qName,
const ACEXML_Char *&  uri,
const ACEXML_Char *&  name,
int  is_attribute
) const

Process a raw XML 1.0 name. qName is the raw XML name we want to parse, uri contains the URI string of the raw name. It points to a null string if the namespace is not valid or there's no namespace defined. name contains the original name without the prefix. is_attribute specifies whether the name is an attribute or not. Attributes have different scoping rules from elements.

Start a new Namespace context. Prefixes defined in previous context are copied over to the new context.

Reset this Namespace support object for reuse.

Member Data Documentation

The effective namespace context.

Namespace Context stack. When we entering a new namespace context, the old context is duplicated and pushed into this stack.

XMLNS default prefix and URI strings.

The documentation for this class was generated from the following files:
